RM100DZ-M Mitsubishi: 400V 100A Isolated Diode Module for Reliable Industrial Rectification

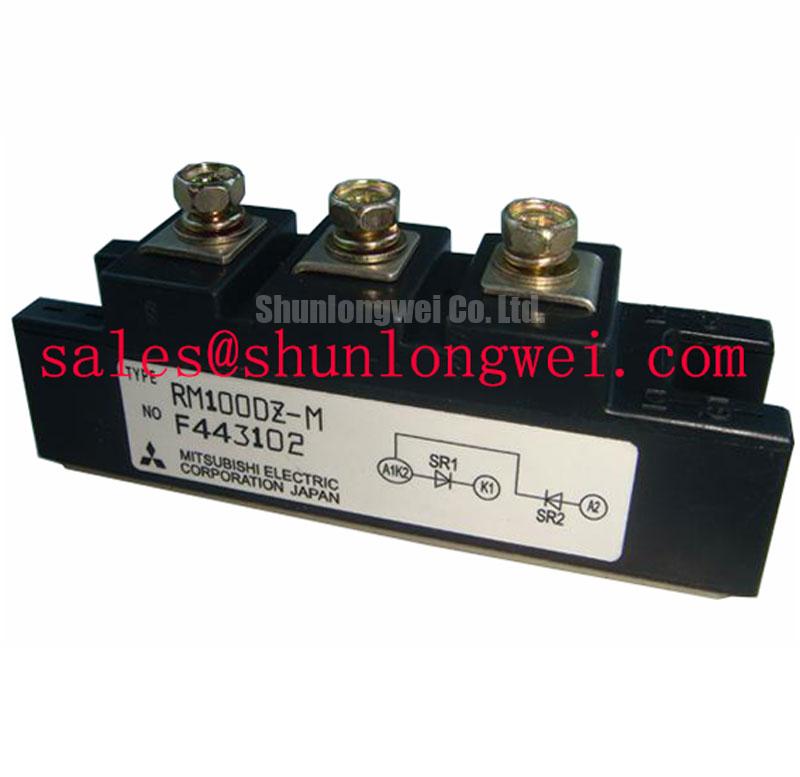

The RM100DZ-M by Mitsubishi is a high-power, general-use insulated Diode Module specifically designed to deliver reliable thermal management and high surge endurance for industrial rectifier stages. Engineered with a dual-diode (double arms) configuration, it provides core specifications of 400V repetitive peak reverse voltage, 100A average forward current, and a robust 2500V isolation voltage. What makes the RM100DZ-M highly reliable for motor drives? It safely absorbs massive inrush currents during system startup. For 200V-class motor controllers requiring shared heatsink designs, this 400V 100A isolated module is the optimal choice.
Application Scenarios & Value
Mastering Inrush Currents in Heavy-Duty Power Conversion
Engineers often face significant challenges when designing input rectification stages for high-load industrial systems. When starting a heavy-duty motor, the initial inrush current can easily exceed the steady-state load by an order of magnitude. The RM100DZ-M is engineered specifically to withstand these punishing conditions. By providing a massive 2000A surge current rating (I_FSM), this module prevents diode degradation during harsh power-up sequences.
In standard AC motor controller and uninterruptible power supply (UPS) applications, space constraints frequently dictate that the rectifier and the active switching components share a single thermal management block. The 2500V isolation voltage of the baseplate ensures that the rectifier safely resides alongside high-voltage components without risking grounding faults, even in advanced topologies like an active front end (AFE). While this module is ideal for 200V-class lines, systems requiring higher voltage overhead for 400V AC grid operations often utilize the related RM100DZ-H, which offers an 800V rating.
Technical Deep Dive
Analyzing Thermal Architecture and Surge Resilience
The internal construction of the RM100DZ-M relies on a rugged double-arm semiconductor configuration mounted on a high-grade insulated baseplate. To understand its efficiency, think of the isolated baseplate as a thermal superhighway combined with an electrical fortress: it rapidly evacuates junction heat to the external heatsink while maintaining a strict dielectric barrier. This streamlined thermal management preserves the 100A average forward current capability even under continuous industrial workloads.
Furthermore, the silicon die area is optimized to yield a high I²t fusing value of 1.7 x 10^4 A²s. In engineering terms, this parameter acts like a massive shock absorber on a heavy commercial vehicle. It gives the system's protective semiconductor fuses ample time to clear a downstream dead short before the diode junction itself is compromised, drastically improving overall lifecycle reliability and easing the coordination of protection circuitry.
Key Parameter Overview
Decoding the Specs for Enhanced Rectifier Reliability
| Technical Specification | Value | Engineering Interpretation |
|---|---|---|
| Repetitive Peak Reverse Voltage (V_RRM) | 400V | Provides sufficient voltage blocking overhead for standard 200VAC industrial grid rectification. |
| Average Forward Current (I_F(AV)) | 100A | Ensures continuous, stable power delivery for mid-range industrial motor drives and power supplies. |
| Surge Forward Current (I_FSM) | 2000A | Guarantees robust survival against sudden line surges and heavy capacitive inrush loads during startup. |
| Isolation Voltage (V_iso) | 2500V | Allows safe, direct mounting onto grounded heatsinks alongside other power semiconductors. |
Download the RM100DZ-M datasheet for detailed specifications and performance curves.
Frequently Asked Questions
Engineering Queries on the RM100DZ-M Rectifier
- What makes the RM100DZ-M suitable for shared heatsink topologies?
The baseplate is electrically isolated from the active diode junctions with a 2500V isolation voltage rating. This allows engineers to bolt the module directly to the same heatsink used by high-frequency inverters, saving footprint space and cooling costs. - How does the 2000A surge rating directly impact system design?
It significantly relaxes the physical and thermal requirements for soft-start circuitry. The diode can independently handle the immense transient currents required to charge large DC-link capacitors during initial power-up. - What is the maximum operating junction temperature for this diode module?
The device is rated for a maximum junction temperature of 150°C, providing a wide thermal safety margin for continuous operation in high-ambient industrial environments. - How should engineers interpret the 1.7 x 10^4 A²s rating?
This I²t value defines the specific thermal energy the diode can withstand before catastrophic failure. It is the critical metric used to select appropriate fast-acting fuses to protect the system during short-circuit events. - Can this module be used in standard DC battery power supplies?
Yes, the robust dual-diode structure and 400V blocking capability make it highly effective for building the input rectifier bridges required in large-scale industrial battery charging systems.
