Assembly Integrity & Layout Architecture: Implementing Antiparallel Freewheeling Diode Reverse Recovery for SEMIX253GD126HDC

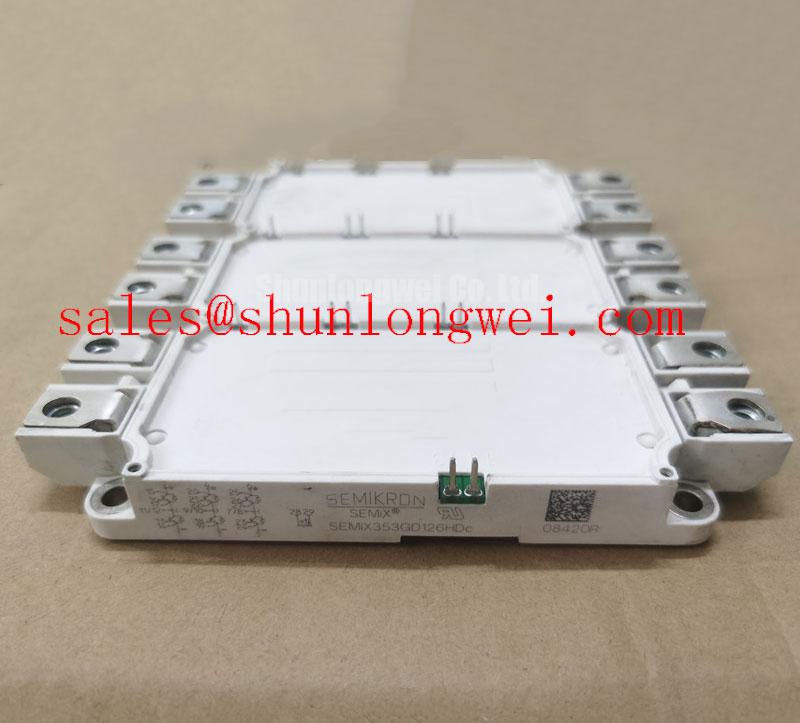

With the inverter isolated and the DC link discharged, check the power terminals for unintended conduction and compare the gate-to-emitter path with a known-good unit before connecting the driver. The Semikron SEMIX253GD126HDC is specified at VCES = 1200 V and supports a continuous collector current of 190 A at TC = 80 °C, with the stated junction-temperature condition of Tj = 150 °C. These are device ratings, not permission to bypass the inverter’s switching, thermal, or protection limits.
The module’s antiparallel freewheeling path should be evaluated as part of the complete commutation loop. During hard commutation, reverse-recovery current can overlap with the opposing IGBT turn-on current. A sharp recovery transition may increase voltage overshoot, common-mode disturbance, and gate-driver susceptibility. The practical objective is to minimize the high-current commutation loop, place the DC-link absorbing network close to the switching path, and verify the resulting collector-emitter waveform under the actual bus voltage and load current.
A metal-oxide varistor can be considered as one element of the overvoltage coordination network, but its clamping behavior must be matched to the DC-link architecture and the energy available during a fault or switching event. An RC snubber may be used for higher-frequency transient damping where the measured waveform shows ringing. The snubber, MOV, bus capacitor, and module terminals should be treated as one coordinated network rather than as independent accessories. Final component values remain system-determined and should be validated with an appropriately rated differential probe.
Keep the gate-drive return physically associated with the emitter reference used by the driver. The power-current return path should not share a long, narrow trace with the gate signal return. Common-mode ground bounce can appear as a false gate signal, especially when the freewheeling path produces a high di/dt transition. A negative turn-off bias may be considered by the system designer where the selected gate driver and insulation arrangement support it; the applicable voltage must come from the driver design and the module’s gate-emitter limit of VGES = ±20 V.
For incoming inspection, use an antistatic workstation, keep the module unpowered, and confirm terminal identity from the mechanical drawing before applying any meter test. A diode-test reading across a power path can be influenced by the meter’s test current and by parallel semiconductor paths, so it should be used for comparative screening rather than treated as a universal acceptance threshold. If a reading differs materially from the reference unit, repeat the test with the leads reversed and inspect the driver isolation, terminal cleanliness, and connected snubber network.
Clearance and creepage around the high-voltage terminals must be designed for the actual working voltage, pollution environment, insulation group, and enclosure. The stated 4000 V AC isolation voltage for one minute is an official isolation specification; it does not replace the insulation coordination analysis for the finished inverter. Avoid routing low-voltage control wiring alongside the collector or DC-link conductors, and keep shield termination decisions consistent with the cabinet’s protective-earth and common-mode current strategy.
Benchtop Waveform Tuning: Mitigating Stress via Managing High-C-Rate Battery Cycling Swing on SEMIX253GD126HDC
During battery charge and discharge testing, observe the switching node while the converter moves through both power-flow directions. A commercial string inverter or micro-grid energy-storage converter can expose the module to changing current direction, changing modulation patterns, and repeated thermal excursions. The 260 A continuous collector-current rating at TC = 25 °C and the 190 A rating at TC = 80 °C show why the case reference temperature must be recorded with the electrical test data.
The stated VCE(sat) = 1.7 V typical at Tj = 25 °C at chip level can help establish a baseline for conduction-loss assessment under the datasheet’s current and gate-voltage test conditions, but it should not be converted directly into a full-system loss figure. Gate resistance, switching frequency, current waveform, junction temperature, commutation inductance, and modulation strategy all affect the measured result. When tuning the gate network, adjust turn-on and turn-off behavior while checking collector-emitter overshoot, gate voltage stability, and switching loss together.
A high-speed semiconductor fuse should be coordinated with the converter’s fault-clearing architecture. The fuse’s I2t characteristic, prospective fault current, DC voltage rating, and clearing behavior must be compared with the module’s transient current capability. The published repetitive peak collector current is ICRM = 300 A for tp = 1 ms; it is not a substitute for a complete short-circuit withstand specification or a fuse coordination study.
For a four-quadrant bench sequence, record the DC-link voltage, battery-side current, phase current, heat-sink temperature, gate waveform, and switching-node waveform in the same test record. A current-sensor bandwidth limitation can hide commutation peaks. A fluxgate-based current transducer is one possible measurement approach for low-drift DC and bidirectional current observation; see this fluxgate magnetometer sensor reference for background on the sensing principle, rather than current-transducer performance specifications.
| Parameter | SEMIX253GD126HDC |
|---|---|
| Manufacturer | Semikron |
| Product category | IGBT module |
| Collector-emitter voltage | 1200 V |
| Continuous collector current | 190 A at TC = 80 °C; 260 A at TC = 25 °C |
| Repetitive peak collector current | 300 A for 1 ms |
The linked SKM300GB12T4 can serve as a neutral reference during a replacement review, but electrical topology, mechanical dimensions, terminal arrangement, gate characteristics, thermal interface, and switching performance must be checked independently. Matching voltage and current labels alone is not sufficient for a drop-in decision.
SEMIX253GD126HDC Circuit Protection & Reliability: Calibrating Derating Guidelines and Mismatched Parameters
Use the positive temperature behavior commonly associated with IGBT saturation voltage as a design consideration for static current-sharing analysis, but establish the actual sharing behavior through matched gate-drive wiring and measured temperature conditions. Parallel paths need symmetrical power impedance and closely controlled gate-loop geometry. Unequal emitter inductance can produce different dynamic gate voltages even when the driver outputs appear identical at the board connector.
The module specifies Rth(j-c) = 0.14 K/W per IGBT. This value belongs to the junction-to-case thermal path and should be used with the specified case reference and the system’s thermal interface model. Thermal paste thickness, mounting flatness, heatsink airflow, clamping pressure, and temperature-sensor placement influence the final junction-temperature estimate. Do not use the case rating as a direct substitute for a measured or validated heatsink design.
When a replacement is being evaluated for a photovoltaic string inverter or battery-storage power stage, compare the original module’s electrical topology, terminal spacing, gate-emitter pin arrangement, isolation construction, and thermal mounting interface. The SKM400GB066D may be encountered as another IGBT power-stage reference, but it should not be treated as an interchangeable substitute without a complete electrical-rating, circuit, and mechanical review.
Protection coordination should include the DC-link pre-charge path, semiconductor fuse, MOV network, gate-driver desaturation or overcurrent response, and controller shutdown behavior. A protection threshold that is suitable for one bus impedance or switching speed can be unsuitable for another. The system engineer should verify the peak collector-emitter voltage during switching tests and compare it with the official 1200 V VCES rating while accounting for measurement uncertainty.
💡 Bench Tip: Keep the module and reference unit at the same cold-state temperature, use ESD protection, and record the meter polarity before comparing diode-test or gate-path readings.
For long-duration cycling, correlate electrical loss with case temperature rather than relying only on a controller’s estimated temperature. Repeated high-current battery cycling can create thermal swings that are not visible in a short functional test. The appropriate cycling profile, allowable temperature excursion, and service-life target are system requirements and require qualification data from the complete assembly.
Design documentation for the gate loop, power loop, and thermal stack should be kept with the incoming inspection record. The IGBT Design & Integration resource provides a related reference for gate-drive, thermal-management, and circuit-topology considerations.
Transient Dynamics & Electrical Design: Mitigating Hard Switching Transients on SEMIX253GD126HDC
Hard-switching transients should be handled by controlling the gate-drive trajectory, limiting parasitic loop inductance, and verifying the collector-emitter peak under the worst credible operating condition. The module’s 1200 V collector-emitter rating and ±20 V gate-emitter rating define important electrical boundaries, while the actual transient margin depends on bus layout, load current, commutation path, gate resistance, driver supply behavior, and probe placement.
For type-I and type-II short-circuit protection, the gate driver should be assessed against the converter’s required detection interval, including any sub-10 µs system target. That timing is a protection-system requirement, not an official SEMIX253GD126HDC rating, and the complete fault-clearing interval must remain within the module’s documented short-circuit capability under the applicable conditions. The test should capture the initial current rise, gate response, driver blanking behavior, and turn-off voltage so that the protection sequence can be distinguished from a normal overload response.
A two-stage soft turn-off strategy may reduce the voltage excursion caused by abruptly interrupting a high-current fault. The first stage can reduce the gate voltage to limit fault current, while the controlled second stage completes turn-off through the gate network selected by the designer. The final profile must be validated against the driver’s gate-current capability, the module’s gate-emitter limit, and the measured collector-emitter overshoot.
When a transient appears only after the cabinet is assembled, inspect the complete current-return path rather than changing the gate resistor immediately. Busbar joints, laminated-bus connections, capacitor mounting, sensor apertures, shield bonding, and cable positioning can alter the commutation loop. Use a properly rated differential probe and a short measurement connection; excessive probe-loop inductance can create ringing that is not present at the semiconductor terminals.
High-voltage insulation also requires attention during transient testing. The specified 4000 V AC isolation voltage for one minute is a module isolation figure, whereas terminal clearance, creepage, contamination, humidity, and enclosure geometry determine the finished equipment’s insulation performance. Keep the gate-driver isolation barrier and control connector away from sharp busbar edges and switching-node copper, and verify the assembled spacing against the applicable equipment insulation standard.
