SKIIP-23NAB126V20 Semikron 1200V 23A IPM Module

Content last revised on October 2, 2026

Incoming Inspection and Identification

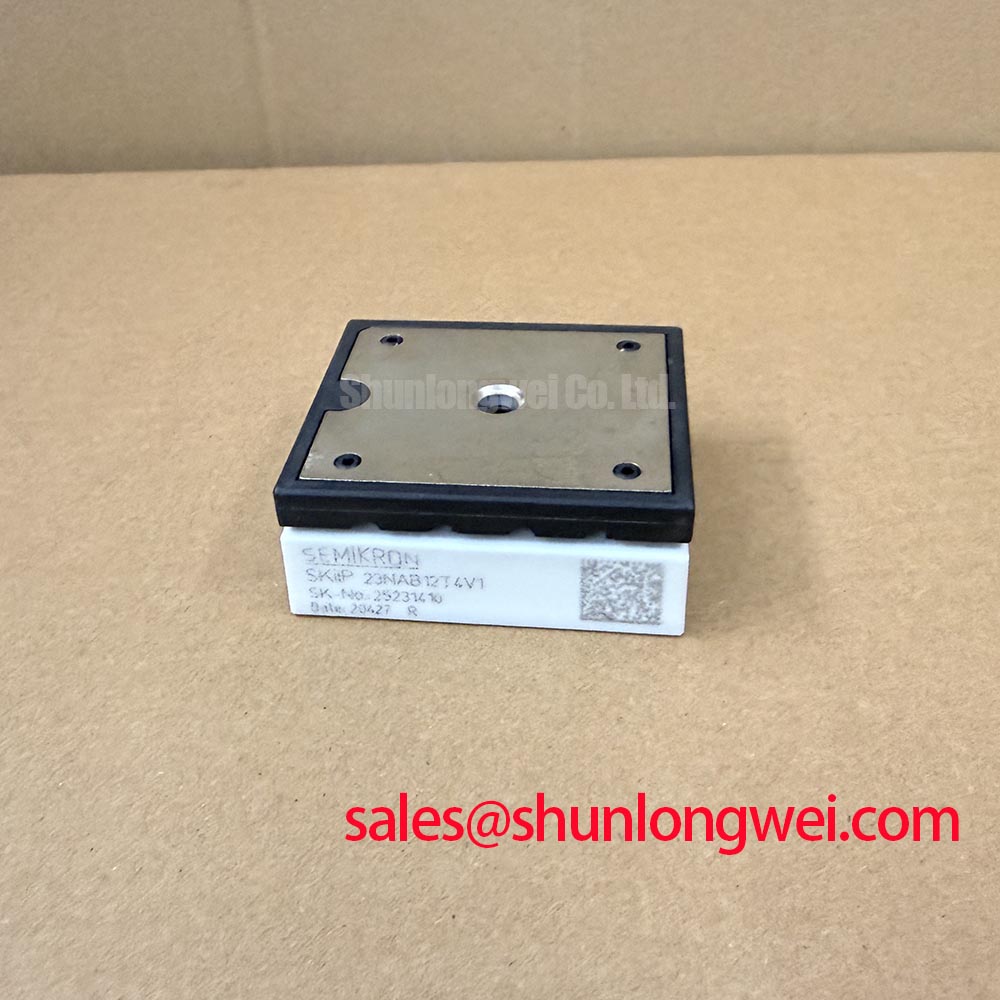

Begin incoming inspection with the module fully isolated and discharged, then verify the marking, package condition, terminal identification, and cold-state resistance relationships before applying any control or power voltage to the SKIIP-23NAB126V20. The supplied manufacturer data identifies this Semikron power module as a 1200 V, 23 A device in a MiniSKiiP / SKiiP package. These are Official Specification values for product identification; gate-drive limits, switching ratings, thermal data, isolation ratings, and terminal assignments should be confirmed against the applicable Semikron documentation for the exact production variant.

For an incoming bench check, use an ESD-controlled workstation and record the cold measurement conditions before comparing the device with a known-good unit of the same part number. A multimeter diode function can help identify expected semiconductor junction behavior between the documented power terminals, but it is not a substitute for the manufacturer’s static test procedure. Do not interpret one diode reading as proof of complete module health. Gate terminals, auxiliary terminals, and power terminals can have different internal paths, and an incorrect probe polarity can produce a misleading result.

The MiniSKiiP format is relevant to service work because the mechanical interface, pressure contact, heatsink arrangement, control connector, and power circuit layout all affect replacement compatibility. The Semikron reference page for Semikron MiniSKiiP power modules provides useful product-line context, while the exact electrical and mechanical requirements remain application-specific. When the module is installed in a light industrial automation inverter or a multi-joint robotic articulator, the system integrator should verify terminal geometry, gate-driver compatibility, cooling arrangement, DC-link voltage, switching frequency, fault protection, and enclosure conditions before commissioning.

Benchtop Waveform Tuning: Mitigating Stress via PCB Symmetry Considerations for Dual IGBT on SKIIP-23NAB126V20

Start waveform work with the power stage disabled and the gate-driver outputs verified independently. The purpose of the first oscilloscope inspection is to establish whether the gate-emitter signal returns through the intended control path rather than through a high-current emitter route. Where the applicable Semikron drawing provides auxiliary emitter or sense-emitter terminals, the driver return should follow that documented low-noise reference. The main emitter current path should remain physically separate from the auxiliary return until the connection point specified by the module and gate-driver design.

This is a Design Consideration, not an additional factory parameter of the SKIIP-23NAB126V20. Shared copper between the power emitter and the driver return can create common-impedance feedback during rapid current change. On the bench, inspect the gate waveform at the module terminals rather than only at the driver output. Compare turn-on and turn-off traces for overshoot, ringing, unequal propagation, and an unexpected shift in the apparent gate reference. If the waveform changes significantly when the DC-link current is increased, investigate emitter coupling, probe-ground inductance, gate-loop routing, and the physical return path before changing the gate resistor.

Keep the high-current commutation path compact and arrange corresponding phase conductors with similar geometry. Symmetry should be assessed from the driver output to the module terminal and from the module terminal back to the driver return. A visually short trace is not necessarily a low-inductance path if it contains narrow necks, connector transitions, or large current-loop area. Designers should also verify creepage and clearance against the working voltage, pollution level, insulation system, and applicable equipment standard rather than applying a universal PCB spacing value.

If two switching paths operate in parallel, match the gate-loop routing and keep the control connections away from the magnetic field of the commutation loop. A difference between otherwise similar gate waveforms may indicate layout asymmetry, unequal connector contact resistance, or a measurement reference problem. Corrective work should be validated with the same probe position, bandwidth setting, load condition, and switching sequence used during the original comparison.

💡 Bench Tip: Discharge the DC link, protect the module and oscilloscope with suitable ESD and overvoltage precautions, and record a cold-state reference before modifying any gate-drive wiring.

SKIIP-23NAB126V20 Operational Boundaries: Evaluating High-Frequency Commutation Loop Inductance Limits

During commutation testing, the key question is whether the measured collector-emitter peak remains within the device and system voltage boundaries under the actual DC-link condition. The relationship between DC-link voltage, stray inductance, and current-change rate explains why a compact loop is valuable: increased parasitic inductance produces a larger transient voltage when current changes quickly. This is an Engineering Calculation framework, not a replacement for the official switching or short-circuit ratings of the module.

The requested value of less than 25 nH should not be treated as a universal SKIIP-23NAB126V20 limit because no such product-specific limit is included in the supplied official parameter set. The required loop inductance is System Determined by the bus voltage, switching conditions, current waveform, semiconductor characteristics, snubber behavior, and measured peak margin. Use a planar or otherwise symmetrical bus structure where practical, minimize the area enclosed by the high-current loop, and validate the result with a properly rated differential probe and a repeatable switching test.

Snubber selection should follow measured transient behavior and the verified pulse-current, voltage, energy, and thermal capability of the selected components. A capacitor value should not be copied from another inverter without checking its effect on turn-on current, losses, resonance, and control stability. If the waveform contains a high-frequency ring, compare the result with and without the intended damping network while confirming that the probe and measurement loop are not creating the apparent oscillation.

Fuse coordination requires the same discipline. The semiconductor fuse I²t clearing characteristic should be compared with the module’s documented surge and short-circuit capability under the intended fault path. This comparison is an Engineering Recommendation and must use the actual fuse curve, DC-link energy, wiring impedance, gate-driver response, and fault-clearing sequence. A fuse that appears suitable from its nominal current rating may not provide the required coordination during a fast inverter fault.

For replacement assessment, the SKIIP37AC12T4V1 can be reviewed as a separate Semikron module in a neutral compatibility study, but its ratings, terminal arrangement, gate behavior, package details, and thermal requirements must be checked independently. It should not be treated as an automatic substitute for the SKIIP-23NAB126V20.

Field Diagnostics & Commissioning: Multi-Module Parallel Current Sharing in SKIIP-23NAB126V20 Topologies

When more than one module participates in a parallel power path, begin commissioning with low-energy switching and measure each branch separately. Check the physical conductor length, terminal pressure, busbar contact surfaces, gate-loop routing, and current-sensor position. Parallel operation is a system topology decision; the supplied product data confirms the 1200 V voltage rating and 23 A current rating for this model but does not by itself authorize a particular parallel configuration or current total.

A positive temperature coefficient of conduction voltage can support static current sharing in some IGBT operating regions, but the result depends on junction temperature, gate drive, current level, device matching, conductor impedance, and cooling symmetry. This is a Design Consideration rather than a guaranteed sharing behavior for every operating point. Engineers should measure branch current and semiconductor temperature under representative load transitions instead of assuming that equal nominal current ratings will produce equal dynamic current.

Dynamic imbalance often appears during turn-on and turn-off before it becomes visible in steady-state temperature measurements. Match the driver signal path, avoid unnecessary differences in connector or trace impedance, and maintain symmetrical power-loop geometry. If one branch shows a different gate waveform or collector-emitter transient, compare the measurement at the module terminals and then inspect the driver return, auxiliary emitter connection where documented, local decoupling, and busbar contact resistance.

A commissioning sequence should include an insulation and continuity check appropriate to the equipment design, a no-load gate-signal check, a controlled DC-link ramp, and staged load testing. The required test voltage and acceptance criteria must come from the equipment safety design and applicable standards. Do not use a resistance measurement alone to claim that the module’s isolation system has passed a production or safety test.

For a robotic articulator or light industrial automation drive, mechanical vibration and repeated thermal cycling can change contact conditions over time. The service engineer should inspect mounting pressure, thermal interface condition, terminal seating, and connector retention according to the original equipment procedure. Any observed current imbalance should be investigated across electrical, thermal, mechanical, and measurement causes rather than assigned to the power module without evidence.

The application-level discussion in The 1200 V CoolSiC™ MOSFET Advantage in Three can provide broader context when comparing switching technologies, but it should not be used as a direct performance claim for this Semikron module.

SKIIP-23NAB126V20 Thermal-Electrical Optimization: Fault-Clearing Dynamics: Type-I/II Desatur Practical Tuning

Desaturation protection should be evaluated as part of the complete gate-driver and power-stage protection chain. A Type I or Type II implementation may use different blanking, detection, filtering, and soft turn-off behavior, so the correct sequence must come from the driver documentation and the equipment safety requirements. The supplied product data does not specify a universal detection time, short-circuit safe operating area, soft turn-off profile, or protection threshold for the SKIIP-23NAB126V20.

The proposed detection interval of less than 10 µs must therefore be treated as a system target requiring source documentation and bench validation, not as an official rating of this model. During testing, verify that the driver recognizes the fault under the intended DC-link condition, pulls the gate down in a controlled manner, reports the fault to the controller, and prevents an immediate automatic restart. Monitor collector-emitter voltage, gate-emitter voltage, fault timing, and the driver supply at the module terminals.

Two-stage soft turn-off can reduce the rate of current interruption and help manage inductive overvoltage, but its actual benefit depends on loop inductance, load current, gate impedance, driver output capability, and the fault energy present at the instant of detection. Designers should tune the sequence from measured waveforms and confirm that the resulting peak voltage remains within the documented device boundary. Avoid selecting a soft turn-off profile solely from a different module family or a different DC-link voltage.

Thermal evaluation should combine semiconductor case or heatsink measurements with electrical loss estimation and switching-waveform review. The package name alone does not define the required heatsink, interface material, airflow, or allowable temperature. Verify the original Semikron thermal data and the equipment cooling design before approving a field replacement. Localized heating may arise from poor mounting, uneven interface pressure, an abnormal gate waveform, current imbalance, or an external bus connection, so the inspection should include all of these possibilities.

Semikron’s general information is available through the Semikron-Danfoss power electronics and modules hub. For procurement and repair records, retain the exact part number, rated voltage, rated current, package designation, applicable datasheet revision, inspection readings, and the equipment interface drawing used for final acceptance.
