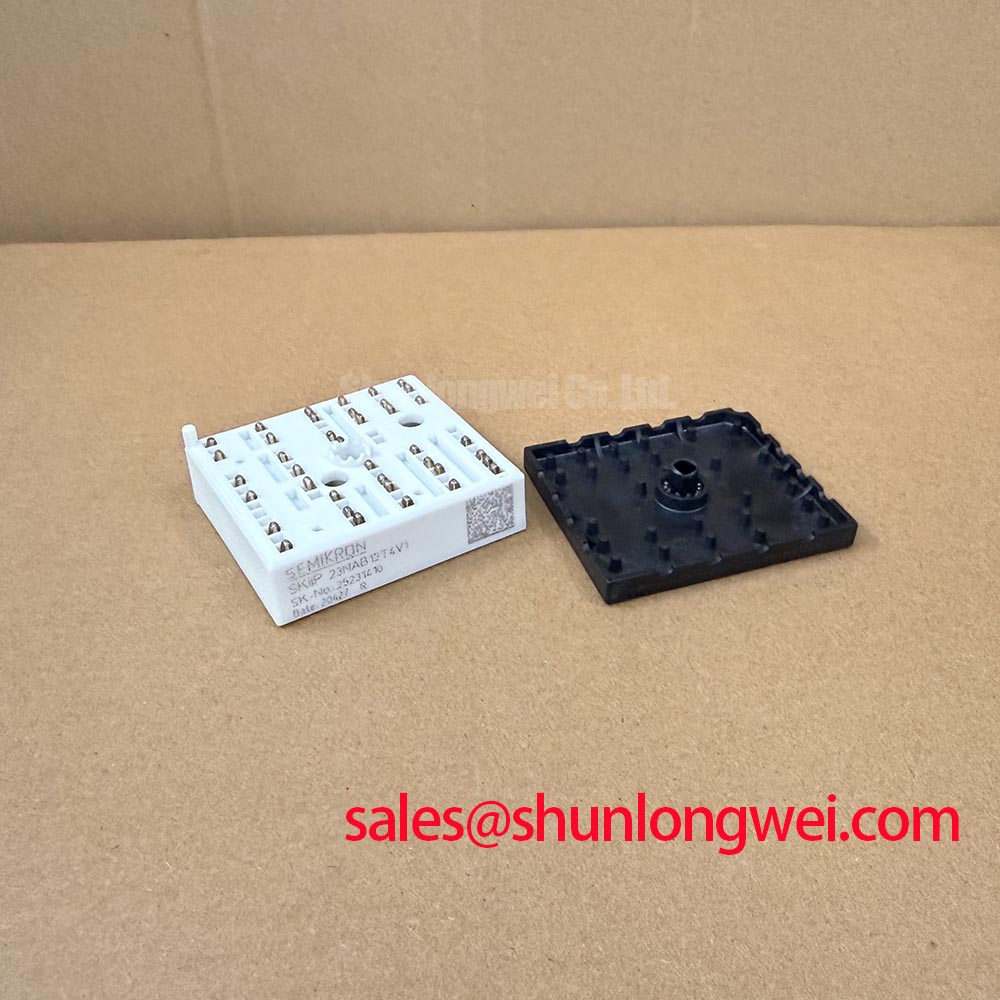

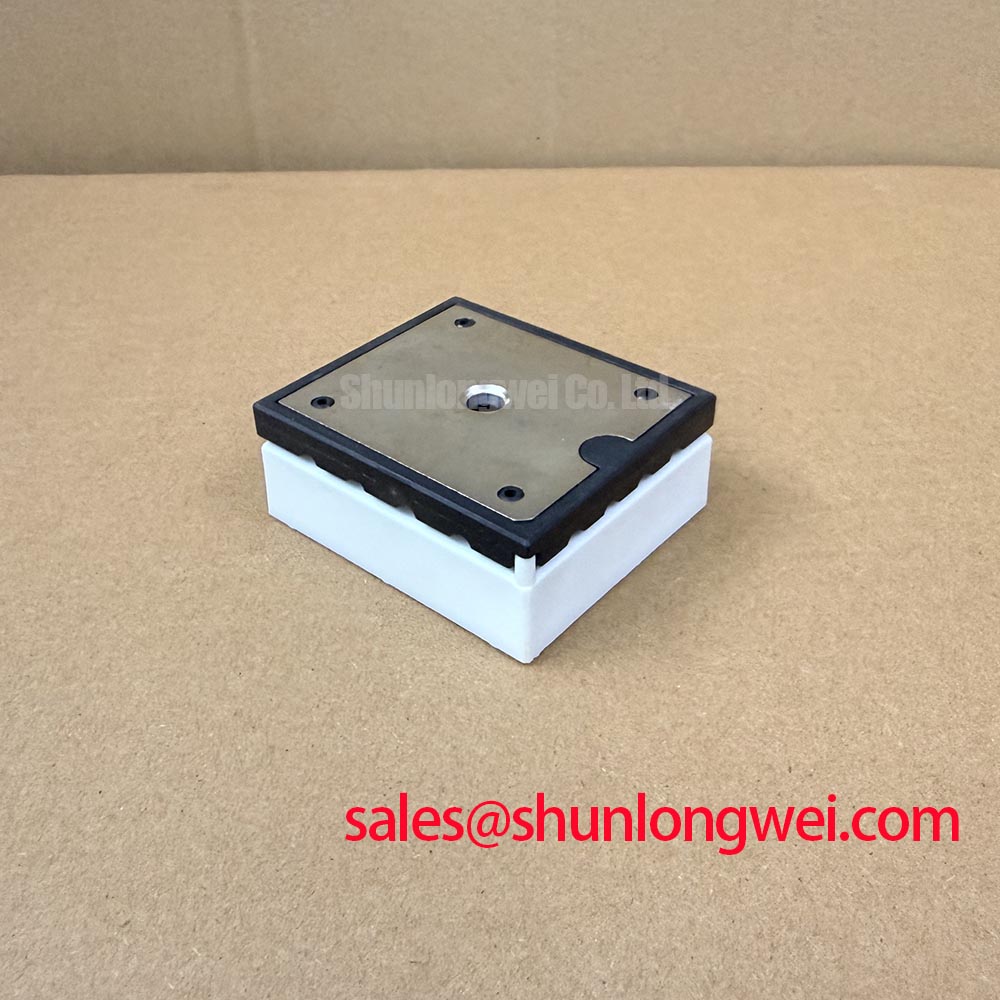

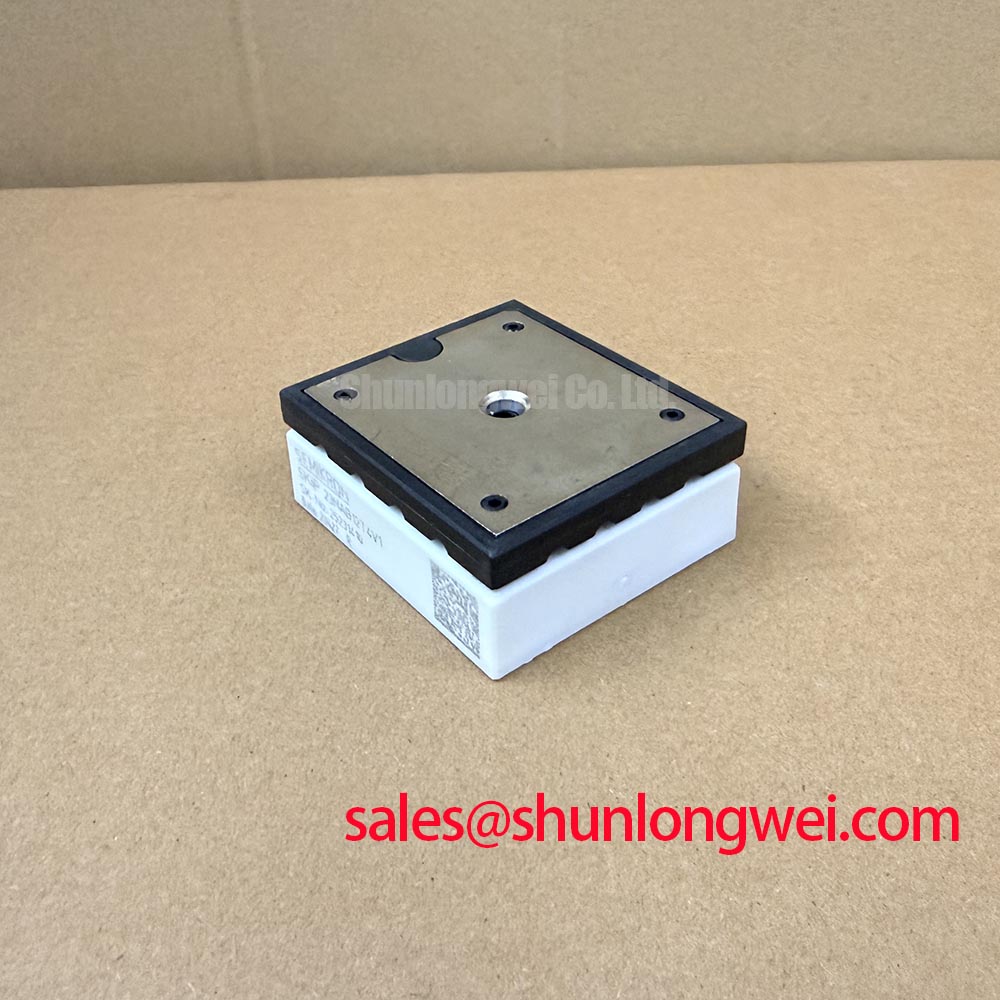

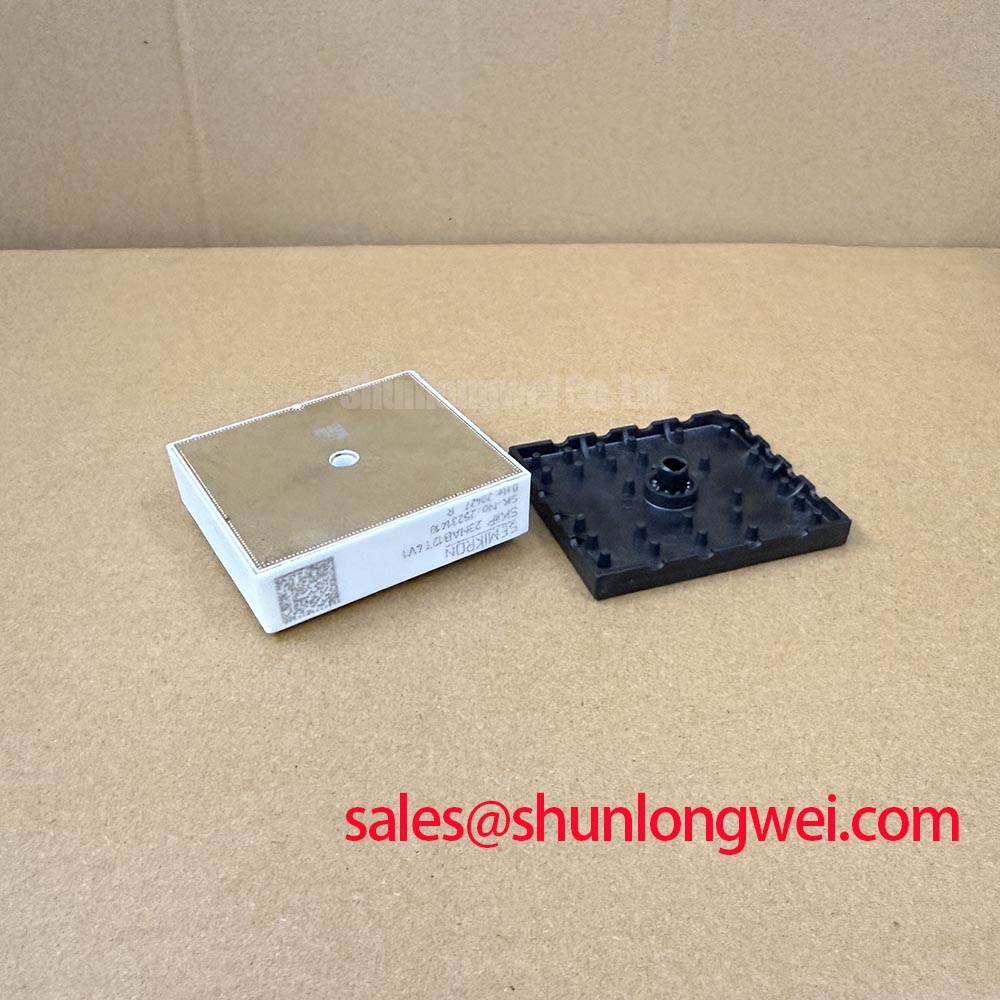

SKiiP 23NAB12T4V1 Semikron 1200V Integrated IPM with Pressure-Contact Technology
Pressure-contact SKiiP 3 IPM delivering solder-free reliability for demanding inverter platforms. 1200V | 150A nominal | Trench 4 IGBT | Integrated driver, sensors, and heatsink. The SKiiP 23NAB12T4V1 answers a common engineering question — how to achieve high power-cycling endurance without sacrificing power density — by eliminating the baseplate and using sintered chip joints. Best fit: 1200V regenerative drives and PV inverters requiring extended thermal cycling life in compact stacks.
Key Parameter Overview
Decoding the Specs Behind SKiiP 3 Pressure-Contact Reliability
| Parameter Group | Specification | Value |
|---|---|---|
| Power Stage | VCES (Collector-Emitter Voltage) | 1200 V |
| ICnom (Nominal Current) | 150 A | |
| Topology | Sixpack + Brake Chopper (NAB) | |
| Chip Technology | IGBT Generation | Infineon Trench 4 (T4) |
| Freewheeling Diode | CAL4 (Soft Recovery) | |
| Integration | Gate Driver | Integrated, isolated, with SC protection |
| Sensors | Phase current + NTC temperature | |
| Cooling | Integrated air-cooled heatsink (P3 size) | |
| Reliability | Joining Technology | Pressure contact, sintered chips, no baseplate |
| Control Supply | VS (Driver) | +24 V DC |
Download the SKiiP 23NAB12T4V1 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Where Thermal Headroom Decides System Lifetime
Engineers designing solar string inverters, regenerative servo drives, and wind pitch converters repeatedly face one constraint: how to push more kilowatts through a fixed enclosure while keeping junction temperatures under control. The SKiiP 23NAB12T4V1 answers this by replacing the traditional copper baseplate with a spring-loaded pressure-contact assembly directly clamped to its integrated heatsink. This removes the largest source of thermal cycling fatigue — the baseplate-to-DBC solder layer.
A practical scenario: a 55 kW PV inverter operating at 690 VDC bus voltage faces daily load cycles from cloud transients. With the SKiiP's sintered chip technology and CAL4 diodes, ΔTj excursions translate directly into longer fatigue life than equivalent soldered modules. The NAB topology (three half-bridges plus brake chopper) also handles regenerative braking energy without an external chopper stage, simplifying the DC link layout.
What is the main reliability advantage of the SKiiP 3 design? The pressure-contact construction eliminates baseplate solder fatigue, the dominant failure mode in conventional modules.
For platforms requiring higher current handling within the same family, the related SKiiP35NAB12T4V1 extends the topology to a larger footprint. For lower-power 1200V designs in similar topology, see the related SKiiP 11NAB12T4V1 and the next-generation SKiiP24NAB12T4V3.
Technical Deep Dive
A Closer Look at Pressure-Contact Construction and Direct Cooling
Conventional IGBT modules stack the silicon die on a DBC ceramic, then solder the DBC to a copper baseplate, which is then thermal-pasted to a heatsink. Each interface adds thermal resistance and a fatigue layer. The SKiiP 23NAB12T4V1 collapses this stack: the DBC presses directly against the heatsink through a spring system, while the chips themselves are silver-sintered to the DBC rather than soldered.
Think of it as the difference between a glued sandwich (solder, which weakens every time it heats up) and a clamped-bolted joint (pressure, which stays mechanically stable for thousands of cycles). The engineering payoff appears in the power cycling capability, where SKiiP modules can sustain significantly more ΔTj cycles than baseplated peers.
Integration also reshapes the BOM. The driver, current sensors, DC-link voltage monitoring, and NTC are all factory-assembled and validated. For designers, this means fewer SMD components on the control PCB and shorter compliance paths for IEC 61800-3 EMC and IEC 62109-1 safety in PV converters. Reference Semikron's SKiiP technology overview for joining-process details.
For broader background on why packaging dictates lifetime, see our guide to IGBT packaging and reliability and the engineer's ultimate IGBT module guide.
Frequently Asked Questions
How does the elimination of the baseplate in SKiiP 23NAB12T4V1 directly affect heatsink interface design?
Without a baseplate, there is no thick copper layer or large solder area to fatigue. The DBC is spring-loaded directly to the heatsink with a thin thermal interface material, reducing Rth(j-s) compared to baseplated equivalents and removing the dominant ΔTc cycling failure path. Heatsink flatness specification becomes the critical mechanical parameter.
What does the NAB suffix mean for the SKiiP 23NAB12T4V1 topology?
NAB designates a three-phase sixpack inverter combined with an integrated brake chopper IGBT. This single module covers both motoring and regenerative braking dissipation paths, eliminating the need for an external chopper module in 1200V drives and PV applications with deceleration loads.
