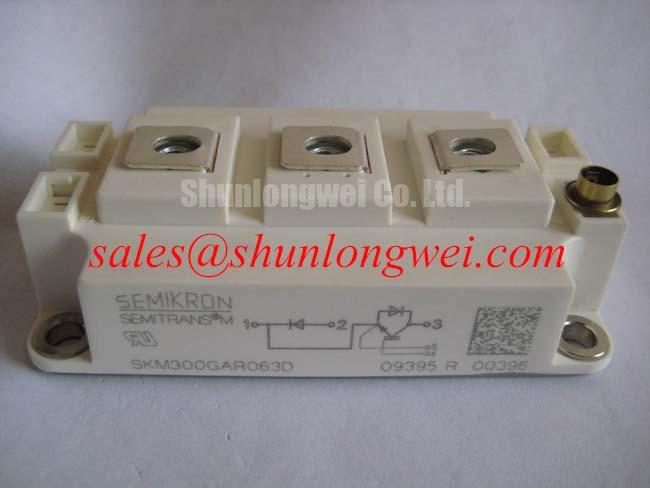

Optimizing Power Conversion Efficiency with the Semikron SKM300GAR063D 600V IGBT Module
The Semikron SKM300GAR063D, part of the legendary SEMITRANS 3 family, represents a high-performance solution for engineers seeking to maximize switching efficiency in high-current DC chopper and boost converter architectures. By integrating a Trench IGBT chip with a 600V collector-emitter voltage and a 300A continuous current rating, this module delivers the thermal stability and low-loss performance required for modern industrial power systems.
Top Specs: 600V | 300A (Tc=80°C) | Vce(sat) 1.45V (typical at 25°C).
Key Benefits: Reduced cooling requirements through low thermal resistance; minimized EMI via soft-switching characteristics.
Search Intent Answer: For engineers asking about high-frequency capability, the SKM300GAR063D utilizes Trench technology to significantly lower Eoff, making it superior for PWM frequencies above 15 kHz compared to older planar designs. For DC choppers requiring high switching frequencies and 600V isolation, the SKM300GAR063D provides the ideal balance of speed and current density.
Application Scenarios & Value
Achieving System-Level Efficiency in High-Frequency DC Chopper Designs
The SKM300GAR063D is specifically configured as a "GAR" module, meaning it features a single IGBT switch with a collector-side freewheeling diode, often utilized in step-up (boost) converters or braking choppers. In an industrial variable frequency drive (VFD), the braking chopper must handle massive energy surges when decelerating high-inertia loads. The 300A current handling and the high I2t rating of the integrated CAL (Controlled Axial Lifetime) diode ensure the module survives repetitive pulsed loads without thermal runaway.
A specific engineering challenge often encountered is managing the DC bus inductance in high-speed switching environments. The SEMITRANS 3 package is designed with low internal inductance, which reduces voltage overshoots during the IGBT turn-off phase. This allows designers to operate closer to the 600V limit without risking dielectric breakdown. While this 600V model is ideal for 200V-400V DC systems, for 690V line applications, the related SKM300GA123D offers a higher voltage rating of 1200V.
Beyond motor control, this module is a staple in uninterruptible power supplies (UPS) and solar battery chargers where efficiency at partial load is critical. The low Vce(sat) of 1.45V translates directly into lower conduction losses, enabling a higher Power Usage Effectiveness (PUE) in data center power trains. By leveraging advanced IGBT module integration, procurement teams can reduce the total bill of materials (BOM) by relying on a single, robust module rather than multiple discrete components in parallel.
Key Parameter Overview
Decoding Technical Specifications for Enhanced System Reliability
The following table outlines the critical electrical and thermal boundaries for the SKM300GAR063D as specified in the official Semikron documentation. Understanding these values is essential for calculating safety margins in harsh industrial environments.
| Symbol | Parameter Description | Value (Typical/Max) | Condition/Context |
|---|---|---|---|
| Vces | Collector-Emitter Voltage | 600V | Tj = 25°C |
| Ic | Continuous Collector Current | 300A | Tc = 80°C |
| Vce(sat) | Saturation Voltage | 1.45V | Ic = 300A, Vge = 15V |
| Eoff | Turn-off Energy Dissipation | 10.5 mJ | Ic = 300A, Vce = 300V |
| Rth(j-c) | Thermal Resistance (IGBT) | 0.13 K/W | Per switch, DC |
| Visol | Isolation Voltage | 2500V | AC, 1 minute |
Download the SKM300GAR063D datasheet for detailed specifications and performance curves.
Technical & Design Deep Dive
The Synergy of Trench Gate Architecture and CAL Diode Technology
The core of the SKM300GAR063D's performance lies in its Trench IGBT structure. Unlike traditional planar IGBTs, which suffer from a parasitic JFET effect that limits current density, the vertical trench gate significantly reduces the channel resistance. This architecture acts like a high-speed elevator system in a skyscraper; it allows more charge carriers (current) to move vertically through the silicon with much less congestion (voltage drop). This is why the module achieves a low Vce(sat) of 1.45V, which is critical for reducing heat generation at high current loads.
Furthermore, the CAL (Controlled Axial Lifetime) diode integrated into the GAR configuration is engineered for "soft recovery." In high-power switching, an abrupt diode turn-off can create severe electromagnetic interference (EMI) and voltage spikes. Think of the CAL diode as a hydraulic shock absorber on a heavy vehicle; it gradually ramps down the current during recovery, protecting the IGBT and reducing the need for massive external snubber circuits. For engineers navigating the IGBT vs MOSFET vs BJT selection process, the SKM300GAR063D provides the high-current density of a BJT with the simple gate drive requirements of a MOSFET, making it the superior choice for high-power industrial rectifiers and choppers.
Frequently Asked Questions
How does the low Rth(j-c) of 0.13 K/W directly impact heatsink selection and system density?
A lower thermal resistance (Rth) means that heat can be moved away from the silicon junction more efficiently. For the SKM300GAR063D, this allows for smaller heatsinks or higher current density within the same physical footprint, which is a decisive factor in compact VFD or servo drive designs.
Is the SKM300GAR063D suitable for high-frequency PWM above 20 kHz?
Yes, the Trench gate technology reduces switching energy losses (Eon and Eoff). While 600V modules are generally faster than 1200V counterparts, designers must still calculate total losses at 20 kHz to ensure the junction temperature (Tj) stays within the 150°C limit under worst-case ambient conditions.
What is the advantage of the GAR (Chopper) configuration over a standard Half-Bridge (GB)?
The GAR configuration is optimized for unidirectional power flow applications like boost converters or DC-to-DC stages. It simplifies the circuit layout and reduces parasitic capacitance compared to using a half-bridge module where one switch would remain unused or underutilized.
Does the 2500V isolation voltage meet international safety standards?
The 2500V AC isolation (Visol) provided by the SEMITRANS package is a standard requirement for industrial equipment, ensuring that the high-power DC bus remains electrically separated from the control logic and the chassis, meeting UL and IEC 61800-5-1 safety standards.
From a strategic perspective, selecting the Semikron SKM300GAR063D ensures a stable technological foundation for power conversion projects through 2026 and beyond. As the industry moves toward higher efficiency and tighter integration, the SEMITRANS 3 package remains a benchmark for reliability and ease of assembly. By focusing on low conduction losses and robust thermal management, this module provides the technical overhead necessary to ensure long-term reliability in the field.
