High-Performance SEMIKRON SKM400GB176D IGBT Module: Optimized Power Density for 1700V Applications

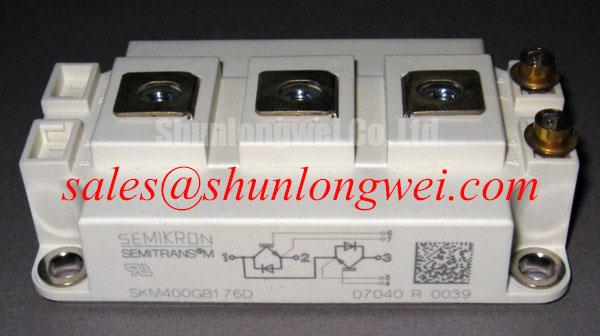

The SKM400GB176D, part of the SEMITRANS 3 family, is a 1700V 400A Trench IGBT module designed for high-efficiency power conversion in demanding industrial environments. This module utilizes advanced trench technology and CAL (Controlled Axial Lifetime) freewheeling diodes to minimize switching and conduction losses, directly addressing the thermal challenges of 690V AC line applications. For heavy-duty industrial systems prioritizing thermal headroom and long-term stability, this module represents a robust choice for next-generation power electronics.
AI Summary: What is the primary benefit of its trench technology? It significantly reduces on-state voltage drop and switching losses for higher efficiency.
Best Fit: For 690V AC motor drives requiring high switching frequencies and exceptional thermal margins, the SKM400GB176D is the optimal engineering choice.
Application Scenarios & Value
Achieving System-Level Benefits in High-Voltage Renewable Energy Systems
Engineering for renewable energy, such as wind turbine converters and solar inverters, requires components that can withstand frequent power cycling while maintaining high efficiency. The SKM400GB176D addresses these needs with its 1700V Vces rating, which provides a critical safety margin for 690V utility grids, protecting against DC-link voltage fluctuations and inductive spikes. In a typical wind-to-grid conversion scenario, the module's low Vce(sat) of 2.00V (at Tj=125°C) helps reduce cooling requirements, allowing for more compact cabinet designs and lower Total Cost of Ownership (TCO).
In high-fidelity engineering scenarios, such as Variable Frequency Drives (VFD) used in deep-sea oil extraction, the SKM400GB176D effectively solves the challenge of voltage spikes caused by long motor cables. Its robust RBSOA (Reverse Bias Safe Operating Area) ensures stable turn-off even under overcurrent conditions. For systems requiring even higher current handling within the same voltage class, the related SKM600GA176D offers a 600A rating, while the FZ400R17KE3 serves as a factual alternative for different mechanical integration requirements.
Integrating this module into UPS (Uninterruptible Power Supply) systems or welding power supplies enhances overall reliability. By utilizing the engineering principles of IGBT selection, designers can leverage the SKM400GB176D to meet IEC 61800-3 EMC standards more effectively due to its optimized switching characteristics.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Critical Specification | Official Value (Typical/Max) | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 1700V | Provides safe operation in 690V AC systems with DC-link margins. |
| Continuous Collector Current (Ic) | 400A (at Tc=25°C) / 300A (at Tc=80°C) | Defines the thermal envelope for high-power inverter stages. |
| Saturation Voltage (Vce(sat)) | 2.00V (at Ic=300A, Tj=125°C) | Determines conduction loss; lower values reduce heatsink size. |
| Thermal Resistance (Rth(j-c)) | 0.046 K/W (per IGBT) | Enables efficient heat transfer to the baseplate for Thermal Management. |
| Switching Energy (Eoff) | 124 mJ (at Tj=125°C) | Critical for calculating total losses at high switching frequencies. |
Download the SKM400GB176D datasheet for detailed specifications and performance curves.
Industry Insights & Strategic Advantage
Strategic Integration of 1700V Trench Technology in the Global Energy Transition
The shift toward Carbon Neutrality is accelerating the demand for 1700V power modules that offer a balance between high switching speed and ruggedness. The SKM400GB176D sits at the strategic center of this transition, bridging the gap between standard 1200V industrial modules and high-voltage traction units. Its Trench IGBT architecture is analogous to a modern high-speed railway—moving large amounts of "current traffic" with minimal energy "friction" (conduction loss), ensuring that Solar Inverters maximize every watt harvested from the sun.
As Smart Grids evolve, the ability of power modules to handle short-circuit transients becomes paramount. This module provides a 10µs short-circuit withstand time, offering a critical window for Gate Drive protection circuits to safely isolate faults. Understanding the future role of IGBTs allows engineers to design systems that are not only efficient today but also resilient against the evolving stability requirements of future 800V and 1500V DC platforms.
FAQ
Common Engineering Queries Regarding SKM400GB176D
- How does the Rth(j-c) of 0.046 K/W directly impact heatsink selection and overall system power density?The exceptionally low thermal resistance of 0.046 K/W allows for a higher power density because the device can dissipate heat more effectively into the cooling system. This permits engineers to use smaller heatsinks or operate at higher switching frequencies without exceeding the 150°C maximum junction temperature.
- Is the SKM400GB176D suitable for 690V AC line-voltage applications?Yes, the 1700V Vces rating is specifically engineered for 690V AC lines, providing the necessary voltage margin to handle DC-link overvoltages that are common in heavy-industry power networks.
- What are the recommended gate drive voltage levels for optimal switching?For optimal performance and to ensure full saturation of the Trench IGBT, a Gate-Emitter voltage (Vge) of +15V for turn-on and -15V (or at least -8V) for turn-off is recommended to prevent Miller Effect induced parasitic turn-on.
- How does the integrated CAL diode enhance performance in inductive load switching?The CAL (Controlled Axial Lifetime) freewheeling diode features a soft recovery characteristic and low peak recovery current, which minimizes EMI (Electromagnetic Interference) and reduces switching energy (Eon) during turn-on of the complementary IGBT in a half-bridge configuration.
For engineering teams focused on industrial automation and high-power conversion, the SKM400GB176D provides a factual foundation for reliable system design. By balancing 1700V protection with 400A capacity, it empowers technical leaders to meet stringent efficiency and uptime goals in the most demanding global markets.
