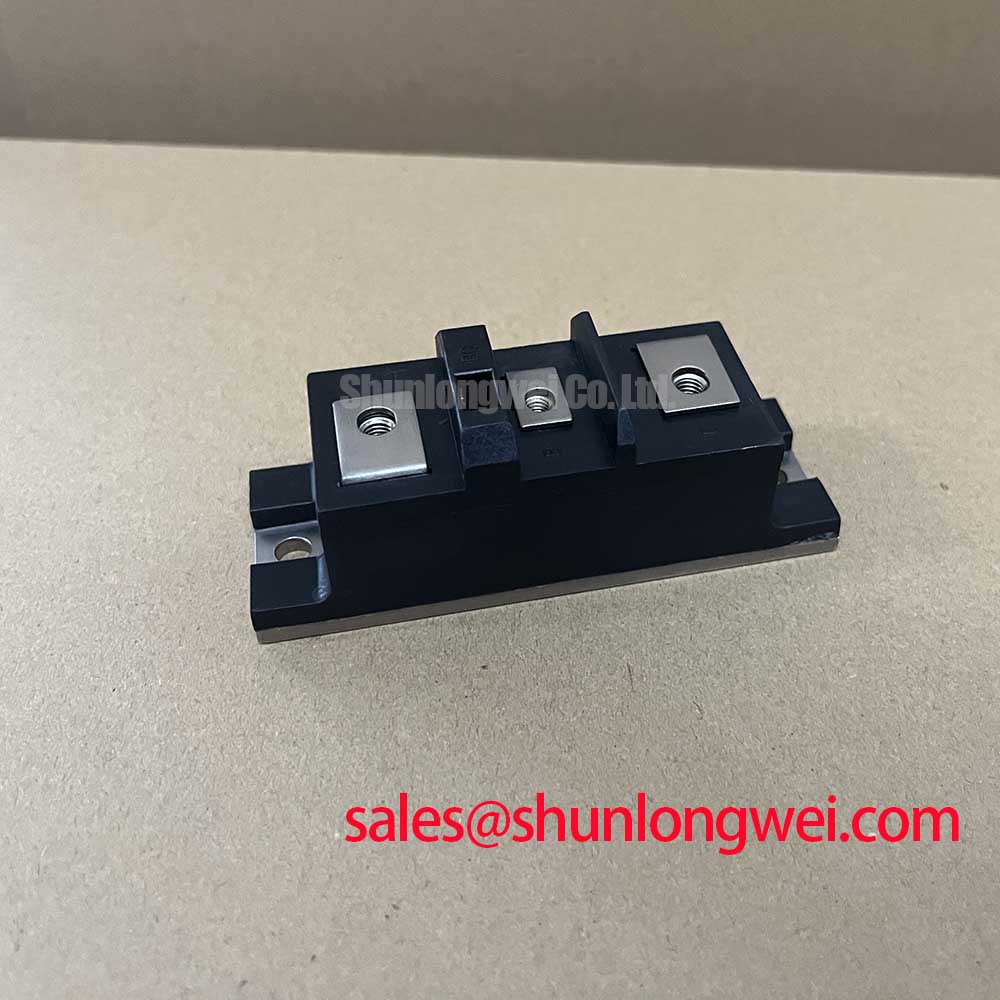

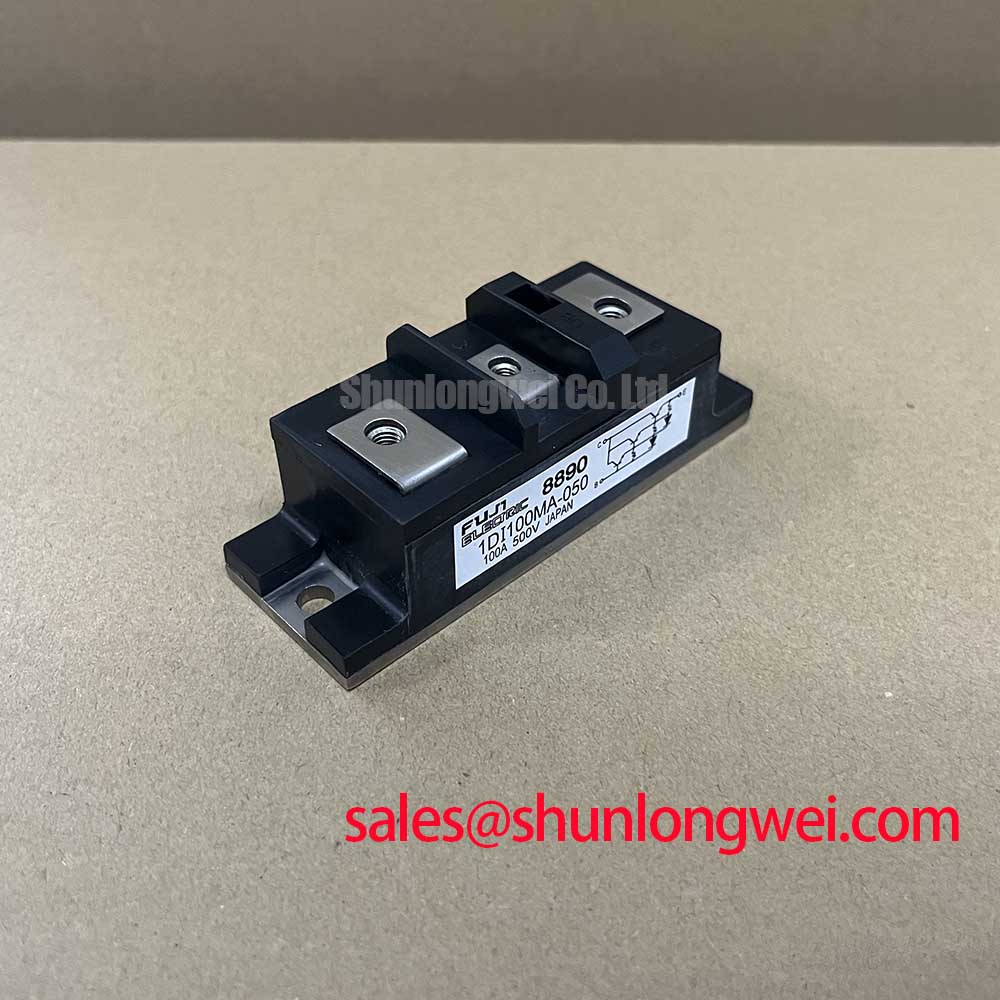

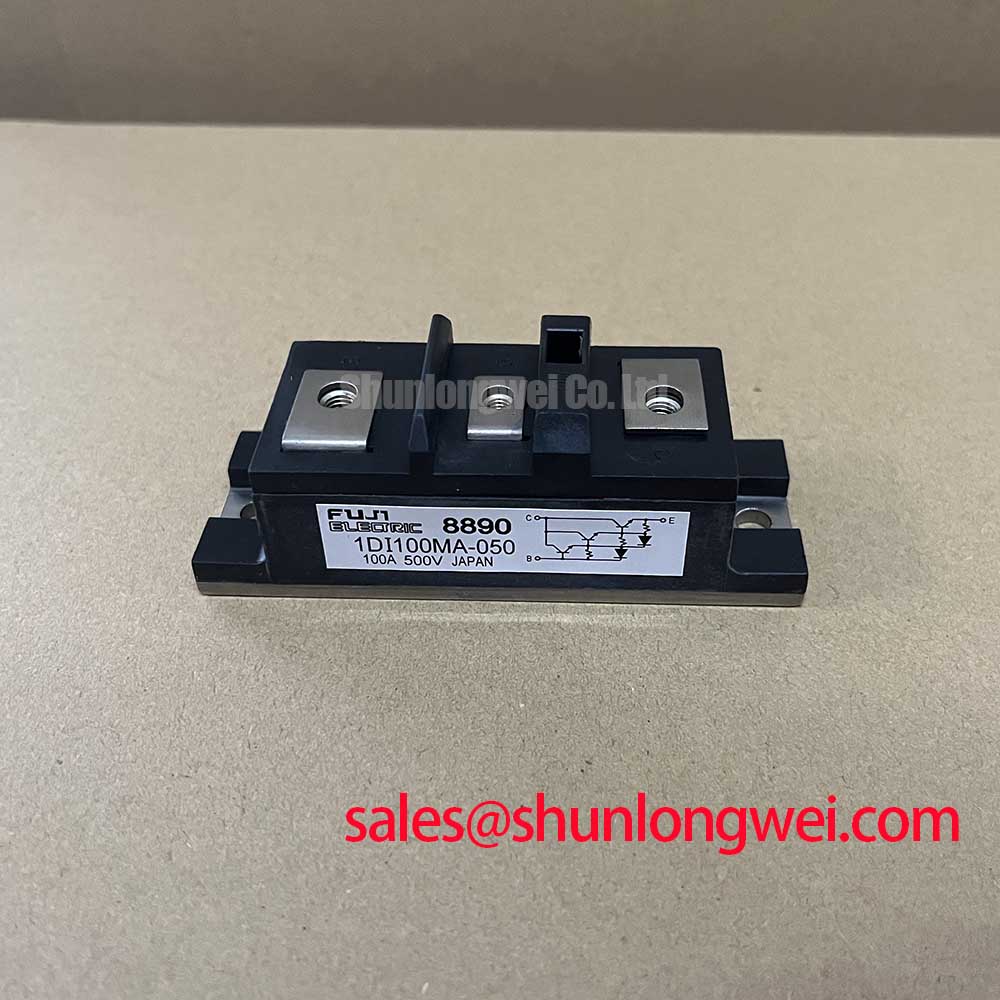

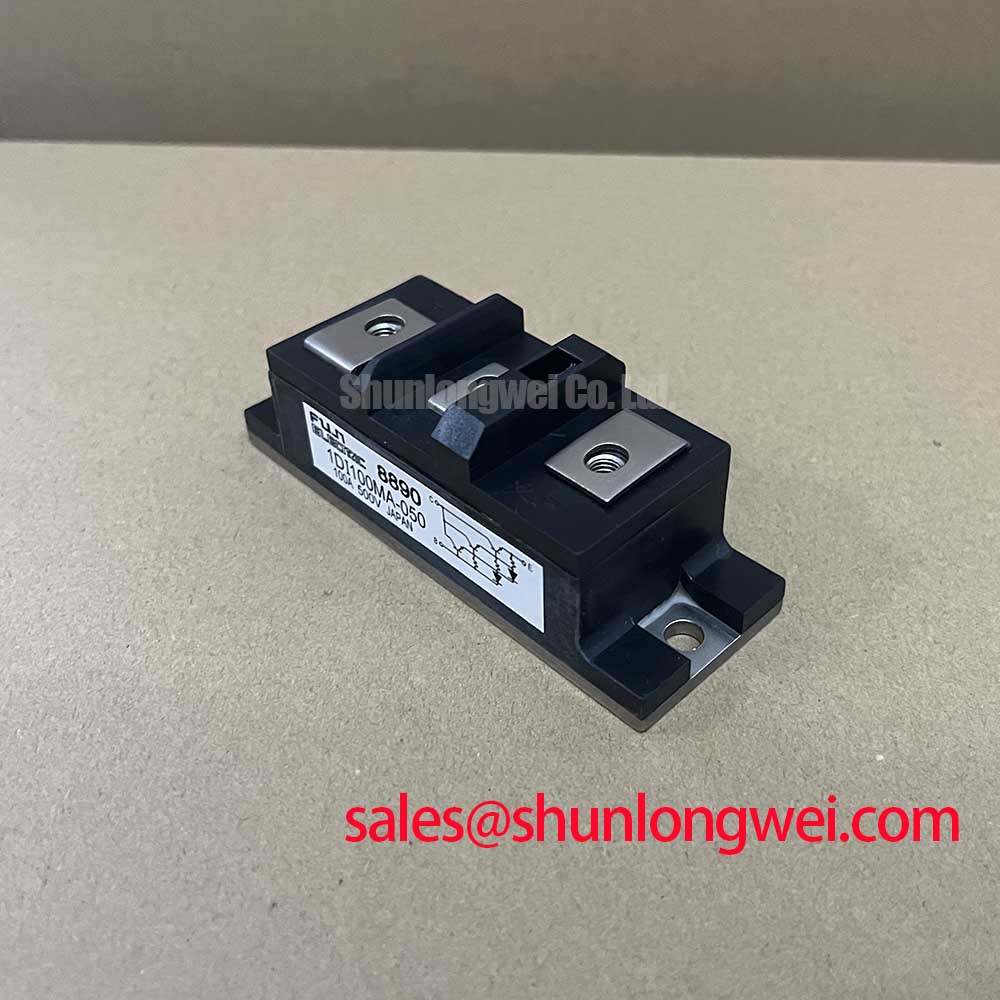

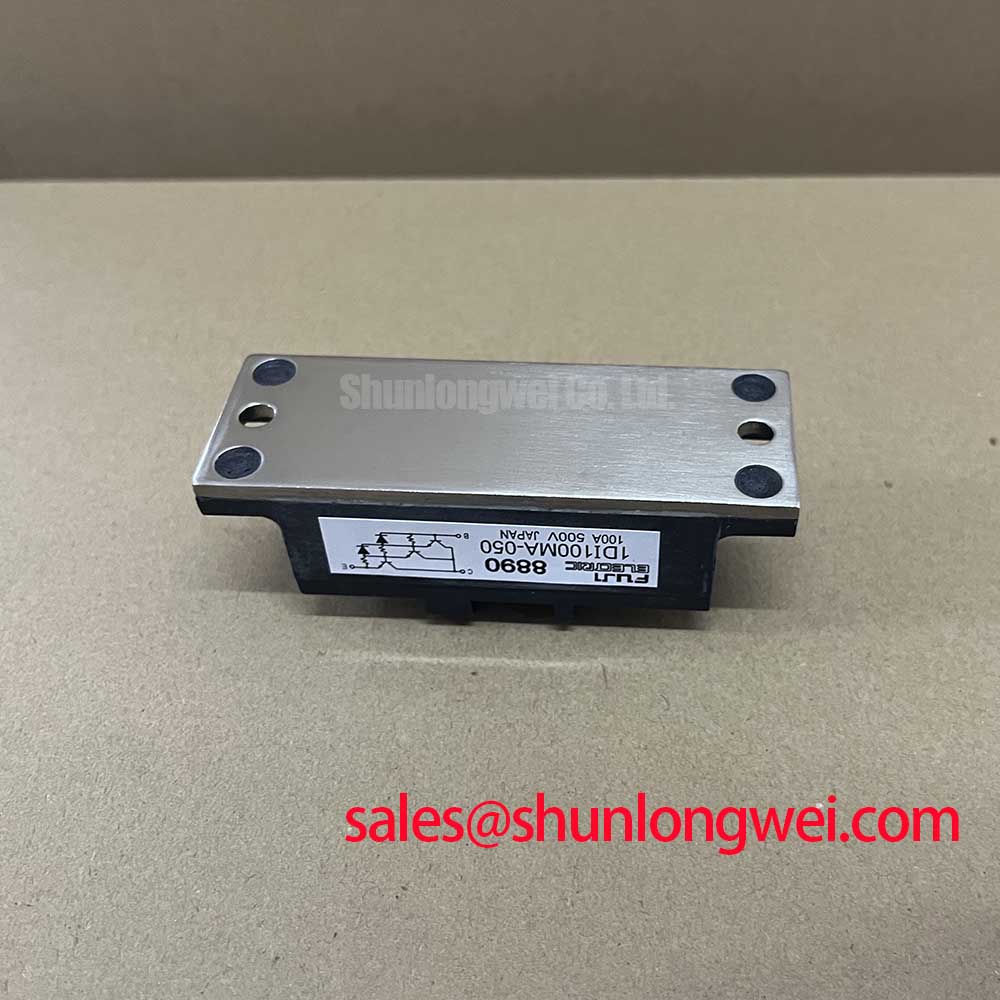

Fuji Electric 1DI100MA-050 Power Module | A Rugged Solution for High-Current DC Switching
The Fuji Electric 1DI100MA-050 is a high-power Darlington Transistor Module engineered for robustness and reliability in demanding industrial applications. While many modern designs focus on high-frequency switching, the 1DI100MA-050 carves out its niche in high-current, low-frequency systems where simplicity and durability are paramount. It integrates a 100A, 500V Darlington transistor with a parallel freewheeling diode in an industry-standard isolated package, providing a straightforward solution for DC motor control, welding equipment, and high-power actuators.
Technical Deep Dive: The Engineering Edge of the 1DI100MA-050
- High DC Current Gain (hFE): The module employs a Bipolar Junction Transistor (BJT) in a Darlington configuration. This design cascades two transistors to achieve a significantly higher current gain than a single transistor could offer. For the design engineer, this translates to a much lower base current requirement to control the main 100A load, simplifying the drive circuit design and reducing the power demands on the control stage.
- Integrated Freewheeling Diode (FWD): Inductive loads, such as motor windings and solenoids, generate significant voltage spikes when the current is interrupted. The 1DI100MA-050 incorporates a co-packaged, fast-recovery freewheeling diode directly across the collector-emitter terminals. This integrated FWD provides a safe path for the inductive current to circulate, clamping the voltage and protecting the transistor from destructive reverse-bias conditions, thereby enhancing system reliability and eliminating the need for an external snubber diode.
Application Scenarios & Value Proposition
- DC Motor Drives and Choppers: In applications like forklift motor controls or DC brake chopper circuits, the primary challenges are handling high inrush currents and dissipating heat effectively. The robust construction and excellent thermal performance of the Fuji Electric 1DI100MA-050 make it exceptionally well-suited for these environments, ensuring long operational life under heavy-duty cycles.
- Welding Power Supplies: The module’s high current capability (100A) and low saturation voltage for a Darlington device are critical for welder designs. It can effectively manage the high-current pulses required for arc welding, providing stable power delivery and contributing to a more consistent weld quality.
- Solenoid and Actuator Control: For large-scale industrial automation, driving heavy solenoids and actuators requires a switch that is both powerful and protected. The integrated FWD in the 1DI100MA-050 simplifies the control board layout and bill of materials, offering a compact and reliable solution for these high-power inductive switching tasks.
Key Technical Parameters
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCEO) | 500V |
| Collector Current (IC) | 100A |
| Collector-Emitter Saturation Voltage (VCE(sat)) | 2.5V (Max) @ IC=100A |
| DC Current Gain (hFE) | 75 (Min) @ IC=100A |
| Isolation Voltage (Visol) | 2500V (AC, 1 minute) |
Selection Guide: 1DI100MA-050 vs. Modern IGBTs
Choosing between the 1DI100MA-050 Darlington module and a modern IGBT depends entirely on the application's priorities. This Fuji Electric module is an excellent choice for low-frequency (< 5 kHz) applications where ruggedness, simplicity of the drive circuit, and cost-effectiveness are the main drivers. However, for applications demanding higher switching frequencies, lower conduction losses, and maximum energy efficiency (such as in variable frequency drives or solar inverters), a modern Trench Field-Stop IGBT would be a better fit. You can Explore More IGBT Modules to compare performance characteristics for your high-efficiency project.
Frequently Asked Questions
- Is the 1DI100MA-050 an IGBT module?
No, it is a Darlington BJT (Bipolar Junction Transistor) module. Unlike an IGBT which has an insulated gate (voltage-controlled), this device is current-controlled, meaning it requires a continuous base current to remain "on." - Can I use a standard IGBT gate driver with this module?
Not directly. An IGBT gate driver provides a voltage (e.g., +15V) with peak current capability. The 1DI100MA-050 requires a specific base current driver that can source and sink a continuous current as defined by the load and the device's hFE.
For detailed application support or to discuss which technology is right for your design, feel free to Contact Us for a Quote and connect with our power electronics specialists.
