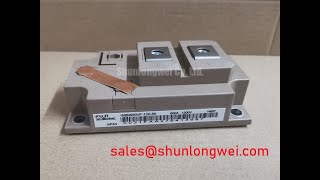

Fuji Electric 1MBI600VF-120-50 | A High-Reliability 1200V IGBT for Demanding Power Conversion
The Fuji Electric 1MBI600VF-120-50 is a high-performance 1200V, 600A single IGBT module engineered for applications where efficiency and unwavering reliability are non-negotiable. Leveraging Fuji's advanced V-Series trench gate and field-stop technology, this module provides a superior balance of low conduction and switching losses, setting a new benchmark for high-power inverters, motor drives, and renewable energy systems. It is designed not just to switch power, but to do so with exceptional thermal stability and ruggedness, ensuring long service life under strenuous operating conditions.
Key Features and Engineering Advantages
The design philosophy behind the 1MBI600VF-120-50 centers on delivering measurable performance gains for power system engineers. This is achieved through several key technological implementations:
- Optimized V-Series Technology: Employs a sophisticated trench gate structure and a thin-wafer field-stop design. This combination significantly reduces the collector-emitter saturation voltage (VCE(sat)), directly cutting down on conduction losses and heat generation.
- Enhanced Thermal Performance: The module features a low thermal resistance from junction to case, facilitating more efficient heat transfer to the heatsink. This allows for higher power density or operation in more challenging thermal environments.
- Soft Switching Characteristics: The V-Series technology provides optimized turn-off characteristics, which helps to reduce voltage overshoots and electromagnetic interference (EMI), simplifying the design of snubber circuits and filtering.
- High Short-Circuit Ruggedness: Built to withstand significant short-circuit events (typically 10µs), a critical feature for protecting the module and the overall system in fault conditions common in industrial environments.
Technical Deep Dive: The V-Series Advantage
At the core of the 1MBI600VF-120-50's performance is Fuji Electric's mature Fuji Electric V-Series IGBT technology. Unlike older planar gate designs, the V-Series trench gate structure increases the channel density on the silicon die. For the design engineer, this translates directly into a lower on-state voltage drop for a given current. The practical benefit is a significant reduction in power dissipated as heat, which means less energy is wasted and thermal management becomes simpler and more cost-effective. Furthermore, the meticulously engineered field-stop layer controls the plasma distribution during turn-off, enabling faster and softer switching. This not only lowers switching losses but also mitigates EMI, a crucial consideration for meeting stringent regulatory standards.
Application Suitability and Value Proposition
The robust specifications of the Fuji Electric 1MBI600VF-120-50 make it an ideal choice for a range of high-power applications:
- Industrial Motor Drives: In high-power AC drives and servo systems, the module's low VCE(sat) and thermal efficiency allow for more compact and reliable inverter designs, capable of precise motor control.
- Renewable Energy Inverters: For large-scale solar and wind power converters, its proven reliability and excellent thermal cycling capability ensure maximum energy harvest and long operational life, even with fluctuating power generation. This is essential for systems where IGBTs are at the heart of wind-to-grid conversion.
- Uninterruptible Power Supplies (UPS): The module's high surge current capability and short-circuit ruggedness provide the resilience needed to protect critical loads in data centers, medical facilities, and industrial automation.
- Welding and Induction Heating: The balance of fast switching and low conduction losses makes it suitable for high-frequency resonant power supplies where efficiency is paramount.
Key Parameter Overview
The following table highlights the critical electrical and thermal characteristics. For a comprehensive list of specifications, graphs, and application notes, please download the official 1MBI600VF-120-50 datasheet.
| Parameter | Symbol | Condition | Value |
|---|---|---|---|
| Collector-Emitter Voltage | VCES | Tj = 25°C | 1200 V |
| Continuous Collector Current | IC | TC = 80°C | 600 A |
| Collector-Emitter Saturation Voltage | VCE(sat) (typ.) | IC = 600 A, VGE = 15 V, Tj = 125°C | 1.80 V |
| Thermal Resistance (Junction to Case) | Rth(j-c) | IGBT | 0.063 °C/W |
| Short-Circuit Withstand Time | tsc | VCC ≤ 800V, VGE = ±15V, Tj = 150°C | ≥ 10 µs |
Frequently Asked Questions (FAQ)
Q1: What are the recommended gate drive voltage conditions for this module?
A: For optimal performance and to ensure full saturation while preventing spurious turn-on, a bipolar gate drive voltage of +15V for turn-on and -15V for turn-off is recommended. Implementing a robust gate drive circuit is critical; for more insights, review these 5 practical tips for robust IGBT gate drive design.
Q2: Can the 1MBI600VF-120-50 modules be connected in parallel for higher current applications?
A: Yes, these modules are suitable for paralleling. The V-Series IGBTs exhibit a positive temperature coefficient for VCE(sat), which aids in balancing current sharing between modules. However, careful attention must be paid to symmetrical layout in the power stage and gate drive paths to minimize stray inductance and ensure simultaneous switching. For complex designs or further questions, it is best to contact our technical team for detailed application support.
```
