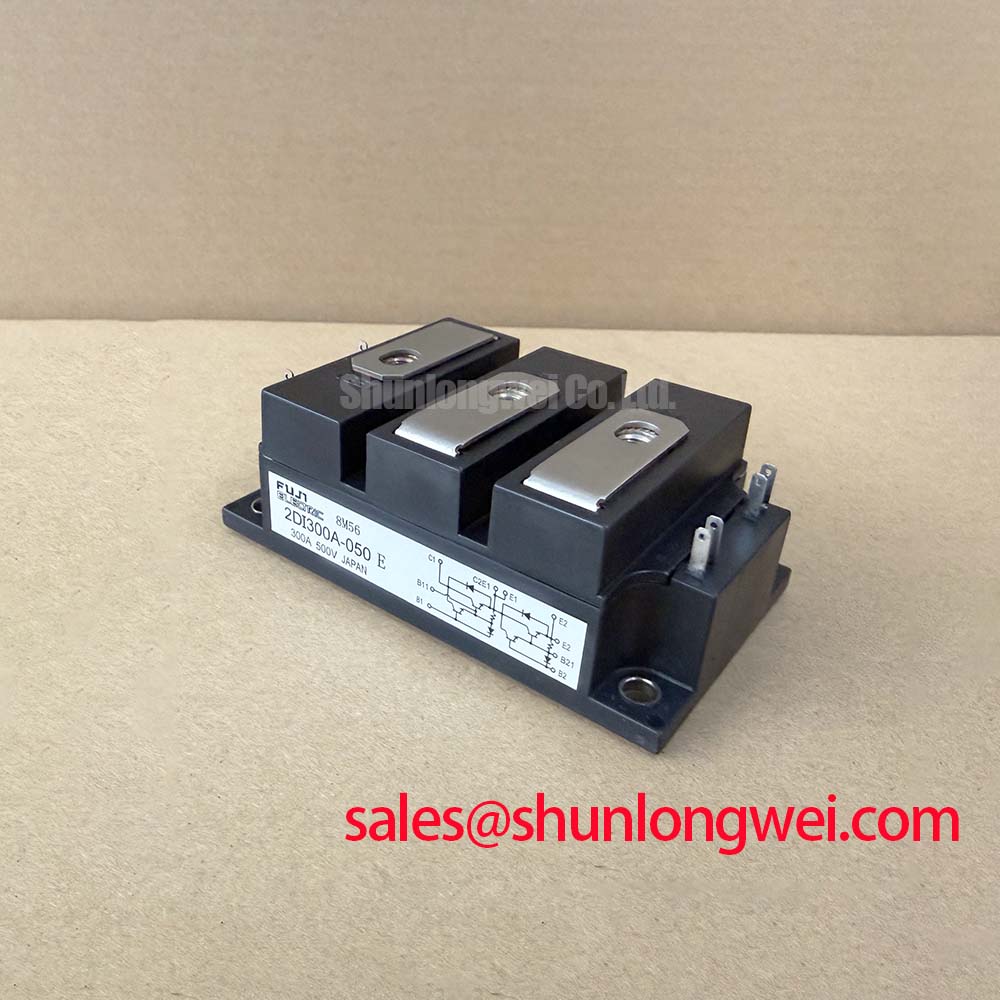

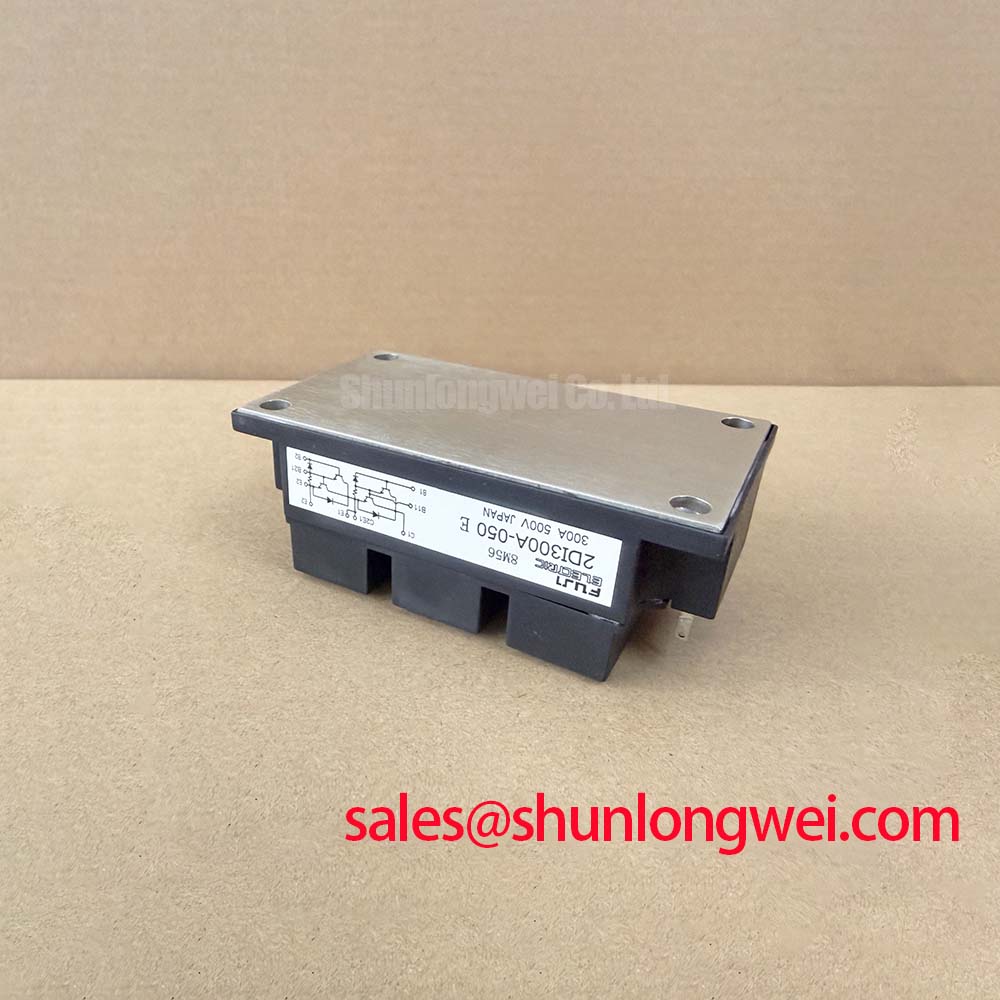

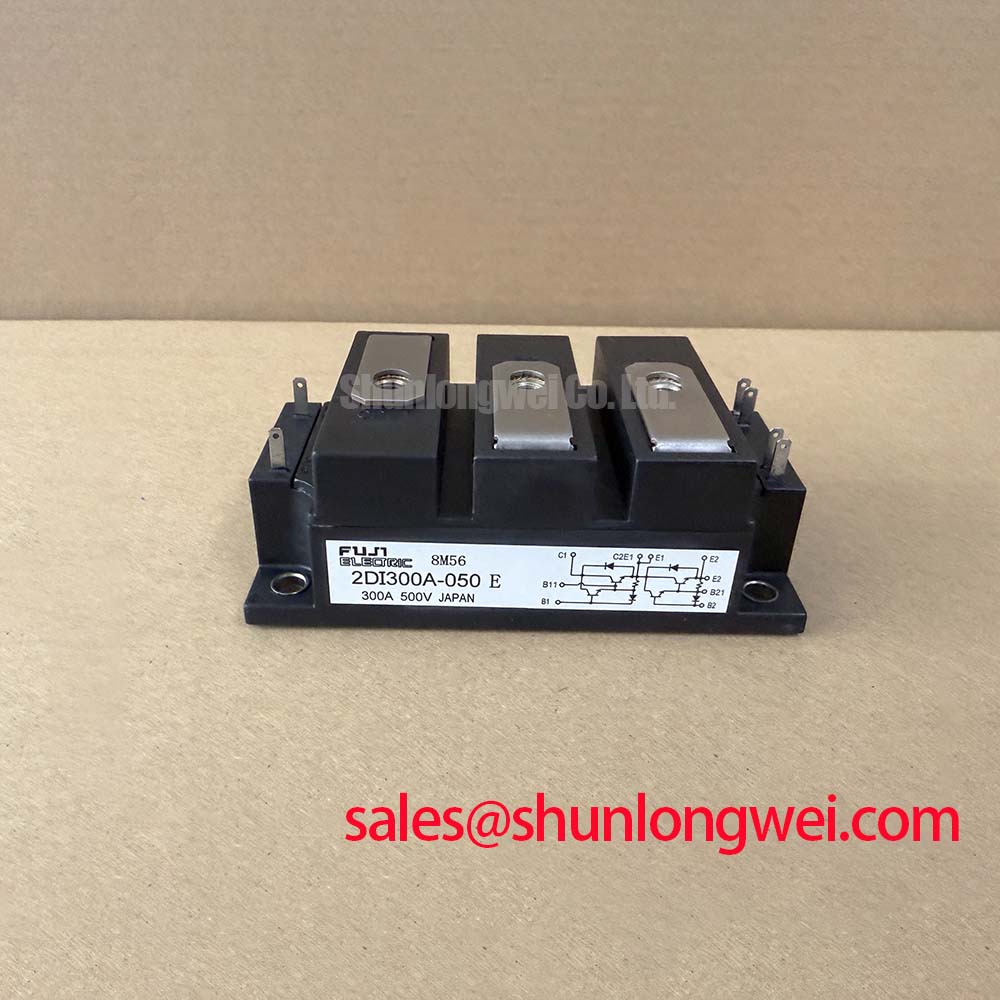

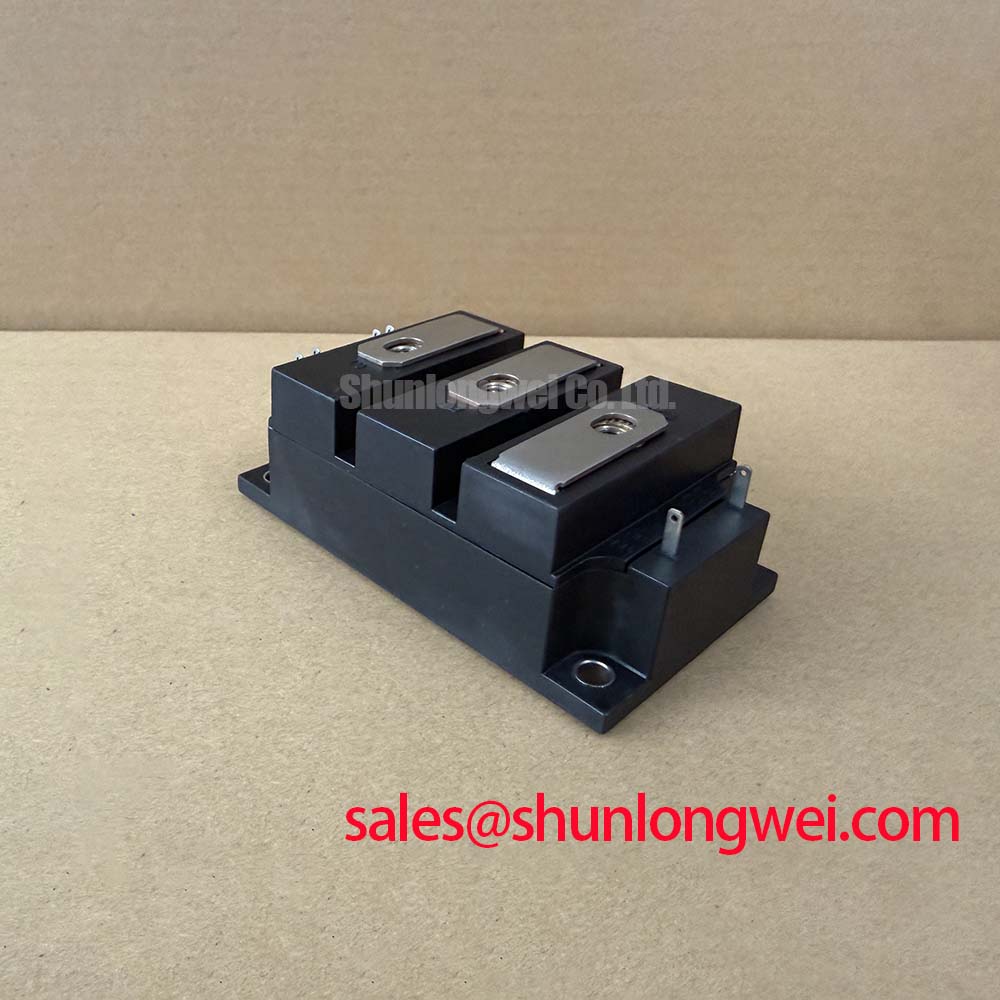

2DI300A-050E Fuji Electric 600V 300A Dual Darlington Transistor Module
How do power electronics engineers maintain the performance of high-current legacy inverter systems when original power stages reach their operational limits? Facing sudden failures in industrial motor drives or DC choppers often leads to the critical question of whether to redesign the entire power stage or source high-reliability replacement modules that match original specifications. The 2DI300A-050E remains a definitive solution for these engineering challenges, providing robust current handling in a time-tested dual Darlington configuration.
The 2DI300A-050E provides reliable 300A power switching for high-current industrial applications requiring robust Darlington transistor performance with efficient thermal dissipation. Featuring a 600V collector-emitter voltage rating and a high DC current gain, this module is engineered to manage heavy inductive loads without the complexity of modern high-frequency drive circuitry. By offering a high-reliability insulated package, it simplifies the thermal design for engineers focused on system longevity and maintenance of existing infrastructure.
Top Specifications: 600V | 300A | High DC Current Gain (hFE). Key Benefits: Robust surge current tolerance and simplified drive requirements for low-frequency switching. For legacy motor drives prioritizing robust current headroom in 240V/480V systems, the 2DI300A-050E remains a critical component for system maintenance and performance stability.
Frequently Asked Questions
Engineering Insights for System Integration and Maintenance
How does the high DC current gain (hFE) of the 2DI300A-050E impact gate drive requirements compared to standard transistors?
The high hFE of the 2DI300A-050E acts like a power steering system, allowing a small control signal to manage heavy-duty 300A loads. This reduces the current demand on the base drive circuitry, allowing for simpler and more cost-effective driver designs. In many legacy systems, this high gain is essential for maintaining switching efficiency without needing to upgrade the entire control board.
What are the critical thermal considerations when operating this module at its 300A rated current?
Operating at 300A generates significant localized heat. Engineers must ensure the Rth(j-c) (Thermal Resistance, Junction to Case) is minimized through proper application of thermal interface material and a flat heatsink surface. Failure to manage this will lead to thermal runaway, as Darlington transistors are particularly sensitive to gain changes across temperature gradients. High-quality thermal management is the primary factor in extending the lifespan of the 2DI300A-050E in 24/7 industrial environments.
Can the 2DI300A-050E be used in modern 480V AC line applications?
With a Vce of 600V, this module is ideally suited for 200-240V AC line systems or DC applications where voltage spikes are controlled. For 480V AC lines, where the DC bus typically reaches 650-700V, engineers should seek modules with higher voltage ratings, such as a 1200V IGBT, to provide adequate safety margins against transient overvoltages.
What is the significance of the "Dual" (2DI) configuration for industrial inverter design?
The "Dual" configuration integrates two Darlington elements into a single package, typically used to form one leg of a three-phase bridge or a half-bridge inverter. This integration significantly reduces stray inductance compared to using discrete components and simplifies the mechanical layout of the power busbars, which is crucial for reducing EMI and protecting the module from voltage overshoot during turn-off.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Parameter | Technical Value | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 600V | Defines the maximum blocking voltage for 240V AC systems. |
| Collector Current (Ic) | 300A | Maximum continuous DC current handling at specified temperature. |
| Configuration | 2-Pack (Dual) | Integrated half-bridge for simplified busbar architecture. |
| DC Current Gain (hFE) | Min 100 (at 300A) | Reduces the required base drive power significantly. |
| Isolation Voltage (Viso) | 2500V AC (1 min) | Ensures safety and compliance for industrial equipment. |
For a complete breakdown of switching times, saturation voltages, and safe operating area curves, please download the 2DI300A-050E datasheet for detailed specifications and performance curves.
Technical Deep Dive
Advanced Packaging and Darlington Physics in High-Power Systems
The internal architecture of the 2DI300A-050E utilizes a specialized copper baseplate that acts as a thermal highway, preventing localized heat "traffic jams" that typically cause silicon failure in high-power applications. This is particularly important for Darlington modules, where the secondary transistor carries the bulk of the 300A load while being driven by the primary transistor. This cascading effect creates a unique thermal profile that requires the precise thermal design found in Fuji Electric modules. To understand how these structures compare to modern equivalents, engineers can explore our in-depth analysis of IGBT modules.
Furthermore, the 2DI300A-050E is designed with a specific SOA (Safe Operating Area) that provides robustness against the inductive kickback found in large motor windings. Unlike modern fast-switching devices that may require complex snubber circuits to manage high dv/dt, the inherent characteristics of the Darlington structure in the 2DI300A-050E allow for more forgiving switching transitions in low-frequency (typically under 3-5kHz) applications. This ruggedness is a primary reason why many engineers continue to specify this module for high-reliability Safe Operating Area critical designs.
Application Scenarios & Value
Achieving System-Level Benefits in High-Current Power Conversion
In high-fidelity engineering scenarios, such as the maintenance of a heavy-duty industrial centrifugal pump drive, the 2DI300A-050E is often called upon to handle the high start-up inrush current. A 300A rating provides the necessary headroom to handle the surge without entering the desaturation zone, which could lead to catastrophic failure. For systems requiring even higher voltage tolerances or transitioning to modern switching topologies, the 1MBI300SA-120B offers a 1200V alternative in a similar current class.
Beyond motor control, this module is frequently utilized in large UPS (Uninterruptible Power Supply) systems and DC choppers for battery-backed industrial backups. In these applications, the 600V rating and Dual configuration allow for a compact and efficient power stage design. Engineers should refer to our selection guide and decision frameworks to evaluate how the 2DI300A-050E fits within broader system reliability goals, particularly when diagnosing potential failure modes related to overtemperature.
Strategically, the 2DI300A-050E represents a bridge between legacy robustness and modern system availability. While newer technologies like SiC and GaN dominate high-frequency efficiency discussions, the industrial sector relies on the availability of high-current modules like the 2DI300A-050E to keep existing manufacturing lines running without the prohibitive costs of total system replacement. Ensuring a reliable supply of these components is a cornerstone of industrial lifecycle management and strategic infrastructure maintenance.
