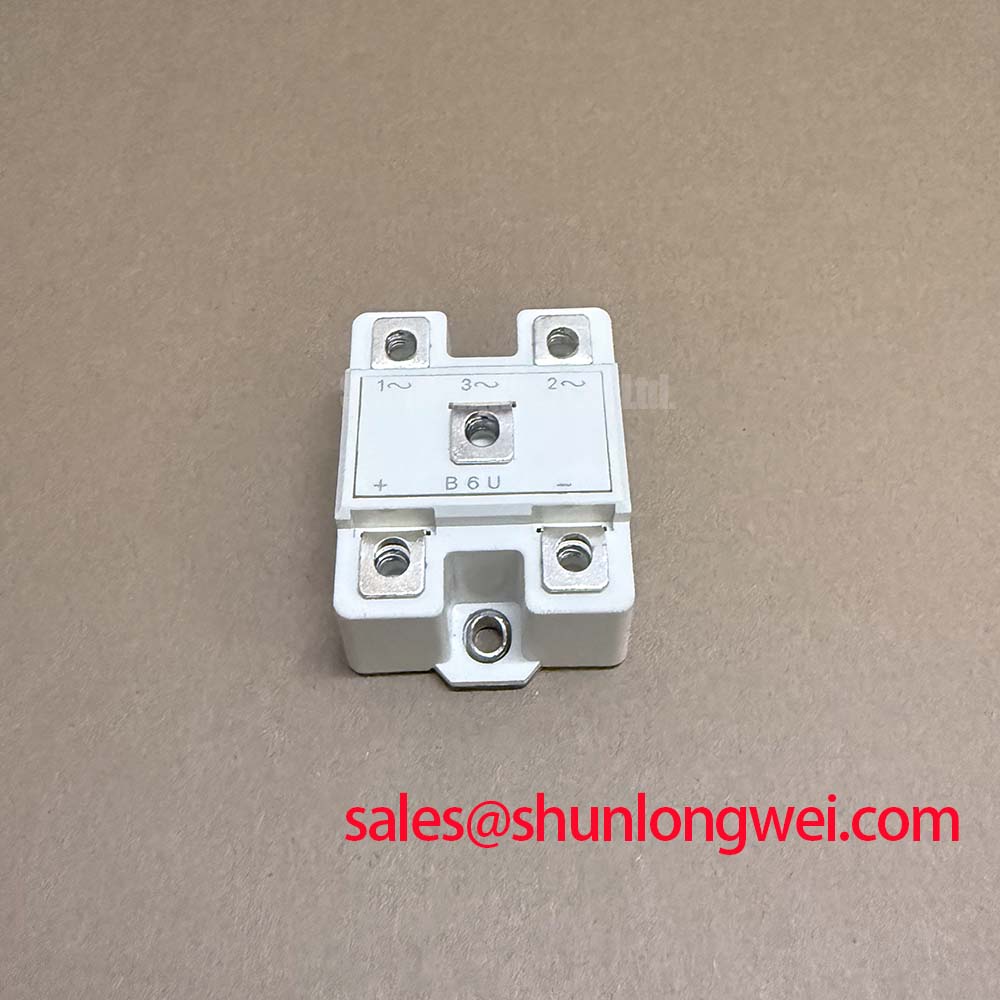

SKD 60/04: Bridge Rectifier for Industrial Reliability
Engineered for robust power conversion, the SEMIKRON SKD 60/04 three-phase bridge rectifier provides a thermally efficient foundation for demanding industrial systems. It delivers consistent performance where operational stability is critical.
Top Specs: 400V | 68A @ 85°C | Rth(j-c) 0.3 K/W
Key Benefits: Simplified thermal assembly. Certified long-term reliability.
The module's electrically insulated metal case directly addresses a common engineering challenge by streamlining the mounting process to a heatsink, eliminating the need for additional insulating materials and improving overall heat dissipation.
Operational Contexts Demanding Robust Rectification
The SKD 60/04 is designed as a foundational component for the input stage of various power conversion systems. Its electrical characteristics and physical design make it particularly suitable for applications where reliability and straightforward integration are paramount. The module's ability to handle significant DC output current while maintaining thermal stability is crucial for sustained operation in industrial settings. Its inherent robustness ensures it can manage the electrical demands of systems that power automation, control, and processing equipment.
Best Fit: For industrial power supplies up to 25kW prioritizing UL-certified safety and simplified thermal design, the SKD 60/04's insulated baseplate offers a distinct integration advantage. This module is frequently specified for:
- Front-end rectification for AC motor drives and Servo Drive systems.
- Power supplies for industrial automation and control equipment.
- Battery charging systems requiring stable DC power.
- Uninterruptible Power Supply (UPS) input stages.
Proven Integration in Demanding Power Systems
While specific end-product deployments are proprietary, the SKD 60/04's design features are indicative of its role in systems where long-term performance is a key design criterion. The use of glass-passivated diode chips, for example, is a deliberate choice aimed at ensuring stable electrical characteristics over many years of operation, preventing performance degradation that can occur in less robust components. This focus on intrinsic reliability makes it a trusted component for industrial equipment manufacturers who need to guarantee the longevity of their systems with minimal maintenance requirements.
Comparative Analysis for System Design
When evaluating rectifiers for an industrial application, engineers must consider several factors beyond basic voltage and current ratings. The following table provides a data-centric comparison to aid in the decision-making process. The selection should be based on the specific priorities of the system design, such as thermal performance, mechanical integration, or surge current resilience. For systems that require higher current handling, the related SKD 100/16 provides a higher power alternative in a similar package footprint.
| Parameter | SEMIKRON SKD 60/04 | Typical Non-Isolated Module | Engineering Implication |
|---|---|---|---|
| V(isol) (Insulation Voltage) | 3000 V | N/A (Requires external insulation) | The SKD 60/04's integrated insulation simplifies assembly, reduces component count, and lowers the risk of short-circuits to the heatsink. |
| Mounting | Single center hole | Two or four mounting screws | Faster and more straightforward mounting process, ensuring even pressure on the thermal interface material. |
| Certifications | UL Recognized (File E63532) | Varies / Often not certified | Pre-certification accelerates system-level safety approvals for the North American market, reducing compliance overhead. |
Technical Inquiries on the SKD 60/04
1. What is the primary benefit of the glass-passivated diode chips used in the SKD 60/04?
The primary benefit is long-term stability. Glass passivation creates a hermetic seal around the semiconductor junction, protecting it from environmental contaminants and moisture, which helps maintain stable reverse voltage characteristics and prevents degradation over the component's lifespan.
2. How does the insulated metal case of the SKD 60/04 impact thermal design?
It significantly simplifies thermal management. By providing electrical isolation, it allows the module to be mounted directly onto a grounded heatsink without needing a separate, thermally resistive insulating pad. This direct mounting path improves heat transfer, leading to lower operating temperatures and enhanced reliability.
3. What does the I²t value of 1800 A²s signify for this rectifier?
The I²t value represents the module's non-repetitive surge current handling capability. A rating of 1800 A²s indicates a high degree of robustness, allowing the rectifier to withstand significant inrush currents, such as those that occur during power-up of capacitive loads, without failing.
4. Is the SKD 60/04 suitable for use on a 240V three-phase line?
Yes. With a repetitive peak reverse voltage (VRRM) of 400V, it is well-suited for standard 208/240V three-phase AC systems, providing a sufficient safety margin for line voltage fluctuations.
A Closer Look at the Architecture of Reliability

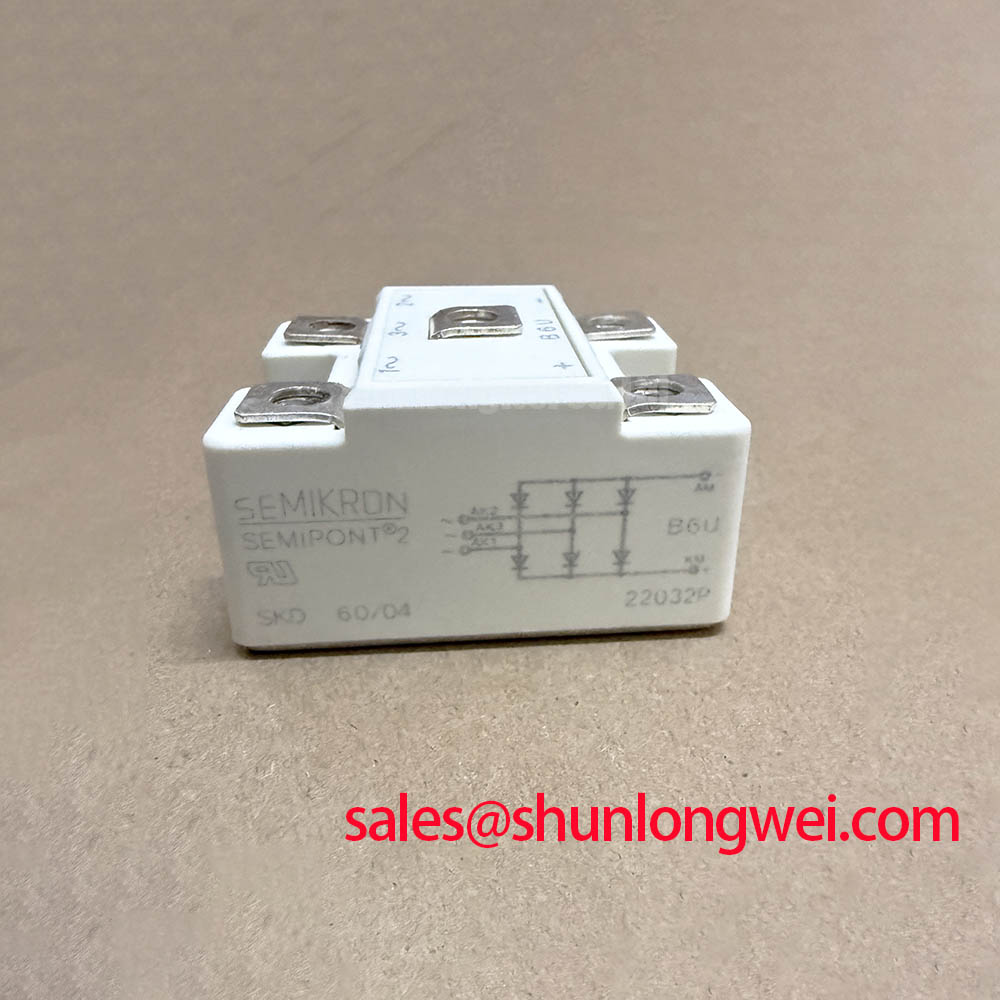

The engineering philosophy of the SEMIKRON SKD 60/04 centers on creating a component that is both electrically sound and mechanically simple to integrate. At its core, the device utilizes six robust diodes arranged in a three-phase bridge configuration. The choice of an insulated metal case is a key design feature that directly impacts system reliability and manufacturing efficiency.
Interpreting Key Thermal Parameters
Understanding the thermal characteristics is essential for maximizing the life and performance of the SKD 60/04. Two parameters are particularly important for design engineers:
- I(d) (DC Output Current): The datasheet specifies a continuous DC output current of 68A at a case temperature (Tc) of 85°C. This rating underscores the importance of effective heatsinking; the module's ability to deliver its rated current is directly tied to the efficiency of the thermal solution it is mounted to.
- Rth(j-c) (Junction-to-Case Thermal Resistance): This value, rated at 0.3 K/W per diode, quantifies how efficiently heat can move from the active semiconductor junction to the module's case. Think of thermal resistance as the narrowness of a pipeline for heat flow. The SKD 60/04's low thermal resistance signifies a wide, unobstructed pipeline, enabling rapid heat extraction and contributing to lower junction temperatures and longer operational life. You can find more information about component technologies at the manufacturer's official website.
Core Performance Metrics at a Glance
The following parameters are critical for evaluating the integration of the SKD 60/04 into your power system design. For a complete list of specifications and performance graphs, please download the official datasheet.
| Parameter | Value |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 400 V |
| DC Output Current (Id @ Tc=85 °C) | 68 A |
| Surge Forward Current (IFSM, t=10 ms) | 600 A |
| I²t Value (t=10 ms) | 1800 A²s |
| Forward Voltage (VF, max @ IF=200 A, Tj=25 °C) | 1.75 V |
| Operating Junction Temperature (Tvj) | -40 to 150 °C |
Download the SKD 60/04 Datasheet
Strategic Value in Modern Industrial Power Designs
In an industrial landscape where equipment uptime and total cost of ownership (TCO) are driving design decisions, the SKD 60/04 offers more than just power rectification. Its design contributes to a more efficient and reliable end-product. By simplifying the assembly process and enhancing thermal performance, it helps reduce manufacturing costs and potential points of failure. The inclusion of UL recognition further streamlines the path to market for OEMs, making it a strategic choice for systems intended for long service life in regulated industrial environments. This focus on integrated reliability aligns with the broader industry trend towards creating more robust and maintenance-free power electronics, as explored in guides on high-efficiency power systems.
