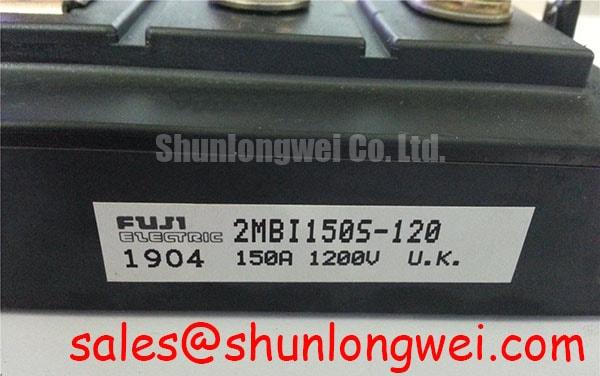

2MBI150S-120 Fuji Electric 1200V 150A Dual IGBT Module

2MBI150S-120 IGBT Module In-stock / Fuji Electric: 1200V 150A. Low losses. 90-day warranty, motor controls. Global fast shipping. Check stock online.

· Categories: IGBT
· Manufacturer: Fuji Electric
· Price: US$ 50 In-Stock Offer
· Date Code: Please Verify on Quote
. Available Qty: 461
90-Day Warranty
Global Shipping
100% Tested
Whatsapp: 0086 189 2465 1869

Content last revised on July 12, 2026

Fuji Electric 2MBI150S-120 Dual IGBT Module

Product Overview and Key Characteristics

High-Reliability Power Control with Low Thermal Impedance

The Fuji Electric 2MBI150S-120 is a dual-channel NPT IGBT module. It is designed for industrial power conversion. It features a 1200V collector-emitter voltage. The continuous collector current is 150A at 80°C. This provides substantial margin for industrial loads. Its design has low conduction losses. It integrates a soft-recovery freewheeling diode. For industrial motor control applications requiring 1200V blocking voltage and robust 150A switching, this NPT module is the optimal choice.

Q: What prevents NPT thermal runaway?
A: Stable gate drive and proper heatsink coupling.

Q: What is the collector current at 80°C?
A: The continuous collector current is 150A.

Key Parameter Overview

Decoding Key Specifications for High-Performance Thermal Design

To design an efficient thermal management system, engineers must analyze the electrical and thermal limits of the 2MBI150S-120. Below are the key characteristics extracted directly from the official Fuji Electric datasheet:

Parameter Symbol Conditions / Ratings Value
Collector-Emitter Voltage VCES Tj = 25°C 1200 V
Gate-Emitter Voltage VGES Continuous ±20 V
Collector Current IC Continuous, TC = 80°C (TC = 25°C) 150 A (200 A)
Collector Current (Pulse) IC pulse 1 ms, TC = 80°C (TC = 25°C) 300 A (400 A)
Max. Power Dissipation PC 1 device, TC = 25°C 1000 W
Junction Temperature Tj Operating limit +150 °C
Collector-Emitter Saturation Voltage VCE(sat) VGE = 15V, IC = 150A, Tj = 25°C (125°C) 2.6 V (2.8 V) typical
Thermal Resistance (IGBT) Rth(j-c) Junction-to-case 0.125 °C/W
Thermal Resistance (Diode) Rth(j-c) Junction-to-case 0.260 °C/W
Isolation Voltage Vis A.C. 1 minute 2500 V

Download the 2MBI150S-120 datasheet for detailed specifications and performance curves.

To understand the importance of thermal resistance, think of the junction-to-case thermal path as a multi-lane highway. A lower thermal resistance of 0.125 °C/W acts like an open highway with no bottlenecks. It allows the heat to escape quickly from the silicon chip to the cooling fins. If this path is restricted, heat builds up rapidly, leading to junction overheating.

Application Scenarios & Value

Optimizing Industrial Power Inverters Under Extreme Switching Loads

The 2MBI150S-120 finds widespread use in heavy industrial machinery where load demands fluctuate dynamically. A primary example is in industrial motor drives and AC/DC servo control amplifiers, where motor starting generates significant surge currents. During these transitions, the module's continuous current capability of 150A and pulse capability of 300A provide the necessary design margin to prevent overcurrent trips. By utilizing this rugged NPT design, industrial drives maintain high operational uptime in harsh EMI environments.

In addition, the module is a trusted component in in-depth analysis of IGBT modules for uninterruptible power supplies (UPS) and welding power systems. The soft-recovery freewheeling diode limits high-frequency noise injection during switching transitions. This helps the overall system comply with electromagnetic compatibility standards such as standard industrial drive regulations without requiring oversized filter networks. For applications demanding different packaging or generations, engineers can review the V-Series 2MBI150VB-120-50 or the U-Series 2MBI150US-120-50 as potential alternatives based on their specific packaging footprint and switching frequency requirements.

Technical & Design Deep Dive

Under the Hood: NPT Structure and Thermal Impedance Optimization

The internal silicon structure of the 2MBI150S-120 utilizes Non-Punch Through (NPT) technology. Unlike older PT (Punch Through) designs, NPT chips feature a thicker, homogeneously doped drift region and do not require a buffer layer. This results in a positive temperature coefficient for the collector-emitter saturation voltage (VCE(sat)), which increases from 2.6V at 25°C to 2.8V at 125°C. This characteristic is highly beneficial for engineers seeking to parallel modules: as a chip gets hotter, its conduction resistance increases, naturally forcing current to balance across the paralleled modules and eliminating the risk of localized thermal runaway.

Additionally, the module features a square Reverse Bias Safe Operating Area (RBSOA) capable of handling current transits up to 10 times the rated collector current. This can be compared to an automotive crumple zone: when inductive load turn-off spikes occur, the module acts as a buffer that safely absorbs and guides transient voltage spikes up to the 1200V limit without inducing dynamic avalanche, ensuring compliance with the reverse bias Safe Operating Area (RBSOA) characteristics. Proper design of the IGBT gate drive and thermal management is critical to maximizing this capability, as gate emitter capacitance must be managed to avoid parasitic turn-on under high dv/dt transients.

For a detailed breakdown on reading these parameter curves, engineers can refer to our guide on decoding IGBT datasheets.

Frequently Asked Engineering Questions

Addressing Core Operation and Implementation Concerns

  • How does the 0.125 °C/W thermal resistance of the 2MBI150S-120 impact heatsink design?The low thermal resistance of 0.125 °C/W means the junction temperature remains relatively low even under heavy continuous loads. This allows design engineers to use smaller heatsinks or reduce forced-air cooling requirements, which directly lowers the total system volume and BOM cost.
  • What are the gate drive requirements for switching this 1200V 150A module?The gate-emitter voltage (VGES) is rated for ±20V, with a typical threshold voltage (VGE(th)) of 7.2V. To ensure fully saturated turn-on and low switching losses, a gate drive voltage of +15V is recommended, while a negative turn-off bias (such as -5V to -15V) helps prevent parasitic turn-on in noisy environments.
  • What is the significance of the positive temperature coefficient of VCE(sat)?Since VCE(sat) rises from 2.6V (25°C) to 2.8V (125°C), the module naturally shares current when connected in parallel. This thermal balancing characteristic simplifies circuit design and reduces the complexity of current-sharing control, improving long-term reliability in high-power setups.
  • How does the soft-recovery diode contribute to system reliability and compliance?The co-packaged freewheeling diode features soft recovery characteristics with a typical recovery time of 350 ns. This soft recovery minimizes voltage transients (dv/dt) and high-frequency EMI, simplifying filtering requirements and helping the overall system pass strict industrial compliance tests like standard electrical noise regulations.

Strategic Value and Lifecycle Considerations

Securing System Longevity in Industrial Deployments

From a procurement and system design perspective, standardizing on established NPT platforms like the 2MBI150S-120 offers a strategic advantage. It balances robust operation with predictable, stable parameters that simplify engineering cycles. This minimizes design-in risk and shortens time-to-market. Additionally, the thermal robustness and power cycling capability of this module protect the equipment against premature wear-out, lowering the total cost of ownership (TCO) for end-users in harsh environments. To ensure long-term availability and optimize current power designs, engineers should review the technical differences between classical NPT and modern V-Series or U-Series architectures to choose the best-suited topology for their multi-year product lifecycles.
