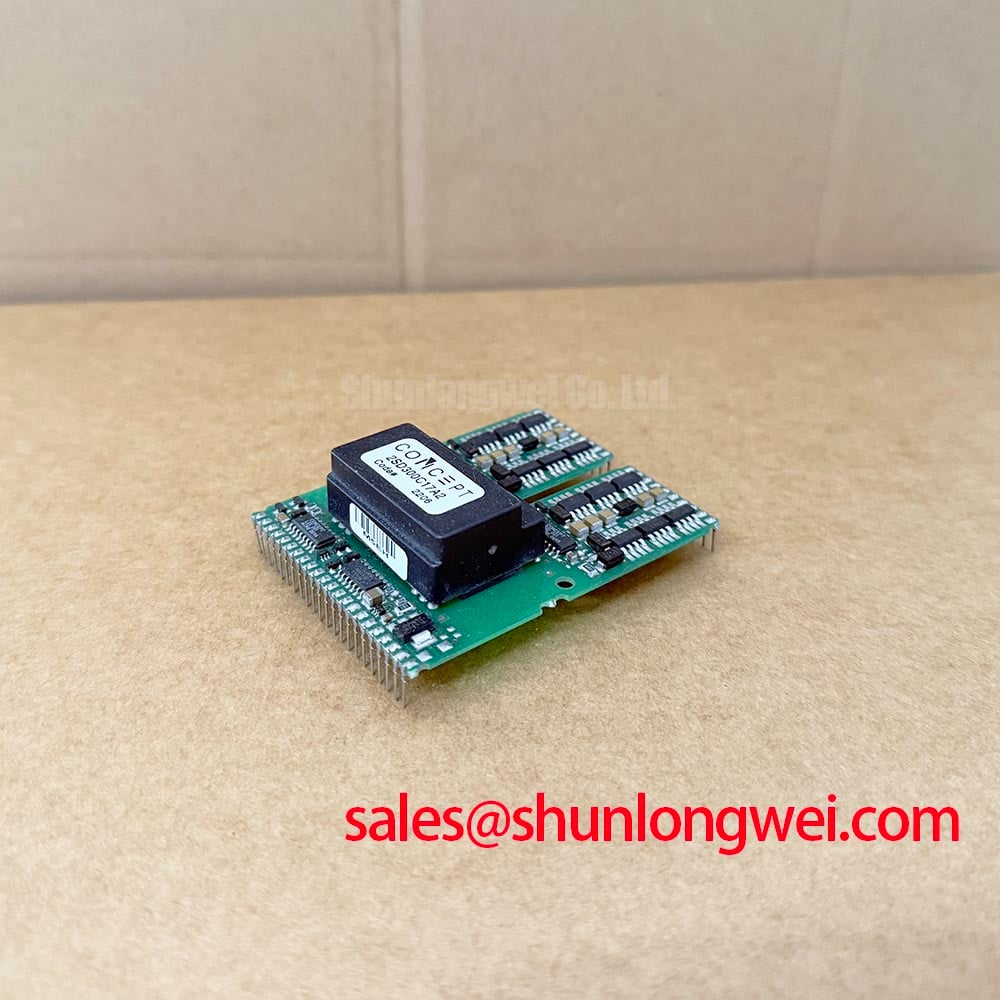

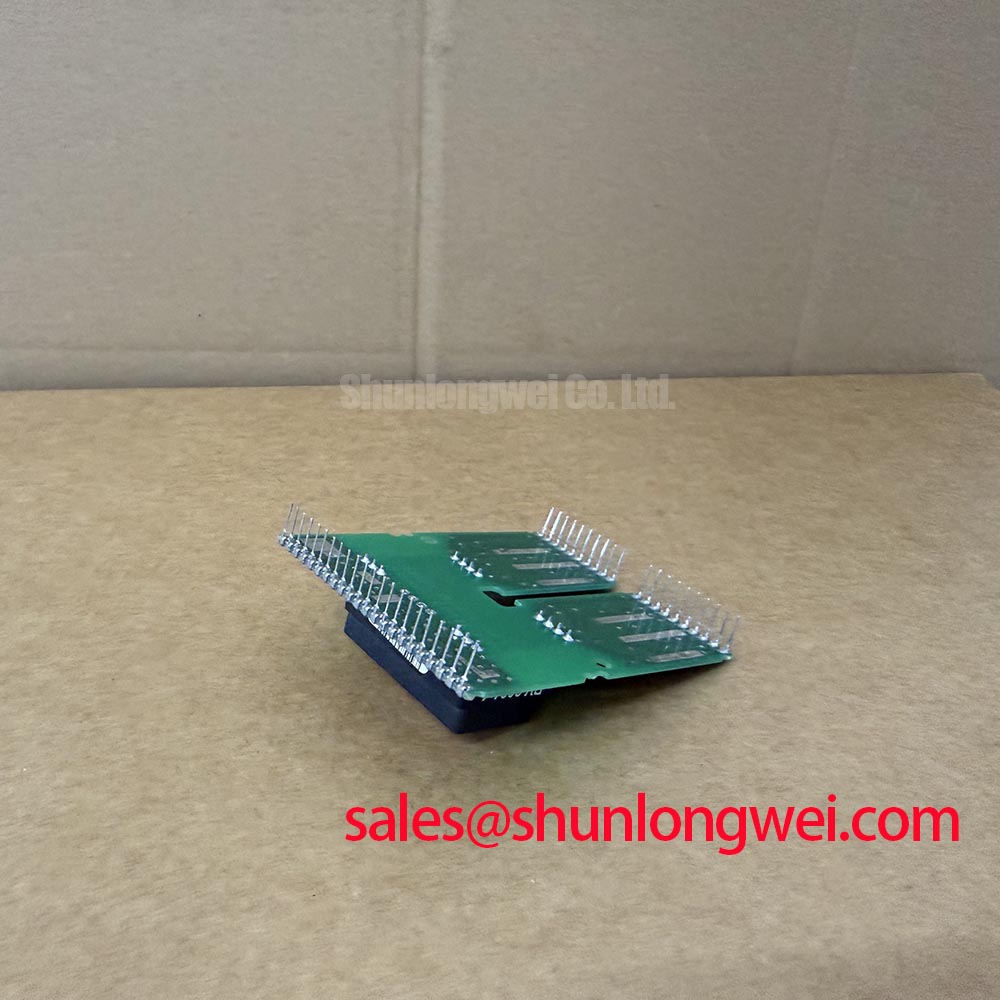

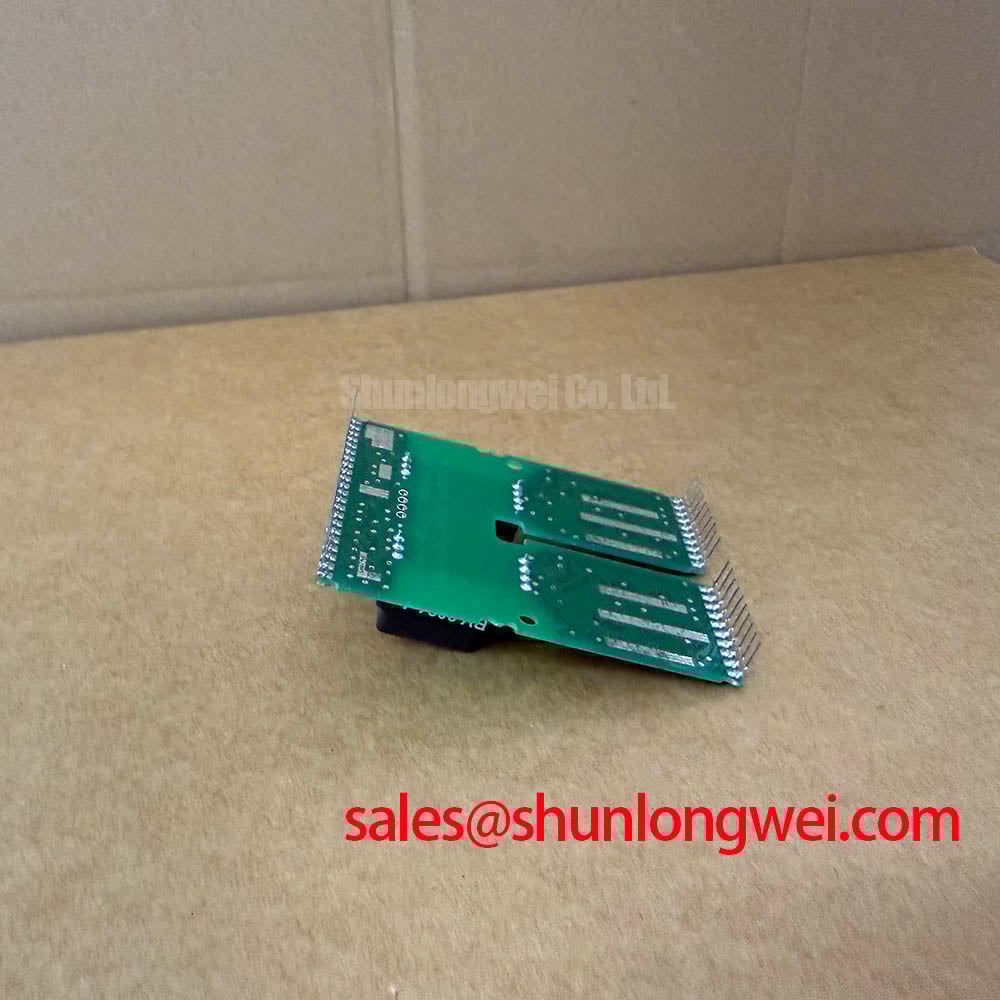

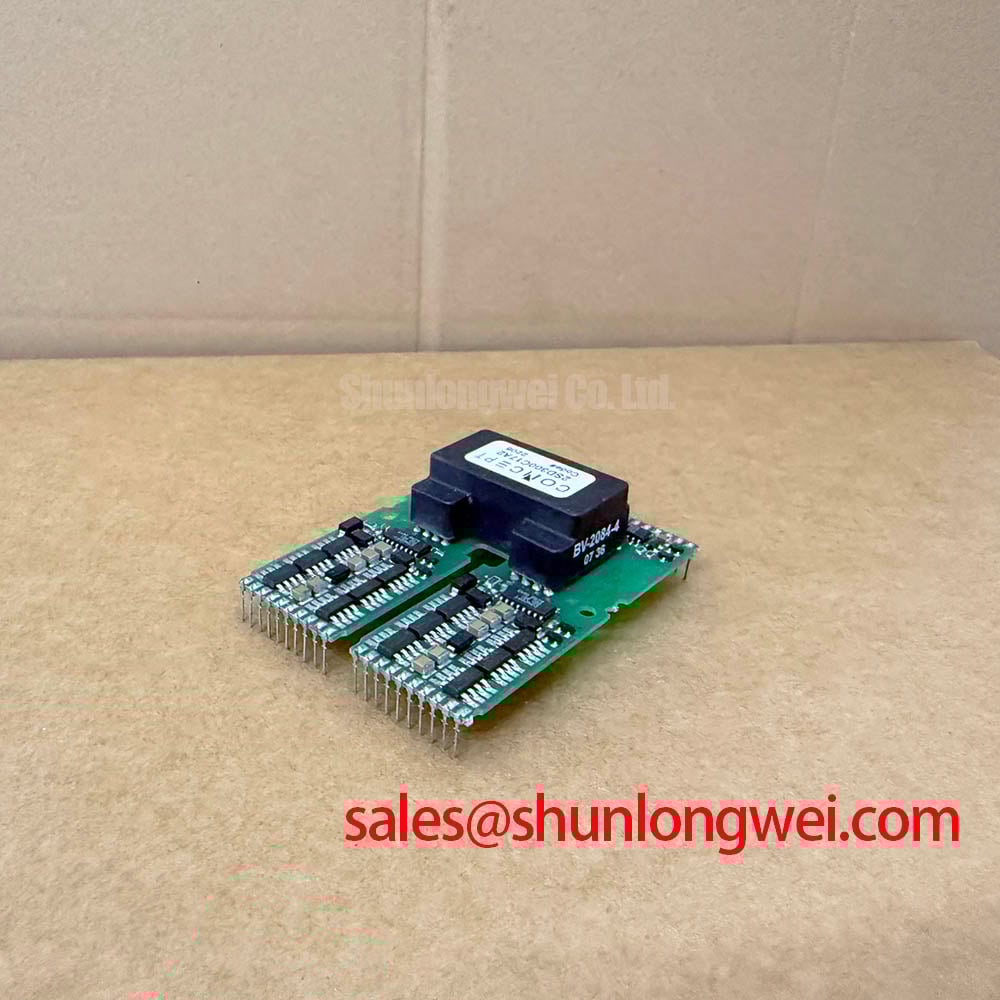

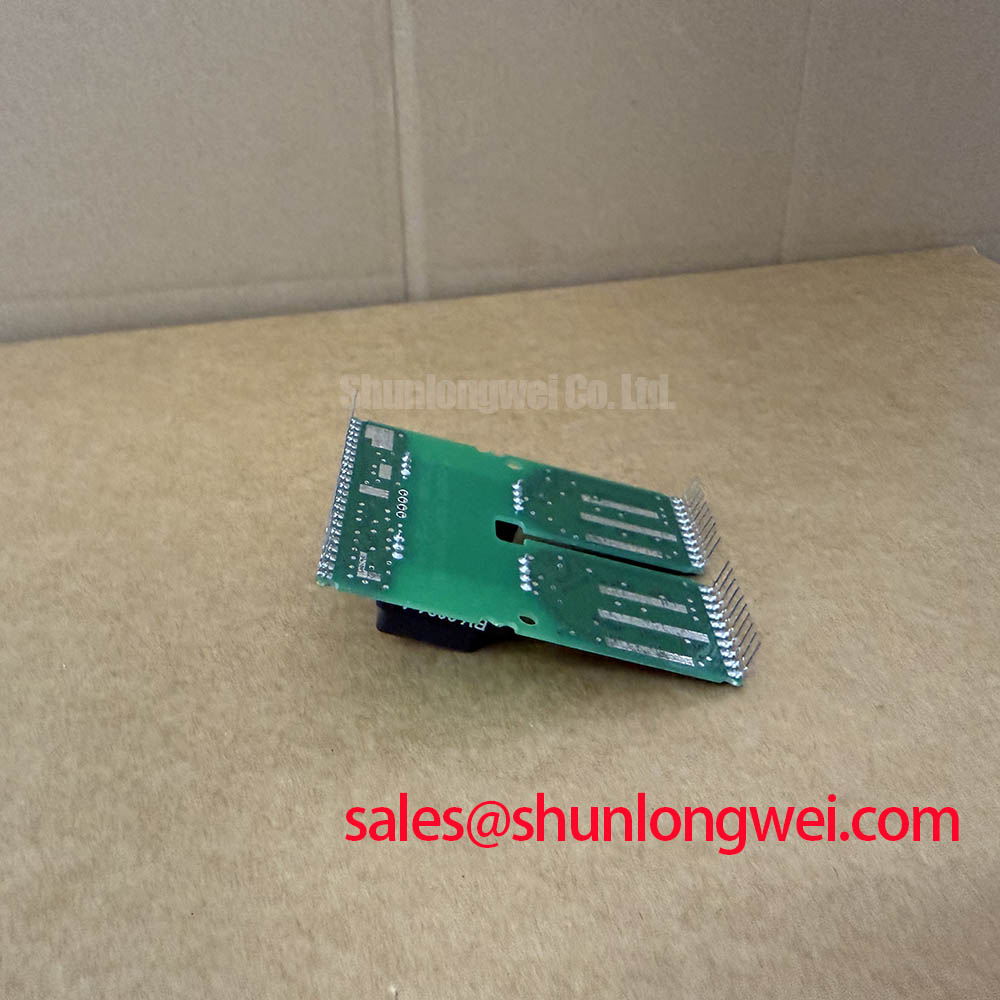

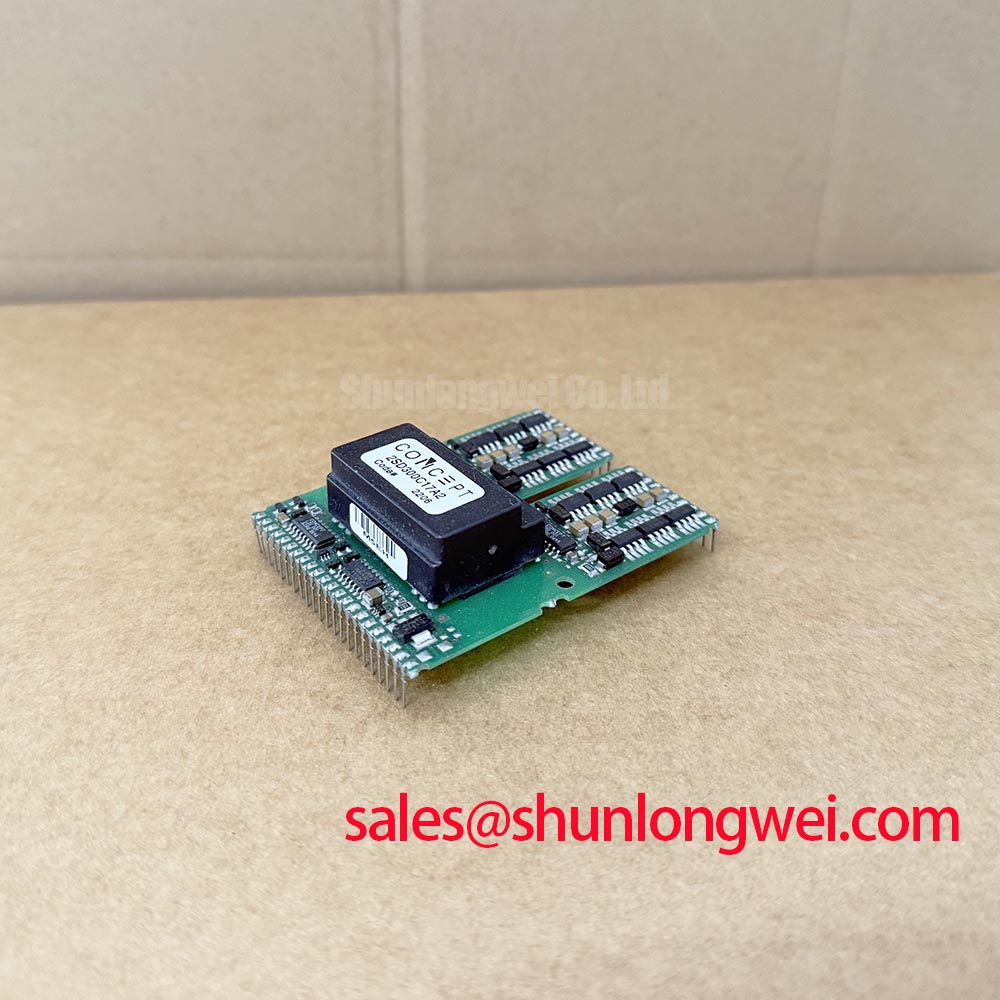

2SD300C17A2 Power Integrations 1700V 30A Dual-Channel Gate Driver Core

Content last revised on March 27, 2026

2SD300C17A2 Power Integrations 1700V Dual-Channel Gate Driver Core

The 2SD300C17A2, a flagship component in the SCALE-2 chipset family from Power Integrations, represents a pinnacle in high-power gate drive technology. This dual-channel driver core is specifically engineered for high-performance 1700V IGBT modules, providing a peak gate current of 30A and 4W of drive power per channel. By integrating high-level protection features and advanced isolation in a compact footprint, it enables engineers to achieve superior power density while maintaining the highest reliability standards in demanding industrial environments.

UVP: High-performance SCALE-2 dual-channel driver core delivering 30A peak gate current and 4W per channel for 1700V IGBT applications.

• Core Specs: 1700V Blocking Voltage | ±30A Gate Current | 4000V AC Isolation.
• Key Benefits: Drastic component count reduction and ultra-fast short-circuit protection.
• What is the primary benefit of the SCALE-2 chipset in the 2SD300C17A2? It significantly reduces component count while increasing reliability through integrated protection and high-speed signal processing.

For high-power wind turbine inverters requiring robust 1700V isolation and high peak current, the 2SD300C17A2 is the optimal choice.

Key Parameter Overview

Decoding the Specs for Enhanced Thermal Reliability

Understanding the electrical boundaries of the 2SD300C17A2 is critical for ensuring long-term system stability, especially when driving large-scale modules in half-bridge topologies.

Download the 2SD300C17A2 datasheet for detailed specifications and performance curves.

Application Scenarios & Value

Achieving System-Level Benefits in High-Frequency Power Conversion

Engineers often face the challenge of managing significant Gate charge (Qg) in high-power modules, which can lead to excessive switching losses if the driver lacks sufficient current capability. The 2SD300C17A2 addresses this by acting like a high-speed hydraulic pump, delivering massive bursts of "current" to open and close the heavy gates of high-power IGBTs almost instantaneously.

In Wind Power generation systems, where reliability is non-negotiable, the integrated Active Clamping feature of the 2SD300C17A2 protects the IGBT from overvoltage during turn-off, a common occurrence during high-current fault conditions. This module is particularly effective when paired with high-capacity 1700V switches. For systems utilizing large-format modules, the 2SD300C17A2 provides the necessary drive strength for components like the FF450R17ME4 or the SKM400GAL176D, ensuring they operate within their optimal efficiency windows.

Beyond renewable energy, this driver core is a staple in Variable Frequency Drives (VFD) and industrial UPS systems. The ability to generate a Negative Gate Voltage during the off-state ensures high immunity against parasitic turn-on effects, which is vital in high-frequency designs where dv/dt rates are elevated.

Technical Deep Dive

A Closer Look at the SCALE-2 Chipset for Long-Term Reliability

The 2SD300C17A2 utilizes the proprietary SCALE-2 technology, which integrates almost all drive and protection functions into a dedicated chipset. This architectural choice reduces the total component count by up to 80% compared to traditional discrete solutions. Fewer components directly translate to a higher Mean Time Between Failures (MTBF) and a significantly smaller PCB footprint.

A critical engineering feature of this driver core is its Desaturation Protection. The 2SD300C17A2 monitors the collector-emitter voltage of the IGBT; if a short circuit occurs, the driver detects the sudden rise in voltage and initiates a "soft turn-off" sequence. This prevents catastrophic failure by ensuring the IGBT does not turn off too quickly while carrying massive fault currents, which would otherwise lead to a destructive voltage spike. Consider the 2SD300C17A2 as a sophisticated "digital bodyguard" for your power stage, constantly monitoring the health of the silicon and reacting within microseconds to anomalies.

The DC/DC converter is also integrated, providing the necessary isolated power to the secondary side. This eliminates the need for external isolated power supplies, further simplifying the System Integration process. While the 2SD300C17A2 is optimized for 1700V, for designs requiring different integration levels, the related 2ED300C17-ST offers a different mechanical configuration while maintaining similar electrical performance.

Frequently Asked Questions

How does the 30A peak gate current impact the selection of gate resistors?
The 30A capability allows for the use of very low gate resistance values, which is essential for minimizing switching times in high-current 1700V IGBTs. This reduces Eon and Eoff losses, though designers must balance this with dv/dt limits and EMI constraints to prevent excessive ringing in the gate loop.

What is the significance of the 4000V AC isolation rating for industrial line voltages?
An isolation rating of 4000V AC ensures the 2SD300C17A2 meets stringent safety standards for equipment connected to 690V industrial grids. This high dielectric strength provides a robust safety barrier between the sensitive low-voltage control electronics and the high-voltage power stage, preventing catastrophic damage during insulation breakdown.

How does Active Clamping in the 2SD300C17A2 improve IGBT survival during overcurrent?
Active Clamping partially turns the IGBT back on if the collector voltage exceeds a predefined threshold during turn-off. This allows the IGBT to dissipate the energy stored in the stray inductance of the busbar safely, effectively "clamping" the voltage spike and preventing it from exceeding the 1700V limit of the module.
