Optimizing Industrial Drives with the Fuji Electric 7MBP150RA120-04 Intelligent Power Module

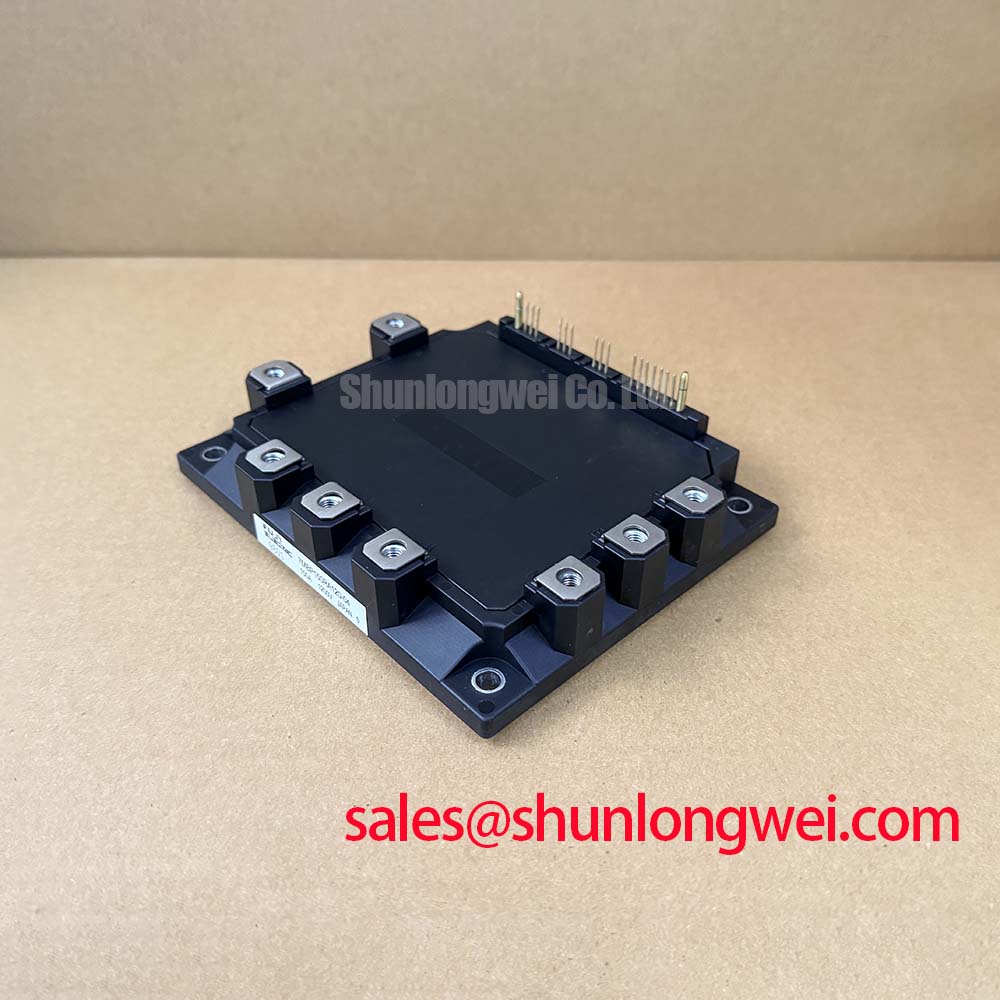

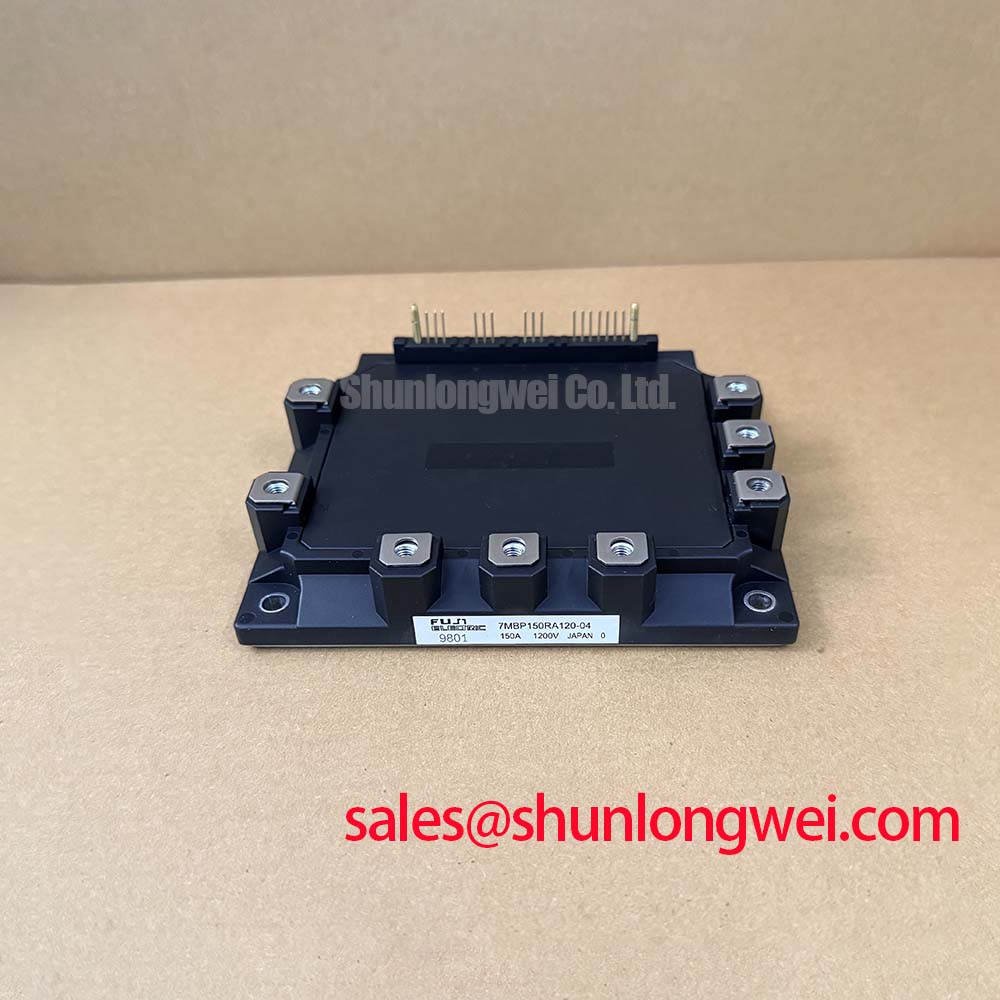

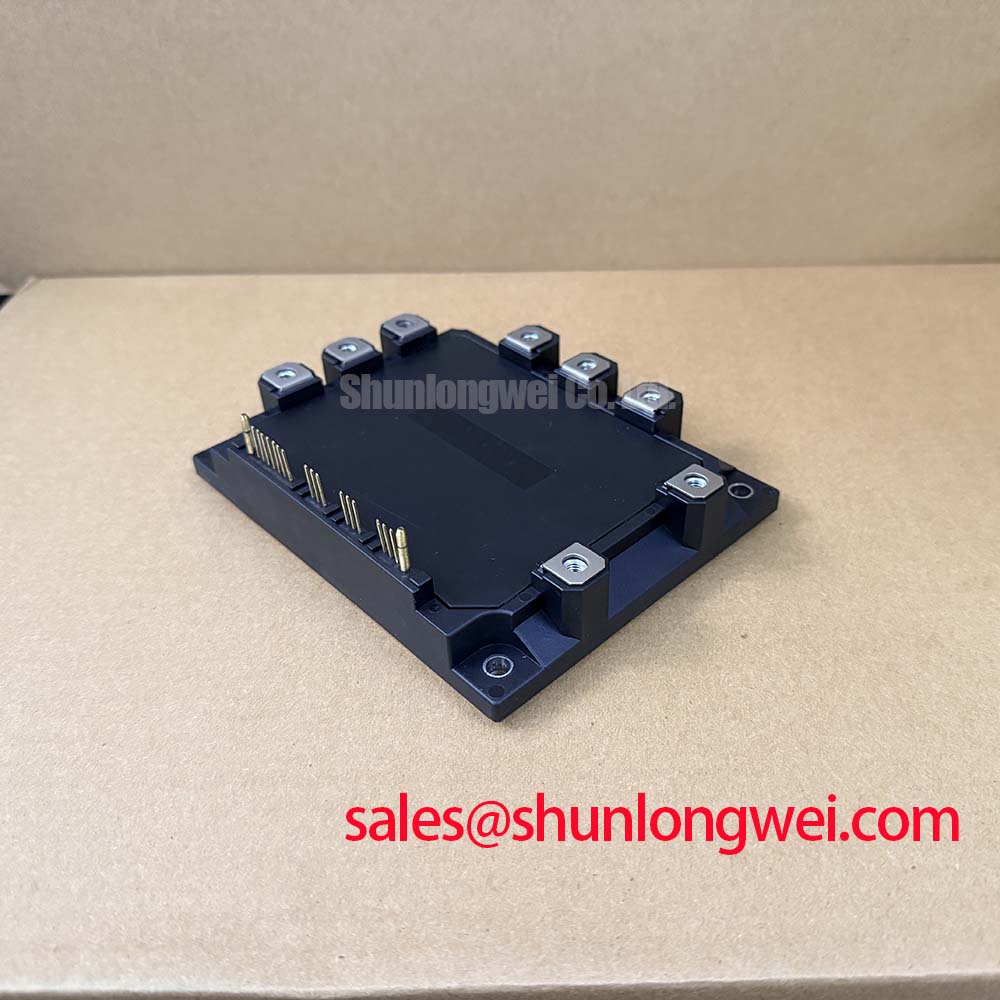

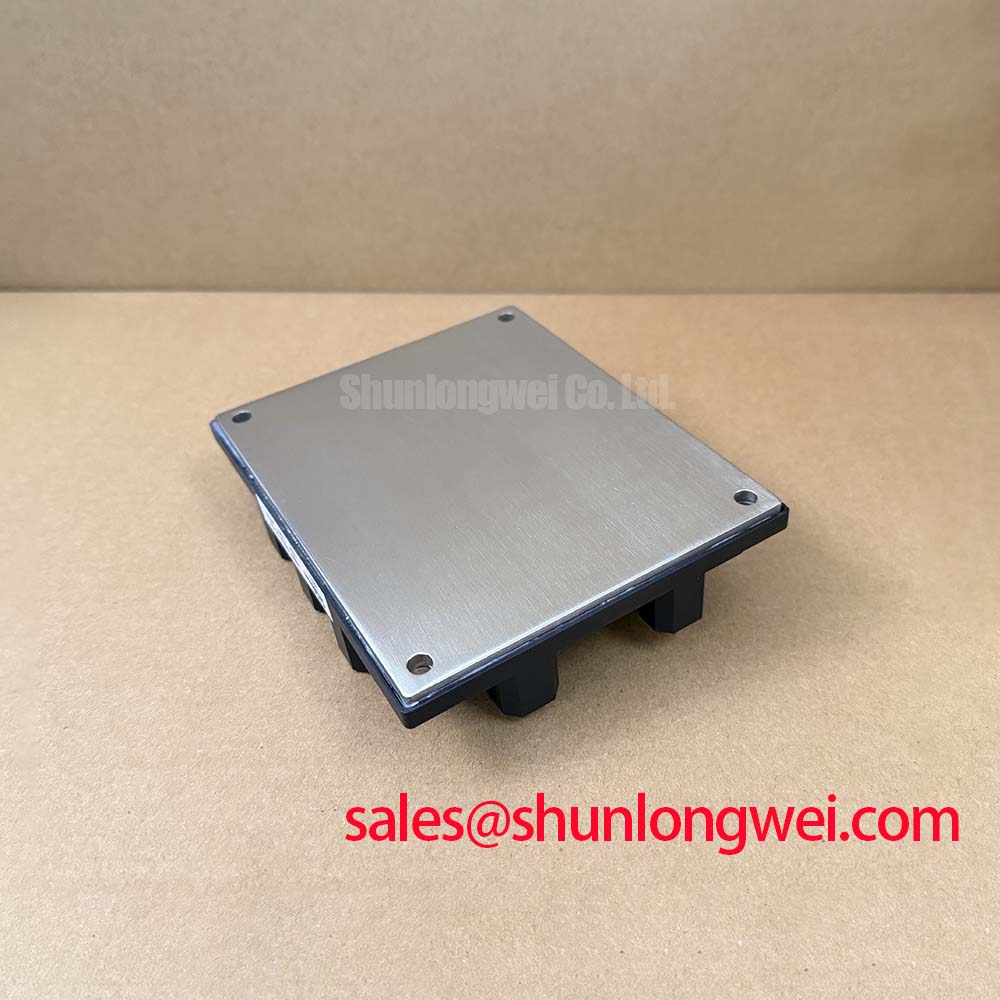

The 7MBP150RA120-04 integrates a 1200V, 150A IGBT inverter with chip-level thermal protection to simplify high-power industrial motor drive design. Specs: 1200V | 150A | Tj 150°C | Isolation 2500V AC. Key Benefits: Direct junction temperature sensing reduces thermal runaway risk. Integrated driver circuitry minimizes electromagnetic noise. Under pre-driver control, how does the module prevent thermal runaway? The module directly detects chip junction temperature instead of case temperature, responding immediately to over-temperature faults before damage propagates.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Functional Group | Parameter Description | Symbol | Rating / Value |
|---|---|---|---|
| Inverter Stage | Collector-Emitter Voltage | VCES | 1200V |
| Continuous Collector Current (Tc=80°C) | IC | 150A | |
| Repetitive Peak Collector Current (1ms) | ICP | 300A | |
| Collector Power Dissipation (Per Device) | PC | 1040W | |
| Control & Protection | Supply Voltage of Pre-Driver | VCC | 20V |
| Junction Overheat Protection Threshold | Tj(OH) | 150°C | |
| Undervoltage Lockout Shutdown Voltage | VUV | 12.5V (typical) | |
| Isolation & Thermal | Isolation Voltage (AC, 1 minute) | Viso | 2500V AC |
| Operating Junction Temperature Range | Tj | -20°C to +150°C |
Download the 7MBP150RA120-04 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Power Industrial Inverters
For 400V AC industrial drive systems prioritizing junction-level thermal margin, this 1200V 150A module is the optimal choice. In typical manufacturing facilities, space constraints inside electrical panels restrict thermal airflow. Under these conditions, implementing a robust in-depth analysis of IGBT modules reveals that integrated architectures significantly lower the failure rate compared to discrete solutions. The 7MBP150RA120-04 is designed for high-stress applications such as Variable Frequency Drives (VFDs) and high-power servo drive systems. In a typical conveyor belt startup sequence, motor inrush currents can trigger nuisance faults. However, with a transient collector current rating of 300A, the module easily absorbs these startup surges.
By incorporating the driver logic internally, the module removes the need for external gate resistors and optocouplers, simplifying the overall gate drive and thermal management topologies. The built-in gate driver functions like a perfectly matched transmission gearbox in a vehicle, transferring electrical signals directly to the IGBT gates with minimal delay and impedance mismatch. For platforms designed for lighter or lower current motor stages, utilizing related versions like the 7MBP100RA120-05 or the 7MBP75RA120 helps optimize system cost while keeping the same control package layout.
Technical & Design Deep Dive
Integrated Gate Drive and Chip-Level Temperature Protection Physics
Understanding the physical protection mechanism requires decoding IGBT datasheets beyond raw electrical limits. The 7MBP150RA120-04 implements a dedicated sensor on the actual silicon chip rather than relying on an external thermistor on the ceramic substrate. Direct chip junction temperature detection acts like a smoke detector placed directly inside the server rack, whereas traditional case overheat detection behaves like a thermometer mounted on the building's exterior brick wall, responding only after the fire has spread.
What is the primary benefit of chip-level overheat protection? It prevents thermal runaway by directly detecting junction temperature.
How does the module simplify PCB layout? By integrating the gate drive and protection circuits internally.
When the internal sensor detects that the silicon has exceeded the 150°C maximum limit, the pre-driver triggers a soft shutdown, outputting an alarm signal to the central controller. Additionally, this module incorporates short-circuit protection and undervoltage lockout (UVLO). The undervoltage protection automatically disables the gate drive signals if the supply voltage drops below the 12.5V threshold, preventing the IGBT from operating in its high-dissipation linear mode. This level of safety integration conforms to the demanding electrical isolation standards of international power electronics design.
Frequently Asked Questions
Answering Critical Integration Questions for Design Engineers
- How does the direct junction temperature detection in the 7MBP150RA120-04 enhance reliability compared to case-level sensing?Direct chip-level sensing detects localized thermal spikes within microseconds. This prevents thermal degradation during dynamic overload conditions, whereas case-level sensors react too slowly to prevent silicon destruction.
- What is the significance of the typical 2.50V collector-emitter saturation voltage in inverter designs?A typical saturation voltage of 2.50V at the terminals under 150A current levels minimizes conduction losses. This allows thermal designers to reduce heatsink dimensions and maximize the power density of the enclosure.
