BSM100GAL100D Infineon 1000V 100A IGBT Module

Content last revised on September 10, 2026

Thermal Paste Degradation Prevention and Mechanical Clamping Torque Calibration

In high-availability power conversion systems such as Commercial and Industrial (C&I) Battery Energy Storage Systems (BESS) Power Conversion Systems (PCS), the power stage relies on consistent thermal transfer to maintain stability. The BSM100GAL100D chopper module houses a high-voltage IGBT and fast recovery diode network within a standard 34mm industrial copper baseplate package. Because the IGBT operates with a continuous direct current rating of 100A (at a case temperature TC = 80°C) and an on-state saturation voltage VCE(sat) of 2.8V typical at Tj = 25°C, steady-state and cyclic conduction losses demand an unbroken thermal conduction path directly into the forced-air or liquid cold plate.

Thermal Interface Material (TIM) application is the single most vulnerable mechanical step during scheduled overhaul and component replacement. Applying non-curing silicone-based or phase-change thermal grease requires strict thickness control between 50 µm and 100 µm across the nickel-plated copper baseplate. Applying excessive thermal compound increases the junction-to-heatsink thermal impedance, whereas an insufficient or uneven layer introduces microscopic air pockets, precipitating localized hot spots under high-load charging cycles.

Baseplate flatness and curvature compensation must be verified before module seating. The 34mm baseplate exhibits a manufacturing crown convex curvature designed to flatten out under calibrated bolt tension. Deviating from the factory-specified sequential mounting sequence causes irreversible baseplate bowing, resulting in TIM pump-out after thermal cycling:

• Initial Placement: Ensure the heatsink surface roughness satisfies Rz ≤ 10 µm without foreign debris or surface scoring.
• Pre-Fastening Stage: Hand-tighten all M5 mounting bolts in a diagonal cross-pattern to a preliminary torque of 0.5 N·m to 1.0 N·m, seating the module evenly in the paste layer.
• Final Torque Calibration: Allow the grease to distribute across the contact plane for 15 to 30 minutes, then apply a calibrated torque wrench to achieve the final mechanical clamping torque of 3.0 N·m to 5.0 N·m.
• Terminal Connection: Secure the main power terminals (M5) within a 2.5 N·m to 5.0 N·m window, utilizing split lock washers and Belleville disc springs to counter continuous thermal expansion cycles without stripping internal copper threads.

⚠️ Maintenance Note: During annual preventative plant inspections, technicians must use calibrated infrared thermography to map terminal interface differentials. A steady-state temperature gradient exceeding 8°C between the baseplate perimeter and the adjacent heat sink surface indicates grease pump-out or drying, requiring immediate unmounting, surface cleaning with high-purity isopropyl alcohol, and re-application of thermal compound.

For systems undergoing engineering reassessment or requiring higher current handling capabilities within similar converter layouts, the related BSM400GA120DN2 provides a 400A continuous collector rating for scaling PCS sub-assemblies.

Evaluating Thermal Capacitance vs Heat Sink Time Constant under Surge Bursts

Industrial battery storage inverters face severe transient overcurrent demands during grid faults, transformer inrush events, and dynamic load steps. While steady-state operation is limited by the rated thermal resistance junction-to-case Rth(j-c) of 0.16 K/W for the IGBT section, short-duration surge bursts rely entirely on the transient thermal impedance Zth(j-c) and the thermal capacitance of the semiconductor silicon and internal direct bonded copper (DBC) substrate.

Under a high-current transient reaching the pulsed limit of 200A, the heat generated inside the active sub-millimeter die cannot diffuse through the baseplate into the heatsink during the first several milliseconds. The heat sink mass exhibits a thermal time constant ranging from 60 seconds to several minutes, whereas the IGBT junction reaches peak thermal equilibrium within 10 to 50 milliseconds. Engineers evaluating transient loading should calculate junction temperature swings using Foster or Cauer equivalent multi-RC networks, preventing the die from exceeding its operational maximum temperature.

Protection coordination against catastrophic short circuits requires fast semiconductor fuse selection combined with gate-level desaturation detection. To ensure the module survives an un-cleared line fault without case rupture, the protective fuse must satisfy the energy coordination formula:

I2tfuse ≤ 0.7 × I2tdevice

When the control board senses a rapid collector-emitter desaturation above VCE(sat) (indicative of a phase-to-phase dead short), the driver must initiate a soft turn-off sequence within 10 µs. Detailed testing and fault isolation procedures for transient-induced failures are documented in the Field Engineer’s Handbook for standardized plant maintenance.

Modern design methodologies that compare classical planar architectures against advanced cell structures are discussed in technical documentation like the Infineon TRENCHSTOP™ 5 engineering paper, highlighting how internal thermal impedances evolve across module generations.

Calculating Failures-in-Time (FIT) Rates in High-Altitude Solar and Wind Farms

Commercial BESS units paired with high-altitude photovoltaic or wind power installations operate under heightened environmental and physical stresses. At altitudes above 2000 meters, atmospheric pressure drops, leading to reduced air dielectric breakdown strength and an increased flux of terrestrial cosmic ray neutrons. Atmospheric neutron bombardment causes Single Event Burnout (SEB), a catastrophic, non-degradative breakdown where a high-energy particle triggers a localized plasma filament within the drift region of a blocking semiconductor.

The BSM100GAL100D features a maximum rated blocking capability of 1000V. In high-altitude deployments, the Failures-in-Time (FIT) rate—defined as the number of device failures per 109 operating hours—increases exponentially if the continuous DC-bus voltage is held near the maximum breakdown rating. To mitigate SEB risk, DC-bus voltage derating is mandatory:

• Sea Level to 1000m: A continuous operating DC-link voltage of 650V to 700V provides a standard baseline for industrial reliability.
• 2000m to 3000m Elevation: Derate continuous steady-state DC bus voltages to ≤ 600V. This voltage derating reduces the internal electric field strength below the critical avalanche threshold required to sustain neutron-initiated plasma channels.
• Clearance and Creepage Multipliers: In accordance with IEC 60664-1, apply an altitude correction factor (such as 1.48× clearance distance at 3000m) to external terminals and busbar connections to prevent flashover across the 34mm package envelope.

⚠️ Field Alert: In remote, high-altitude energy storage containers, diurnal temperature swings create severe internal condensation cycles during early morning operational ramp-up. Technicians must ensure internal cabinet hygrometers activate anti-condensation heating strips prior to energizing the main DC bus, preventing moisture condensation over the external terminals from bridging collector-to-gate creepage boundaries.

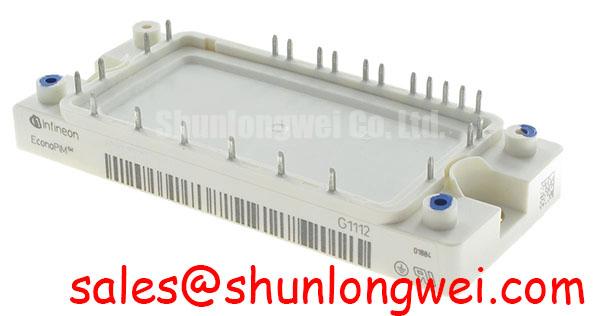

Where complementary front-end rectification or auxiliary conversion stages are deployed alongside the chopper switch, engineers often evaluate matching topology elements such as the FP40R12KT3G integrated power module for compact multi-stage architectures.

Isolated DC-DC Power Supply Sizing for High-Side Floating Gate Drivers

Driving the gate of the BSM100GAL100D requires an isolated DC-DC power supply and gate driver stage capable of delivering stable charge while rejecting violent switching transients. The IGBT gate threshold voltage VGE(th) ranges between 4.5V and 6.5V. To achieve rapid turn-on with minimum conduction losses, the forward gate voltage should be regulated to +15V (±0.5V). Applying a gate drive voltage below 13.5V significantly increases VCE(sat) above the nominal 2.8V, generating excessive dissipation.

Conversely, maintaining turn-off immunity under rapid dV/dt transient conditions requires a negative bias voltage between -5V and -8V. The continuous power rating required for the isolated auxiliary DC-DC supply per channel is determined by the total gate charge Qg, the peak-to-peak gate voltage excursion ΔVGE, and the converter switching frequency fsw:

Psupply = Qg × (VGE,on - VGE,off) × fsw × SF

Here, SF represents an engineering safety factor (typically 1.3 to 1.5) to account for gate resistor dissipation and driver quiescent operating current. A 100A module switched at 15 kHz to 20 kHz inside a BESS chopper circuit demands an isolated supply capable of supplying 2W to 5W per channel continuously.

In high-power converters, Common-Mode Transient Immunity (CMTI) is critical. Rapid switching transients (exceeding 50 kV/µs to 100 kV/µs) inject displacement currents through the stray parasitic capacitance (Ciso) of the isolation transformer barrier. If the barrier lacks high CMTI, capacitive ground currents will distort the driver output, creating spurious turn-on pulses and dangerous shoot-through events.

Detailed switching characteristics, gate charge dynamics, and transient mitigation practices are outlined in technical literature such as the Infineon TRENCHSTOP™ IGBT3 application guide, providing baseline principles for modern isolated gate driver design.
