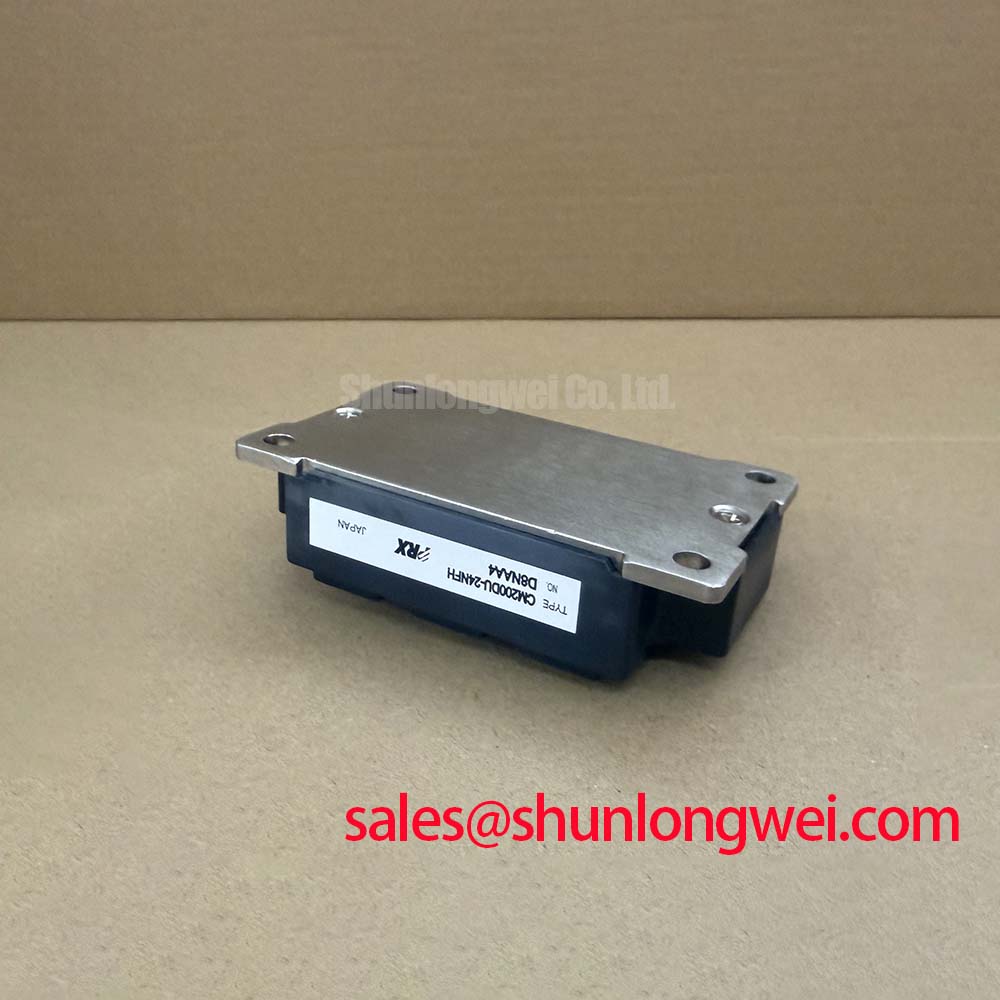

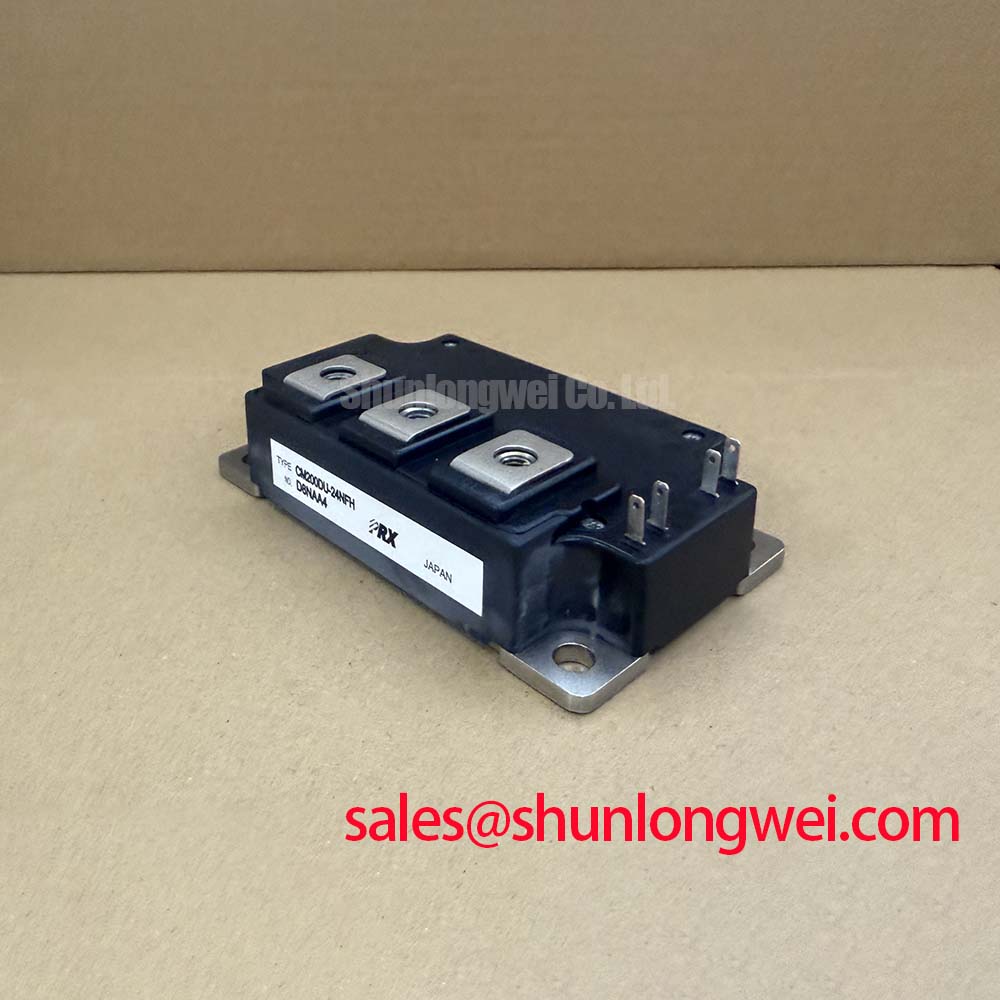

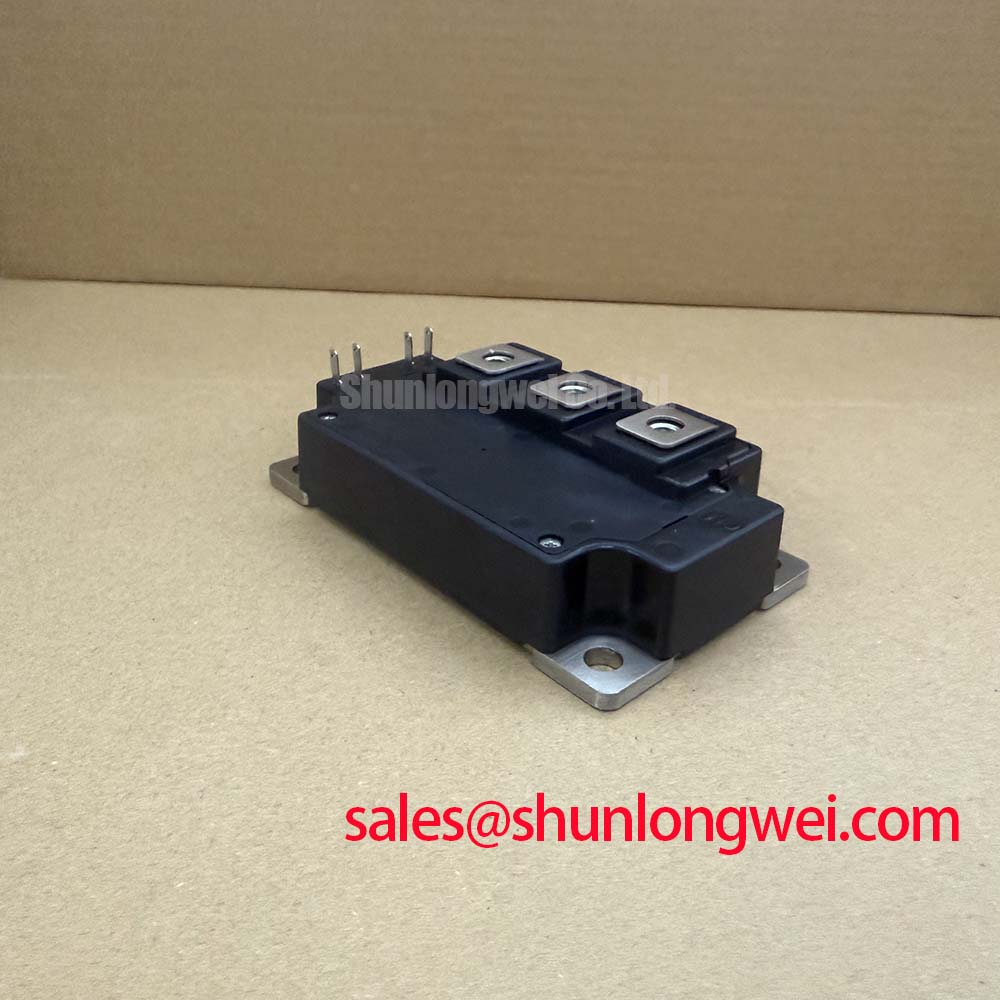

CM200DU-24NFH Mitsubishi Electric 1200V 200A IGBT Module

Evaluate Mitsubishi CM200DU-24NFH, a 1200V 200A IGBT module, for commercial string inverter and micro-grid storage converter maintenance.

· Categories: IGBT
· Manufacturer: Mitsubishi
· Price: US$ 32 In-Stock Offer
· Date Code: Please Verify on Quote
. Available Qty: 420
MOQ: 1 PC
Express Shipping
90-Day Warranty
1-2 Days Lead Time
100% Tested
Whatsapp: 0086 189 2465 1869

Content last revised on October 26, 2026

CM200DU-24NFH Circuit Protection & Reliability: Calibrating Baseplate Thermal Grease Layer Control

Remove residual interface material without scratching the mating surfaces, then examine the contact pattern for edge loading, contamination, and interrupted coverage. As a Design Consideration, thermal grease should fill surface irregularities rather than compensate for a distorted heatsink or baseplate. Excess material can increase thermal resistance, while incomplete coverage can produce localized temperature differences.

Control application through the approved assembly process and inspect the resulting imprint where the maintenance procedure permits disassembly. Select the interface thickness from the module mounting instructions and the thermal material specification rather than adopting a universal grease thickness. Check surface flatness against the applicable mechanical drawing; tightening harder is not an appropriate correction for curvature.

As an Engineering Recommendation, seat the module progressively using the specified fastening sequence and calibrated tooling, keeping cable or busbar forces from tilting the assembly. Record interface material replacement during service so later temperature trends can be compared with the same cooling configuration. Inspection intervals should reflect contamination, thermal cycling, and observed interface deterioration.

Maintenance Note: Trend terminal and heatsink temperatures under comparable loading, and check airflow restrictions before attributing a temperature rise to the module.

Assembly Integrity & Layout Architecture: Terminal-to-Baseplate Insulation Checks for CM200DU-24NFH

Disconnect the module from gate electronics and other sensitive circuitry before considering terminal-to-baseplate insulation testing. Insulation resistance measurement and dielectric withstand testing serve different purposes; their test voltage, terminal grouping, duration, and acceptance criteria must follow the manufacturer-approved procedure. An arbitrary high-potential test can damage connected equipment and does not establish internal substrate integrity.

As a Design Consideration, inspect exposed insulation surfaces for conductive dust, moisture tracks, and contamination around mounting hardware. Preserve the equipment’s specified creepage and clearance distances when reinstalling busbars or protective covers. Where condensation is possible, address cabinet moisture control before energization rather than treating a dry-room measurement as proof of installed insulation performance.

The Mitsubishi Electric power semiconductor resources provide the manufacturer reference point for device documentation. During layout assessment, also examine the commutation loop: diode recovery interacting with wiring inductance can generate ringing. Snubber evaluation belongs alongside this physical layout review, not in place of correcting unnecessarily extended current paths.

Preventing Spurious Faults: Multi-Module Parallel Current Sharing Guidelines for CM200DU-24NFH

Compare branch currents under matched load and cooling conditions before changing gate resistance to correct an apparent imbalance. As a Design Consideration, symmetrical power connections, comparable thermal interfaces, and matched gate-loop geometry help separate installation effects from device differences. A positive saturation-voltage temperature coefficient can assist static sharing only in the operating region where the manufacturer’s characteristic curves establish that behavior.

Use the following comparison boundary when screening related Mitsubishi part numbers; the linked devices are evaluation references, not established replacements.

Selection item CM200DU-24NFH CM300DY-24A
Manufacturer Mitsubishi Electric Mitsubishi Electric
Rated voltage 1200 V, Official Specification Consult Datasheet
Rated collector current 200 A under the datasheet-specified conditions Consult Datasheet
Mechanical and drive compatibility Compare terminal arrangement, mounting drawing, switching characteristics, and gate-drive requirements

The CM300DY-24A comparison supports cross-model screening without implying interchangeability. Likewise, a system assessment involving CM200DY-12NFH should examine its own converter-stage role and driver requirements rather than assuming compatibility from a related designation.

When evaluating commercial string inverters or micro-grid energy storage converters, designers should verify topology, protection coordination, and thermal capability. The Power Electronics Masterclass provides broader selection context for those system-level checks.

Preventing Spurious Faults: Damping Reverse-Recovery Ringing Guidelines for CM200DU-24NFH

Capture collector voltage, switching current, and gate-emitter voltage with appropriately rated probes to distinguish IGBT turn-off tail current from diode reverse-recovery ringing. As a Design Consideration, recovery peak current and recovery softness depend on operating conditions; neither should be assigned a fixed value without the applicable characteristic data.

Evaluate turn-on gate resistance and RC snubbing against measured overshoot, switching loss, and component heating. Their values remain system-determined. Check driver interlocking and effective dead time across propagation delays and temperature so damping changes do not introduce cross-conduction. Manufacturer technology resources at Mitsubishi Electric Semiconductor Devices provide supporting device context, not equipment-level EMC certification.

For cable-fed loads, distinguish converter-terminal ringing from reflected voltage at the load end before selecting an output filter. Recheck protection operation after any drive or suppression change, using the actual bus voltage, load conditions, and installed wiring.
