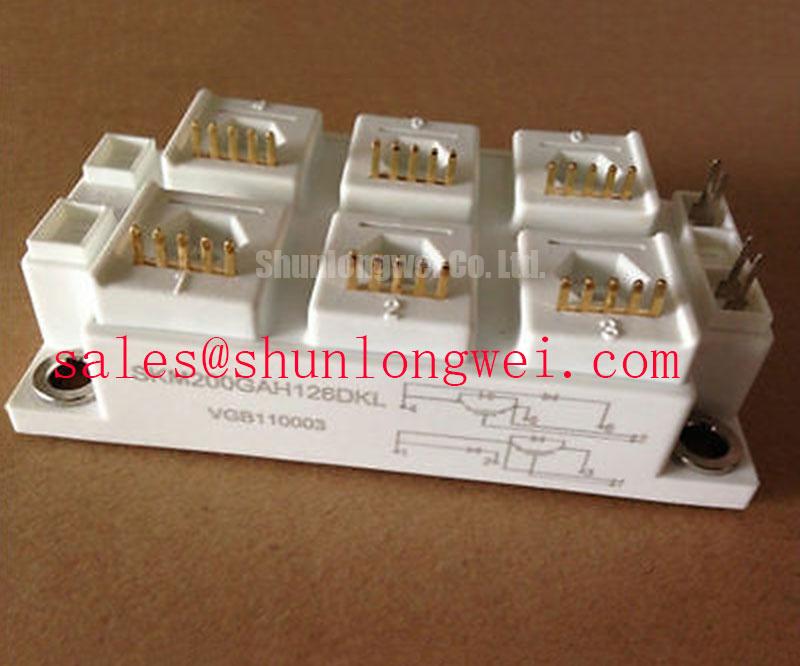

Semikron SKM200GAH126DKL IGBT Module: High-Efficiency 1200V 200A Chopper Solution for Industrial Power Systems
How do design engineers maintain low switching losses while preventing thermal runaway in high-frequency braking chopper and DC-DC conversion circuits? Power converters operating under high current loads frequently experience thermal drift and elevated collector-emitter saturation voltage (VCE(sat)), increasing junction temperatures and system strain. The SKM200GAH126DKL from Semikron addresses these core engineering obstacles through an integrated high-side chopper topology designed for maximum thermal stability and switching efficiency.
Featuring a rated collector-emitter voltage VCES of 1200V and continuous collector current IC of 200A, the SKM200GAH126DKL leverages Trenchgate IGBT technology paired with a free-wheeling Controlled Axial Lifetime diode. Key engineering benefits include a positive temperature coefficient for simplified current sharing and short-circuit withstand capability rated up to 6 times nominal current. For 1200V high-side chopper applications requiring robust short-circuit defense and thermal endurance, the SKM200GAH126DKL is an ideal engineering choice.
Frequently Asked Questions
Engineers' Most Critical Design & Reliability Queries Answered
How does the positive temperature coefficient of VCE(sat) affect multi-module thermal stability?
As junction temperature rises, VCE(sat) increases predictably. What makes SKM200GAH126DKL suitable for parallel operation? Its positive temperature coefficient of VCE(sat) ensures equal current sharing. This intrinsic feedback loop prevents current crowding and local overheating in high-power converter designs.
What short-circuit protection duration does the SKM200GAH126DKL provide?
The module provides self-limiting short-circuit capability up to 6 x IC for up to 10 µs at starting junction temperatures of 125°C. This window gives gate drivers sufficient time to detect desaturation events and trigger soft shutdown routines without risking die destruction.
Why is the integrated CAL diode critical for high-frequency chopper switching?
How does the integrated CAL diode lower total switching dissipation? The soft-recovery Semikron CAL Diode minimizes reverse recovery peak current and voltage spikes during rapid turn-off transitions. This reduces electromagnetic interference and lowers diode turn-off losses across elevated switching frequencies.
What are the recommended gate drive voltage levels for optimal switching performance?
Semikron specifies a standard nominal gate-emitter turn-on voltage VGE of +15V to achieve the lowest saturation voltage. A turn-off voltage of -8V to -15V is recommended to prevent parasitic turn-on induced by high dv/dt transients across the DC-link bus.
Is the SKM200GAH126DKL suitable for continuous 1500V solar inverter topologies?
No, operating the module above its rated 1200V VCES limit compromises the transistor's Safe Operating Area and invites avalanche breakdown. High-voltage solar topologies requiring greater blocking margin should consider 1700V-class devices such as the related SKM400GAL176D.
Key Parameter Overview
Decoding Specs for High-Frequency Chopper Topologies
Below is a factual breakdown of key electrical, thermal, and mechanical parameters for the SKM200GAH126DKL chopper module. Engineers evaluating system efficiency and heatsink sizing can review these reference values alongside our IGBT module fundamentals guide.
| Parameter Symbol | Technical Parameter | Nominal Rating / Value | Engineering Value & Design Impact |
|---|---|---|---|
| VCES | Collector-Emitter Voltage | 1200 V | Provides sufficient voltage headroom for 400V–690V AC industrial line rectifiers. |
| IC | Continuous Collector Current (Tc=80°C) | 200 A | Delivers high power density in compact drive cabinets without excessive derating. |
| VCE(sat) | Collector-Emitter Saturation Voltage | 1.7 V – 1.9 V (typ. at 25°C) | Low conduction losses directly reduce cooling requirement and heatsink mass. |
| tpsc | Short-Circuit Withstand Time | 10 µs (VCC=720V, VGE=15V) | Ensures robust fault tolerance for industrial drive protection logic. |
| Rth(j-c) | IGBT Thermal Resistance Junction-to-Case | 0.11 K/W | High thermal conductivity substrate facilitates efficient heat transfer to heatsinks. |
| Package | SEMITRANS 2 Housing | Standard Industrial Footprint | Isolated copper baseplate enables low-inductance busbar mounting. |
Technical & Design Deep Dive
Trenchgate Structure & CAL Diode Integration Demystified
Understanding internal chip structure is essential when managing high dv/dt transients and thermal resistance. The SKM200GAH126DKL integrates a high-side Trenchgate IGBT alongside a fast free-wheeling CAL diode within a SEMITRANS 2 housing. Think of the trench structure as a multi-lane highway constructed vertically into the silicon; by channeling carrier flow vertically rather than horizontally, channel resistance drops significantly while keeping total die surface compact.
This layout lowers total conduction losses and stabilizes device behavior under load variation. In switching applications where peak current stress creates thermal spikes, performing targeted switching loss evaluation helps engineers optimize turn-on and turn-off gate resistors (RG(on) / RG(off)) to control voltage overshoot without inducing excessive switching dissipation.
Equally critical is thermal resistance optimization between the isolated copper baseplate and the heatsink. The low junction-to-case thermal resistance (Rth(j-c)) of the SKM200GAH126DKL ensures that high peak power pulses in dynamic braking choppers do not drive junction temperatures past the maximum allowable 150°C threshold.
Industry Insights & Strategic Advantage
Meeting Global Energy Standards in High-Density Power Systems
Industrial electrification trends, guided by directives such as IEC 61800-3 for variable speed drives, demand higher conversion efficiency and reduced physical footprint. Modern industrial frequency converters require power stages capable of handling repetitive braking energy while maintaining strict thermal control.
Modules like the SKM200GAH126DKL deliver strategic advantages by combining low VCE(sat) characteristics with robust power cycling capabilities. By minimizing both conduction and reverse-recovery losses, system integrators can shrink heatsink volume, reduce cabinet fan power consumption, and improve overall Mean Time Between Failures (MTBF) in harsh operational environments.
Application Scenarios & Value
Optimizing High-Side Switching in Heavy Industrial Applications
The asymmetric high-side chopper configuration of the SKM200GAH126DKL fits directly into specialized power topologies across multiple industrial sectors:
- Dynamic Braking Choppers: Absorbs regenerative energy from deceleration in variable frequency drives (VFD) by switching high-power resistor banks attached to the DC-link capacitor bank.
- DC-DC Buck Converters: Functions as the primary high-side switch in high-current industrial DC power supplies and battery charging stations.
- Switched Reluctance Motor Drives: Manages phase excitation currents with fast demagnetization provided by the integrated anti-parallel CAL diode.
Consider a 100kW industrial crane hoist experiencing frequent motor deceleration cycles. The high peak currents produced during regenerative braking threaten to overcharge the DC-link capacitors. Implementing the SKM200GAH126DKL as the braking chopper switch allows precise pulsing of external resistors. Its 10 µs short-circuit withstand time protects against accidental resistor flashovers, keeping industrial hoist operations fully compliant with fault safety protocols.
For half-bridge topologies operating in the same power range, engineers can evaluate the neutral related offer SKM200GB128D. Applications requiring higher continuous current in single-switch configurations may also review the related SKM300GA123D with a 300A collector current rating.
When selecting gate driver ICs and thermal interface materials (TIM), field engineers should calculate total dissipation based on operational duty cycles, switching frequencies (fsw), and worst-case ambient temperatures. Ensuring symmetrical mounting torque on the SEMITRANS housing preserves substrate integrity and guarantees long-term field performance.
