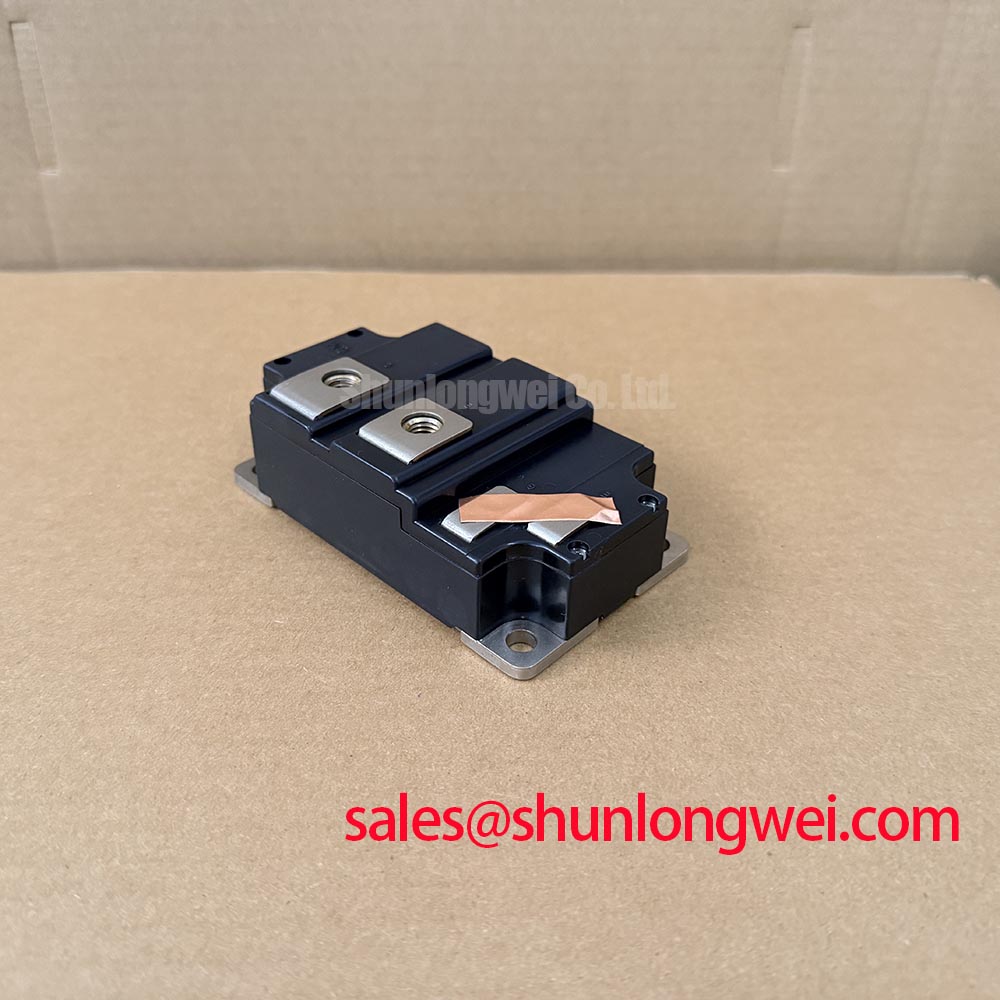

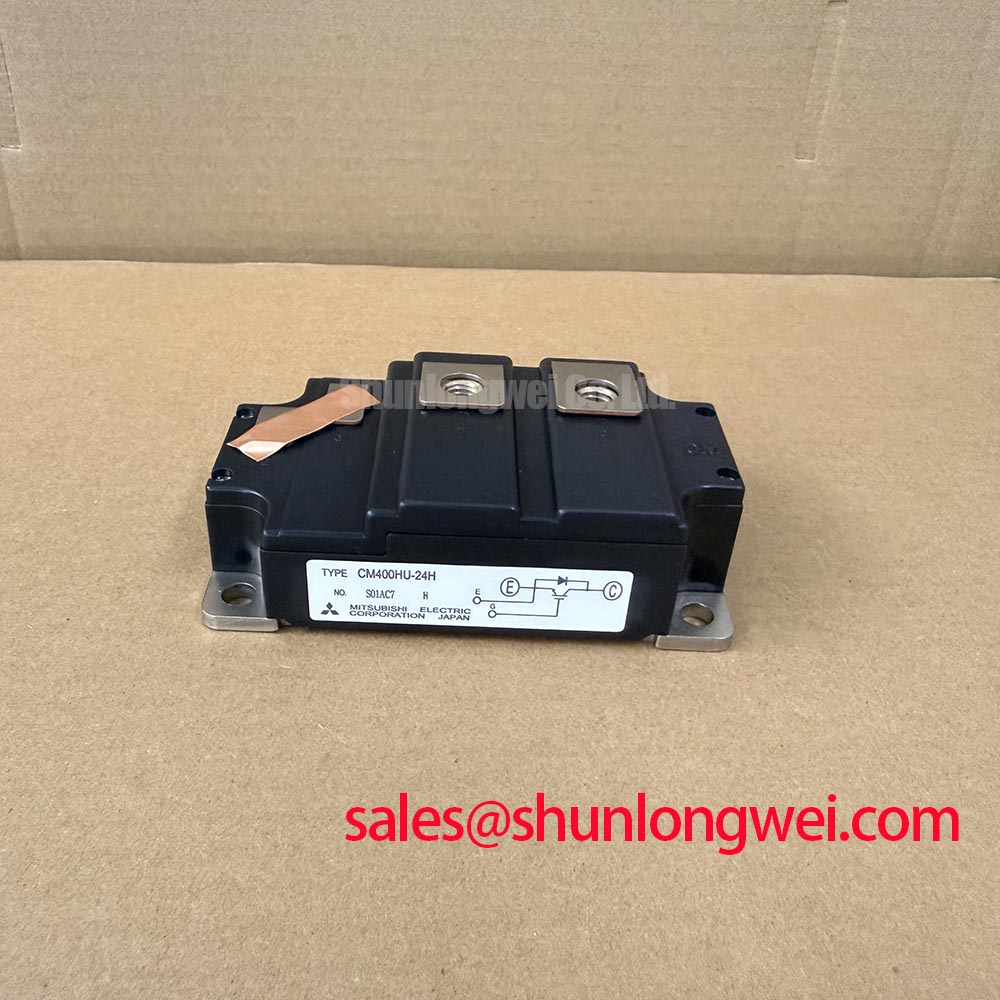

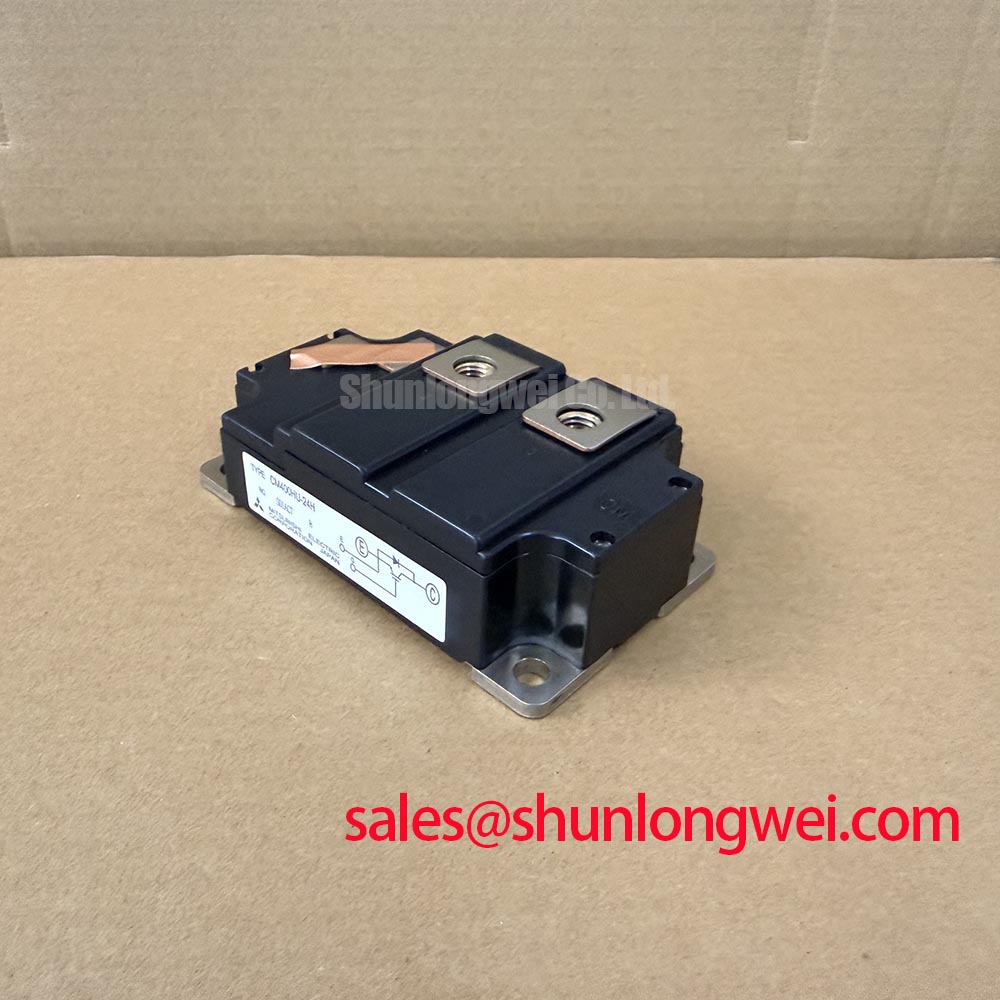

Mitsubishi CM400HU-24H High-Power Single IGBT Module
The Mitsubishi CM400HU-24H provides a robust 1200V / 400A switching platform designed to maximize efficiency in high-frequency power conversion systems by significantly reducing conduction losses.
1200V | 400A | VCE(sat) 2.4V
- Optimized thermal dissipation via an isolated mounting base.
- Reduced drive requirements for simplified gate circuitry.
One common question engineers ask is whether the CM400HU-24H can handle the transient voltage spikes found in 480V AC line rectification; the answer lies in its 1200V VCES rating, which provides a significant safety margin against overvoltage failures during inductive switching. For systems requiring higher current handling, the related CM600HA-24H offers a 600A rating in a similar voltage class.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
Engineers often face the challenge of balancing high switching frequencies with the inevitable rise in thermal generation within Variable Frequency Drives (VFD). The CM400HU-24H addresses this by maintaining a low VCE(sat) of 2.4V, which minimizes conduction losses during the "on" state. Consider a high-capacity Industrial Motor Drive operating a heavy conveyor system: during the initial startup, the IGBT Module must manage a significant surge current. The 400A continuous current capability of this module ensures that even during these peak transients, the junction temperature remains within a safe operating range, preventing premature thermal fatigue.
In the context of Renewable Energy, specifically Solar Inverters, the switching speed is paramount. The CM400HU-24H functions like a high-speed industrial floodgate, controlling massive energy flows with microsecond precision. This efficiency is critical for maintaining high Total Cost of Ownership (TCO) advantages in large-scale installations. For engineers designing UPS (Uninterruptible Power Supply) systems or Welding Power Supplies, the isolated package design simplifies the mechanical layout by allowing multiple modules to be mounted on a single common heatsink without additional insulation layers.
Industry Insights & Strategic Advantage
Driving Efficiency in the Era of Industrial Decarbonization
The transition toward Industrial 4.0 and global energy efficiency regulations (such as IEC 61800-9) has placed immense pressure on the performance of Power Semiconductors. The CM400HU-24H is strategically positioned to meet these demands by leveraging Mitsubishi’s refined trench gate technology. This architecture reduces the internal resistance, effectively lowering the energy dissipated as heat. In large-scale Servo Drive applications, every watt saved in the IGBT translates to smaller cooling fans and more compact cabinet designs.
Furthermore, as the industry moves toward higher levels of integration, understanding the thermal behavior of modules is vital. Utilizing advanced working principles, designers can better predict switching losses. For projects requiring different current thresholds, such as smaller auxiliary drives, the CM400HA-24A provides an alternative configuration within the same power family. By focusing on Mitsubishi 7th Gen IGBT advancements and similar technologies, manufacturers continue to push the boundaries of power density in Electric Vehicle (EV) Inverters and grid-tied energy storage.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The following technical specifications represent the core performance characteristics of the CM400HU-24H module, sourced from official engineering documentation.
| Feature / Parameter | Specification Value | Engineering Impact |
|---|---|---|
| Collector-Emitter Voltage (VCES) | 1200V | Provides safe margin for 400V-480V systems. |
| Collector Current (IC) | 400A | Suitable for high-torque Motor Control applications. |
| Saturation Voltage (VCE(sat)) | 2.4V (Typ.) | Directly reduces heat generation during conduction. |
| Maximum Power Dissipation (PC) | 2100W | Defines the thermal limits for Heatsink Design. |
| Isolation Voltage (Viso) | 2500V AC | Ensures safe operation in high-voltage environments. |
Download the CM400HU-24H datasheet for detailed specifications and performance curves.
Technical FAQ
How does the low VCE(sat) of the CM400HU-24H affect the selection of cooling components?
A lower VCE(sat) of 2.4V reduces the amount of power dissipated as heat during the conduction phase. For a 400A load, this efficiency allows engineers to use smaller heatsinks or reduce the airflow requirements of cooling fans, directly improving the power density of the inverter cabinet.
Is the CM400HU-24H suitable for high-frequency switching above 20kHz?
While the CM400HU-24H is a high-speed module, switching losses increase with frequency. It is highly effective in the 10kHz to 15kHz range common in VFDs. For frequencies above 20kHz, careful analysis of the Switching Loss data in the official manual is required to prevent overheating.
What protection measures should be implemented to prevent IGBT failure?
To ensure long-term reliability, engineers should implement Short-Circuit Protection and Over-Temperature sensors. Monitoring for IGBT failure modes such as desaturation is critical in industrial environments where load fluctuations are common.

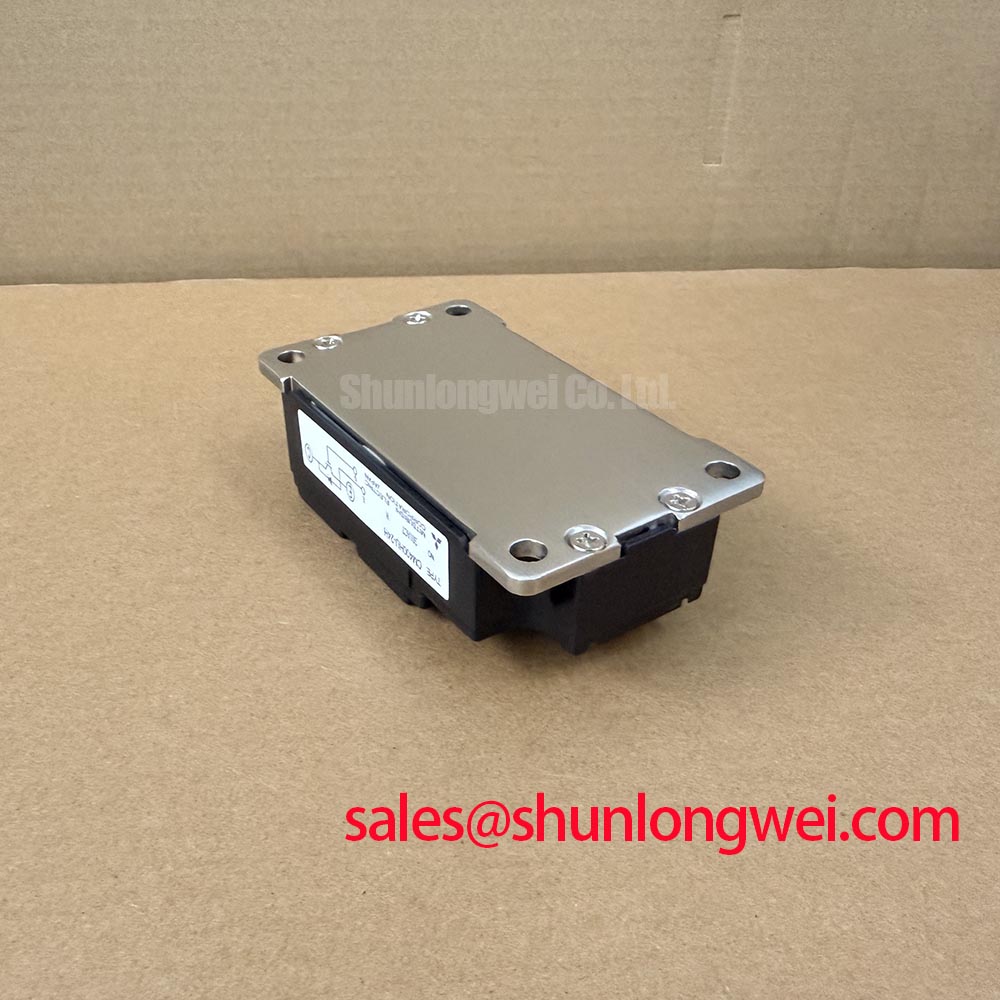

Why is the isolated mounting base of the HU-package a design advantage?
The Viso rating of 2500V means the internal circuitry is electrically isolated from the copper base plate. This allows the CM400HU-24H to be bolted directly to a metal chassis or shared heatsink, eliminating the need for external thermal pads that can introduce high Thermal Resistance.
What is the primary benefit of its single-element configuration?
The single-switch architecture provides maximum flexibility for building custom bridge topologies, such as Three-Phase Inverters or H-Bridges. It allows for modular repairs and the ability to scale current by paralleling units, provided that Gate Drive timing is precisely synchronized.
For Industrial Drive designs prioritizing thermal margin and high-current reliability, the Mitsubishi CM400HU-24H is the optimal 1200V switching solution. Reach out to our technical team for data verification and volume availability.
