SanRex DD130F-80 Dual Diode Module: Engineering Analysis

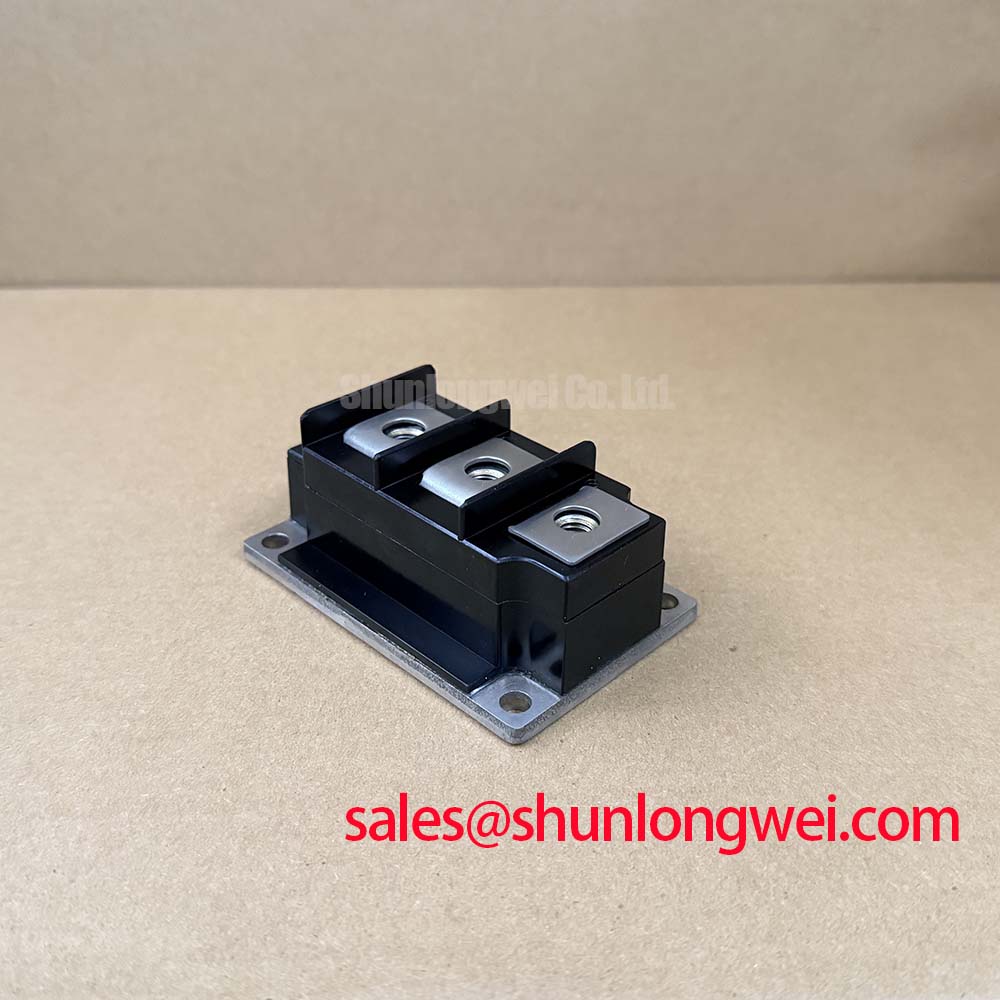

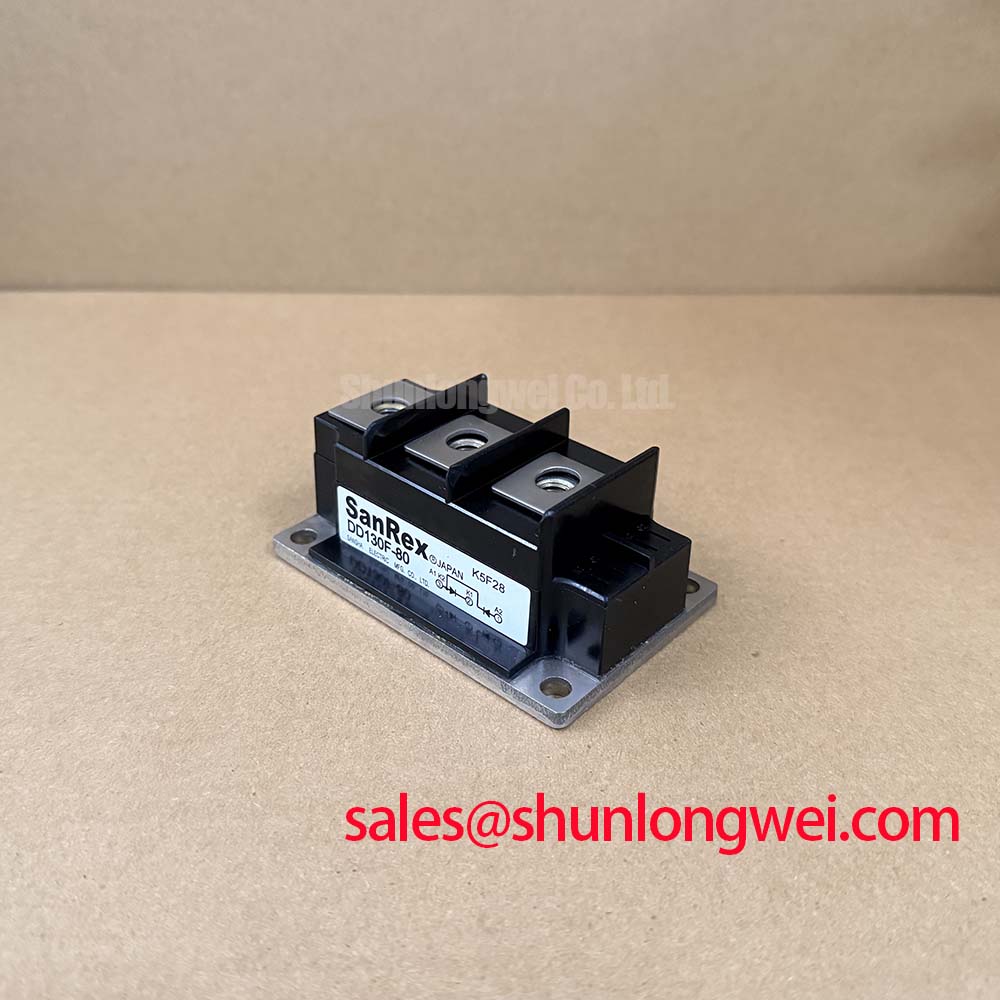

The DD130F-80 by SanRex is an isolated dual-diode module designed for high-efficiency rectifying circuits, delivering 800V peak reverse voltage and 130A average forward current. Featuring glass-passivated chips and an isolated copper mounting base, it ensures excellent heat dissipation and high surge current tolerance. For systems requiring compact 800V rectification with high surge tolerance, the DD130F-80 is the optimal choice.
Application Scenarios & Value
Optimizing Heat Dissipation in Industrial Rectification Systems
Engineers often face the challenge of managing thermal accumulation in high-density power distribution panels. The DD130F-80 addresses this challenge with its isolated mounting base, which simplifies heatsink design by allowing multiple modules to be mounted on a single thermal plate without electrical interference.
This device is widely utilized in industrial power supplies, battery chargers, and variable speed motor controls. In industrial welder designs, the high surge current rating of 4000A (at 50Hz) or 4400A (at 60Hz) enables the system to withstand abrupt load shifts without diode breakdown.
For systems that operate under higher voltages, such as 690V line applications, the DD130F-80 might have limitations. Designers can consult a comprehensive power semiconductor selection guide to evaluate options. When scaling up voltage or current demands, related alternatives such as the SKKD162/16 or the MDC100-16 provide 1600V ratings for heavier duty cycles.
Technical Deep Dive
Analyzing the Glass Passivated Structure and Thermal Reliability
At the core of the DD130F-80 is its glass-passivated silicon structure. This protective glass layer acts as a physical barrier against moisture and ionic contaminants, significantly reducing leakage currents at elevated junction temperatures up to 125°C.
To understand the device efficiency, consider these key facts:
What is the thermal advantage of glass passivation? It minimizes leakage current at high operating temperatures.

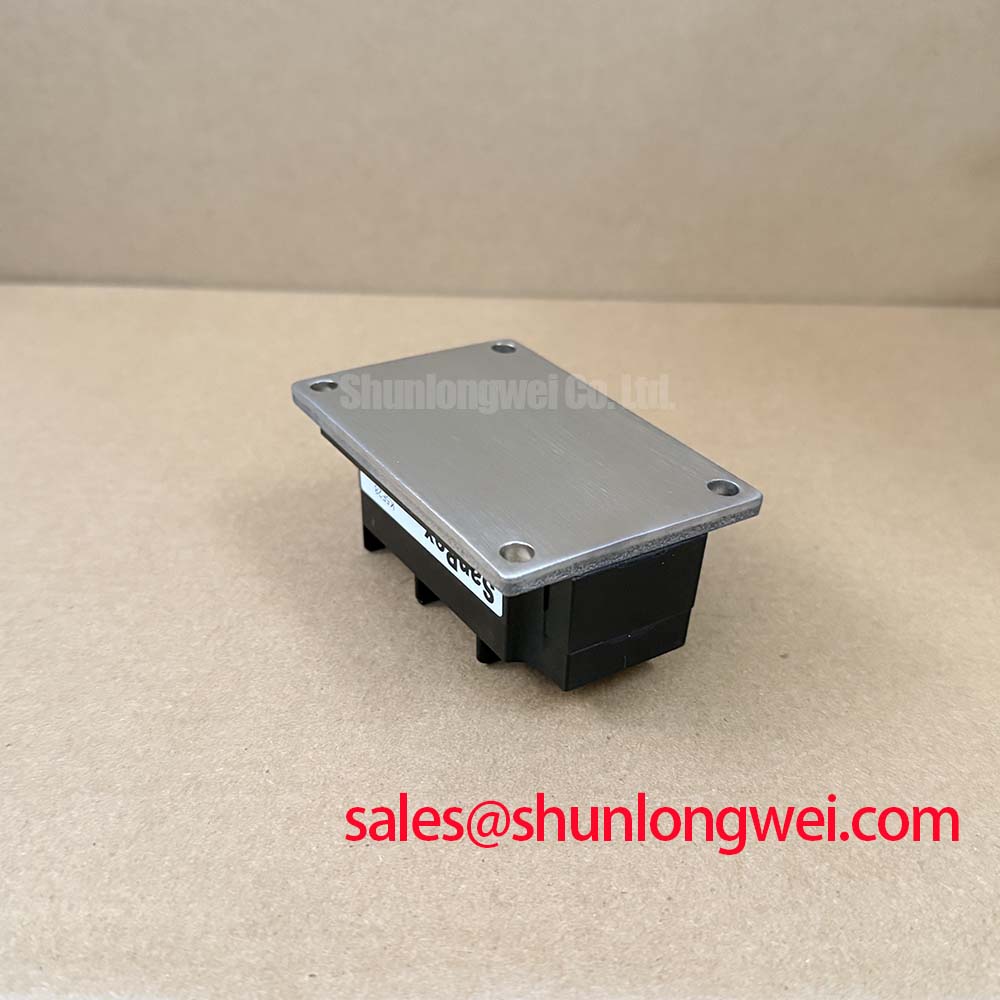

What is the primary benefit of the isolated copper mounting base? It allows simple mounting of multiple modules on one heatsink.
The thermal impedance from junction to case (Rth(j-c)) is rated at a maximum of 0.20 °C/W. Think of this thermal impedance as a wide, multi-lane highway for heat; it allows thermal energy to flow rapidly from the silicon junction to the copper baseplate, preventing heat bottlenecks. While manufacturers like semikron utilize similar isolated base designs for their product lines, SanRex employs a unique assembly process for the DD130F series.
Additionally, the module features an I2t rating of 80,000 A2s for short-duration surge events. This parameter functions like an electrical surge sponge. It absorbs the sudden kinetic energy of transient currents before the heat can raise the junction temperature beyond the silicon melting point. To prevent common degradation modes during commissioning, refer to guidelines on testing failure analysis and reliability.
For maintenance technicians diagnosing these units in the field, utilizing a standard multimeter is a quick way to verify diode health. You can learn more about this process in our guide on testing diode modules with a multimeter.
Key Parameter Overview
Critical Specifications for Elevated Electrical Stability
The following table outlines the key electrical and thermal specifications of the DD130F-80, highlighting the critical indicators necessary for system integration:
| Parameter Symbol | Technical Specification Description | Rating / Value | Unit |
|---|---|---|---|
| VRRM | Repetitive Peak Reverse Voltage | 800 | V |
| IF(AV) | Average Forward Current (Tc = 90°C) | 130 | A |
| IF(RMS) | R.M.S. Forward Current (Tc = 90°C) | 205 | A |
| IFSM | Surge Forward Current (50/60Hz, 1/2 cycle) | 4000 / 4400 | A |
| I2t | I2t Value for one cycle of surge current | 80,000 | A2s |
| VISO | Isolation Breakdown Voltage (A.C. 1 minute) | 2500 | V |
| Rth(j-c) | Thermal Impedance (Junction to Case) | 0.20 | °C/W |
| VFM | Forward Voltage Drop (at 400A, Tj = 25°C) | 1.40 | V |
Download the DD130F-80 datasheet for detailed specifications and performance curves.
Frequently Asked Questions
Addressing Design Concerns for Rugged Power Supplies
How does the Rth(j-c) of 0.20 °C/W directly impact heatsink selection and overall system power density?
A lower thermal resistance of 0.20 °C/W means the module can transfer heat efficiently to the heatsink. This allows engineers to specify smaller, lighter heatsinks or run the module at higher average loads without exceeding the maximum junction temperature of 125°C, ultimately increasing the system's power density.
What is the primary benefit of the isolated mounting base design in the DD130F-80?
The primary benefit is that the internal diode chips are electrically isolated from the metal mounting plate up to 2500V AC. This permits direct mounting onto a grounded chassis or shared heatsink, reducing the complexity of electrical isolation and reducing assembly costs.
Why is the 80,000 A2s rating critical for industrial mains rectifier designs?
The I2t rating of 80,000 A2s defines the module's capability to absorb high-energy electrical surges, such as during startup inrush currents or line faults. It ensures that standard protection fuses will clear the fault before the diode junction itself is destroyed by thermal runaway.
From a strategic perspective, integrating reliable and thermally optimized diode modules like the DD130F-80 ensures long-term industrial reliability. As global standards push for higher energy efficiency in power conversion, choosing components with robust glass passivation and low thermal resistance becomes a standard practice for reducing unexpected field failures.
