FF225R12ME4: High-Efficiency 1200V IGBT for Demanding Drive Applications

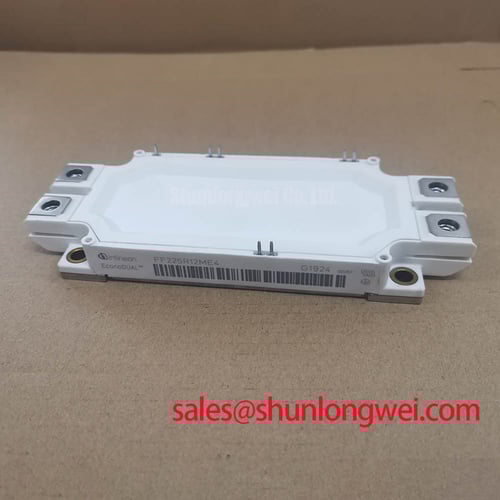

The FF225R12ME4 is a high-performance EconoDUAL™ 3 IGBT module engineered by Infineon, delivering robust power conversion through its advanced Trench/Fieldstop IGBT4 and Emitter Controlled HE diode technology. By optimizing for low conduction losses and superior thermal performance, this module provides a dependable foundation for high-power industrial systems. For systems requiring higher current handling up to 300A, the related FF300R12MS4 offers a compatible alternative within the same voltage class.
A Closer Look at the EconoDUAL™ 3 Platform
Decoding the Specs for Enhanced Thermal Reliability
The FF225R12ME4 is engineered for applications where thermal management is a critical design constraint. Its specifications reflect a focus on minimizing heat generation and optimizing its transfer away from the semiconductor junctions, which is essential for long-term operational reliability.
| Parameter | Value | Engineering Value |
|---|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V | Provides a substantial safety margin for applications operating on 400V to 690V AC lines, protecting against voltage transients. |
| Nominal Collector Current (IC nom) | 225 A | Supports high-power motor drives and inverters, delivering the necessary current for demanding torque and power requirements. |
| Collector-Emitter Saturation Voltage (VCEsat, typ. at IC=225A) | 1.75 V | What is the primary benefit of its low VCEsat? Significantly reduced conduction losses, which lowers operating temperature and improves overall system efficiency. |
| Total Power Dissipation (Ptot) | 1050 W | Indicates the module's capacity to handle heat, a direct measure of its thermal robustness under load. |
| Thermal Resistance, Junction-to-Case (RthJC per IGBT) | 0.13 K/W | This low thermal resistance value ensures efficient heat transfer from the IGBT chip to the heatsink, a cornerstone of effective Thermal Management. A lower value simplifies heatsink design and can lead to a more compact system footprint. |
Download the FF225R12ME4 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
With a low typical collector-emitter saturation voltage (VCEsat) of 1.75V at its nominal current, the FF225R12ME4 is an optimal choice for high-power motor drives where efficiency is paramount. In a Variable Frequency Drive (VFD) controlling a 100 kW industrial motor, the challenge is to minimize power loss in the inverter stage to reduce operating costs and heatsink size. The low VCEsat directly addresses this by reducing conduction losses during each switching cycle. This efficiency gain, multiplied over millions of cycles, translates into lower energy consumption and a cooler-running inverter, enhancing the VFD's reliability and service life. This module is also well-suited for the demanding requirements of Servo Drives, UPS (Uninterruptible Power Supply) systems, and wind turbine inverters.
Technical Deep Dive: The Advantage of TRENCHSTOP™ IGBT4
Engineering for Lower Losses and Higher Temperatures
The FF225R12ME4 leverages Infineon's TRENCHSTOP™ IGBT4 technology, which represents a significant evolution in power semiconductor design. Unlike earlier planar IGBTs, the Trench/Fieldstop structure creates a vertical gate and stops the electric field more effectively. For a design engineer, this translates into two critical advantages. First, it achieves a much lower VCEsat for a given chip area, directly cutting down on conduction losses. Think of it as replacing a standard water pipe with a wider, smoother one—more current flows with less resistance. Second, it allows for a maximum operating junction temperature (Tvj op) of 150°C. This higher thermal headroom provides a greater safety margin in harsh industrial environments and allows for more compact system designs without compromising on long-term reliability.
Intra-Series Comparison & Positioning
Locating the FF225R12ME4 in the EconoDUAL™ 3 Family
The EconoDUAL™ 3 family offers a scalable power solution within a standardized housing, simplifying inverter design across different power classes. The FF225R12ME4, with its 225A nominal rating, sits as a robust mid-range option. For applications requiring less current, a lower-rated module in the same package can be used without significant mechanical redesign. Conversely, for higher power outputs, engineers can scale up to modules like the FF300R12KE4, which provides 300A in the same EconoDUAL™ 3 footprint. This scalability allows for a platform-based approach to inverter design, reducing development time and simplifying the supply chain for manufacturers producing a range of products.
Frequently Asked Questions (FAQ)
What is the main benefit of the Emitter Controlled HE diode technology in the FF225R12ME4?
The Emitter Controlled High-Efficiency (HE) diode is optimized for soft switching behavior and low reverse recovery losses. This reduces electromagnetic interference (EMI) and improves the efficiency of the freewheeling operation, which is critical in motor drive applications.
How does the integrated NTC thermistor simplify thermal management design?
The built-in Negative Temperature Coefficient (NTC) thermistor provides a direct, real-time temperature reading of the module's baseplate. This allows the system controller to accurately monitor operating temperatures and trigger protective measures like power derating or shutdown if a thermal overload is detected, preventing catastrophic failure.
Is the FF225R12ME4 suitable for paralleling to achieve higher current output?
Yes, the EconoDUAL™ 3 housing is designed with a symmetrical layout that promotes balanced current sharing between the internal half-bridges. This design principle makes it well-suited for parallel operation, enabling the creation of very high-power inverters, provided that proper gate drive and busbar design practices are followed to ensure balanced dynamic and static sharing.
What does the 1200V VCES rating mean for my application's line voltage?
A 1200V collector-emitter voltage rating makes this module ideal for inverters connected to 400V, 480V, and even up to 690V AC mains. The rating provides the necessary headroom to safely withstand the DC bus voltage levels and the transient overvoltages that occur during switching operations in these systems.
How does the low VCEsat of 1.75V impact heatsink selection?
A lower VCEsat directly reduces the power lost as heat (conduction loss = VCEsat x IC). With less heat being generated, a smaller, more cost-effective heatsink can be used to maintain the same operating junction temperature. This contributes to higher power density and can lower the overall bill of materials (BOM) for the power conversion system.
An Engineer's Perspective
From an engineering standpoint, the FF225R12ME4 is a workhorse module designed for reliability and efficiency. Its strength lies not in a single standout feature, but in the balanced integration of proven technologies—a low-loss IGBT4 chipset, a soft-recovery diode, and a thermally efficient package. This combination provides a predictable, robust, and cost-effective building block for modern power conversion systems, allowing designers to focus on system-level innovation rather than compensating for component-level weaknesses. The standardized EconoDUAL™ 3 footprint further enhances its value by enabling scalable inverter platforms that can adapt to a wide range of power requirements with minimal redesign effort.
