FF450R33T3E3: Mastering Thermal Cycling in MV Converters
Introduction & Highlights
The FF450R33T3E3, an XHP™ 3 module featuring Trench/Fieldstop IGBT3 technology, provides a highly robust half-bridge solution for demanding power environments. What is the primary benefit of the AlSiC base plate? It minimizes CTE mismatch, drastically reducing solder fatigue. This IGBT module is characterized by its 3300V collector-emitter voltage, 450A nominal current, and a package isolation rating of CTI > 600. By neutralizing severe thermomechanical stress, it offers unparalleled system-level resilience and simplifies parallel scaling. For 3.3kV traction drives prioritizing long-term reliability against thermal cycling, this 450A module with an AlSiC base plate is the optimal choice.
Application Scenarios & Value
Conquering Thermal Stress in Traction and Renewable Grids
Engineers often face catastrophic fatigue in standard copper baseplates when designing medium-voltage (MV) traction converters and wind turbines. The relentless thermal cycling in these applications degrades the solder joints. The FF450R33T3E3 directly resolves this by integrating an AlSiC base plate. This material closely aligns the coefficient of thermal expansion (CTE) with the ceramic isolation substrate.
Consider a high-speed railway traction drive undergoing thousands of acceleration and braking cycles daily. The resulting junction temperature fluctuations severely stress the mechanical bonds. By utilizing this 3300V and 450A rated module, designers significantly mitigate this degradation, achieving extended maintenance intervals compliant with strict rail standards. While this modular approach is ideal for distributed MV drives, systems demanding massive single-switch current capacity might evaluate the related FZ1500R33HE3. The integration of Trench/Fieldstop IGBT3 technology ensures high DC stability, making it an indispensable asset for heavy-duty power conversion.
Technical Deep Dive
A Closer Look at AlSiC Base Plates and XHP™ Scalability
Moving beyond basic datasheets, the mechanical and electrical architecture of the FF450R33T3E3 reveals a highly optimized thermal mitigation strategy. The transition from copper to an AlSiC base plate is a game-changer for operational longevity. Think of the AlSiC baseplate as an architectural expansion joint; it absorbs the mechanical stress of thermal expansion that would otherwise fracture rigid solder layers during extreme load variations. This allows the module to sustain a continuous Tvj,op of 150°C without premature physical degradation.

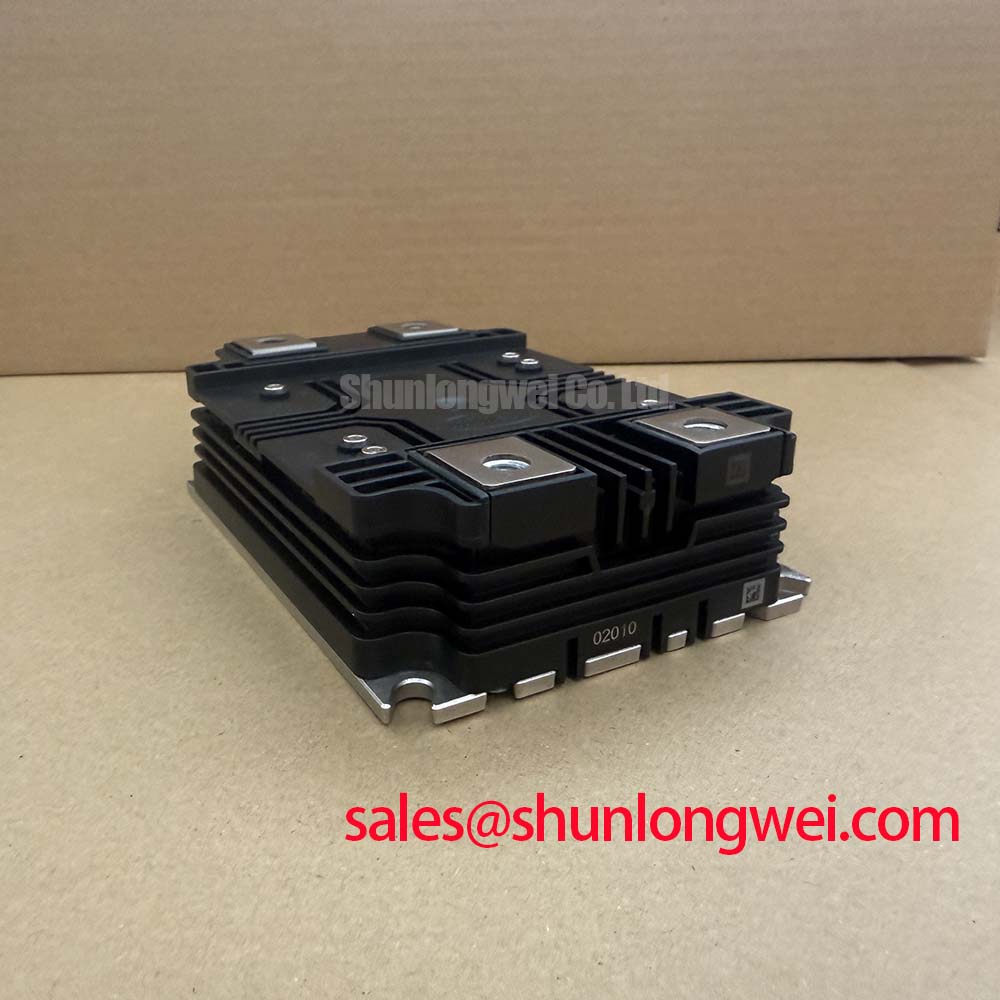

Furthermore, the 140mm x 100mm x 40mm XHP™ 3 package is engineered for seamless scalability. The internal stray inductance is minimized, and the terminal layout is designed for optimal paralleling. The optimal layout acts like a multi-lane highway with perfectly synchronized traffic lights, preventing current bottlenecks and ensuring symmetrical current sharing when multiple 450A modules are paralleled. This structural synergy ensures that parasitic elements do not compromise the 3300V blocking capability or the switching efficiency of the integrated emitter-controlled diode.
Key Parameter Overview
Decoding the Specs for High-Voltage Reliability
To support rigorous engineering evaluation, the critical specifications are highlighted below.
| Highlighted Metric | Specification | Engineering Implication |
|---|---|---|
| Voltage Rating (VCES) | 3300V | Provides sufficient headroom for 1500V to 2000V DC link systems without dielectric breakdown. |
| Nominal Current (IC nom) | 450A (ICRM = 900A) | Handles high operational loads and transient surge currents in traction and wind applications. |
| Isolation Capability | 10.4kV / CTI > 600 | Ensures robust galvanic isolation, preventing tracking in contaminated or high-humidity environments. |
| Max Operating Temp (Tvj,op) | 150°C | Maximizes thermal margin and power density under harsh ambient conditions. |
Download the FF450R33T3E3 datasheet for detailed specifications and performance curves.
FAQ
Addressing Core Engineering Challenges
How does the AlSiC base plate directly influence the overall power cycling capability?
The AlSiC material has a CTE that closely matches the ceramic isolation substrates. This minimizes the thermomechanical shear stress on the solder layer during the extreme heating and cooling phases typical in traction drives, thereby vastly increasing the power cycling limit compared to standard copper baseplates.
What are the primary considerations when paralleling the FF450R33T3E3 in a high-power inverter?
Because the XHP™ 3 package is designed for scalability, engineers must focus on maintaining symmetrical DC-link busbar designs to leverage its low stray inductance. The positive temperature coefficient of the VCE,sat inherently aids in balancing the static current across paralleled modules, but dynamic current sharing relies heavily on symmetrical gate drive layouts.
Why is a CTI > 600 significant for medium-voltage applications like wind turbines?
A Comparative Tracking Index (CTI) greater than 600 means the package molding is highly resistant to electrical tracking. In medium-voltage environments exposed to condensation, dust, or salt mist, this prevents catastrophic surface flashovers across the 3300V terminals, safeguarding the entire conversion system.
By elevating the mechanical baseline with AlSiC and standardizing the footprint through XHP™ 3, this platform secures a long-term strategic advantage for power electronics infrastructures, ensuring next-generation mobility and renewable networks meet their ambitious lifetime targets.
