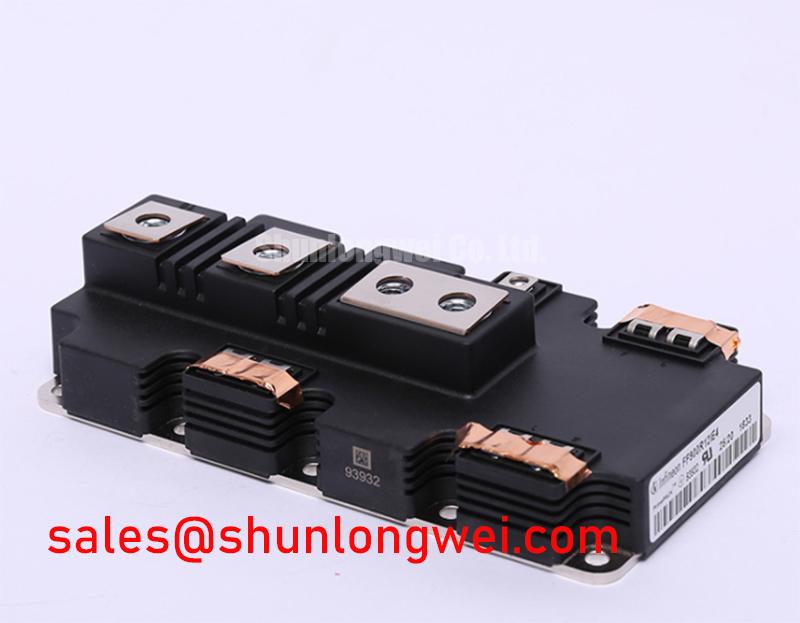

FF900R12IE4 Infineon 1200V 900A PrimePACK™ 2 IGBT Module
The FF900R12IE4 is a dual IGBT module from the Infineon PrimePACK™ 2 family, designed to deliver exceptional power density and thermal reliability in high-current industrial applications. Featuring 1200V collector-emitter voltage and a 900A continuous DC collector current, this module utilizes TRENCHSTOP™ IGBT4 technology paired with an Emitter Controlled 4 diode. It serves as a critical building block for engineers developing multi-megawatt inverters where long-term stability and minimized switching losses are non-negotiable. By optimizing the internal layout to reduce stray inductance, the FF900R12IE4 effectively answers the industry demand for high-efficiency power conversion in space-constrained environments.
UVP: Optimized thermal management and high power density for multi-megawatt industrial power conversion systems.
- Top Specs: 1200V | 900A | Vce(sat) 1.70V typical.
- Key Benefits: Extends system lifespan through optimized thermal distribution and reduces operational costs via low switching losses.
For 690V industrial drives prioritizing thermal margin and high-current handling, this 1200V 900A module is the optimal choice.
Application Scenarios & Value
Achieving System-Level Benefits in High-Power Conversion Environments
Engineers often face the daunting challenge of managing thermal hotspots and electromagnetic interference (EMI) in high-power motor drive systems and renewable energy plants. The FF900R12IE4 addresses these pain points directly through its PrimePACK™ 2 housing, which is specifically engineered for balanced current sharing and superior heat dissipation. In wind turbine inverters, for instance, the module’s rugged IGBT4 chips handle the fluctuating power loads inherent to wind energy, ensuring the wind-to-grid conversion remains stable under varying wind speeds.
In heavy-duty Variable Frequency Drive (VFD) applications, the 900A rating allows for the consolidation of power stages, potentially reducing the number of paralleled modules required. This simplification not only saves PCB space but also improves overall system reliability by reducing potential points of failure. When designing for systems exceeding these current requirements, the related FF1400R12IP4 offers a 1400V 1200A alternative for even larger scale deployments.
Technical Deep Dive
A Closer Look at the PrimePACK™ 2 Architecture and IGBT4 Performance
The FF900R12IE4 is more than just a switch; it is a thermal management solution. The TRENCHSTOP™ IGBT4 technology functions similarly to a precision-regulated floodgate on a high-volume canal; it allows for a massive flow of current (up to 900A) while maintaining a very low "resistance" (saturation voltage), which minimizes the energy lost as heat during conduction. This is evidenced by a low Vce(sat) of 1.70V at 25°C.
Furthermore, the Emitter Controlled 4 diode provides a soft recovery characteristic, which is vital for reducing overvoltage spikes during fast switching transients. This "softness" acts like a shock absorber in a vehicle’s suspension, dampening the electrical vibrations (EMI) that could otherwise interfere with sensitive control logic. For engineers focused on long-term durability, the integration of NTC thermistors within the module provides real-time temperature monitoring, allowing for active protection strategies in harsh environment applications.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Core Specification | Value (Typical/Max) | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 1200V | Ensures sufficient margin for 600V-690V AC grid applications. |
| Continuous DC Collector Current (Ic) | 900A (at Tc=100°C) | High current density for MW-scale power blocks. |
| Vce Saturation Voltage (Vcesat) | 1.70V (at 900A) | Directly impacts conduction losses and efficiency. |
| Total Switching Losses (Ets) | 250mJ (approx. at 125°C) | Optimized for high-frequency PWM switching performance. |
| Internal NTC Thermistor | Integrated | Enables precise thermal monitoring and protection. |
Download the FF900R12IE4 datasheet for detailed specifications and performance curves.
FAQ
How does the TRENCHSTOP™ IGBT4 technology improve overall inverter efficiency?
The IGBT4 technology reduces conduction losses by achieving a lower Vce(sat) while simultaneously maintaining fast switching speeds. This dual optimization means less energy is wasted as heat, which allows for smaller heatsinks and higher power density.
What is the primary benefit of the PrimePACK™ 2 design?
What is the primary benefit of the PrimePACK 2 design? Enhanced thermal distribution and reduced internal stray inductance for stable, high-power switching. The mechanical layout ensures that current is distributed evenly across the IGBT chips, preventing localized overheating.
How do the integrated NTC thermistors assist in preventative maintenance?
The integrated NTC allows the system controller to monitor the module's baseplate temperature in real-time. By tracking thermal trends, engineers can implement derating protocols or trigger maintenance alerts before a catastrophic IGBT failure occurs.
Can the FF900R12IE4 be used in high-altitude or extreme temperature environments?
While the FF900R12IE4 is rated for a high Tvj op of 150°C, engineers must consider cosmic radiation effects at high altitudes and adjust isolation clearances according to IEC 61800-5-1 standards. The robust PrimePACK™ housing provides excellent mechanical durability against thermal cycling.
Strategically, the FF900R12IE4 represents a shift towards modularity in heavy industry. As global energy standards move toward higher efficiency and carbon neutrality, components that offer 900A capacity with minimized losses become indispensable. This module serves as a future-proof solution for the evolving infrastructure of smart grids and high-efficiency industrial automation.
