AUO G070VTN02.0 7.0-inch WVGA Industrial LCD Display – Technical Overview and Engineering Insights
The G070VTN02.0, manufactured by AUO (AU Optronics), represents a highly stable 7.0-inch TFT-LCD solution specifically engineered for the rigorous demands of industrial automation and professional-grade instrumentation. Featuring a WVGA resolution of 800x480 and an LVDS interface, this module is designed to provide clear, reliable visual feedback in environments where consistency is non-negotiable.
UVP: A rugged, high-reliability 7-inch display solution for industrial HMI and outdoor equipment requiring consistent performance across wide temperature ranges.
- Top Specs: 7.0-inch | 800(RGB)×480 (WVGA) | 400 cd/m² | -20 ~ 70 °C Operating Temp.
- Key Benefits: Enhanced thermal stability for harsh environments; Seamless integration via 1-ch LVDS interface.
- Core Answer: Does the G070VTN02.0 support outdoor visibility? With a 400 cd/m² brightness rating and a high contrast ratio, it provides excellent legibility in semi-outdoor or brightly lit indoor industrial settings.
For industrial HMIs requiring a compact, temperature-resilient 7-inch screen, the G070VTN02.0 offers the optimal balance of brightness and interface versatility.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal and Visual Reliability
The following technical data is derived from the official AUO specifications to assist in precise system calibration and hardware compatibility assessments.
| Feature | Specification Detail |
|---|---|
| Manufacturer | AUO (AU Optronics) |
| Screen Size | 7.0-inch (Diagonal) |
| Resolution | 800(RGB)×480 (WVGA) |
| Display Mode | TN, Normally White, Transmissive |
| Luminance | 400 cd/m² (Typical) |
| Contrast Ratio | 500:1 (Typical) |
| Backlight Type | WLED (White LED) |
| Interface Type | LVDS (1 ch, 6/8-bit), 20 pins Connector |
| Operating Temperature | -20 ~ 70 °C |
| Storage Temperature | -30 ~ 80 °C |
Download the G070VTN02.0 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Reliability Power and Control Interfaces
Engineers often face the challenge of selecting a display that remains functional in fluctuating thermal conditions without sacrificing clarity. The G070VTN02.0 addresses this by utilizing a TN panel architecture optimized for industrial long-life cycles. Its WVGA resolution is a standard in the industry, making it a "drop-in" friendly choice for legacy system upgrades and new designs alike.
In the context of industrial HMI solutions, the G070VTN02.0 is frequently deployed in handheld testers, factory automation terminals, and medical monitoring equipment. Its WLED backlight system is designed for longevity, reducing the total cost of ownership (TCO) by extending the interval between maintenance cycles. This reliability is critical in mission-critical applications where display failure could lead to operational downtime.

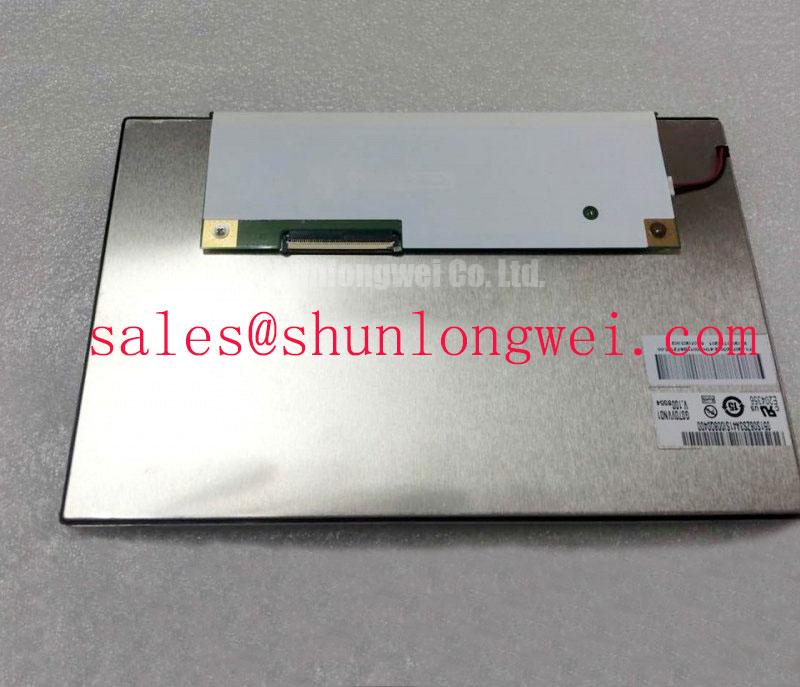

For systems requiring different viewing characteristics or specialized features, developers may also evaluate related models such as the G070ACE-L01, which offers different viewing angles, or the G070VVN01.1 for alternative interface configurations.
Technical & Design Deep Dive
Engineering Analysis of Backlight Efficiency and Signal Integrity
The G070VTN02.0 utilizes a 1-ch LVDS interface, which is the industry standard for minimizing Electromagnetic Interference (EMI) while maintaining high-speed data transmission over longer cable lengths compared to traditional TTL interfaces. This is particularly advantageous in TFT-LCD industrial applications where the display unit may be located several inches away from the main processing board.
Consider the LVDS interface as a high-speed highway with specialized noise-canceling lanes; it allows the 800x480 image data to reach the pixels without being distorted by the electrical noise common in industrial environments. This signal integrity is matched by the WLED backlight's thermal efficiency. Unlike older CCFL technology, WLEDs generate significantly less heat, which is vital for maintaining the -20 ~ 70 °C operating window. This lower heat profile directly impacts the longevity of the liquid crystal material, preventing "blackout" or "clearing point" issues that occur when panels overheat.
Furthermore, the 400 cd/m² brightness level is achieved with a relatively low power draw, making the G070VTN02.0 an excellent candidate for battery-operated handheld devices. When compared to consumer-grade tablets, this industrial-grade module provides superior total cost of ownership due to its extended availability and component stability.
FAQ
How does the LVDS interface on the G070VTN02.0 impact system EMI compliance?
The LVDS (Low-Voltage Differential Signaling) interface uses differential pairs to transmit data, which inherently cancels out much of the electromagnetic radiation compared to single-ended signaling. This simplifies the process of achieving FCC or CE certification for the final industrial product.
What is the primary benefit of the G070VTN02.0 WLED backlight for long-term reliability?
The WLED backlight eliminates the need for high-voltage inverters required by CCFL tubes, reducing system complexity and increasing the Mean Time Between Failures (MTBF). This is crucial for 24/7 industrial monitoring applications.
Can the G070VTN02.0 be used in outdoor environments with direct sunlight?
While the 400 cd/m² brightness provides good visibility in most indoor and shaded outdoor environments, for direct high-ambient sunlight applications, engineers may need to consider additional optical bonding or high-nit enhancements. However, its 500:1 contrast ratio ensures sharp text and graphics in standard industrial settings.
As a professional distributor, we provide the G070VTN02.0 to support global OEM and engineering requirements. All technical descriptions are based on AUO official documentation to ensure the highest level of accuracy for your procurement and design-in processes.
