Preventing Localized Light Guide Plate Compression Warp on Dark Screen Fields
Dark-field inspection is particularly useful because small mechanical pressure points can become visible as bright or dark mura when the display produces a uniform black or low-level gray image. During replacement work, remove burrs, adhesive residue, metal particles, and deformed gasket material from the panel seat. The bezel should support the assembly evenly without forcing the active viewing area against the enclosure.

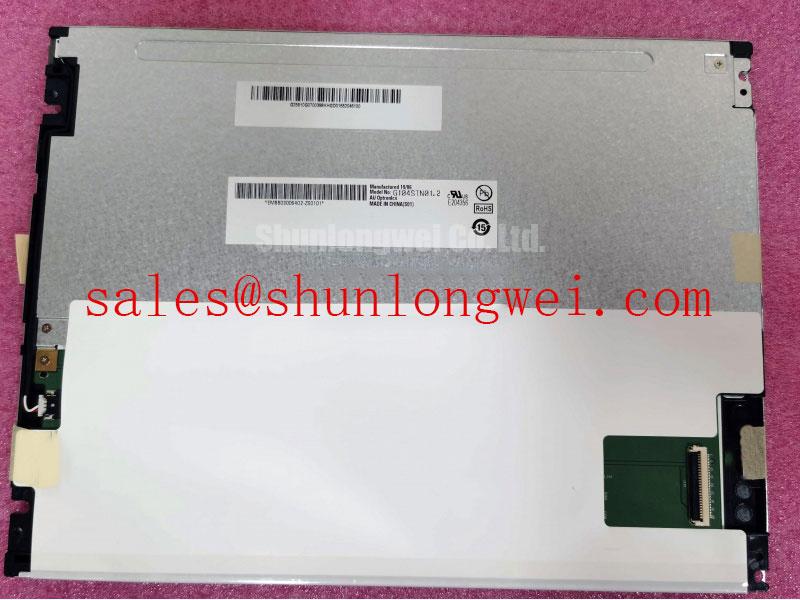

Use the equipment manufacturer’s specified fastener torque and tightening sequence when installing the AUO G104STN01-2. Where the mounting arrangement permits, apply the load progressively in a diagonal sequence so that one corner does not pull the display down before the opposite side is seated. If the original equipment uses a different fastener or retention system, the equipment manufacturer’s mechanical service specification takes priority.
Check the outer bezel envelope with the panel unpowered and again after the display is secured. A narrow contact mark, compressed seal, or corner gap can explain why a fault appears only after assembly. Use a uniform dark test image, then compare the same area with a white and mid-gray field. A defect that changes with enclosure pressure deserves mechanical investigation before the backlight circuit is replaced.
Cold operation can make the image response appear slower because liquid crystal viscosity increases as ambient temperature falls. Between approximately −20°C and −30°C, this is a Design Consideration for equipment that must show moving waveforms, scrolling measurements, or rapidly changing alarm screens; operation at these temperatures must remain within the panel’s documented limits. A heater strip may be evaluated by the system designer where the enclosure requires controlled warm-up, but its placement, switching method, insulation, and temperature limit must be determined from the complete equipment design. Keep any heating element from creating a local hot spot at the display edge.
The surface treatment, viewing performance, and glare behavior should be compared with the removed panel under the actual instrument lighting. Do not infer anti-glare or anti-reflection performance from the product category alone. Optical characteristics such as viewing angle and contrast perception vary with the panel construction and the observer’s position; the LCD viewing angle reference provides useful background when assessing a replacement in a crowded test bench or operator console.
Suppressing Localized Thermal Gradients to Prevent Chronic Optical Yellowing and Color Shift
Uneven heat around a narrow display edge can create a gradual color imbalance even when the image electronics remain functional. Inspect the rear of the enclosure for power resistors, regulators, driver boards, and cable bundles that concentrate heat beside one section of the panel. A practical Design Consideration is to use an aluminum heat-spreader rail only when it can distribute heat without loading the glass, blocking ventilation, or transferring vibration into the display frame.
Thermal contact must be planned around the mechanical structure rather than pressed directly against the visible panel area. The rail, interface material, and mounting points should be evaluated for expansion differences across the equipment temperature range. A color shift that follows the enclosure rather than the displayed image may indicate a thermal gradient, optical aging, or a light-source imbalance. Record the appearance at cold start and after operating temperature stabilizes so the service team can separate a temperature-dependent effect from a permanent change.
The LED backlight configuration for the G104STN01-2 should be verified from the original panel documentation and the equipment wiring before power is applied. The listing classification identifies an industrial TFT-LCD active matrix color display module, but it does not establish a universal backlight voltage, current, connector pinout, or driver topology. The system integrator should verify the required supply voltage from the original panel documentation. Do not connect an unknown external LED driver simply because its connector appears mechanically compatible.
Constant-current backlight operation is normally assessed by checking current regulation, startup behavior, open-load response, and short-load protection at the driver output. These are system-level checks, not automatic specifications of this AUO model. If the screen is dark while the image signal remains active, measure the backlight supply at the driver and inspect the protection status output where the equipment provides one. A driver may shut down after detecting an open string, excessive current, or an abnormal load; the correct diagnostic path is to compare the driver behavior with its own service documentation.
References to 50,000 hours, L70, or B50 should be treated as application evaluation criteria unless they are explicitly stated in the relevant backlight manufacturer’s data. A brightness decay curve depends on drive current, thermal conditions, duty cycle, optical stack, and enclosure temperature. It should not be presented as a guaranteed service life for the G104STN01-2 without a model-specific source. The industrial display information from Winstar’s TFT-LCD and OLED module reference is useful for understanding how display selection and backlight integration are commonly documented.
High-Humidity Storage Margins and Delamination Prevention Protocols
Humidity damage often begins during storage, transport, or repeated thermal cycling rather than during the first powered test. For equipment exposed to a stated storage condition of 60°C and 90% RH, the enclosure designer should assess condensation control, packaging ventilation, connector sealing, and the time required for the assembly to return to a safe electrical condition. This environmental point is a Design Consideration for the host system, not a confirmed environmental rating for the G104STN01-2.
Inspect the perimeter for lifting, haze, edge discoloration, or an expanding separation line after environmental exposure. Such observations can involve adhesive interfaces, seal integrity, moisture ingress, or mechanical stress. Avoid pressing on the display surface to test suspected separation because the pressure itself can extend an edge defect. Allow the assembly to stabilize before comparing optical uniformity and image response.
Across a broad industrial thermal cycle such as −30°C to +85°C, the system designer should evaluate the combined behavior of the display, bezel, cable, connector, and enclosure. This example range does not establish the G104STN01-2’s operating or storage limits; any exposure must comply with its documented ratings and test conditions. Liquid crystal response can become noticeably slower at low temperature, producing visible gray-to-gray lag on moving traces or changing measurement screens. A temperature-controlled startup routine may be considered where the instrument requires immediate graphical response, but the timing and control limits belong to the complete product design.
Digital interface timing requires the same discipline. Confirm whether the original host uses TTL or LVDS signaling, then match the transmitter, receiver, cable, termination, and power-up sequence to the panel documentation. Do not assume that a physically similar connector has the same signal order. At the industrial temperature window, review clock stability, data hold behavior, enable timing, and reset sequencing with the known-good system configuration. An oscilloscope comparison at the panel connector can reveal clock deformation or intermittent data activity that a simple continuity test will miss.
If the replacement is being considered for a precision electronic test and measurement instrument, compare the displayed waveform, numeric readout, alarm state, and screen uniformity at cold start and after thermal stabilization. The The Ultimate Guide to Industrial TFT LCD Technology can support broader evaluation of panel interfaces, optical behavior, and installation constraints. For a different display format or system-level comparison, engineers may also review G121SN01 V402 as a separate product candidate rather than assuming direct interchangeability.
Shielded FFC and FPC Flat Flexible Cable Grounding across Connector Shells
Pixel jitter and horizontal noise bands should be investigated at the cable interface when the display is installed near switching power stages or variable-frequency motor drives. A shielded FFC or LVDS cable requires a controlled return path, secure connector engagement, and a chassis relationship that prevents the shield from becoming an accidental antenna. The exact grounding arrangement depends on the equipment topology, cable construction, connector shell, and drive cabinet layout.
For a system operating near a 400 V variable-frequency motor drive, route the display cable away from high-current switching conductors wherever the enclosure permits. Keep the image cable’s reference path continuous and avoid loose shield pigtails that increase the inductance of the shield connection. A common-mode ferrite may be evaluated when conducted noise is confirmed, but its impedance characteristics, location, and saturation behavior must be selected from measured interference data rather than treated as a standard accessory for this AUO panel.
During service, inspect the FFC or FPC for a crease at the connector entrance, uneven latch pressure, exposed shield material, and contamination on the contact area. Re-seat the cable only after the equipment is safely isolated. Compare the display signal with a known-good cable path while observing the image during motor acceleration, deceleration, and steady operation. If the disturbance changes with cable position, grounding arrangement, or drive state, continue with system-level EMC investigation instead of replacing the display immediately.
Backlight and image faults should be separated during this test. A stable image with a dark screen points the investigation toward illumination, supply sequencing, or driver protection. Moving horizontal bands, unstable pixels, or intermittent synchronization point toward signal integrity, grounding, or connector engagement. Touch response, if the host assembly includes a resistive or capacitive touch layer, should be tested independently from the LCD image because the touch controller and panel interface may have separate wiring and power requirements.
⚠️ Field Alert: Disconnect equipment power and allow stored energy to discharge before inserting or removing the display cable, because live connector handling can expose signal pins and backlight circuits to unintended electrical stress.
Where the surrounding architecture requires a companion display or related interface assessment, G121ACE-LH1 can be reviewed as a separate display solution; it should not be treated as an automatic electrical or mechanical substitute. For the G104STN01-2, final acceptance should use the original equipment’s connector definition, image timing, backlight behavior, bezel fit, and environmental test limits.
