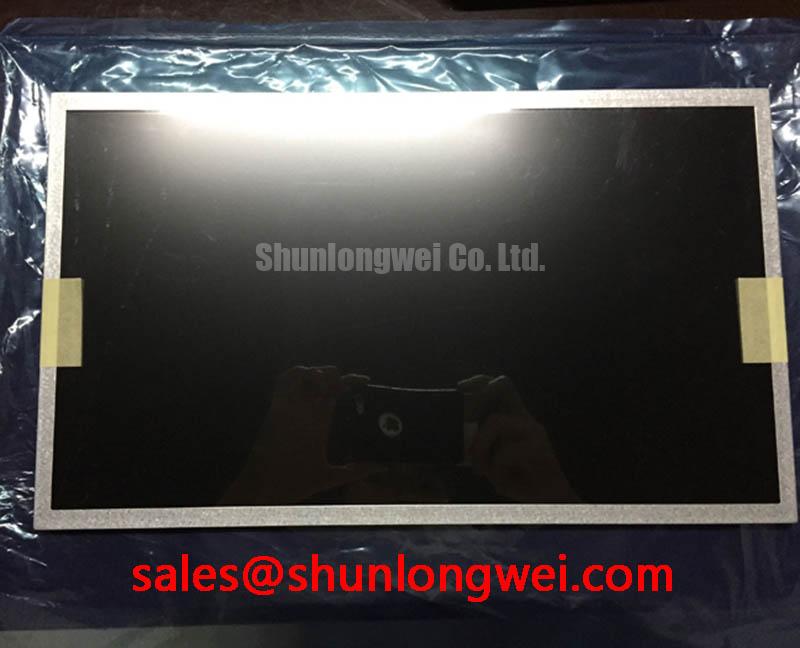

AUO G156HTN02.1 | Full HD Industrial Display with High-Performance eDP Interface
The AUO G156HTN02.1 is a 15.6-inch TFT-LCD panel engineered for industrial applications that demand a sharp, reliable, and efficient visual interface. It delivers Full HD resolution with a modern eDP (Embedded DisplayPort) interface, making it an ideal choice for system integrators upgrading from legacy LVDS-based designs or developing new, high-performance systems.
Engineered for Industrial Clarity and Performance
The G156HTN02.1 isn't just another display; it's a carefully balanced component designed for operational excellence. Its value proposition is built on providing essential features for demanding indoor environments without unnecessary cost.
- Full HD Resolution (1920x1080): Renders complex graphical user interfaces, detailed schematics, and high-definition video with exceptional sharpness, crucial for accurate monitoring and control in industrial automation.
- High-Bandwidth eDP Interface: Utilizes a modern Embedded DisplayPort 1.2 interface, which reduces cable complexity, lowers electromagnetic interference (EMI), and consumes less power compared to older LVDS Interface standards.
- Solid Brightness & Contrast: With 400 cd/m² of brightness and a 600:1 contrast ratio, it provides vibrant and readable visuals for typical factory floor, control room, and medical equipment environments.
- Efficient WLED Backlight: Incorporates a long-life WLED backlight system rated for 20,000 hours, ensuring consistent performance and reducing maintenance cycles over the product's lifespan.
Key Technical Specifications
For engineers requiring at-a-glance data, the following table summarizes the core performance metrics of the AUO G156HTN02.1. For comprehensive electro-optical characteristics and integration guidelines, please Download the G156HTN02.1 Datasheet.
| Parameter | Value |
|---|---|
| Manufacturer | AUO |
| Screen Size | 15.6 inches |
| Resolution | 1920(RGB)×1080 [FHD] |
| Panel Technology | a-Si TFT-LCD, TN |
| Brightness | 400 cd/m² (Typical) |
| Contrast Ratio | 600:1 (Typical) |
| Viewing Angle | 80/80/70/70 (L/R/U/D) |
| Signal Interface | eDP (2 Lanes), 30 pins |
| Operating Temperature | 0 ~ 50 °C |
| Surface Treatment | Anti-Glare |
Technical Deep Dive: The eDP Advantage
The adoption of an eDP interface in the G156HTN02.1 is a significant engineering advantage. Unlike LVDS, eDP is a packet-based protocol that integrates timing control (TCON) functions directly. For the design engineer, this translates to tangible benefits: a smaller connector footprint, a reduced number of signal wires which simplifies routing on the mainboard, and inherently lower EMI. This makes achieving system-level electromagnetic compatibility (EMC) more straightforward, a critical consideration in sensitive medical or measurement equipment. This modern interface positions the display as a forward-compatible component for next-generation system architectures. To learn more about the fundamentals, explore our ultimate guide to TFT-LCDs.
Ideal Application Scenarios
The specific combination of features in the AUO G156HTN02.1 makes it a strong contender in several key markets:
- Industrial HMI Panels: The Full HD resolution allows for more data and clearer graphics to be displayed on factory automation interfaces, improving operator efficiency and reducing errors.
- Medical Diagnostic Stations: In non-diagnostic-grade applications like patient monitors or equipment control panels, the high resolution and clean interface provide the clarity and integration simplicity required.
- POS & Public Kiosks: The anti-glare surface and solid brightness ensure readability in varied indoor lighting conditions, while the 15.6” size offers an expansive user interface for complex transactions or information display.
For these applications, the G156HTN02.1 provides a cost-effective path to Full HD without over-engineering for features like ultra-wide viewing angles or extreme temperature ranges, delivering targeted value where it matters most.
Frequently Asked Questions for Engineers
Is this display suitable for direct sunlight or outdoor applications?No. With a brightness of 400 nits and an operating temperature range of 0 to 50°C, the G156HTN02.1 is engineered for indoor or controlled-environment applications. Outdoor use requires significantly higher brightness (typically 1000+ nits) and a wider operating temperature range to ensure readability and reliability.
Can this panel be paired with a touchscreen?Absolutely. Its standard mechanical design makes it well-suited for integration with a separate projected capacitive (PCAP) or resistive touch panel. The slim bezel and flat surface facilitate the optical bonding or air-gap mounting process. When choosing a touch solution, ensure the controller and cabling are compatible with your system's host processor.
If you have further questions about integrating the AUO G156HTN02.1 into your design or wish to discuss our broader portfolio of industrial LCD displays, please contact our technical team for expert guidance.
