GD150FFY120C6S | 1200V 150A IGBT Module | Starpower

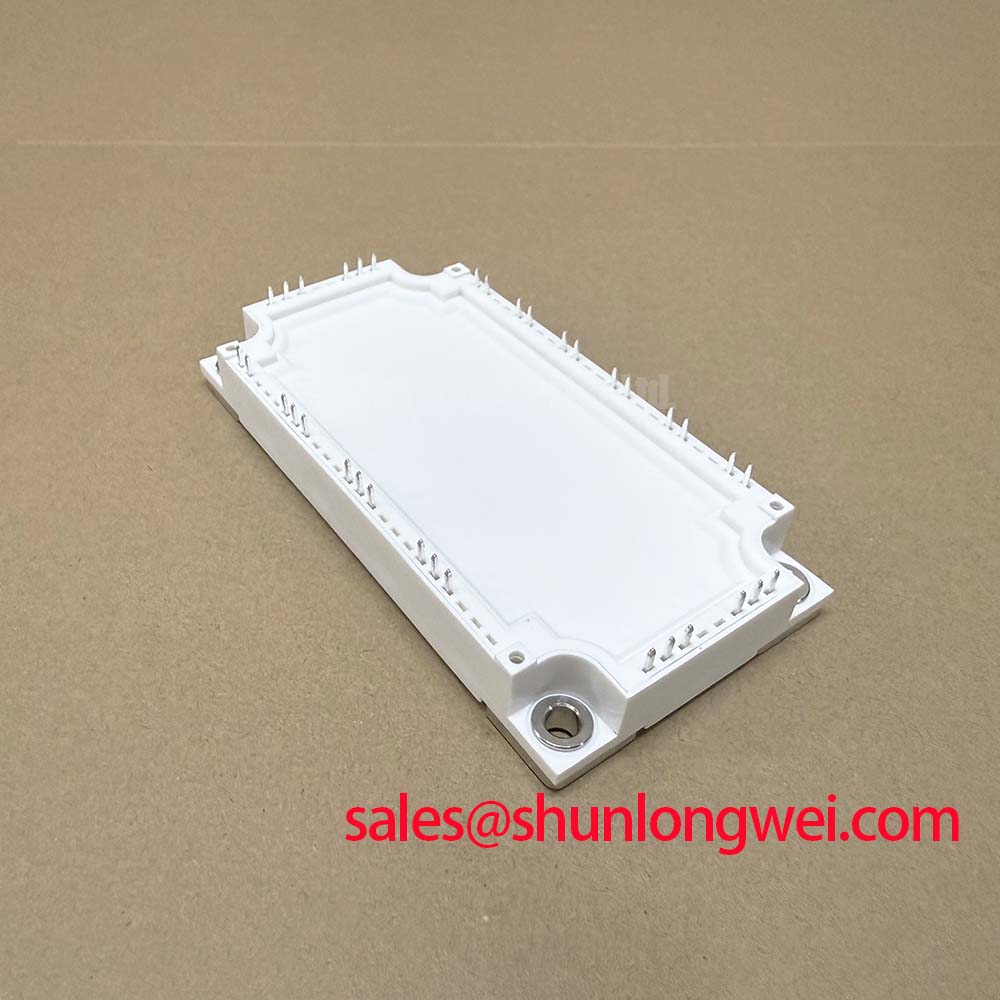

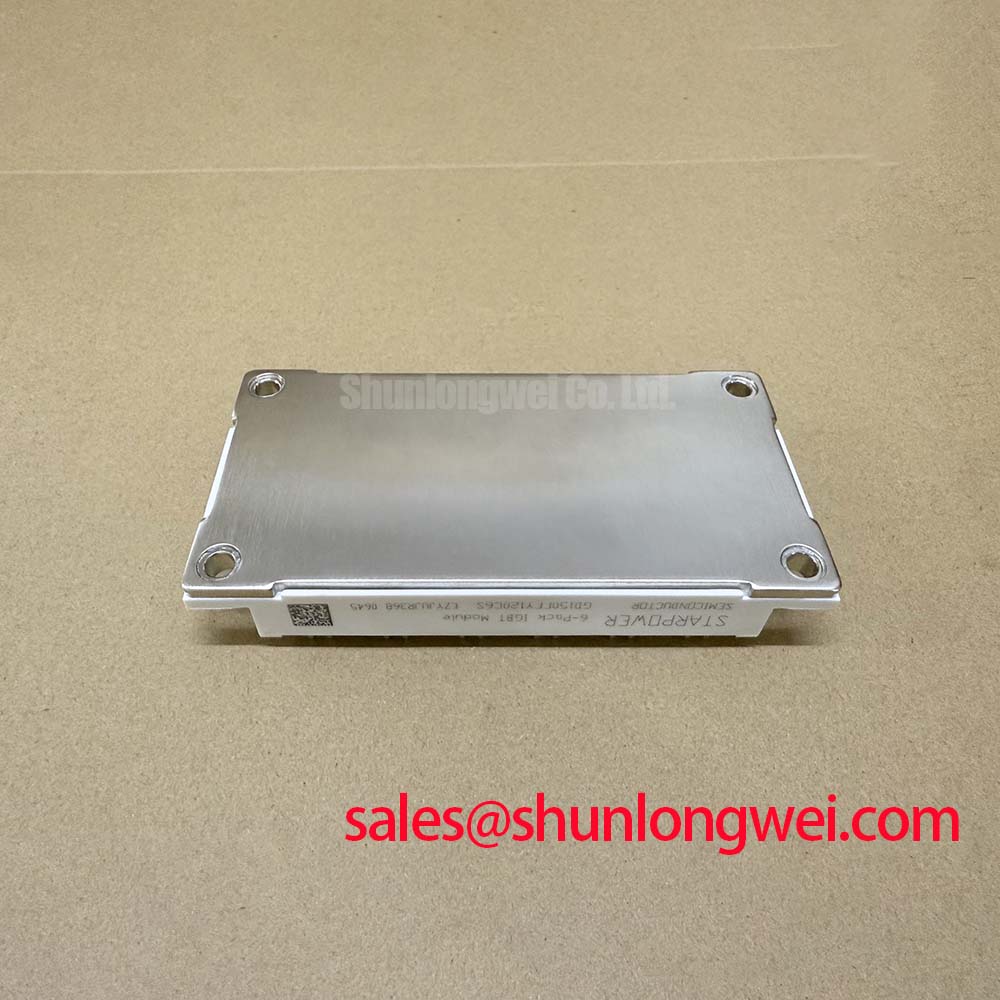

Technical Overview of the GD150FFY120C6S IGBT Module
The Starpower GD150FFY120C6S is a 1200V, 150A half-bridge IGBT module designed to deliver superior switching efficiency and minimize total power losses. At its core, this module utilizes advanced Trench Field Stop (TFS) IGBT4 technology, which provides a meticulously engineered trade-off between conduction and switching losses. This technology directly addresses the engineering challenge of achieving higher power conversion efficiency by significantly reducing the collector-emitter saturation voltage. The result is a component that enables designers to create more compact, reliable, and energy-efficient power systems for demanding industrial applications.
Strategic Implications for High-Efficiency Power Conversion
In the current landscape of power electronics, regulatory pressures and market demands for reduced energy consumption are paramount. Components like the GD150FFY120C6S are instrumental in meeting these goals. The underlying Trench FS IGBT4 technology is not just an incremental improvement; it represents a significant step in reducing the total cost of ownership (TCO) for end systems. Lower power losses translate directly to less waste heat, which in turn reduces the requirements for complex and costly thermal management solutions such as oversized heatsinks and high-CFM fans. This allows for higher power density, enabling smaller system footprints—a critical advantage in space-constrained applications like modular UPS systems and compact motor drives. For engineers focused on long-term system performance, adopting modules with such efficiency-centric technologies provides a competitive edge in a market that prioritizes both sustainability and operational expenditure.
Optimized Performance in Demanding Power Systems
The GD150FFY120C6S is engineered for applications where electrical efficiency and operational robustness are key evaluation criteria. Its characteristics make it a strong candidate for the power stages of various inverter and converter topologies.
- Industrial Motor Drives: In Variable Frequency Drives (VFDs), the module's low VCE(sat) reduces heat generation under high-current, low-speed conditions, enhancing motor control precision and system reliability.
- Solar and Wind Inverters: The fast and soft-switching freewheeling diode is crucial for grid-tied inverters, minimizing EMI generation and improving power quality. This helps simplify filter design and accelerates regulatory compliance testing.
- Uninterruptible Power Supplies (UPS): High efficiency is critical in UPS systems to reduce standby power consumption. The GD150FFY120C6S helps achieve higher efficiency ratings, lowering operating costs for data centers and critical facilities.
- Welding Equipment: The module's high short-circuit withstand capability (10µs) provides the necessary robustness to handle the demanding, intermittent load conditions found in modern welding power sources.
For systems switching below 20kHz, its typical 1.75V VCE(sat) offers an optimal balance between conduction and switching losses for maximum efficiency.
Field-Proven Topologies Enabled by GD150FFY120C6S
The half-bridge, or "2-Pack," configuration of the GD150FFY120C6S provides fundamental building blocks for a wide array of power conversion systems. Engineers commonly deploy this module in 2-level and 3-level inverter designs for motor control and renewable energy applications. Its isolated copper baseplate ensures straightforward and effective mounting to a heatsink, a critical factor for achieving the low thermal resistance needed for long-term reliability. What is the benefit of the soft recovery diode? It minimizes EMI and voltage overshoot during switching transitions. The module's standard housing and pinout also facilitate its integration as a direct-fit or upgrade component in existing power assembly designs, simplifying procurement and manufacturing logistics.
Technical Analysis: Unpacking the Trench FS IGBT4 Advantage
The performance of the GD150FFY120C6S is fundamentally rooted in its 4th generation Trench Field Stop IGBT and complementary freewheeling diode (FWD) technology. This design offers a superior balance of key electrical parameters.
How does Trench FS IGBT4 reduce losses? It lowers VCE(sat) and optimizes switching energy. The collector-emitter saturation voltage, VCE(sat), is a critical parameter that dictates conduction losses. For this module, a typical VCE(sat) of 1.75V at its nominal current of 150A and a junction temperature of 25°C is exceptionally low. This can be analogized to a water valve that opens more widely; a lower VCE(sat) signifies less resistance to current flow, meaning less energy is wasted as heat when the switch is on. Furthermore, the integrated FWD is optimized for soft recovery characteristics, which dampens voltage overshoots and oscillations during IGBT turn-off. This reduces electromagnetic interference (EMI) at the system level, a crucial consideration for meeting stringent EMC standards.
Core Electrical and Thermal Specifications at a Glance
The following parameters are essential for design and simulation. For a comprehensive list, please refer to the official product datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V |
| Continuous Collector Current (IC) @ Tc=80°C | 150 A |
| Collector-Emitter Saturation Voltage (VCE(sat)) @ IC=150A, Tj=25°C | 1.75 V (Typ.) |
| Total Switching Energy (Ets) @ IC=150A, Tj=125°C | 15.5 mJ (Typ.) |
| Max. Junction Temperature (Tjmax) | 150 °C |
| Thermal Resistance, Junction-to-Case (Rth(j-c)) per IGBT | 0.24 °C/W (Max.) |
Download the GD150FFY120C6S Datasheet for complete technical specifications.
Data-Informed Component Evaluation
When evaluating power modules, it is crucial to look beyond headline ratings. The GD150FFY120C6S presents a compelling set of data points for system designers. For instance, in applications where thermal management is a primary constraint, a module with a lower total power loss profile can be pivotal. While this module offers excellent performance, projects requiring even higher current density or different package footprints may warrant evaluation of other components. For example, the 2MBI200NB-120 provides a higher current rating of 200A in a similar voltage class. This section serves to provide factual data points to aid in your component selection process, based on your specific application constraints.
Frequently Asked Questions (FAQ) about the GD150FFY120C6S
What are the primary benefits of the Trench Field Stop IGBT4 technology used in the GD150FFY120C6S?
The key advantages are a low collector-emitter saturation voltage (VCE(sat)), which reduces conduction losses, and optimized switching characteristics (Eon/Eoff), which minimize switching losses. This combination leads to higher overall inverter efficiency and reduced thermal load.
Is this module suitable for high-frequency switching applications like switched-mode power supplies (SMPS)?
While the GD150FFY120C6S features fast switching, it is primarily optimized for applications typically operating up to 20 kHz, such as motor drives and solar inverters. For very high-frequency designs (>50 kHz), a different IGBT technology or a SiC Module might offer lower total losses.
What gate drive voltage is recommended for the GD150FFY120C6S?
The datasheet specifies a recommended gate-emitter voltage (VGE) of +15V for turn-on and a range of -8V to -15V for turn-off. Using a negative voltage for turn-off is crucial to ensure immunity against parasitic turn-on, especially in noisy, high dV/dt environments. For more insights, review our guide on robust IGBT gate drive design.
How does the package's thermal resistance impact system design?
The low maximum thermal resistance (Rth(j-c)) of 0.24 °C/W per IGBT ensures efficient heat transfer from the silicon die to the module's baseplate. This allows the module to operate at higher power levels for a given heatsink temperature or enables the use of a smaller, more cost-effective heatsink while maintaining a safe junction temperature.
As power conversion architectures continue to evolve, the demand for components that can deliver higher efficiency in smaller packages will only intensify. Modules like the GD150FFY120C6S, built on proven and refined IGBT technology, provide the foundational tools for engineers to develop next-generation power systems that are not only powerful but also aligned with global energy efficiency standards.
