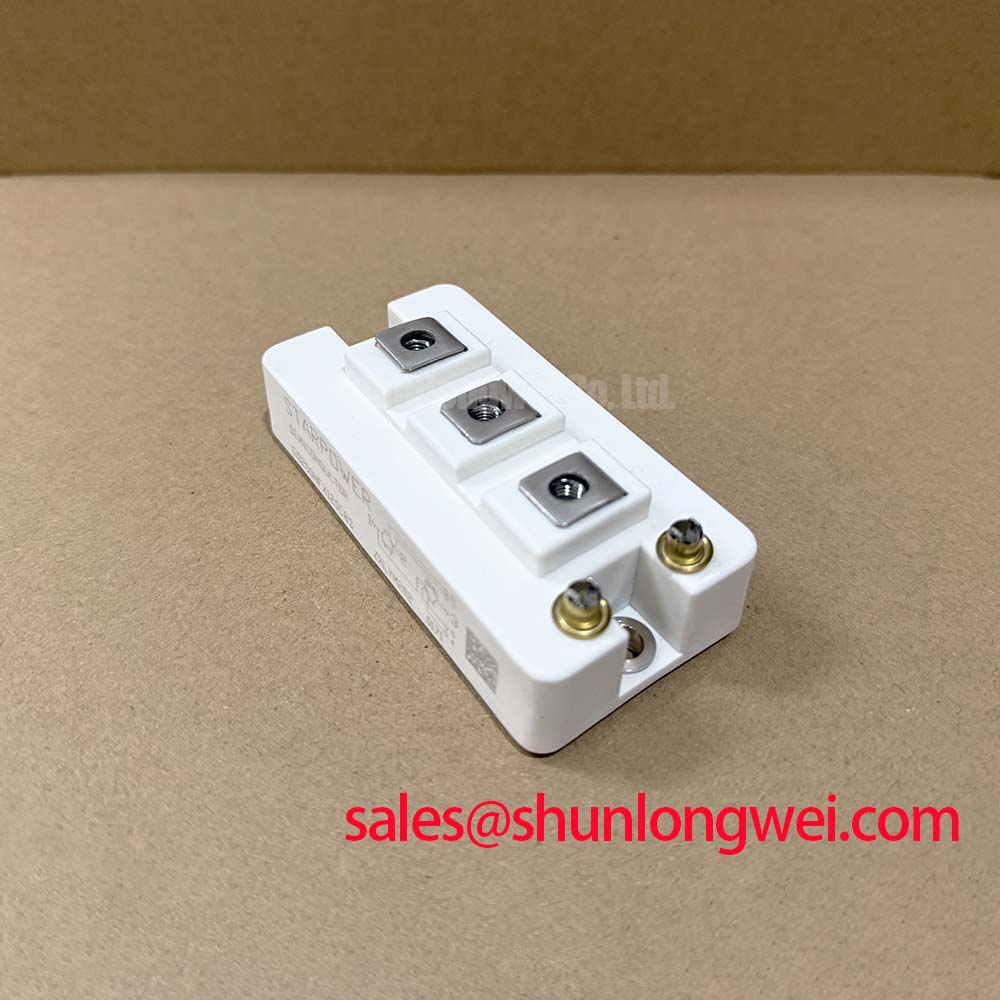

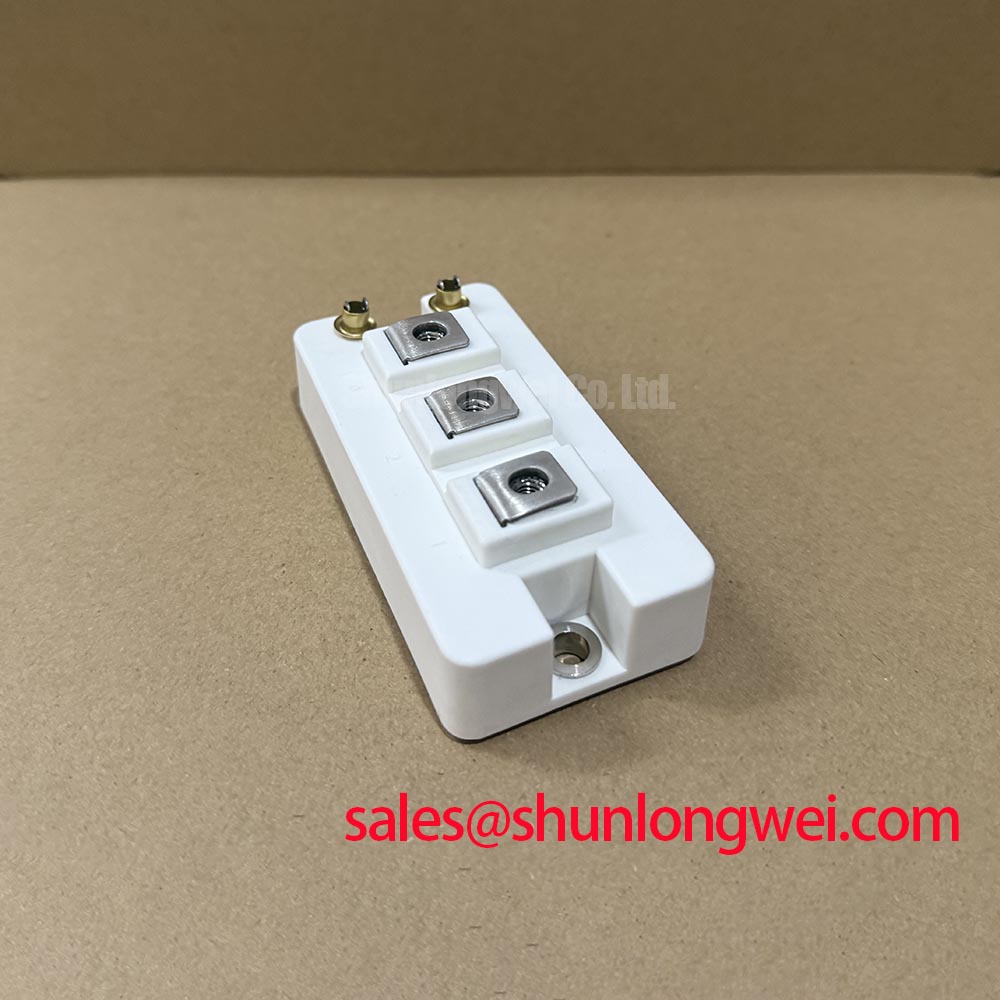

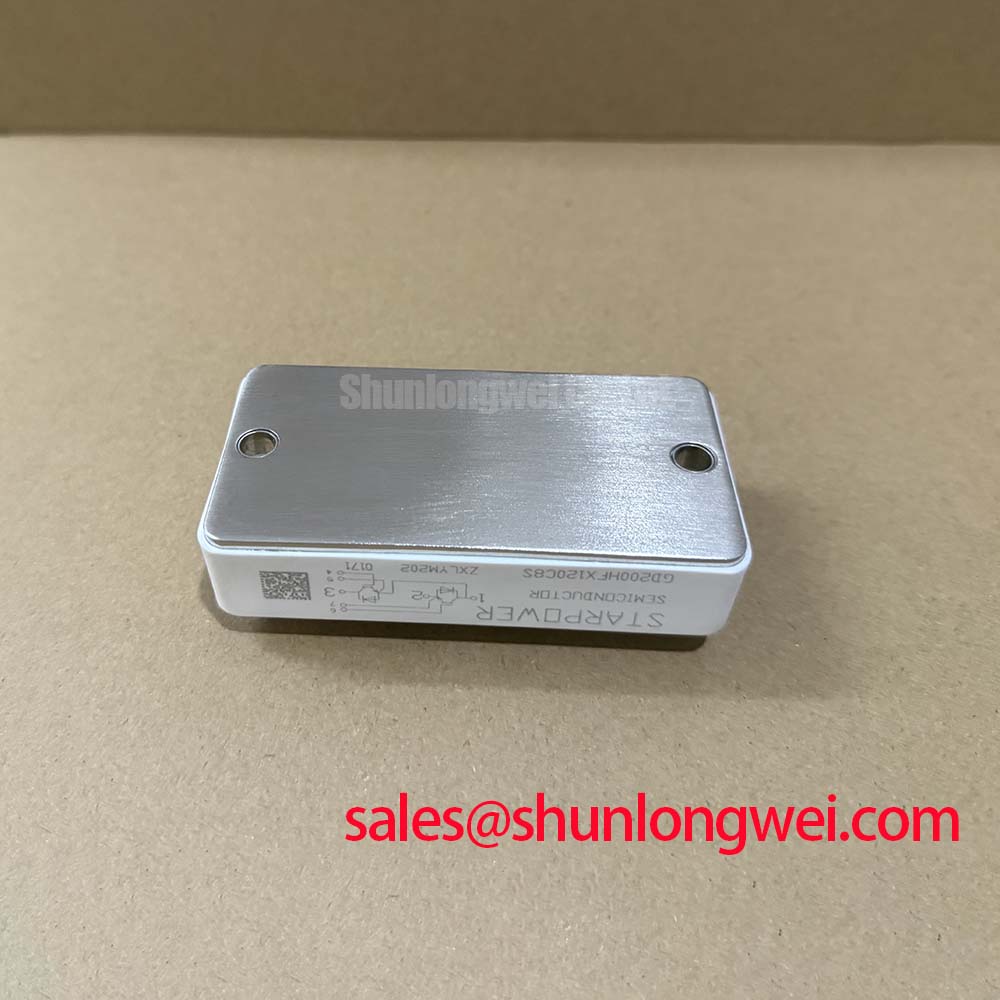

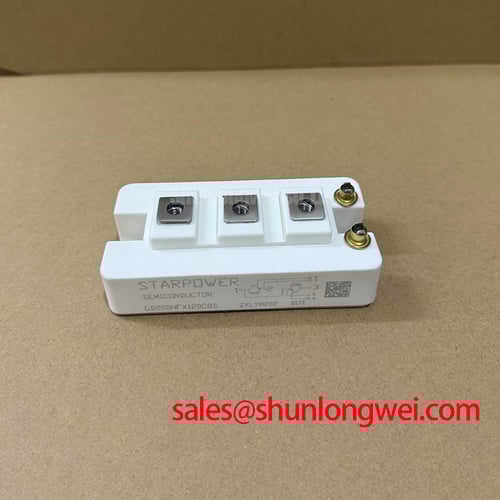

GD200HFX120C8S StarPower 1200V 200A IGBT Module

Content last revised on September 22, 2026

GD200HFX120C8S Service Evaluation and Key Specifications

Begin service evaluation by isolating the inverter DC link, checking the module markings against the approved bill of materials, and verifying the power terminals for abnormal resistance or visible mechanical damage before applying any gate signal. The StarPower GD200HFX120C8S is a high-power IGBT module specified for a 1200 V collector-emitter voltage and 200 A continuous collector current at Tc = 100°C. Its suitability for a commercial string inverter or micro-grid energy-storage converter must be confirmed against the original switching topology, cooling assembly, gate-driver interface, and protection settings.

These values are official device specifications, not a prediction of system performance. The 2.1 V typical saturation value is conditional on the stated current, gate voltage, and junction temperature. Conduction loss, switching loss, heatsink temperature, modulation pattern, and overload duration must be assessed at system level. The GD200HFX120C8S product reference should be checked alongside the original inverter service documentation.

GD200HFX120C8S Thermal-Electrical Optimization: High dv/dt Cross-Conduction Shoot-Through Practical Tuning

Design Consideration: High dv/dt at the opposing switch can couple through the Miller capacitance and disturb the inactive gate. A low-impedance gate loop, compact driver return, and physically controlled power commutation path help limit this interaction. An active Miller clamp may be evaluated where the gate-driver architecture supports it; any negative gate-bias level must come from the driver manufacturer’s verified operating limits rather than a generic module-page assumption.

During commissioning, observe both gate-emitter waveforms and the collector-emitter transition with a suitable isolated measurement setup. Look for unintended gate rise, ringing that crosses the driver’s decision threshold, or overlap between complementary commands. Dead-time should be established from measured turn-off and turn-on behavior, driver propagation tolerance, temperature, and the actual load current. Designers should validate the resulting voltage margin against the 1200 V VCES rating during switching tests, including DC-link overshoot.

Gate-loop parasitic inductance can turn a clean driver command into oscillation. Route the gate and its dedicated return as a tightly coupled pair, keep the power commutation loop separate, and avoid sharing high-current emitter copper with the driver reference. SPICE can assist with first-pass parasitic sensitivity studies, but the final decision should be based on oscilloscope measurements from the assembled converter. ESD handling should also follow the relevant HBM, CDM, and MM protection principles.

GD200HFX120C8S Thermal-Electrical Optimization: Thermal Time Constants and Peak Junction Practical Tuning

The published Rth(j-c) maximum of 0.19 °C/W per IGBT is a junction-to-case value, not a complete heatsink prediction. Thermal interface quality, mounting pressure, baseplate flatness, cooling airflow or liquid flow, and neighboring device heating all affect the case temperature. For pulsed overload analysis, engineers can represent the transient path with a multi-RC thermal model and calculate junction temperature from measured case temperature plus the time-dependent device loss response. The model should be correlated with thermal testing rather than treated as a guaranteed field profile.

Use the typical 14.5 mJ Ets only under its stated test conditions of 200 A, 600 V, and 150°C. Different current, bus voltage, gate resistance, switching speed, and junction temperature can materially change switching energy. The 200 A continuous rating also depends on the specified case-temperature condition and must not be read as an unrestricted ambient-current rating.

For mechanical installation, the thermal interface material should be applied consistently according to the heatsink and compound supplier’s process, with uniform fastener loading. Bench Diagnostic: Disconnect the DC link and gate-drive supply before removing or inserting the module and allow the measured bus voltage to reach a verified safe state.

Preventing Spurious Faults: Auxiliary Emitter Return Trace Separation Guidelines for GD200HFX120C8S

The gate-driver reference should return through its intended auxiliary emitter path rather than through the main high-current emitter conductor. Shared copper introduces voltage developed by switching current, which can appear as a false gate signal or disturb desaturation and protection measurements. Treat the auxiliary return as a signal reference: keep it short, route it with the gate connection, and prevent high di/dt collector or emitter paths from crossing it unnecessarily.

When a converter reports intermittent overcurrent or gate-driver faults, compare the affected phase with a known-good phase using the same probe arrangement. Check gate-emitter voltage at the module terminals, driver supply stability, command interlock timing, and the physical continuity of the auxiliary return. A fault indication alone does not establish module failure; impedance changes, probe placement, driver saturation, and common-mode coupling should also be considered.

For a hardware replacement assessment, engineers may compare the electrical interface, thermal path, switching conditions, and protection coordination with P546A2005. This is an evaluation reference, not a universal substitution recommendation. In the wider conversion chain, the BSM22GD120D may be reviewed as a related upstream rectification or complementary topology component when the original design documentation identifies it.

GD200HFX120C8S Thermal-Electrical Optimization: High-Altitude Cosmic-Ray Induced SEB Practical Tuning

Single-event burnout and altitude-related neutron effects require application-specific reliability data. No FIT rate, burnout probability, or fixed altitude derating value should be inferred from the device ratings listed above. For a photovoltaic inverter or micro-grid storage converter installed at elevated altitude, the system engineer should obtain qualified radiation-reliability information, define the operating DC-bus range, and verify voltage headroom through documented stress testing. The 1200 V VCES rating remains the principal electrical boundary, while the acceptable operating margin is determined by the complete design and its safety analysis.

Practical verification should include DC-link transient capture, switching overshoot measurement, insulation and cooling checks, and review of fault-clearance coordination. Fast semiconductor fuses should be coordinated with the converter’s measured fault energy and the module’s short-circuit behavior; the official tsc ≥ 10 µs condition applies only to the stated 800 V, 150°C, and gate-voltage test conditions. Designers should document the actual protection response rather than treating that value as a guaranteed system interruption time. For broader test planning and failure-analysis methods, consult the Field Engineer’s Handbook. Simulation support can be developed with SPICE, followed by bench validation under the intended converter topology.
