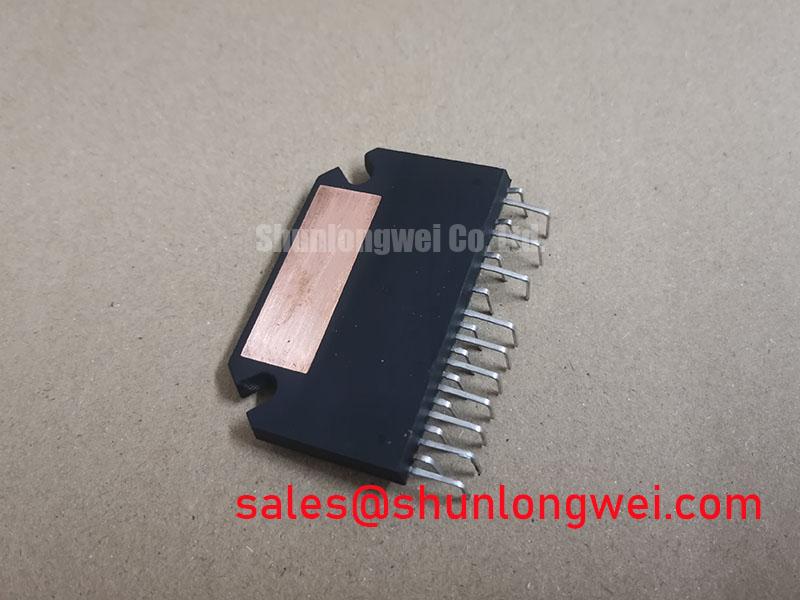

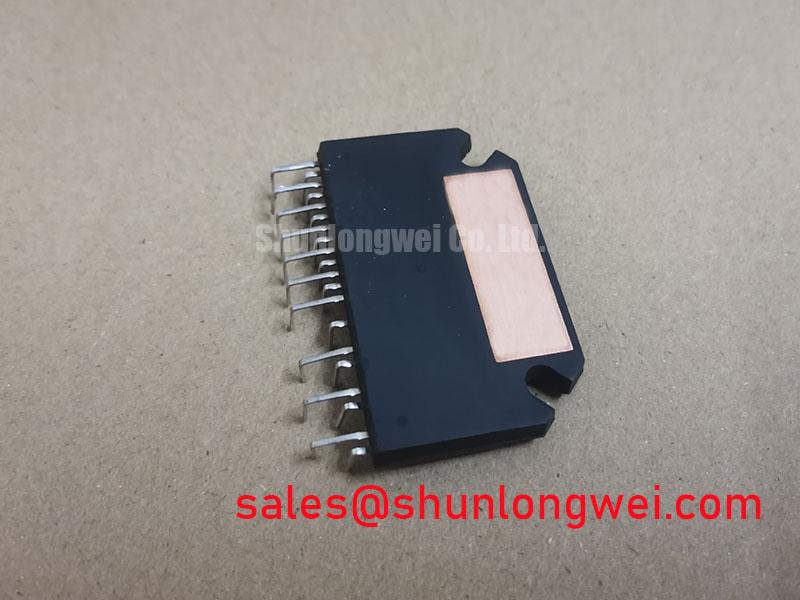

IKCS22F60F2C CIPOS™ Mini 600V 3-Phase Inverter IPM
Introduction to the IKCS22F60F2C Intelligent Power Module
The Infineon IKCS22F60F2C CIPOS™ Mini is an intelligent power module that streamlines motor drive design by integrating a complete 600V/22A three-phase inverter, gate drivers, and critical protection mechanisms into a single package. This module offers key specifications of 600V VCE | 22A IC @ 25°C | Integrated Over-Current Protection. Its primary engineering benefits include accelerated development cycles and a significantly reduced PCB footprint. For engineers wondering how to reduce the size and cost of motor controls, the IKCS22F60F2C provides a direct answer by consolidating numerous discrete components, which minimizes both the bill of materials and the required board space, making it ideal for compact appliance applications.
Industry Insights & Strategic Advantage
Strategic Advantages of Integrated Power Stages in Modern Drives
In the competitive landscape of home appliances, industrial fans, and automation, time-to-market and system cost are paramount. The industry trend is a decisive shift away from complex, multi-component discrete solutions towards highly integrated power modules. The IKCS22F60F2C is at the forefront of this evolution. By providing a turnkey inverter stage in a single component, it directly addresses the engineering challenge of reducing design complexity and validation time. This level of integration is a critical enabler for manufacturers aiming to develop more compact, reliable, and energy-efficient products without the extensive R&D overhead associated with discrete power stage design. This approach aligns perfectly with the need for cost-effective, high-volume production, where simplifying assembly and procurement processes yields substantial competitive advantages.
Key Parameter Overview
Core Specifications for Simplified System Design
The technical specifications of the IKCS22F60F2C are tailored to facilitate straightforward implementation and robust performance in variable-speed drive applications. An integrated NTC thermistor for temperature monitoring acts like a built-in thermometer, providing the control system with direct feedback to prevent overheating, a common failure point in dense motor drives. This consolidation of sensing and power functions within one module is central to its value. For systems where space is at a premium, such as those found in modern washing machines or air conditioning units, the highly integrated IGCM10F60GA offers a comparable level of integration for lower power requirements.
| Parameter | Value | Conditions |
|---|---|---|
| Inverter Section | ||
| Collector-Emitter Voltage (V_CE) | 600 V | V_GE = 0 V, I_C = 250 µA |
| DC Collector Current (I_C) | 22 A | T_C = 25°C |
| DC Collector Current (I_C) | 11 A | T_C = 100°C |
| Short Circuit Withstand Time (t_SC) | ≥ 5 µs | V_CC ≤ 400 V, T_j = 150°C |
| Control Section | ||
| High Side Control Supply Voltage (V_BS) | 13.5 V to 18.5 V | |
| Low Side Control Supply Voltage (V_CC) | 13.5 V to 18.5 V | |
| Over-Current Trip Level (I_TRIP) | 32 A (Typ.) | |
| Under-Voltage Lockout (V_CCUV+/V_BSUV+) | 12.1 V (Typ.) | |
| Thermal Characteristics | ||
| Operating Junction Temperature (T_j) | -40°C to +150°C | |
Download the Datasheet for complete technical specifications.
Intra-Series Comparison & Positioning
Module vs. Discrete: A Comparative Look at Integration Benefits
When evaluating the IKCS22F60F2C, the primary alternative is a conventional design using six discrete IGBTs, a separate gate driver IC, bootstrap circuits, and external protection logic. The value proposition of this Intelligent Power Module (IPM) becomes clear in this comparison:
- Component Count Reduction: This module replaces over a dozen discrete parts. This directly translates to a smaller PCB, simplified procurement, and reduced assembly process steps and costs.
- Optimized Performance: The internal layout between the gate driver and IGBTs is factory-optimized by Infineon, minimizing parasitic inductance. This results in cleaner switching signals and lower electromagnetic interference (EMI) compared to what is typically achievable with a discrete layout.
- Guaranteed Protection: The over-current and under-voltage protection schemes are pre-characterized and integrated. This removes the complex and time-consuming task of designing, testing, and qualifying reliable external protection circuits. What is the benefit of its integrated bootstrap function? It provides a simple, low-cost method for supplying power to the high-side gate drivers without needing isolated power supplies.
Application Scenarios & Value
Enabling Compact and Reliable Motor Control Systems
The high level of integration and robust protection features of the IKCS22F60F2C make it exceptionally well-suited for space-constrained and cost-sensitive applications. Its architecture is engineered to provide a reliable power stage for variable frequency drives that are the heart of modern energy-saving appliances and light industrial equipment.
- Home Appliances: In systems such as high-efficiency washing machines, refrigerators, and air conditioners, the module's compact footprint and integrated safety features allow for smaller, more reliable motor control boards.
- Industrial Fans and Pumps: For small industrial automation, the module simplifies the design of dependable motor drives for ventilation systems and fluid pumps, where operational reliability is essential.
- Servo Drives: In lower-power Servo Drive applications, the IKCS22F60F2C provides the precise control and protection needed for automated machinery and robotics, accelerating the development of compact and efficient motion control systems.
For motor drives under 1.5kW requiring rapid development and minimal PCB area, the IKCS22F60F2C's integrated 5µs short-circuit withstand time presents a more streamlined solution than building a discrete equivalent.
Technical Deep Dive
Inside the IKCS22F60F2C: A Unified Architecture
The IKCS22F60F2C is more than just a collection of IGBTs; it is a holistic power system on a single substrate. At its core are six 600V TrenchStop™ IGBTs arranged in a three-phase bridge configuration. These are controlled by an advanced gate driver IC that is co-packaged within the module. This driver IC provides essential functions like level-shifting to control the high-side IGBTs, precise gate current for efficient switching, and fault detection logic. The built-in bootstrap diodes and current-limiting resistors for each high-side driver further reduce the need for external components. How does this IPM simplify thermal design? The single, thermally conductive package provides a unified heat path to the heatsink, simplifying thermal management compared to dissipating heat from multiple discrete components spread across a PCB. This consolidated architecture is key to achieving the power density required in modern electronics.
To further explore the principles behind these integrated components, consider reading the ultimate guide to IGBT modules for a foundational understanding of their role in power electronics.
For your design and evaluation needs, please contact us to discuss the IKCS22F60F2C CIPOS™ Mini module. Our team can provide the necessary technical documentation to support your engineering and procurement decisions.
