How do system designers mitigate partial discharge risks in 6.5kV traction converters without compromising power density?

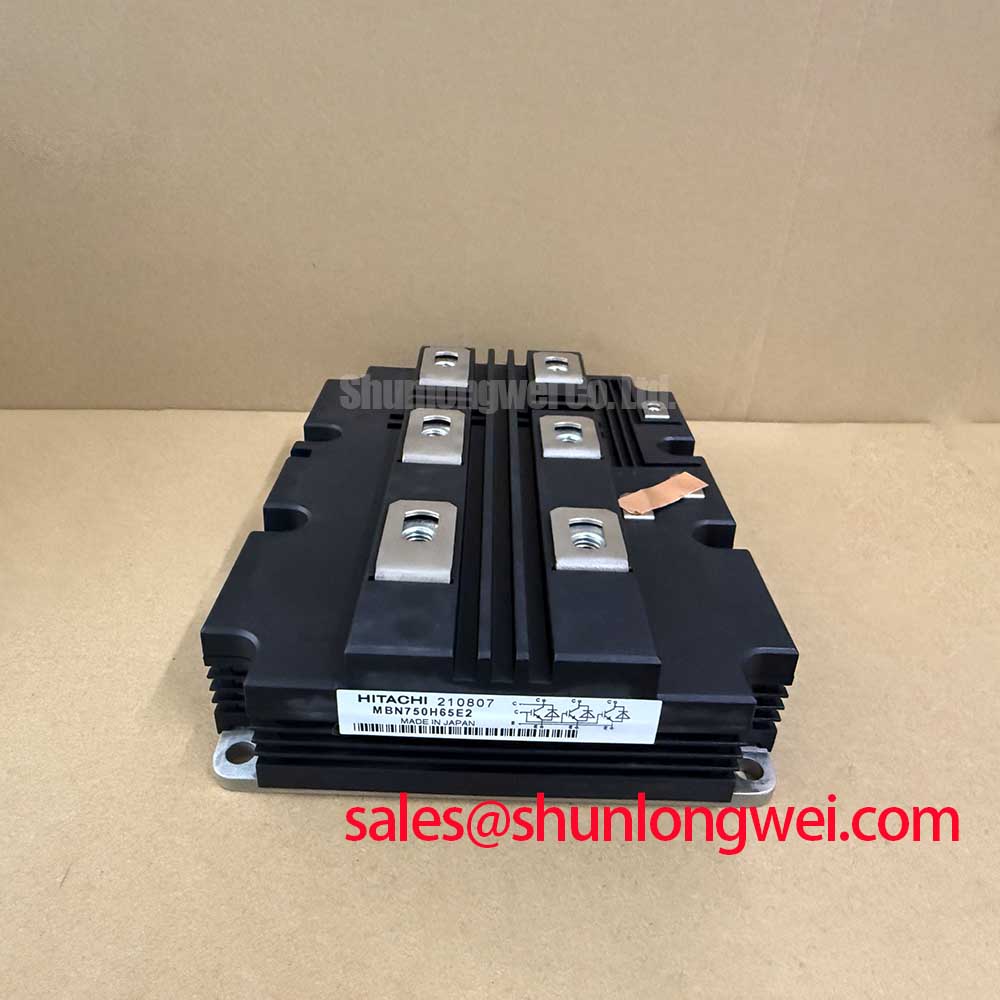

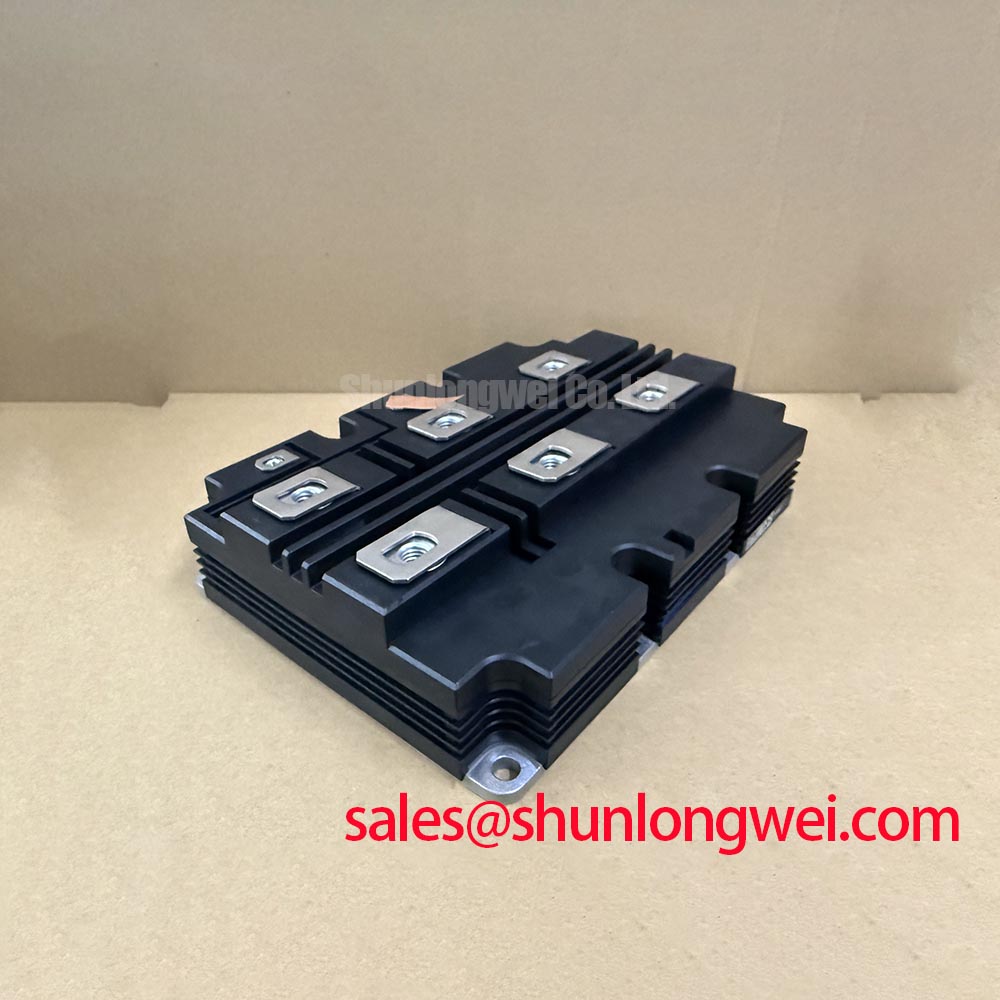

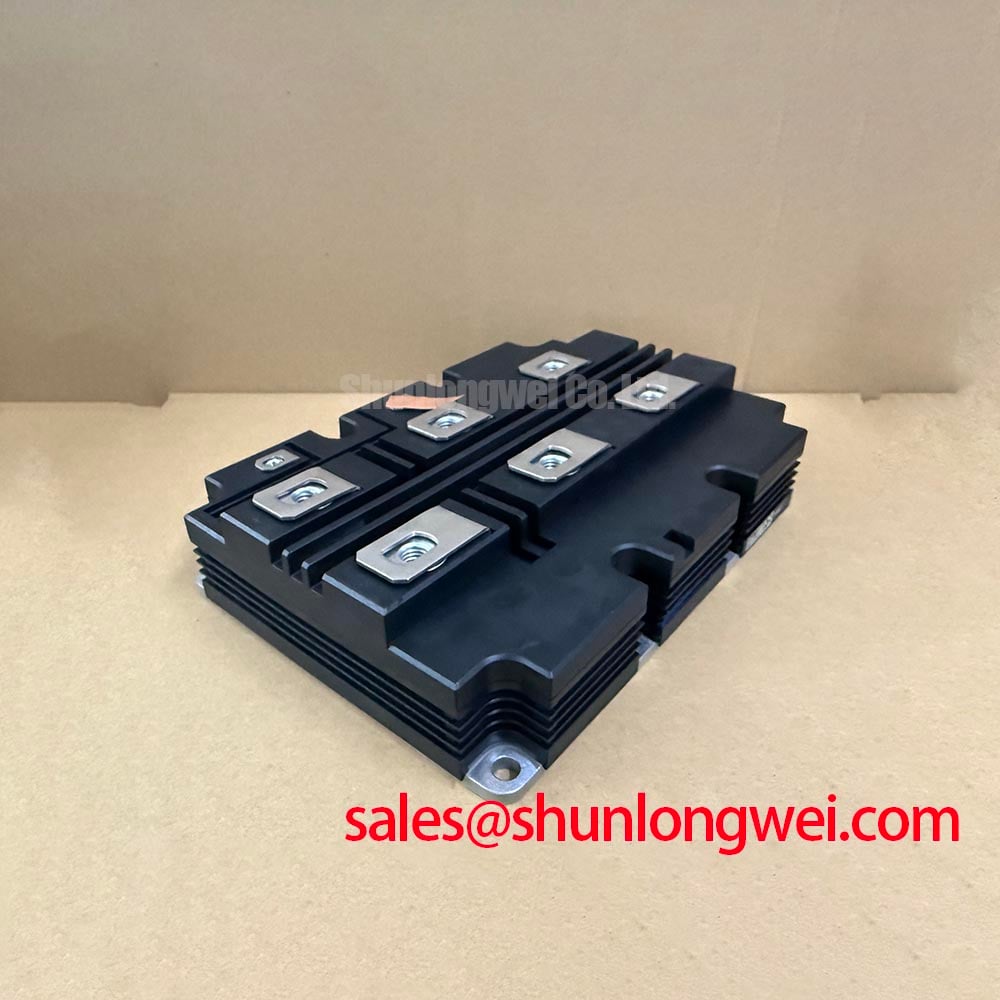

High-voltage power electronics engineering often hits a wall when balancing dielectric strength with thermal dissipation. In applications like railway traction and HVDC transmission, the MBN750H65E2 serves as a definitive solution for systems requiring extreme insulation integrity and high current handling within a standardized footprint. This module is specifically designed to address the "insulation-to-thermal" trade-off by utilizing advanced packaging materials that support a 10.2kV AC isolation voltage while maintaining a low junction-to-case thermal resistance. For 6.5kV platforms prioritizing long-term dielectric stability, this 750A module provides the necessary safety margins and reliability.
Frequently Asked Questions
Addressing Core Engineering Concerns for High-Voltage Integration
What is the engineering significance of the 10.2kV AC isolation voltage in the MBN750H65E2?
In 6.5kV systems, standard insulation levels often leave insufficient margins for transient overvoltages and environmental degradation. The 10.2kV AC (for 1 minute) isolation rating of the MBN750H65E2 ensures that the module meets the rigorous safety requirements of IEC 61287 for traction applications. This higher dielectric ceiling significantly reduces the risk of partial discharge and catastrophic insulation breakdown, which is essential for equipment expected to operate for 20+ years in harsh, high-pollution environments.
How does the AlN (Aluminum Nitride) substrate influence thermal management at 6500V operating levels?
Heat dissipation at the 6.5kV class is challenging due to the thickness of the ceramic insulation layers required. The MBN750H65E2 utilizes a high-thermal-conductivity AlN substrate. This material allows for efficient heat transfer from the IGBT chips to the baseplate, achieving a typical Rth(j-c) of approximately 0.016 K/W for the IGBT section. This allows engineers to push higher current densities without exceeding the maximum junction temperature of 150°C, ultimately reducing the required size of the liquid-cooling assembly.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Functional Category | Technical Parameter | Specified Value |
|---|---|---|
| Voltage Ratings | Collector-Emitter Voltage (Vces) | 6500V |
| Current Capability | Continuous Collector Current (Ic) | 750A |
| Isolation Performance | Isolation Voltage (Viso) | 10.2kV AC |
| Thermal Limits | Maximum Junction Temperature (Tjmax) | 150°C |
| Switching Characteristics | Collector-Emitter Saturation Voltage | 3.5V (Typical) |
Download the MBN750H65E2 datasheet for detailed specifications and performance curves.
Technical Deep Dive
A Closer Look at the High-Voltage Package Design for Long-Term Reliability
The internal architecture of the MBN750H65E2 is a masterclass in high-voltage stress management. Operating at 6500V requires more than just wide creepage distances; it demands a sophisticated internal electric field distribution. Hitachi employs a field-limiting ring structure and specialized silicone gel encapsulation to prevent ionization at the chip edges. This is a critical factor in preventing IGBT failure analysis concerns related to localized electric field concentration.
To explain the importance of the internal layout, consider a lightning rod on a building: it intentionally concentrates the electric field to a single point. In a 6.5kV IGBT, engineers must do the exact opposite. Every bond wire and chip placement is optimized to ensure the electric field is "smoothed out" across the substrate, much like how a rounded fender on a car reduces wind resistance compared to a sharp edge. This "field-shaping" technology is what allows the module to maintain its 750A rating under continuous high-voltage stress without succumbing to the degradation of the internal insulation layers.
Furthermore, the MBN750H65E2 features a robust baseplate designed for high power cycling. The coefficient of thermal expansion (CTE) of the internal materials is closely matched to the AlN substrate and the copper baseplate. This reduces the mechanical strain during rapid load changes—a common occurrence in electric locomotives during acceleration and braking—thereby extending the module's service life beyond that of standard industrial-grade modules.
Application Scenarios & Value
Achieving System-Level Benefits in High-Power Infrastructure
The MBN750H65E2 is a primary choice for 3kV DC or 25kV AC railway traction inverters where the DC-link voltage can fluctuate significantly. In these environments, the 6500V rating provides a substantial safety buffer against line surges and regenerative braking spikes. By utilizing a single MBN750H65E2 instead of multiple lower-voltage modules in series, designers can eliminate complex voltage-balancing circuits, significantly simplifying the Gate Drive requirements and reducing the overall component count.
In the context of renewable energy, this module is integrated into large-scale Solar Inverters and wind turbine converters connected to medium-voltage grids. The high Viso rating simplifies the transformer-less coupling to the grid, as it provides the necessary galvanic isolation within the module itself. For engineers designing 3.3kV platforms who may require less overhead, the FZ1200R33KF2C offers a lower voltage alternative, whereas the MBN750H65E2 is the preferred benchmark for 6.5kV-class reliability.
The technical advantages of this module align perfectly with the growing demand for wind-to-grid conversion systems, where Efficiency and Reliability are the twin pillars of the project's Return on Investment (ROI). By minimizing switching and conduction losses through an optimized trench/planar gate structure, the MBN750H65E2 contributes to a lower Total Cost of Ownership (TCO) for utility-scale power converters.
As the global energy landscape shifts toward high-efficiency medium-voltage DC (MVDC) grids and high-speed rail expansion, components like the MBN750H65E2 transition from simple switches to strategic assets. Selecting a 6.5kV module is a decision that impacts the 25-year reliability profile of a power plant or locomotive. By prioritizing advanced insulation technology and thermal durability, engineers ensure that their systems are not only compliant with today’s standards but are also prepared for the increasingly demanding performance requirements of the next generation of power electronics.
