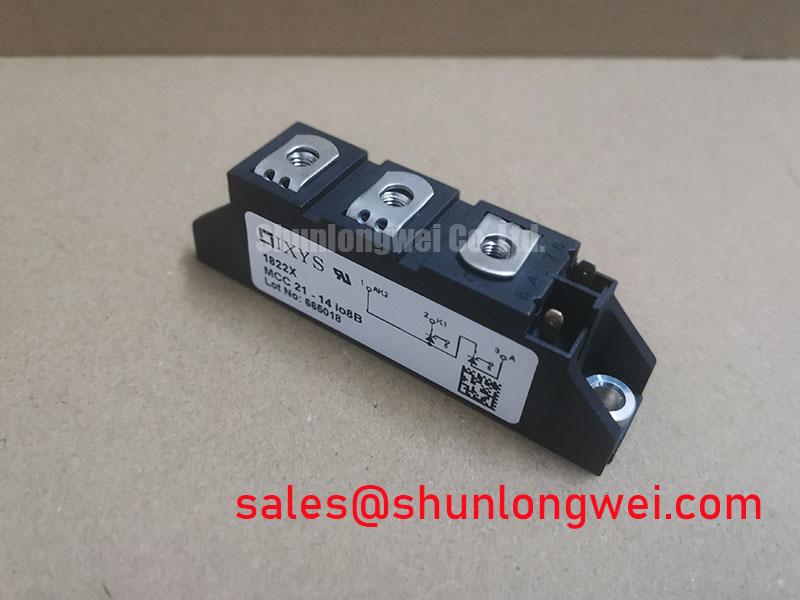

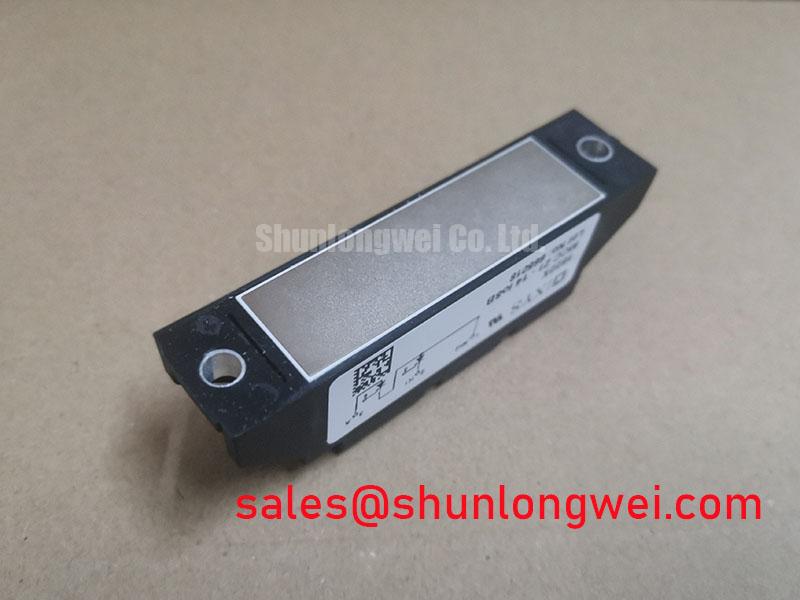

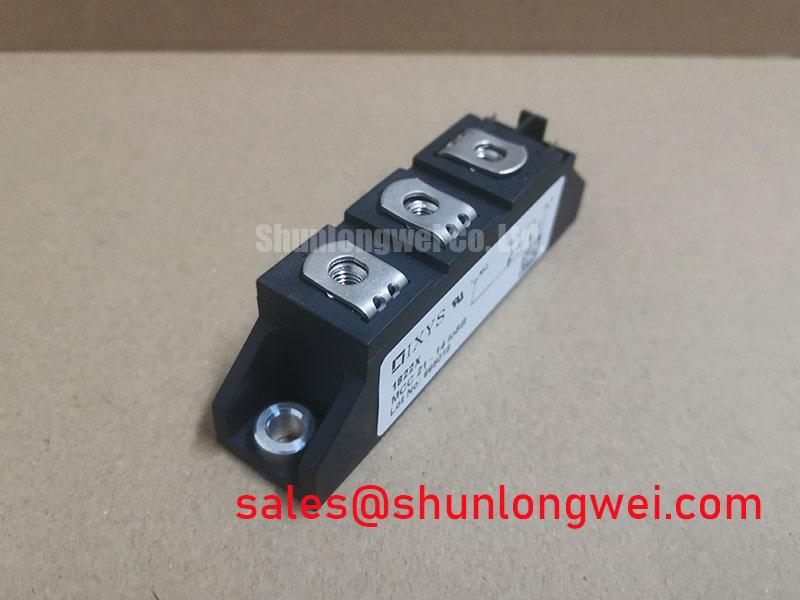

## Littelfuse MCC21-14IO8B | Robust 1400V Thyristor Module for Precision Power Control
For design engineers working on high-power AC control systems, reliability and precision are not negotiable. The Littelfuse MCC21-14IO8B is a thyristor/diode module engineered to meet these demands head-on. It provides a rugged, efficient, and cost-effective solution for line-frequency applications where robust power handling and long-term stability are paramount. This module is not about chasing the highest switching speeds; it's about delivering steadfast control in demanding industrial environments.
- High Voltage Capability: With a repetitive peak off-state voltage (VDRM) of 1400V, this module offers a significant safety margin for operation on 400/480VAC lines, protecting against transient voltage spikes.
- Proven Reliability: Leveraging planar passivated chips, the MCC21-14IO8B ensures exceptionally low leakage currents and predictable performance over its entire operational life.
- Enhanced Thermal Performance: Built on a Direct Copper Bonded (DCB) ceramic base plate, the module provides superior electrical isolation and a low thermal resistance path, enabling efficient heat dissipation.
- Simplified System Design: The common-cathode configuration is ideal for building controlled single-phase bridge rectifiers or AC controllers with a reduced component count and simplified layout.
### Key Parameters at a Glance
The following table outlines the critical performance characteristics for the MCC21-14IO8B. For a comprehensive list of specifications and performance curves, you can download the official datasheet.
| Parameter | Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM/VRRM) | 1400V |
| Average On-State Current (IT(AV), TC=85°C) | 25A |
| RMS On-State Current (IT(RMS)) | 39A |
| Surge non-repetitive On-State Current (ITSM, 10ms) | 400A |
| Gate Trigger Voltage (VGT) | Max 1.5V |
| Gate Trigger Current (IGT) | Max 100mA |
| Operating Junction Temperature (TVJ) | -40°C to 125°C |
### Engineering for Reliability: A Technical Deep Dive
Two core construction features elevate the MCC21-14IO8B from a standard component to a long-term industrial asset. Understanding these elements is key to appreciating its value in your design.
### Core Applications: Where the MCC21-14IO8B Excels
This thyristor module is purpose-built for line-frequency power control. Its unique characteristics make it an ideal choice for the following applications:
- Motor Soft-Starters: By precisely phase-controlling the AC waveform, the MCC21-14IO8B can gradually ramp up the voltage supplied to an induction motor. This mitigates damaging inrush currents and reduces mechanical shock on gearboxes and couplings, extending the life of the entire drive system.
- Industrial Power & Temperature Control: In applications like industrial furnaces, ovens, and plastic extrusion, this module provides a simple and robust method for regulating power to resistive heating elements. Its ability to handle high surge currents makes it resilient to the demanding thermal cycles inherent in these processes.
- Professional Lighting Control: For large-scale architectural and theatrical lighting systems, this module enables efficient and smooth dimming of high-power incandescent or tungsten-halogen light banks, offering reliable control where consumer-grade components would fail.
### Expert Answers to Common Questions (FAQ)
What are the critical gate drive considerations for the MCC21-14IO8B?
Unlike voltage-controlled devices like IGBTs, thyristors are current-controlled latching devices. To ensure reliable turn-on, the gate drive circuit must provide a current pulse that meets the minimum Gate Trigger Current (IGT) specification. The pulse duration should be long enough for the anode current to exceed the latching current. While a continuous gate signal is possible, it increases gate power dissipation. It's crucial to respect the maximum gate power and voltage ratings to prevent damage. Many of the principles for avoiding catastrophic failure in power devices are universal, whether discussing thyristors or more complex IGBT modules.
Is this module suitable for high-frequency applications like a SMPS?
No. The MCC21-14IO8B is a phase-control thyristor designed for line-frequency applications (typically 50/60 Hz). Its turn-off time (tq) is relatively long, making it unsuitable for high-frequency switching. Attempting to use it in a high-frequency inverter or switch-mode power supply would result in extremely high switching losses and likely device failure. For those applications, you should explore our range of fast-switching IGBTs. For a better understanding of device selection, our guide on choosing the right power semiconductor can provide valuable insight.
