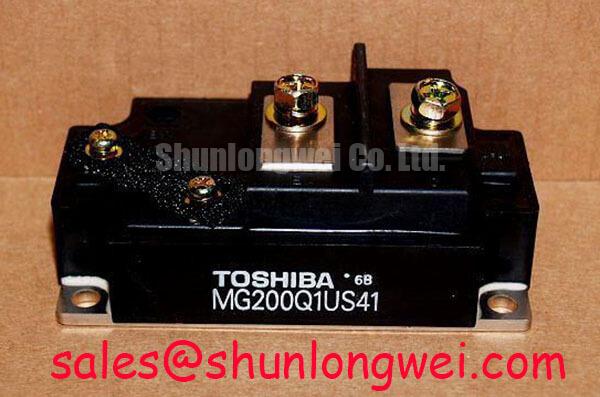

MG200Q1US41 Toshiba 1200V 200A Single IGBT Module

Content last revised on January 29, 2026

Toshiba MG200Q1US41 IGBT Module Engineering Insights

The Toshiba MG200Q1US41 is a high-performance 1200V 200A single IGBT module engineered for precision switching in high-capacity industrial power systems. By utilizing a single-switch configuration, this module allows engineers to optimize high-current paths while minimizing the parasitic inductance often found in multi-chip bridge topologies. For industrial motor control systems prioritizing thermal margin and high-current single-stage switching, the MG200Q1US41 serves as a robust and reliable solution.

Top Specifications: 1200V Collector-Emitter Voltage | 200A Continuous Collector Current | 2.7V typical Vce(sat) at rated current.

• Reduced Thermal Stress: Optimized silicon layout ensures uniform heat distribution across the baseplate.
• Simplified Integration: The single-switch 1-in-1 configuration streamlines the design of custom inverter legs and high-power DC choppers.

A common inquiry among power engineers is how a single-switch configuration like the MG200Q1US41 handles high-frequency switching losses compared to smaller paralleled units. The answer lies in its monolithic current handling, which eliminates the current-sharing imbalances and timing skews inherent in parallel arrays, leading to a more predictable electromagnetic interference (EMI) profile and simplified gate drive requirements.

Application Scenarios & Value

Maximizing Reliability in Heavy-Duty Power Conversion

The MG200Q1US41 is frequently specified for Variable Frequency Drive (VFD) outputs and Uninterruptible Power Supply (UPS) systems where sustained current delivery at high voltages is non-negotiable. In high-power motor control scenarios, the module effectively manages the back-EMF and inductive spikes common during rapid deceleration. For instance, in an industrial conveyor system, the high 1200V rating provides a necessary buffer against line voltage fluctuations and regenerative energy spikes from the motor.

Engineers often face the challenge of designing 800V platforms that require significant safety margins. The Toshiba MG200Q1US41 addresses this by offering a Vces of 1200V, ensuring the silicon remains well within its Safe Operating Area (SOA) even during harsh transient conditions. For systems requiring even higher current handling, the MG400Q2YS60A offers 400A capability within a similar architectural framework.

Beyond traditional drives, this module is an essential component in renewable energy inverters and high-frequency induction heating equipment. Its low Vce(sat) directly correlates to lower conduction losses, which is critical for achieving the high efficiency targets mandated by modern energy regulations. By integrating this module, designers can often reduce the size of the required thermal management hardware, leading to a more compact and cost-effective system footprint.

Key Parameter Overview

Decoding Technical Specifications for High-Voltage Integrity

The following table summarizes the critical electrical and thermal characteristics of the Toshiba MG200Q1US41 based on official technical documentation.

Download the MG200Q1US41 datasheet for detailed specifications and performance curves: Official Toshiba Datasheet Placeholder.

Technical & Design Depth剖析

Advanced Silicon Topography for Enhanced Switching Performance

The internal structure of the MG200Q1US41 utilizes Toshiba’s optimized G-Series technology, which balances switching speed against robustness. To visualize this, think of the Vce(sat) as a narrow bridge; the "wider" the bridge (lower the voltage drop), the more current can flow with less heat buildup. A Vce(sat) of 2.7V ensures that even at a full 200A load, the internal losses are kept to a minimum, preserving the longevity of the module.

Another critical design element is the Thermal Resistance (Rth(j-c)) of 0.096 °C/W. This parameter acts like a high-speed thermal expressway, conducting heat away from the silicon junctions to the baseplate with minimal resistance. In high-power applications, this low resistance is what prevents thermal runaway during peak load cycles. Engineers can leverage this efficiency to increase the switching frequency, thereby reducing the size of passive components like inductors and capacitors in the IGBT module circuit.

Industry Insights & Strategic Advantage

Navigating the Shift Toward High-Efficiency Power Grids

As global industries transition toward Industrial 4.0 and carbon neutrality, the demand for high-efficiency power semiconductors has never been higher. The MG200Q1US41 aligns with these trends by providing the raw power and switching precision required for smart grid stabilizers and high-performance industrial automation. By reducing energy waste at the switching level, companies can significantly lower their Total Cost of Ownership (TCO) through reduced electricity consumption and extended maintenance intervals.

The shift toward SiC (Silicon Carbide) is prominent, yet the MG200Q1US41 remains a strategic choice for many traditional high-power designs due to its proven reliability and cost-performance ratio. For many standard VFD and UPS applications, the maturity of this IGBT technology ensures a level of ruggedness that is often preferred by maintenance engineers in harsh industrial environments. Understanding the differences between IGBT and SiC is vital for long-term platform planning.

FAQ

How does the Rth(j-c) of 0.096 °C/W directly impact heatsink selection for the MG200Q1US41?
The low thermal resistance means the module is exceptionally efficient at moving heat to its baseplate. This allows engineers to use a more compact heatsink or a lower airflow rate while still maintaining the junction temperature (Tj) well below the 150°C limit, directly increasing system power density.

Can this single-switch module be used in a half-bridge configuration?
Yes, but it requires two MG200Q1US41 units. While an integrated half-bridge module simplifies physical mounting, using two single modules provides superior thermal isolation between the high-side and low-side switches, which can be advantageous in high-ambient-temperature environments.

What is the primary benefit of the MG200Q1US41’s 1200V rating in 480V AC drive applications?
A 480V AC line typically has a DC bus voltage around 650-680V. The 1200V rating provides a safety margin of nearly 80%, protecting the silicon from voltage transients, spikes during inductive load switching, and line fluctuations without the immediate need for complex snubber circuits.

For procurement professionals and design engineers seeking to validate the MG200Q1US41 for upcoming projects, our technical team is available to provide additional data regarding switching curves and thermal modeling. To ensure system-wide compatibility, consider reviewing our Field Engineer's Handbook for best practices in IGBT installation and maintenance.
