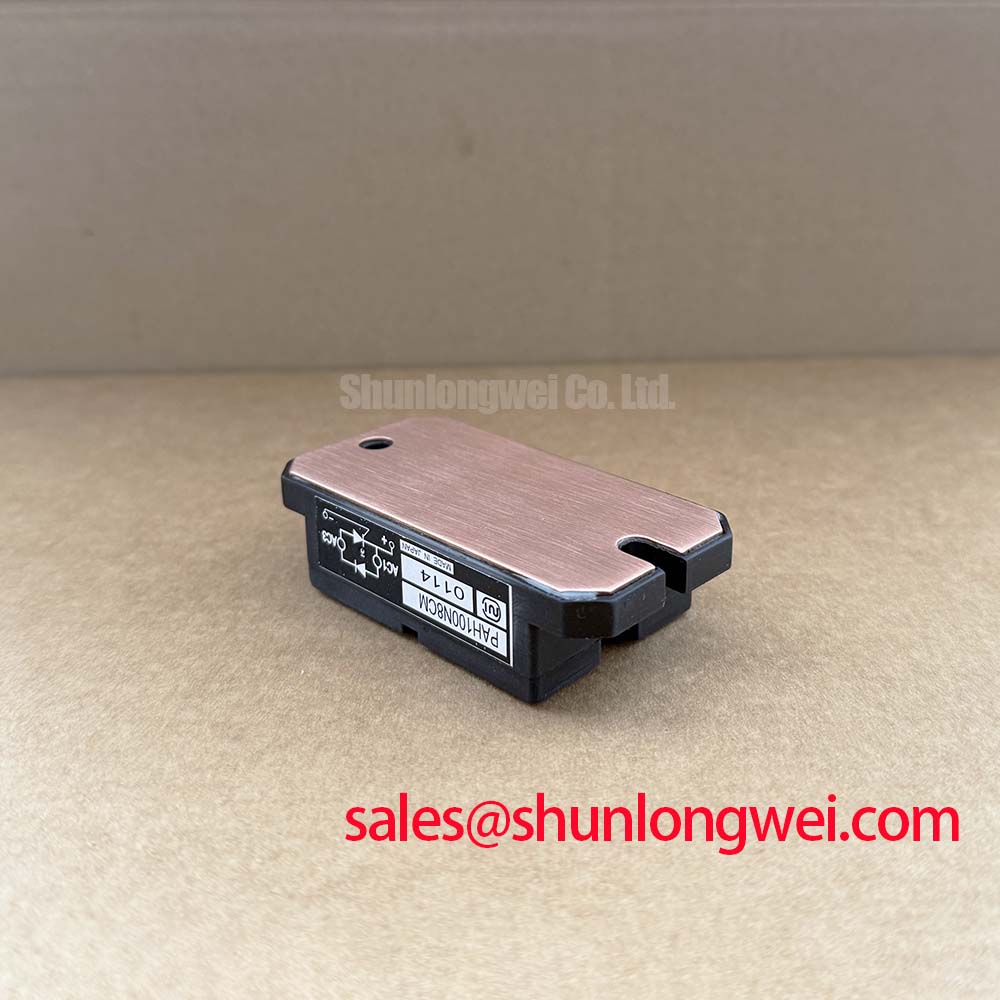

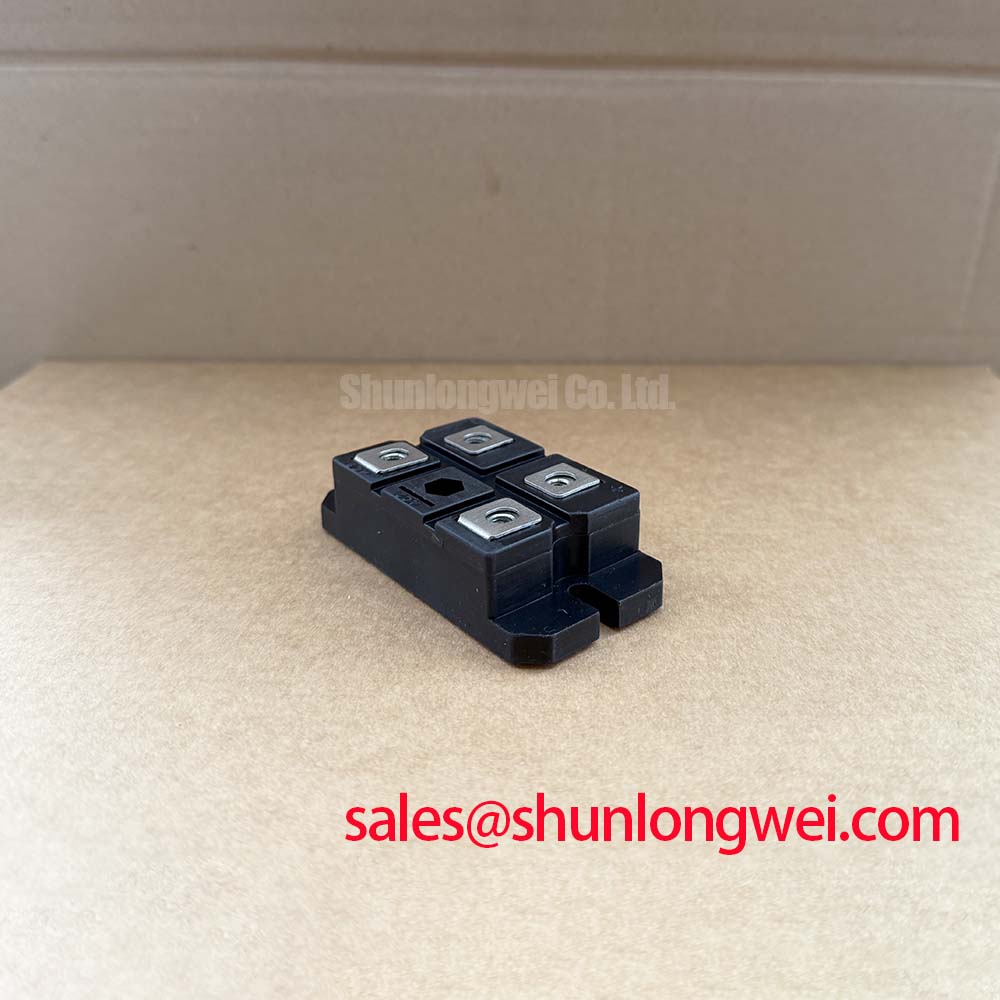

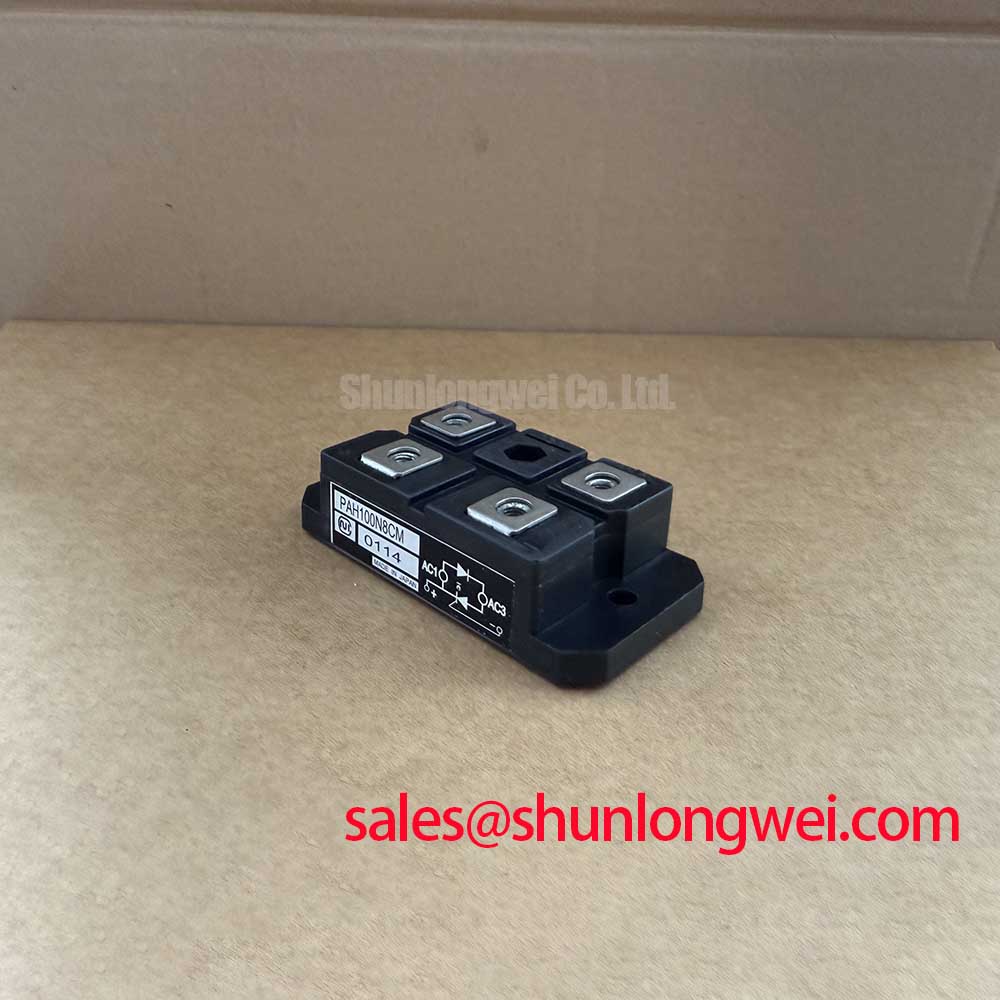

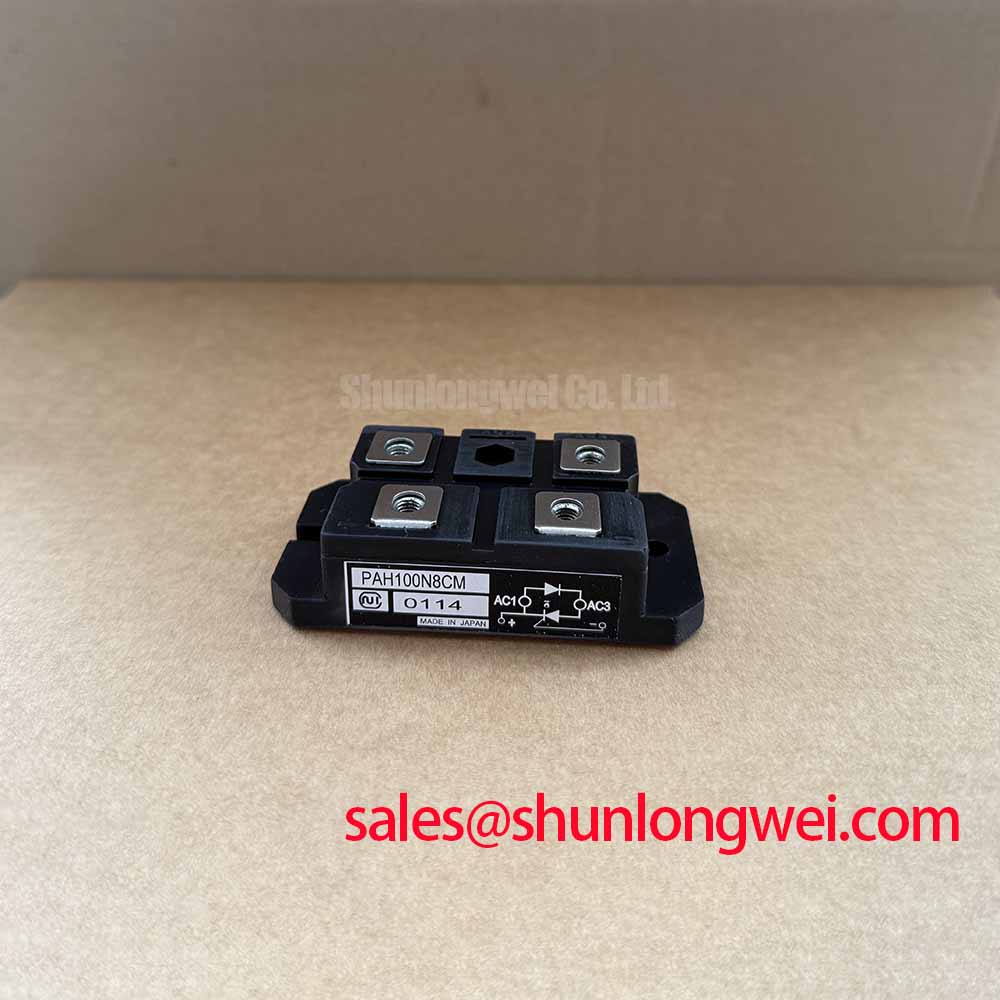

SanRex PAH100N8CM IGBT Module: Precision Switching for High-Efficiency DC-DC Conversion
The SanRex PAH100N8CM, a prominent member of the high-speed N-channel IGBT module family, provides a robust solution for power designers seeking to minimize switching losses without compromising thermal stability. Featuring a 600V collector-emitter voltage and a 100A continuous collector current rating, this module is specifically optimized for high-frequency chopper and converter applications where efficiency is the primary performance metric. By integrating high-speed switching characteristics with a low saturation voltage, the PAH100N8CM addresses the critical engineering challenge of thermal management in dense power electronics environments. For systems prioritizing efficiency, this 600V module delivers the necessary switching agility to maintain high-frequency operation with minimal heat dissipation.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
Engineers often face the difficult trade-off between increasing switching frequencies to reduce the size of passive components and managing the resulting rise in switching losses. The SanRex PAH100N8CM resolves this bottleneck by utilizing an optimized chip structure that significantly lowers Eon and Eoff losses. In a typical DC-DC converter or a high-power PFC stage, the ability of this module to handle 100A at high speeds allows for a more compact magnetics design, directly reducing the overall bill of materials and system weight. For 400V bus systems requiring high current handling, the related 2MBI200VA-060 offers a higher current capacity for even more demanding industrial loads.
A specific high-fidelity engineering scenario involves the implementation of PAH100N8CM in industrial welding power supplies. During the PWM control phase, the module must transition at high frequencies to maintain a stable arc. The low VCE(sat) of approximately 2.1V ensures that conduction losses remain low during the "on" state, while the fast turn-off time prevents the excessive heat buildup that often leads to thermal runaway in less specialized modules. This precision directly supports IEC 61800-3 compliance by improving power density and reducing electromagnetic interference through cleaner switching transitions. Furthermore, for designs that need to compare different power architectures, understanding semiconductor selection is vital for optimizing the inverter stage.
Technical Analysis & Design Insights
Balancing Switching Speed and Conduction Losses for Enhanced Reliability
The internal architecture of the PAH100N8CM is a masterclass in balancing competing physical parameters. To explain this engineering feat, think of the VCE(sat) as the resistance of a pipe; if it is too high, it takes more pressure (voltage) to push the current through, generating heat. Conversely, if the pipe is too wide, it may be slow to "close" (switching time). SanRex has engineered the PAH100N8CM to have a "narrow pipe" efficiency with a "fast valve" response. This ensures that even at high PWM frequencies, the module does not suffer from the cumulative heat that typically plagues standard IGBT modules.
In terms of thermal design, the module features an isolated mounting base, which simplifies the mechanical layout of the heatsink. By reducing the thermal resistance from junction to case (Rth(j-c)), the PAH100N8CM allows for higher power throughput in a smaller footprint. Designers must pay close attention to the gate drive circuit; providing a stable and clean gate signal is essential to prevent parasitic turn-on events, especially in the high dv/dt environments where this module thrives. This level of reliability is what makes IGBT modules the backbone of high-efficiency power systems. The module's ruggedness against short-circuit events provides a safety margin that is indispensable in industrial environments where load fluctuations are unpredictable.
Key Parameter Overview
Functional Grouping for Design Accuracy
The following technical data is derived from the official SanRex specifications to assist in precise component evaluation and system modeling.
| Absolute Maximum Ratings (Tc=25°C) | |
|---|---|
| Collector-Emitter Voltage (VCES) | 600 V |
| Gate-Emitter Voltage (VGES) | +/- 20 V |
| Continuous Collector Current (IC) | 100 A |
| Pulsed Collector Current (ICP) | 200 A |
| Isolation Voltage (Visol) | 2500 V (AC, 1 min) |
| Electrical Characteristics (Typical) | |
|---|---|
| Collector-Emitter Saturation Voltage [VCE(sat)] | 2.1 V (at Ic=100A) |
| Gate-Emitter Threshold Voltage [VGE(th)] | 5.0 V - 8.0 V |
| Turn-on Delay Time (td-on) | 0.15 µs |
| Rise Time (tr) | 0.20 µs |
| Fall Time (tf) | 0.25 µs |
Download the PAH100N8CM datasheet for detailed specifications and performance curves.
Frequently Asked Questions
How does the low VCE(sat) of the PAH100N8CM impact overall heatsink selection?
The VCE(sat) of 2.1V directly determines the conduction losses (P = Vce * Ic). By keeping this value low, the module generates less waste heat during the "on" cycle. This allows engineers to use smaller heatsinks or reduce the intensity of forced-air cooling, which improves the overall power density of the DC-DC converter.
What is the primary benefit of the isolated mounting base in this SanRex module?
The isolated base allows the PAH100N8CM to be mounted directly onto a common metal heatsink alongside other components without the need for additional insulating pads. This reduces thermal resistance and simplifies mechanical assembly, enhancing long-term reliability by eliminating potential failure points in the insulation layer.
Can the PAH100N8CM be used in variable frequency drive (VFD) applications?
Yes, although it is highly optimized for DC-DC and chopper circuits, its 600V and 100A ratings make it suitable for smaller VFDs or motor controllers operating on 200-240V AC lines. Its high-speed switching capability ensures smooth PWM operation and minimal acoustic noise from the motor.
Is a negative gate voltage required for turning off the PAH100N8CM?
While a simple 0V gate signal can turn the module off, using a negative gate voltage (typically -5V to -15V) is recommended in high-current applications. This provides a robust "off" state that prevents accidental turn-on caused by Miller capacitance during high dv/dt transients, ensuring system integrity.
What is the significance of the 2500V isolation rating for industrial designers?
This rating ensures that the internal high-voltage circuitry is safely isolated from the module's baseplate. It provides a critical safety barrier that meets international industrial standards, allowing for safe maintenance and protecting low-voltage control circuitry from high-voltage surges.
Leveraging the SanRex PAH100N8CM in your next power design ensures a strategic balance of high-frequency performance and thermal efficiency. As a leading distributor, we provide access to the technical data and reliable components necessary to advance your industrial power electronics projects. Contact our technical team today to confirm specifications or to request an engineering evaluation for your specific application requirements.
