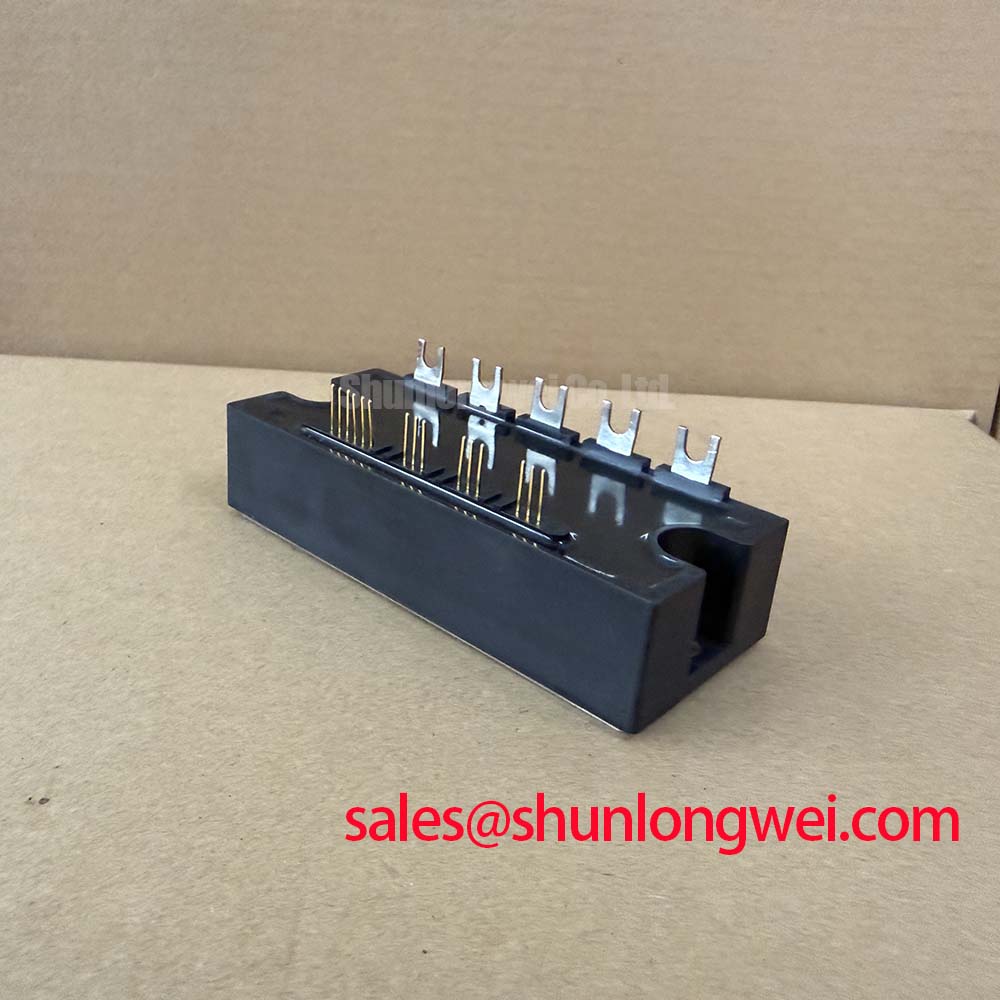

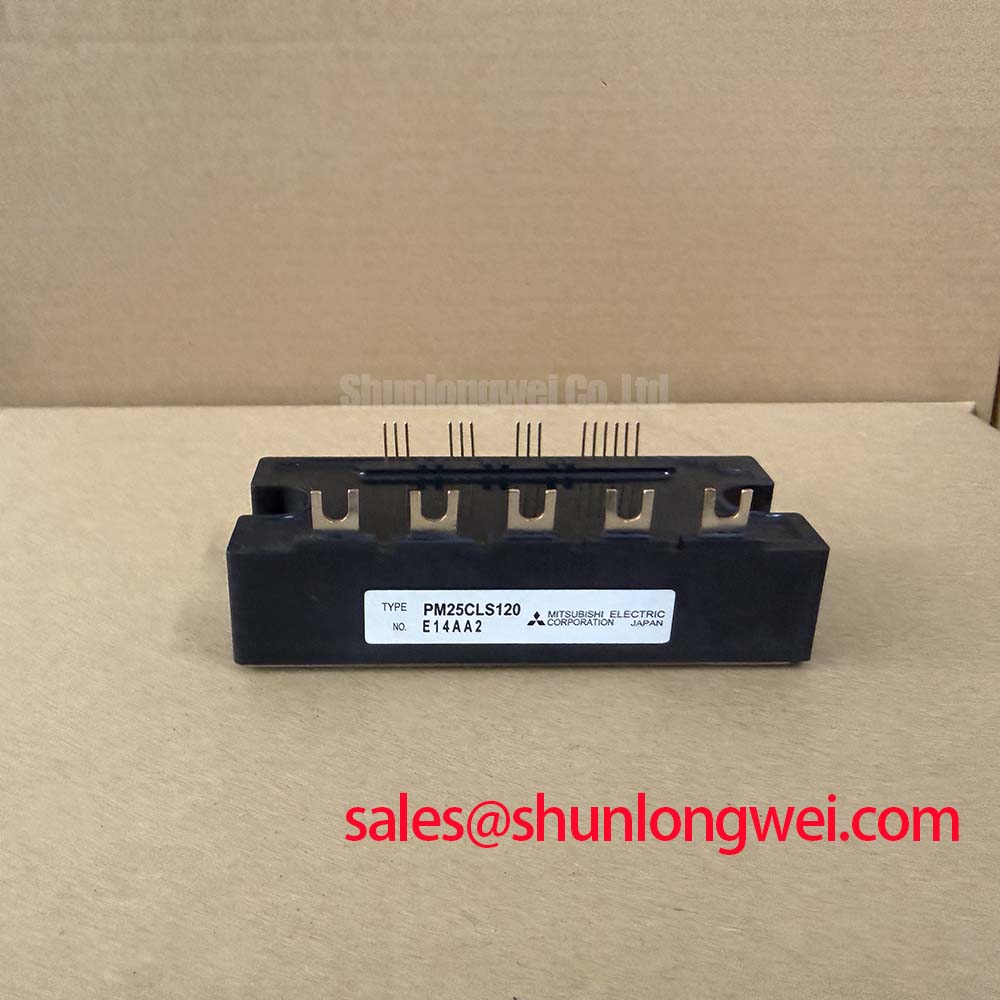

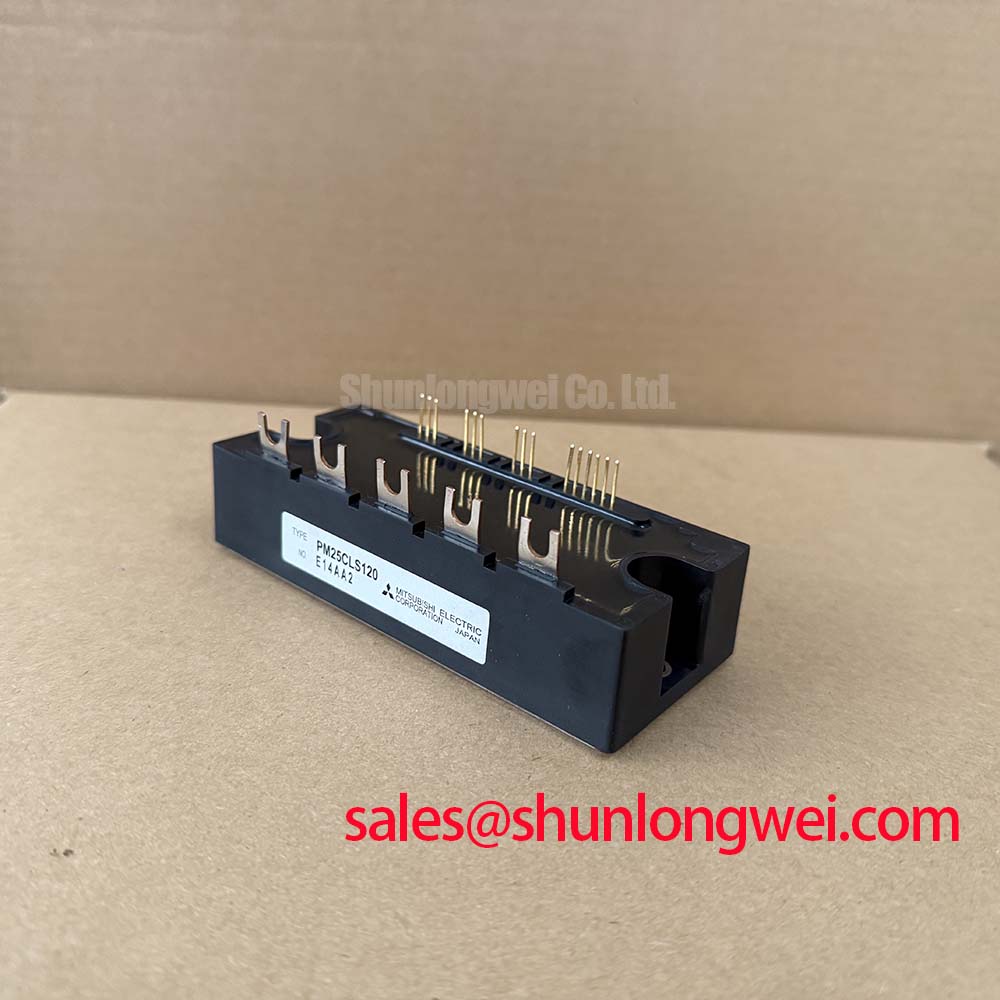

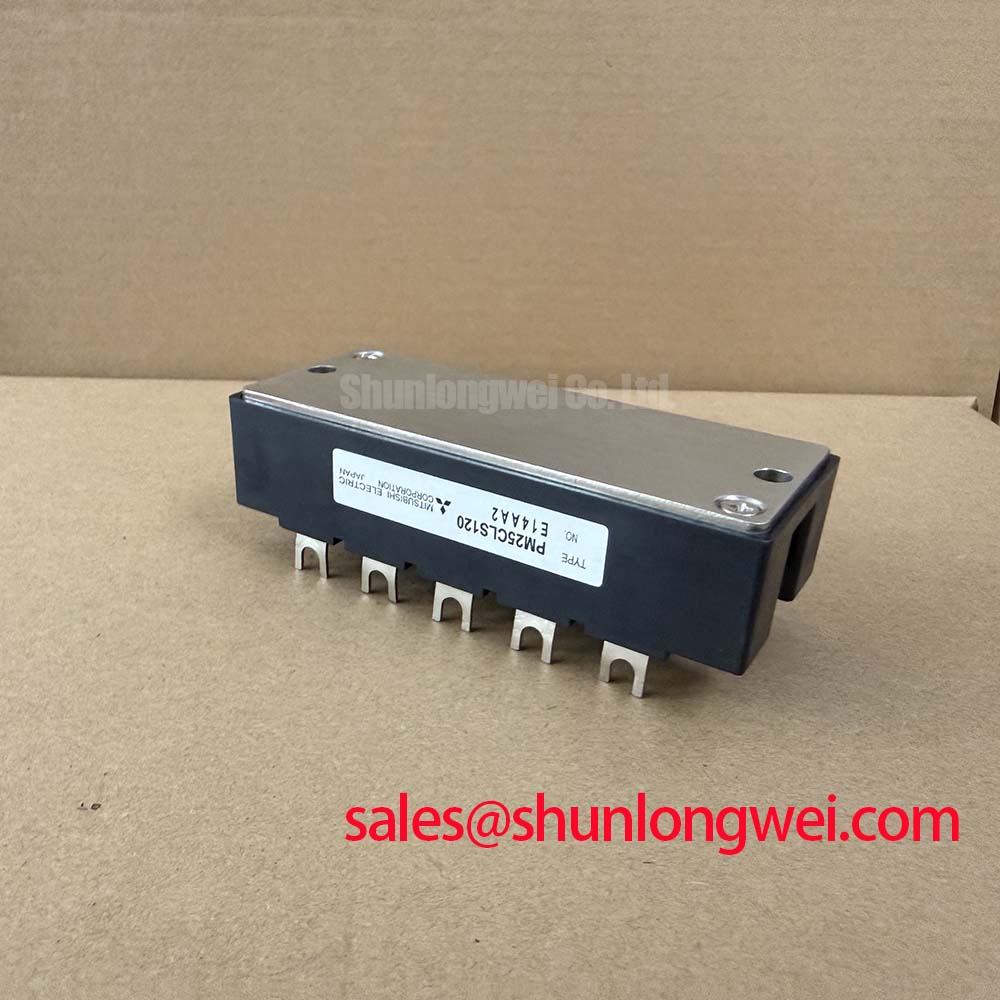

PM25CLS120 Mitsubishi 1200V 25A Intelligent Power Module (IPM)
How can engineers achieve high-efficiency 3-phase power conversion without the complexity of discrete gate drive design and protection circuitry? The challenge often lies in balancing switching speeds with the risk of catastrophic failure from over-current or thermal runaway. The PM25CLS120 solves this by integrating 4th Generation IGBTs with dedicated drive and protection logic, drastically reducing PCB real estate and engineering overhead.
UVP Statement: Streamline industrial inverter design with a pre-verified 1200V power stage featuring integrated short-circuit and over-temperature protection.
Top Specs: 1200V | 25A | Vce(sat) 1.8V (Typ.)
Key Benefits: Reduced electromagnetic interference (EMI) via optimized switching; simplified thermal management through integrated temperature sensing.
What is the primary benefit of its integrated gate drive? It eliminates the need for complex layout parasitics analysis between the driver and the IGBT, ensuring stable gate-voltage control under all load conditions. For 400V-480V industrial motor drives prioritizing compactness and reliability, the PM25CLS120 1200V module is the optimal choice.
Frequently Asked Questions
Engineering Insights into Protection and Drive Requirements
How does the built-in Short-Circuit (SC) protection in the PM25CLS120 influence overall system reliability?
The PM25CLS120 monitors the collector current of each IGBT chip. If it detects an SC condition, it immediately executes a controlled soft shutdown and triggers a fault output signal (Fo). This integrated response is significantly faster than discrete external sensing, preventing silicon degradation from repetitive stress. This "active defense" mechanism allows for tighter design margins without compromising 10-year reliability goals.
Does the PM25CLS120 require an isolated power supply for the high-side gate drive?
Yes, to maintain proper switching and signal integrity, the PM25CLS120 requires four independent 15V DC power supplies (three for the high-side drivers and one for the low-side). Utilizing isolated supplies prevents common-mode noise from cross-coupling between phases, a critical factor when designing for high-noise industrial environments. Engineers should refer to robust gate drive design strategies to ensure the power supply stability meets the ±1.5V tolerance specified in the datasheet.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Technical Specification | Value / Rating | Engineering Significance |
|---|---|---|
| Collector-Emitter Voltage (Vces) | 1200V | Ensures headroom for 480V AC line fluctuations. |
| Collector Current (Ic) | 25A (at Tc=25°C) | Rated for moderate power industrial loads. |
| Saturation Voltage (Vce(sat)) | 1.8V (Typ.) | Lower conduction losses during high-duty cycles. |
| Thermal Resistance (Rth(j-c)) | 0.89 °C/W (Inverter) | Determines heatsink sizing for thermal stability. |
| Isolation Voltage (Viso) | 2500V (60Hz, 1 min) | Meets safety standards for industrial equipment. |
Technical Deep Dive
Integrated Protection Logic and Loss Optimization
The PM25CLS120 utilizes Mitsubishi’s proprietary planar-gate IGBT technology, which strikes a balance between low saturation voltage and high ruggedness. In a power system, thermal resistance (Rth) can be thought of as a "highway for heat." With an Rth(j-c) of 0.89 °C/W, this module effectively channels thermal energy from the silicon junction to the baseplate, allowing for higher power densities without reaching the Tj max limit of 150°C prematurely.
A distinctive feature of this Intelligent Power Module (IPM) is the "Over Temperature" (OT) protection. Unlike external sensors that measure heatsink temperature, the PM25CLS120 includes an on-chip temperature sensor near the IGBT cells. This allows for a much more responsive protection loop. If the local temperature exceeds the threshold, the module shuts down before global heatsink heat can even reflect the surge, preventing "hot spot" failures. For systems requiring even higher current handling while maintaining the same 1200V architecture, the related PM50CLS120 offers an Ic of 50A. Understanding these nuances is a key part of decoding IGBT datasheets for long-term field reliability.
Application Scenarios & Value
Achieving System-Level Efficiency in Motor Control
Engineers often face the challenge of meeting IEC 61800-3 EMC standards while maintaining high switching frequencies for motor smoothness. The PM25CLS120 addresses this through its internally optimized gate drive speed. By controlling the dv/dt of the IGBT during turn-on and turn-off, the module reduces high-frequency noise emissions, which simplifies the design of the common-mode choke and EMI filter.
In a typical Variable Frequency Drive (VFD) application, the PM25CLS120 acts as the 3-phase inverter bridge. When a pump or fan motor experiences a sudden mechanical jam, the resulting surge current could easily destroy a standard IGBT. However, the PM25CLS120's short-circuit protection kicks in within microseconds, protecting the 1200V silicon from the high-energy surge. This resilience is vital in remote industrial sites where maintenance is costly. Beyond general-purpose drives, this module is frequently specified for HVAC systems and servo drives where the 25A rating and 1200V Vces provide the necessary robustness for 380V/480V grid-tied applications.
Choosing the right power module involves more than just matching voltage and current. It requires an understanding of how integration impacts thermal management and circuit protection. For further technical comparison, exploring the IPM vs. Discrete IGBT framework can provide strategic insights into total system cost and reliability. As industrial automation shifts toward higher efficiency, integrated solutions like the PM25CLS120 remain at the forefront of power stage design.
