Mitsubishi QM100DY-2HBK | A Legacy of Reliability in High-Power Industrial Applications

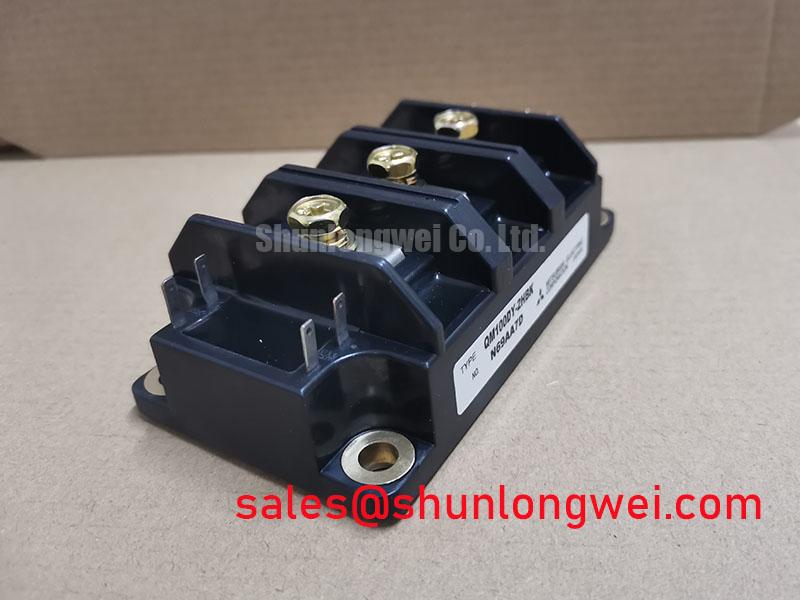

The Mitsubishi QM100DY-2HBK is not just another component; it's a testament to Mitsubishi Electric's legacy of building robust and dependable power electronics. This dual IGBT module, rated for 1200V and 100A, is engineered for systems where long-term reliability and predictable performance are non-negotiable. It represents a class of power modules designed as the workhorse for demanding industrial power conversion tasks.
Core Strengths for System Integrators
- High Voltage Headroom: With a 1200V VCES rating, this module provides a substantial safety margin for applications running on 400V to 575V AC lines, effectively handling voltage transients and ensuring system robustness.
- Proven Half-Bridge Configuration: The integrated dual-IGBT (half-bridge) topology is the fundamental building block for three-phase inverters, simplifying PCB layout, reducing stray inductance, and improving thermal performance compared to discrete solutions.
- Exceptional Durability: Housed in Mitsubishi's standard insulated package, the QM100DY-2HBK is built to withstand the mechanical stress and thermal cycling inherent in industrial environments, guaranteeing a long service life.
- Balanced Performance Profile: This module is optimized for low-to-medium switching frequencies (typically below 20 kHz), striking a critical balance between conduction losses and switching losses for maximum efficiency in its target applications.
Application Scenarios: Where the QM100DY-2HBK Excels
The design philosophy behind the Mitsubishi QM100DY-2HBK makes it a premier choice for applications where uptime and resilience are paramount. Its specifications are precisely tailored to solve the engineering challenges found in the following domains:
- Variable Frequency Drives (VFDs): In motor control, the module's 100A current capability and robust Safe Operating Area (SOA) allow it to handle the high inrush currents and dynamic loads typical of industrial motors. The integrated freewheeling diodes are optimized for motor inductive loads, ensuring safe and efficient energy commutation.
- Uninterruptible Power Supplies (UPS): For commercial and industrial UPS systems, reliability is the primary metric. The QM100DY-2HBK's proven design and high voltage rating ensure continuous, clean power delivery during grid failures, protecting critical infrastructure. For a deeper understanding of the components at the heart of such systems, explore our in-depth analysis of IGBT modules.
- Welding Power Supplies: The module's ability to handle high power dissipation and pulsed current loads makes it ideal for the inverter stage of professional welding equipment, delivering stable arc characteristics and precise power control.
- Industrial Power Converters: From induction heating to general-purpose power conversion, the QM100DY-2HBK serves as a reliable and cost-effective power switch for systems requiring high power density and proven field performance. Its ruggedness is especially valued in applications like robotic servo drives.
Key Electrical Characteristics
The following parameters are critical for design engineers evaluating the QM100DY-2HBK for their power stage. Understanding these values is the first step in successful system integration. For further guidance, refer to our practical guide on decoding IGBT datasheets.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200V |
| Collector Current (IC) | 100A (DC) |
| Collector Current (ICM) | 200A (Pulse) |
| Collector-Emitter Saturation Voltage (VCE(sat)) @ 100A | 2.7V (Max) |
| Collector Power Dissipation (PC) | 780W |
| Operating Junction Temperature (Tj) | -40 to +150°C |
For a complete list of specifications and performance curves, you can download the official datasheet.
Engineer's FAQ for the QM100DY-2HBK
1. Given its VCE(sat) of 2.7V, how does this module compare to newer generation IGBTs?
The QM100DY-2HBK belongs to a well-established generation of IGBT technology. While newer trench-gate field-stop technologies may offer a lower VCE(sat), this module provides an exceptionally rugged and robust design with a proven track record in the field. It is engineered for applications where extreme durability and cost-effectiveness for moderate frequency operation are more critical than minimizing every last watt of conduction loss.
2. What are the key considerations for the gate drive design for this module?
A stable gate drive is crucial. We recommend a gate voltage of +15V for turn-on and a negative voltage of -5V to -10V for turn-off. The negative bias provides excellent noise immunity against dV/dt induced turn-on, preventing shoot-through in the half-bridge configuration. Ensure your gate driver can supply sufficient peak current to charge and discharge the gate capacitance effectively according to the datasheet specifications.
3. Can the QM100DY-2HBK be used in a hard-switching solar inverter?
While technically possible, this module is better suited for applications with switching frequencies below 20 kHz, such as VFDs. Modern solar inverters often push for higher switching frequencies to reduce the size of magnetic components. For such designs, a newer generation IGBT with lower switching losses (Eon/Eoff) would likely be a more optimal choice. The QM100DY-2HBK's strength lies in its conduction performance and ruggedness in lower-frequency power conversion.
For tailored advice on integrating the Mitsubishi QM100DY-2HBK into your design or to explore our full range of IGBT modules, please contact our technical team for expert consultation.
