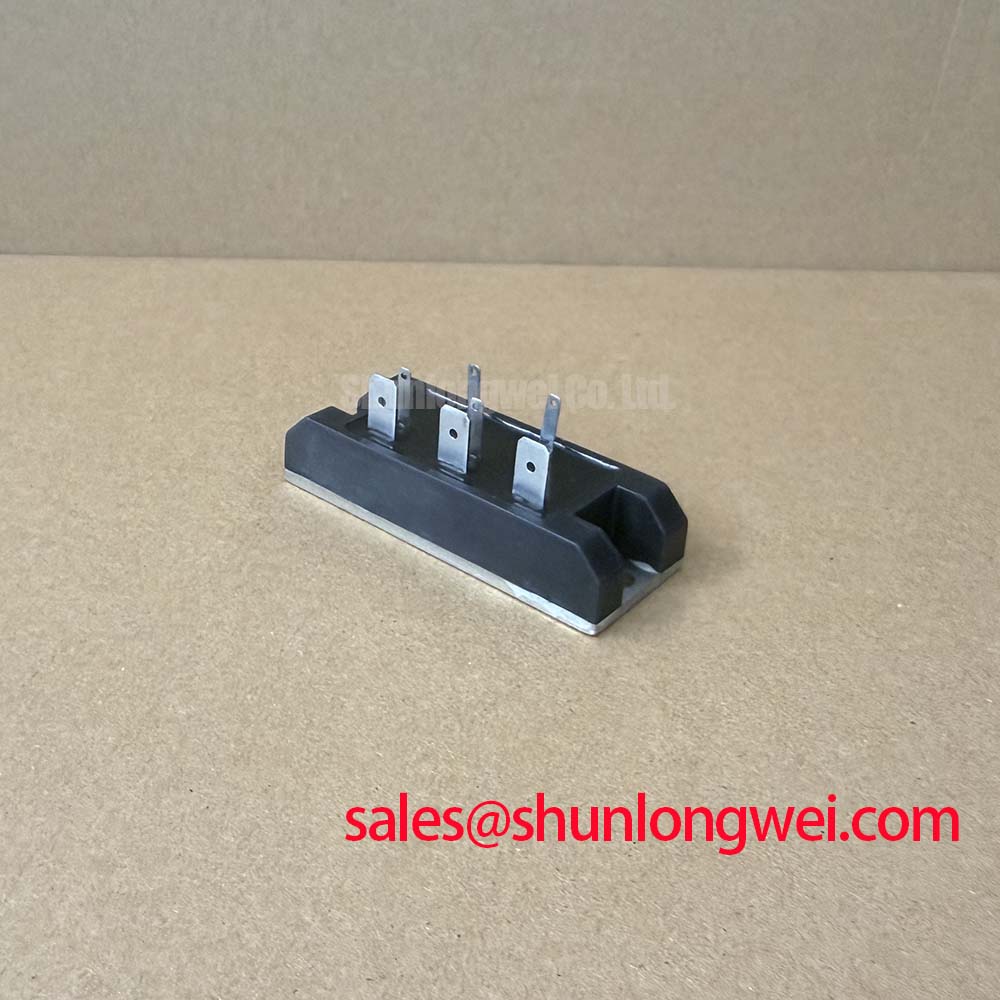

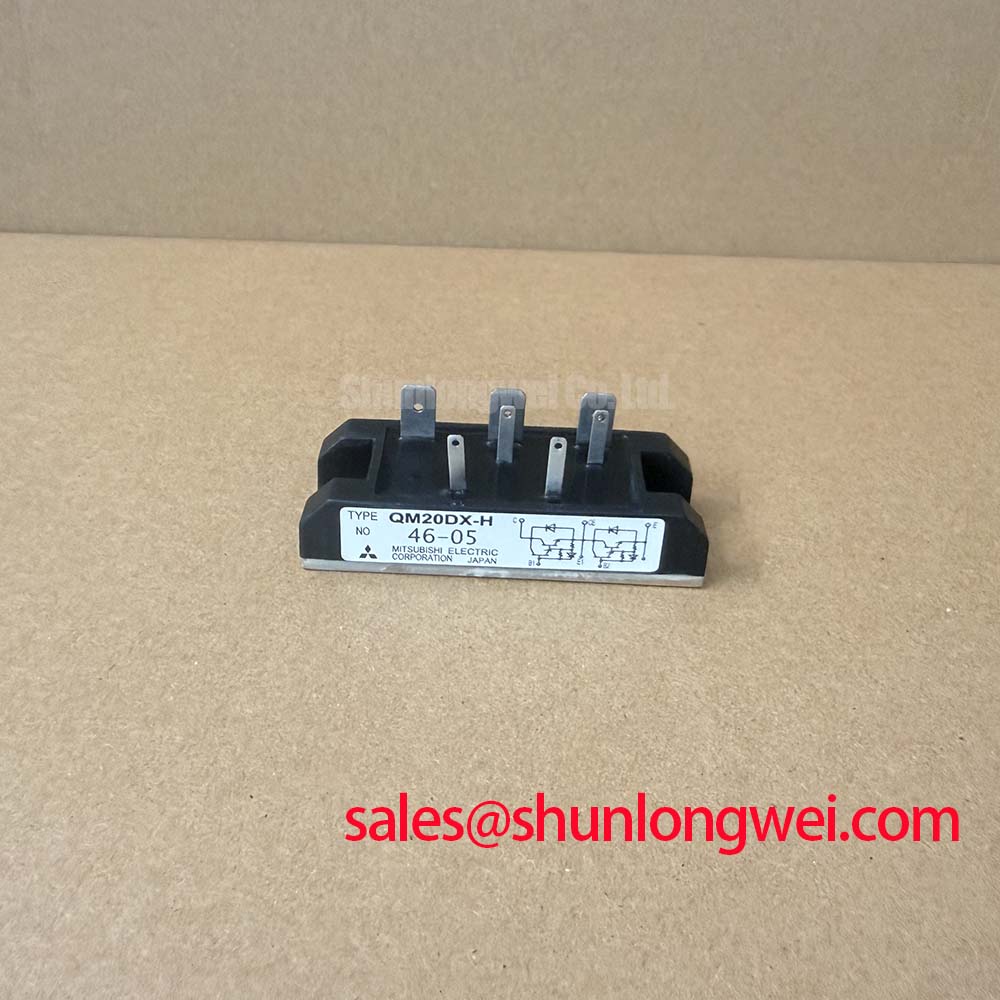

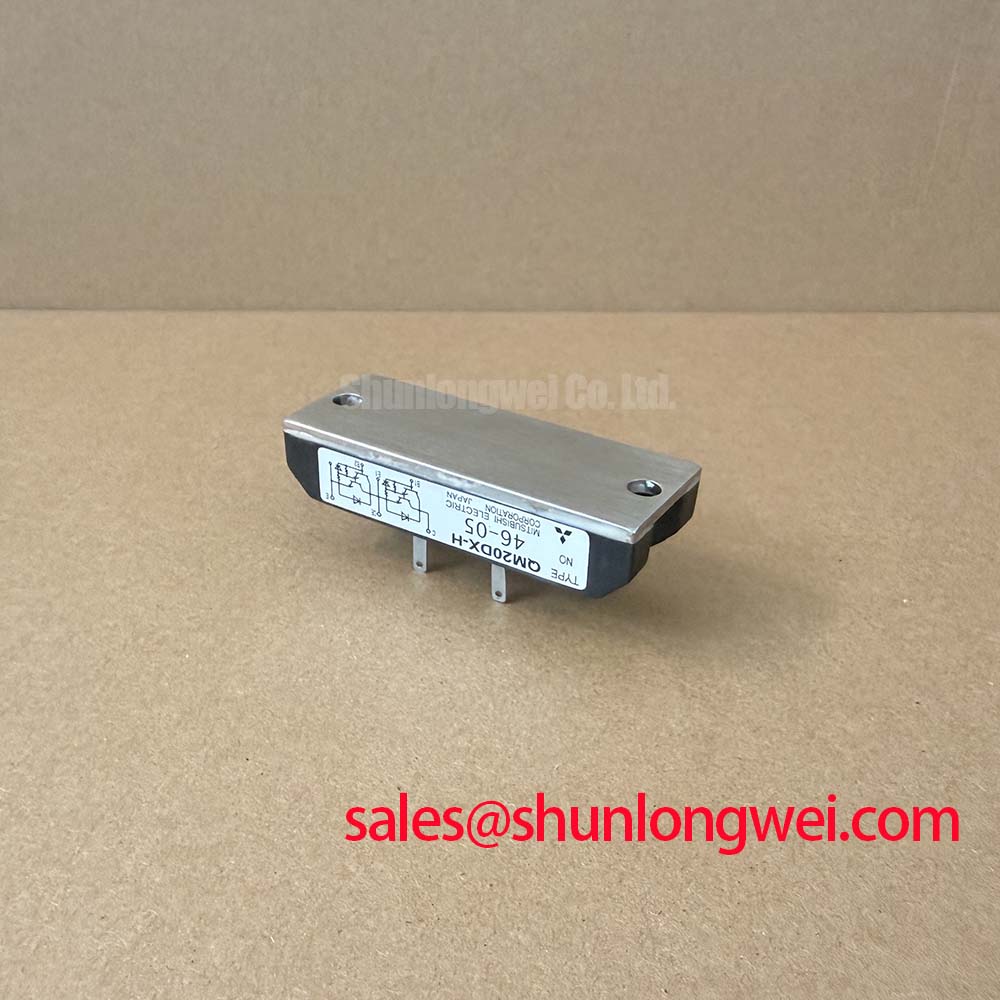

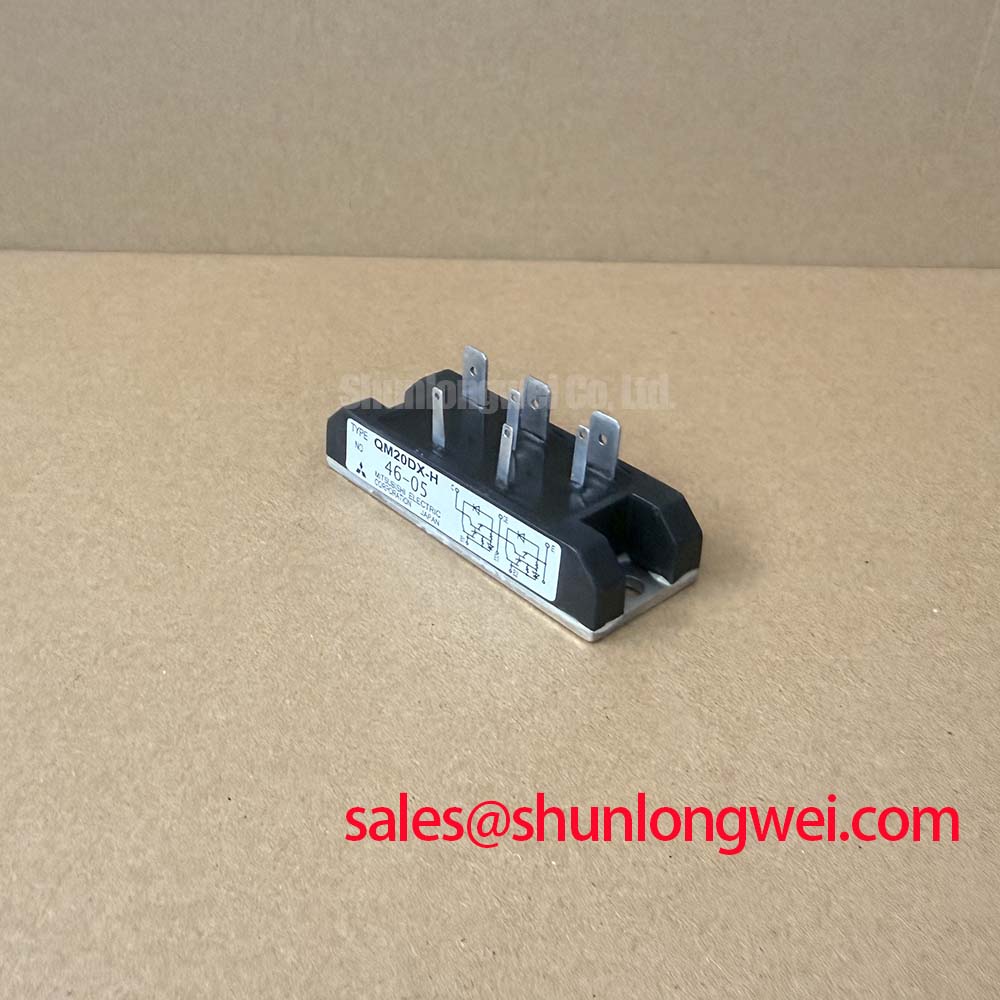

Mitsubishi QM20DX-H Transistor Module: Insulated Darlington Solution for Industrial Motor Drives
A robust 600V, 20A Darlington transistor module designed to deliver stable medium-power switching with integrated isolation for retrofits and legacy industrial equipment. Manufactured by Mitsubishi, the module serves as a reliable replacement block in variable speed drives and CNC electronics.
Top Specs: 600V | 20A | Rth(j-c) 0.8 °C/W
- High DC current gain simplifies gate-drive circuits.
- 2500V AC isolation simplifies heatsink design.
By utilizing an insulated package design, this module directly replaces older non-insulated switching transistors. This design choice eliminates the need for external ceramic isolation plates in CNC machines and spindle drive units.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Maximum Ratings (Tj = 25°C) | ||
|---|---|---|
| Parameter | Symbol | Value |
| Collector-Emitter Voltage (VEB = 2V) | VCEX | 600V |
| Collector Current (DC) | IC | 20A |
| Collector Dissipation (Tc = 25°C) | PC | 160W |
| Isolation Voltage (AC 1 Minute) | Viso | 2500V |
| Electrical & Thermal Characteristics (Tj = 25°C) | ||
| Collector-Emitter Saturation Voltage (IC = 20A, IB = 0.28A) | VCE(sat) | 2.0V (Max) |
| DC Current Gain (IC = 20A, VCE = 2V) | hFE | 75 (Min) |
| Thermal Resistance (Junction to Case, Transistor) | Rth(j-c)Q | 0.8 °C/W (Max) |
| Thermal Resistance (Junction to Case, Diode) | Rth(j-c)R | 2.2 °C/W (Max) |
Download the QM20DX-H datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in Retrofit Servo and Inverter Drives
For legacy 220V/380V servo drives prioritizing reliable thermal isolation, this 600V, 20A module is the optimal choice.
Engineers retrofitting CNC spindle controls or older servo drives often face space constraints when replacing failed discrete components. In these systems, handling high motor-starting currents is critical. During a typical starting cycle of a motor, transient current spikes can exceed nominal operating current levels. The QM20DX-H handles a peak collector reverse current of 200A. This robust headroom prevents junction degradation during rapid motor acceleration and decelerating regenerative phases.
What is the primary benefit of its insulated package? It simplifies system mounting and heatsink isolation. How does the built-in free-wheel diode protect the circuit? It clamps reverse voltage spikes during switching transitions.
While this model is ideal for lower-power configurations, the related QM50DY-H or QM100DY-H provides higher current handling capacities up to 100A.
Beyond CNC spindle systems, the module is widely integrated in legacy UPS backups and industrial NC equipment. Additionally, old-school welding power supply systems utilize the isolated package to safeguard control circuits against high-voltage spikes generated in the weld arc feedback loop.
Technical & Design Deep Dive
A Closer Look at the Thermal Resistance and Switching Ruggedness
To understand thermal resistance, think of the heat dissipation path as a highway network. The junction-to-case thermal resistance of 0.8 °C/W acts like a narrow toll bridge. A lower number means heat can exit the chip and reach the heatsink quickly, avoiding a thermal bottleneck that would otherwise throttle transistor performance.
Similarly, the DC current gain (hFE of 75) is analogous to a mechanical lever. Instead of needing a heavy control force to actuate a valve, a small base current of only 0.28A is sufficient to fully turn on the 20A collector current. This high gain drastically reduces the power requirements of the driving circuit, allowing smaller, cooler-running control cards to manage high-power tasks.
Unlike modern high-speed IGBTs, Darlington modules combine two bipolar junction transistors on a single substrate. While this structure offers lower input drive requirements than basic BJTs, it has longer switching times. The turn-on time (ton) is 1.5 µs, storage time (ts) is 12 µs, and fall time (tf) is 2.0 µs. Engineers must design gate-drive networks with sufficient dead-time to avoid cross-conduction.
To understand how these modules compare to newer power topologies, refer to The Engineer's Ultimate Guide to IGBT Modules.
For maintenance personnel troubleshooting legacy systems, a step-by-step guide is available at How to Test an IGBT Module with a Multimeter. This is vital because Darlington modules require specific base-emitter measurement thresholds compared to standard IGBTs.
Frequently Asked Questions
Addressing Common Integration Concerns for Engineers
How does the thermal resistance of 0.8 °C/W affect the heatsink design for the QM20DX-H?
The thermal resistance of 0.8 °C/W dictates that for every watt of power dissipated, the junction temperature rises 0.8°C above the case temperature. Designers must select a heatsink that, combined with the contact thermal resistance of 0.25 °C/W, keeps the junction temperature safely below the absolute maximum limit of 150°C under peak loads.
Can the QM20DX-H Darlington module be replaced with a modern IGBT?
Direct physical replacement is often restricted due to package sizes and gate-drive voltage requirements. While IGBTs offer faster switching speeds and lower switching losses, the QM20DX-H relies on current-controlled base drives, whereas IGBTs require voltage-controlled gate signals. A controller redesign is necessary if transitioning between these technologies.
For engineers managing system maintenance, secure your replacement modules by contacting our technical sales team for availability.
