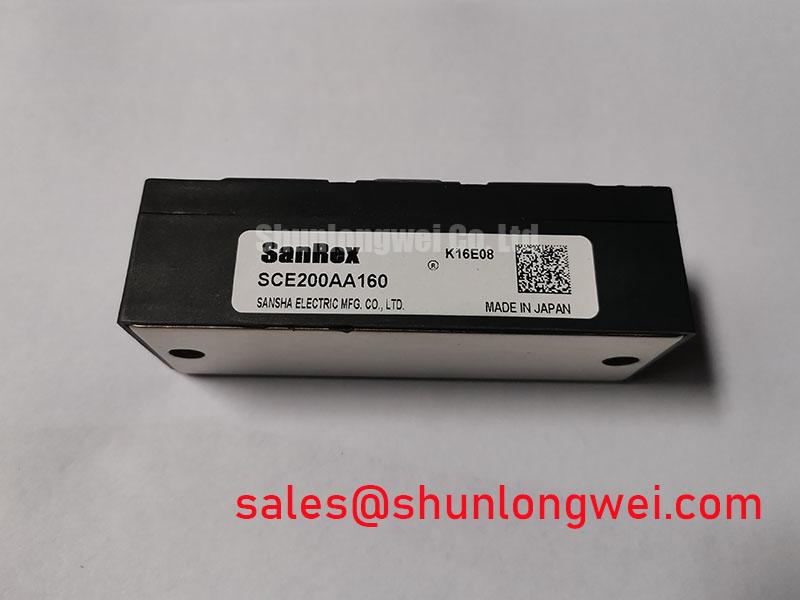

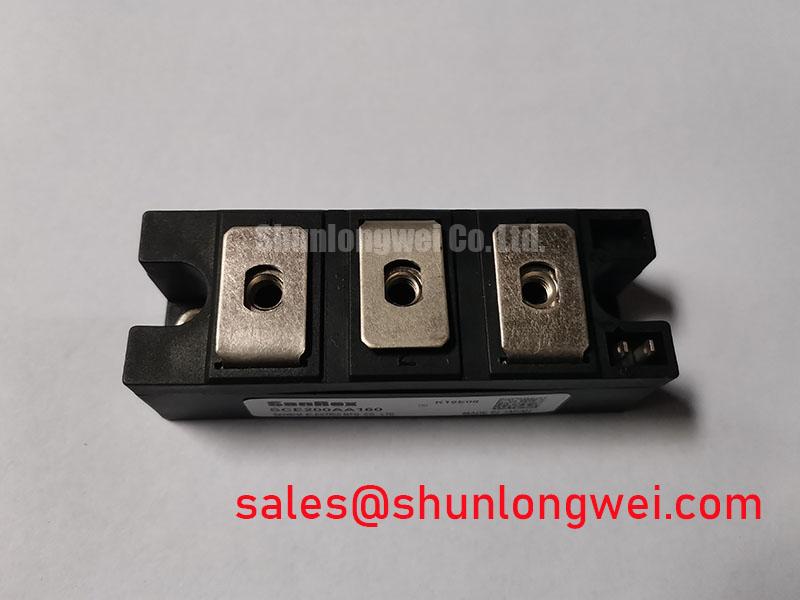

SCE200AA160 Thermal-Electrical Optimization: Reverse Recovery Charge Practical Tuning
| Model | SCE200AA160 |
|---|---|
| Manufacturer | SanRex (Sansha Electric) |
| Product category | Thyristor / Diode Module |
| Package description | SanRex Power Module |
| Voltage and current ratings | Numeric ratings are not established by the supplied specifications. |
Probe each accessible power-terminal pair of the disconnected SCE200AA160 in both directions with a multimeter’s diode function, and record polarity alongside the equipment schematic. A cold diode-mode reading helps establish a repeatable incoming-inspection baseline; it does not identify every internal junction or establish a reverse-recovery rating. If a comparable unit is available, use the same meter, leads and test conditions before treating a difference as meaningful.
Reverse-recovery peak current and recovery time matter when a conducting diode is commutated off. Neither value is established for this model by the supplied specifications. Do not assign diode recovery behaviour to every terminal pair simply because the product category includes “diode.” First establish the module’s actual terminal diagram and the circuit’s commutation path. A qualified switching test can then compare current decay and voltage overshoot at the installed operating point. This is a Design Consideration, not an Official Specification for SCE200AA160.
For thermal inspection, check that the module seats evenly against its heatsink and that terminal connections match the original assembly. Tightening torque, interface requirements and allowable case temperature need the applicable manufacturer instructions; a generic fastener value is not a substitute. The SanRex power semiconductor resources are an appropriate starting point for locating manufacturer documentation. In a selection comparison, KDE2405PFB1-8 should be assessed only against its own documented electrical function, dimensions and connections; it is not an assumed equivalent.
SCE200AA160 Circuit Protection & Reliability: Calibrating Coordination of Primary Spark Gaps, MOVs
Capture the voltage across the module’s main terminals during the equipment’s switching event, then compare the observed peak with its verified voltage rating. A static resistance check cannot reveal an installed-circuit transient. For a three-phase motor soft starter under compatibility evaluation, trace the AC input, semiconductor path, bypass contactor and protective devices on the actual schematic before deciding where a surge enters or which device conducts it.
MOVs, spark gaps and RC snubbers perform different jobs and can interact. As a Design Consideration, coordinate their placement and energy duties against measured line conditions and the complete equipment design; do not size them from the SCE200AA160 model number. IEC 61000-4-5 concerns surge immunity testing at equipment level and does not establish an immunity rating for this individual module. Likewise, a measured improvement in switching noise is not, by itself, an EMC compliance result.
Check fuse coordination against the protective fuse data and the module’s documented surge-current and I²t limits before approving a replacement. No numeric fuse I²t, surge-current limit or junction-temperature recovery interval is established in the supplied specifications. A single surge event must therefore not be treated as proof that the module can carry the next event while still hot. For related switching-loss context, The 1200 V CoolSiC™ MOSFET Advantage in Three-Phase Power Conversion discusses a different device technology; its ratings and failure behaviour must not be transferred to this module.
SCE200AA160 Thermal-Electrical Optimization: Pulse-Transformer Isolated Firing Circuit Practical Tuning
Measure the firing waveform at the gate and its corresponding return terminal during a controlled test, and compare it with the pulse-transformer primary waveform. Confirm the gate and return connections from the verified terminal drawing first. A pulse visible at the driver does not establish that the intended junction receives adequate current after transformer loading, wiring loss and noise pickup.
Gate-pulse rise time, pulse duration and any sustained back-porch current are system-dependent Design Considerations. The supplied specifications establish no SCE200AA160 gate-current threshold, permitted pulse slope or firing scheme, so a proposed pulse must be checked against the applicable device ratings and observed turn-on behaviour. If a multi-pulse scheme is present, inspect each pulse at the module terminals rather than assuming the driver-side waveform survives the isolation path unchanged.
💡 Bench Tip: Keep the module disconnected and ESD-protected during cold comparisons, and use the same probe polarity for every recorded gate-terminal reading. Unexpected readings can reflect the meter’s test method or a parallel circuit path; isolate the module before attributing them to a junction. Once installed, examine current sharing and temperature across parallel paths under controlled load. Neither positive temperature coefficient nor reliable static or dynamic current sharing can be assumed for this model without a verified device characteristic and circuit measurements.
SCE200AA160 Operational Boundaries: Evaluating Phase-Controlled Rectification, Firing Angle Limits
Scope the line voltage and load current together, then mark the actual firing instant and current extinction on each phase. Those traces reveal whether a phase-controlled circuit is behaving as its control schematic intends; the module designation alone does not establish that SCE200AA160 is wired as a rectifier or specify an allowable firing-angle range. Check the polarity and function of every power and control terminal against the original connection drawing before interpreting the waveforms.
Where phase-controlled rectification is the verified topology, changing firing angle changes the average DC output and the shape of input current. Power factor and reactive demand must be evaluated with the installed load and source impedance rather than assigned a module-level figure. If the candidate application is a high-voltage three-phase motor solid-state soft starter, its firing pattern and current path may differ from those of a rectifier; use the equipment schematic to determine which analysis applies.
During switching tests, inspect voltage peaks at the module terminals as well as at the remote load. Long motor cables can introduce reflected-wave behaviour, but a fixed peak multiplier is not a safe substitute for measurement. As a Design Consideration, assess filtering or snubbing where observed peaks threaten the verified device limit, and let system testing determine the final arrangement. Record terminal temperature after load changes and allow it to stabilise before judging surge readiness against documented device limits.
