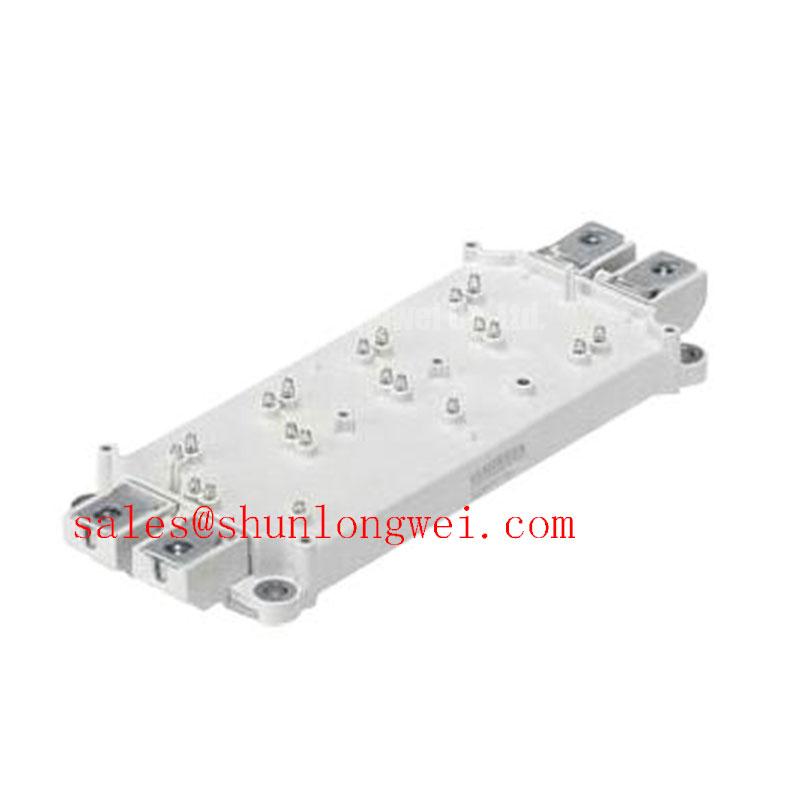

SEMIX604GB126HD Semikron 1200V 600A Half-Bridge IGBT Module Engineering Analysis
How do design engineers maintain high power density in 400V AC grid-connected inverters while ensuring the thermal margin is sufficient for 24/7 industrial operation? The SEMIX604GB126HD addresses this critical challenge by integrating a 1200V trench-field-stop IGBT4 architecture with a highly efficient copper baseplate, achieving a junction-to-case thermal resistance (Rth(j-c)) as low as 0.053 K/W. For heavy-duty motor drives and renewable energy converters prioritizing low switching losses and high thermal reliability, the SEMIX604GB126HD represents a balanced, fact-based choice for system scaling.
Top Specs: 1200V | 651A (Tc=80°C) | 1.80V Vce(sat)
- Minimized conduction losses with 1.80V typical collector-emitter saturation voltage.
- Enhanced reliability through 10µs short-circuit withstand capability at 150°C.
What is the primary benefit of the trench-field-stop IGBT4 technology in this module? It significantly reduces the tail current during turn-off, lowering switching losses while maintaining a robust safe operating area. For 400V systems requiring 600A continuous current with minimal thermal fatigue, the SEMIX604GB126HD is a technically sound solution.
Frequently Asked Questions
Addressing Core Engineering Concerns for System Reliability
How does the Rth(j-c) of 0.053 K/W directly impact heatsink selection and overall system power density?
In high-power applications, the low 0.053 K/W thermal resistance allows for higher current throughput at the same junction temperature compared to standard modules. This enables engineers to either reduce the physical size of the heatsink or operate the module at higher switching frequencies without exceeding the 175°C maximum junction temperature limit, effectively increasing the power density of the inverter cabinet.
Does the integrated NTC temperature sensor eliminate the need for external thermal monitoring circuits?
While the integrated NTC provides highly accurate, real-time temperature feedback from the baseplate, it is intended to complement, not replace, system-level protection. It allows the gate driver or control MCU to implement proactive derating or emergency shutdown protocols, preventing catastrophic failure from localized overheating.
What is the significance of the 10µs short-circuit withstand time at 150°C for industrial drive protection?
A 10µs withstand time is a critical safety margin. It provides the control system and Gate Drive sufficient time to detect a desaturation event or overcurrent condition and safely shut down the module before the silicon reaches its thermal destruction point, which is vital in harsh industrial environments where load faults are common.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Parameter | Symbol | Value (Unit) | Engineering Significance |
|---|---|---|---|
| Collector-Emitter Voltage | Vces | 1200V | Ideal for 400V-480V AC line applications. |
| Continuous Collector Current | Ic (Tc=80°C) | 651A | Supports high-current industrial motor loads. |
| Saturation Voltage (Typ) | Vce(sat) | 1.80V | Lower values reduce steady-state heat dissipation. |
| Total Switching Losses (150°C) | Eon + Eoff | 168.5mJ | Impacts efficiency at higher switching frequencies. |
| Short-Circuit Withstand Time | Tpsc | 10µs | Critical window for desaturation protection. |
| Gate-Emitter Threshold | Vge(th) | 5.8V (Typ) | Standard logic-level control compatibility. |
Download the SEMIX604GB126HD datasheet for detailed specifications and performance curves.
Technical Deep Dive
Analyzing Trench IGBT4 and CAL4 Diode Synergy for Longevity
The SEMIX604GB126HD utilizes a Trench & Field Stop (TFS) IGBT4 structure, which can be likened to a precision-engineered irrigation system. Just as modern irrigation controls the flow of water with minimal turbulence to avoid waste, the TFS structure controls electron flow with minimal resistive "friction" (conduction loss) and provides a "buffer zone" (field stop) to prevent sudden voltage overflows that could lead to breakdown. This allows for a thinner silicon wafer, which directly correlates to a lower Vce(sat) and faster switching speeds.
Complementing the IGBT is the CAL4 (Controlled Axial Lifetime) soft-recovery diode. In high-power switching, the diode acts as a hydraulic shock absorber. When the IGBT turns off, the CAL4 diode smooths out current spikes and voltage oscillations, significantly reducing electromagnetic interference (EMI). For engineers focused on Thermal Management, this synergy ensures that the total heat generated during high-frequency operation is manageable and distributed evenly across the copper baseplate.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
In large-scale solar inverters, engineers often face the challenge of massive current surges during grid synchronization or cloud-shading transients. The SEMIX604GB126HD is specifically designed to handle these conditions, with high I2t ratings for the diode ensuring that the module can survive short-duration overloads. For systems requiring lower current handling but similar packaging, the SEMIX453GB12VS offers a Vces of 1200V with a smaller current profile, while the SEMIX604GB12VS provides an alternative switching characteristic for voltage-source inverters.
Furthermore, the SEMIX 3s package is engineered for mechanical robustness. By utilizing spring-contact or solder-pin control terminals, it reduces the risk of vibration-induced fatigue in mobile industrial equipment. When integrated into Variable Frequency Drives (VFD) or Uninterruptible Power Supplies (UPS), the module’s optimized internal layout minimizes parasitic inductance, which is a major factor in reducing voltage overshoot during fast switching transients. For detailed insights on selecting components for high-power density, refer to our guide on IGBT Selection Beyond Vce(sat).
The increasing demand for efficiency in Renewable Energy and Industrial Automation necessitates components that can perform under extreme thermal stress without degradation. The SEMIX604GB126HD, with its validated IGBT4 technology and insulated copper baseplate, serves as a cornerstone for reliable, high-efficiency power stage design.
