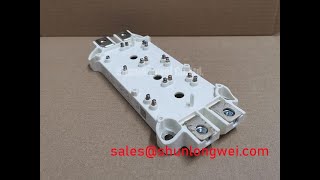

SEMIX703GB126V1 SEMIKRON 1200V 700A IGBT Module

Content last revised on November 19, 2025

SEMIX703GB126V1: High-Efficiency 1200V Trench IGBT Module for Demanding Power Conversion

A Strategic Component for Minimizing Power Loss in High-Current Systems

The SEMIX703GB126V1 is a high-current half-bridge module designed for superior efficiency in demanding power conversion applications. With its core specifications of 1200V | 700A | VCE(sat) 1.7V (typ.), this module delivers robust performance through two key engineering benefits: significantly reduced conduction losses and optimized soft-switching behavior. For engineers developing high-power motor drives or renewable energy inverters, this component directly addresses the challenge of maximizing power throughput while simplifying thermal management. Best Fit: For three-phase inverters above 250 kW requiring minimal power loss and high thermal stability, the SEMIX703GB126V1 is an optimal design choice.

Key Parameter Overview

Decoding the Specs for Enhanced Switching Efficiency

The technical specifications of the SEMIX703GB126V1 are tailored for applications where electrical efficiency and thermal stability are paramount. The parameters below highlight the module's capacity for handling substantial power with minimized losses.

Note: These parameters represent a selection of key values. For a comprehensive overview of electrical and thermal characteristics, please refer to the official documentation.

Download the SEMIX703GB126V1 datasheet for detailed specifications and performance curves.

Application Scenarios & Value

Achieving System-Level Benefits in High-Power Industrial Drives

The SEMIX703GB126V1 is engineered for high-power applications where reliability and efficiency are non-negotiable. Its primary value is demonstrated in systems such as large-scale Variable Frequency Drives (VFDs) for industrial motors, central solar inverters, and uninterruptible power supplies (UPS).

A high-fidelity engineering scenario involves the design of a 300 kW VFD for a conveyor system in a mining operation. A critical challenge is managing the heat generated during the motor's frequent start-stop cycles, which can lead to thermal stress and premature component failure. The SEMIX703GB126V1's low VCE(sat) of 1.7V (typical) directly confronts this issue. This low saturation voltage is analogous to reducing friction in a mechanical system; it minimizes the energy wasted as heat during operation. This reduction in conduction losses allows engineers to specify a more compact and cost-effective heatsink, increasing the overall power density of the drive and improving its long-term reliability under harsh operating conditions. Furthermore, the integrated NTC thermistor provides the direct thermal feedback needed by the VFD's control system to prevent overheating, a key requirement for meeting standards like IEC 61800-5-1. For systems with slightly lower power requirements, the related SEMIX604GB12VS offers a similar 1200V rating with a lower current capacity.

Frequently Asked Questions (FAQ)

What is the primary benefit of the Trench IGBT 3 technology used in the SEMIX703GB126V1?
Its primary benefit is a significant reduction in the collector-emitter saturation voltage (VCE(sat)), which directly translates to lower conduction losses. This enhances overall system efficiency and simplifies thermal design by generating less waste heat.

How does the CAL 3 freewheeling diode improve system performance?
The CAL (Controlled Axial Lifetime) 3 diode is engineered for "soft" switching recovery. This minimizes voltage overshoots and oscillations during turn-off, which reduces electromagnetic interference (EMI). A system with lower EMI requires smaller and less expensive filtering components to meet regulatory compliance.

How should the integrated NTC thermistor be utilized in a design?
The NTC thermistor should be connected to the control board's monitoring circuit (e.g., via an ADC). This provides real-time temperature data from the module's baseplate, enabling the implementation of precise over-temperature protection (OTP) logic to prevent thermal runaway and enhance operational safety.

What does the low thermal resistance of 0.045 K/W per IGBT signify for thermal management?
This low thermal resistance indicates a highly efficient heat transfer path from the IGBT junction to the module's case. It is like using a wider pipe to drain water; heat is removed more effectively. This allows the device to run cooler under load or handle higher power for a given heatsink temperature, improving both performance and long-term reliability.

Industry Insights & Strategic Advantage

Meeting Efficiency Mandates in Electrification and Renewables

The deployment of modules like the SEMIX703GB126V1 is directly aligned with major industry trends toward electrification and decarbonization. Global efficiency standards for electric motors, such as the IE4 and IE5 classes, demand that the controlling power electronics operate with minimal energy loss. The low total switching and conduction losses of this Semikron module are a critical enabler for VFDs designed to meet these stringent targets. By reducing the energy wasted in the power conversion stage, more energy is delivered to the motor, lowering the overall operating cost and carbon footprint of the industrial process. This focus on efficiency is paramount for building sustainable and competitive industrial automation systems.

Strategic Outlook

For engineering teams focused on next-generation power conversion platforms, the SEMIX703GB126V1 represents more than just a set of specifications; it is a strategic tool for achieving higher power density and superior energy efficiency. Its combination of low-loss Trench IGBT technology and a robust, soft-recovery diode provides a foundation for creating more compact, reliable, and cost-effective inverter and drive systems. Integrating this module allows designers to not only meet current performance benchmarks but also to anticipate future demands for more sustainable and powerful electronic systems.
