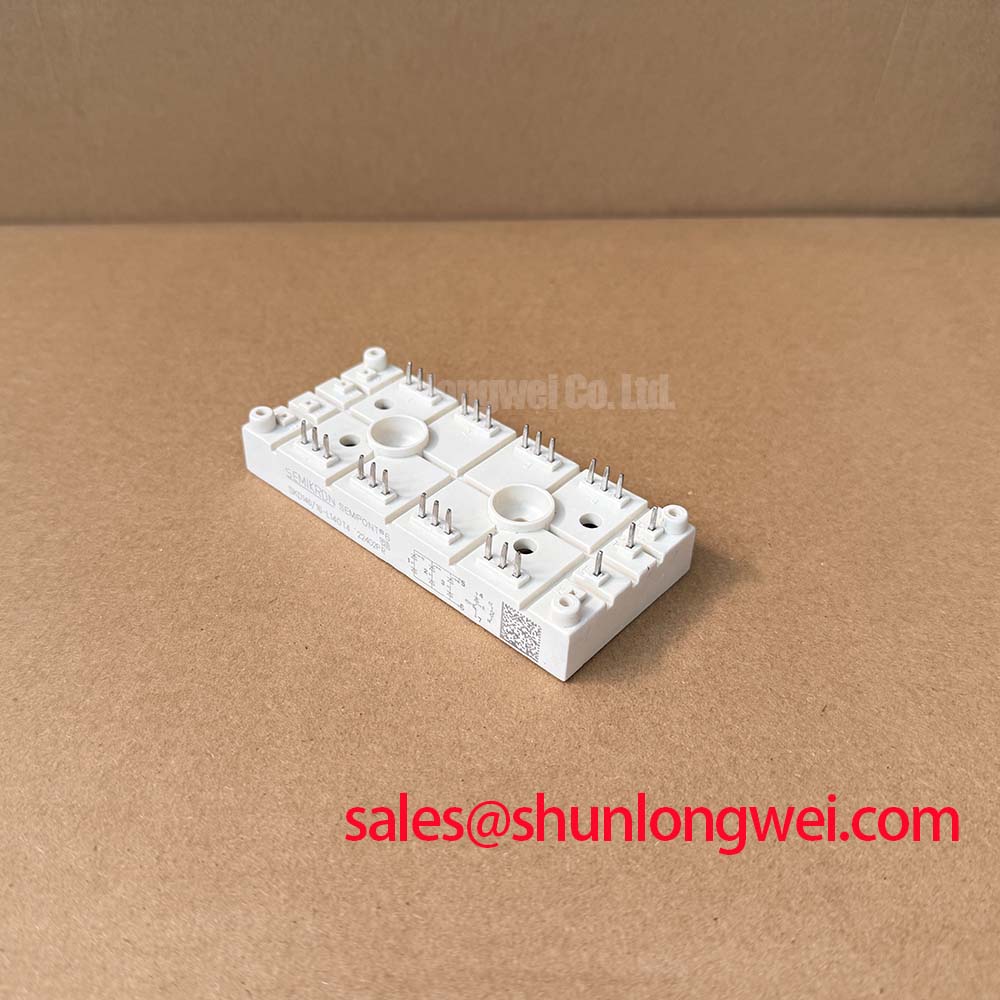

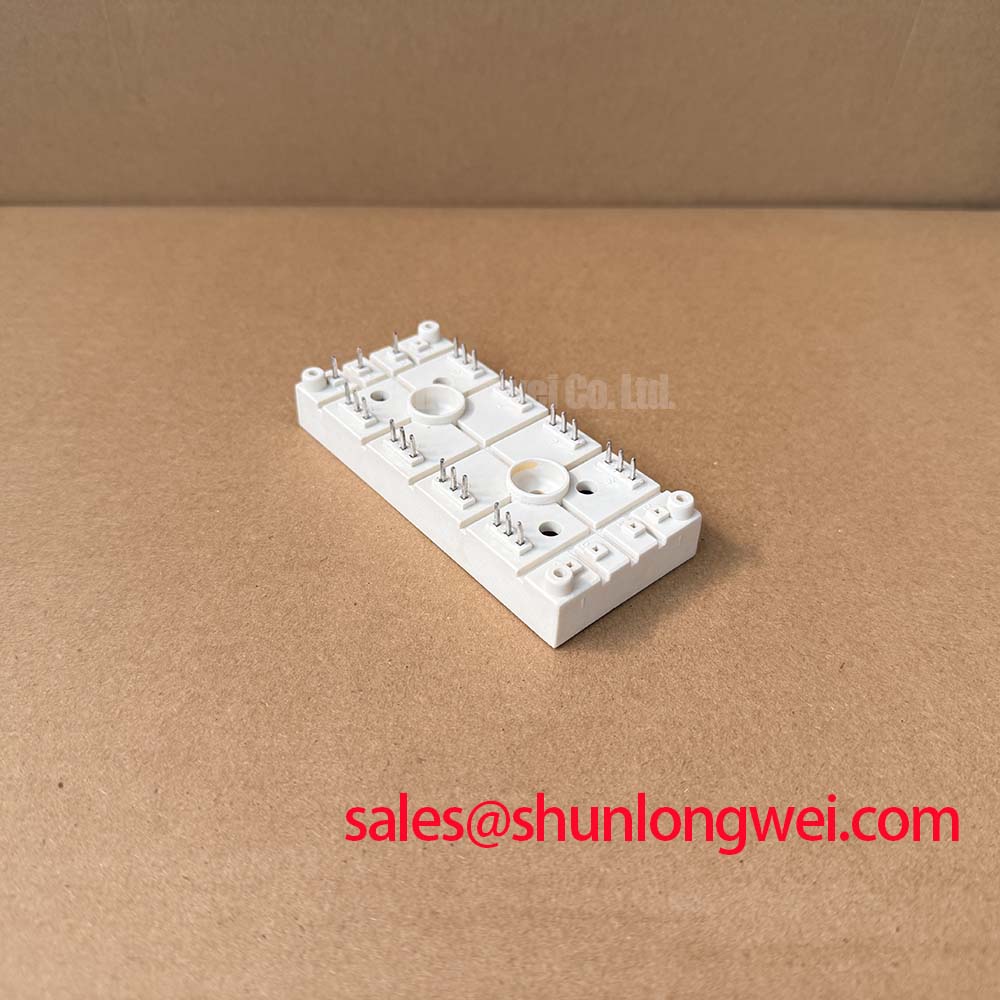

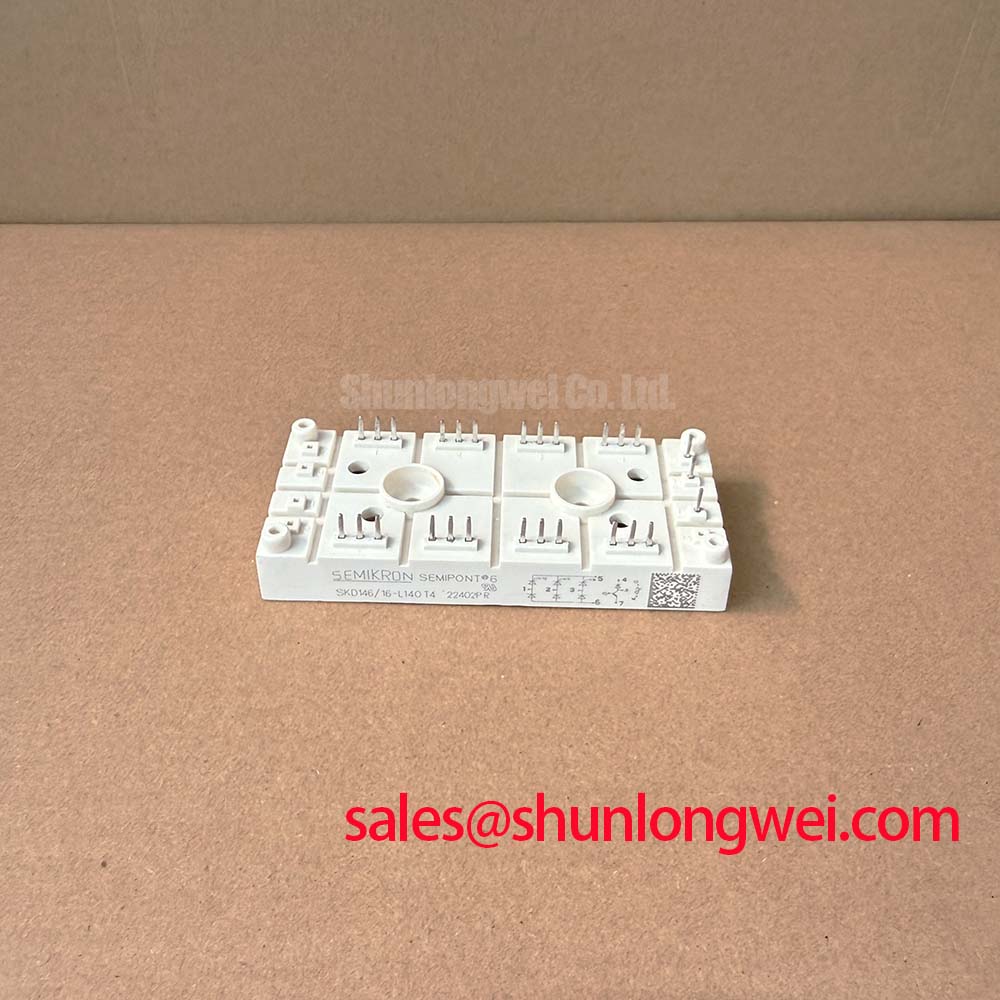

Semikron Danfoss SKD146/16-L140T4: High-Performance SEMIPONT 6 Module with Integrated Braking Chopper
The Semikron Danfoss SKD146/16-L140T4 combines a 1600V 3-phase bridge rectifier, a 1200V Trench4 IGBT braking chopper, and a fast CAL4F freewheeling diode in a compact SEMIPONT 6 module, enabling streamlined, thermally optimized power stages for industrial motor control. Featuring top specifications of 1600V reverse voltage, 140A continuous output current, and a low 0.38 K/W IGBT thermal resistance, it integrates an NTC thermistor for direct thermal monitoring. This configuration minimizes the physical assembly footprint and maximizes surge current ruggedness.
Is this module suitable for standard 400V/480V industrial grids? Yes, the 1600V reverse voltage rating provides a robust safety margin against line overvoltages and transients commonly encountered in heavy industrial environments. For 3-phase industrial motor drives prioritizing thermal margins, this SEMIPONT 6 module is the optimal choice.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
| Parameter | Symbol | Value (Max/Typ) | Engineering Value & Interpretation |
|---|---|---|---|
| Repetitive Peak Reverse Voltage | VRRM | 1600 V | Provides high safety margins against utility voltage fluctuations in 400V/480V systems. |
| Max. DC Output Current | ID | 140 A | Continuous rating at Ts = 25 °C ensuring high load-carrying capacity in compact drives. |
| IGBT Collector-Emitter Voltage | VCES | 1200 V | Handles dc-link voltages up to 800V with reliable dynamic braking safety margin. |
| IGBT Saturation Voltage (Typ.) | VCE(sat) | 1.85 V | Low conduction losses for the chopper switch at IC = 100 A (Tj = 25 °C). |
| Surge Forward Current (Rectifier) | IFSM | 1250 A | Protects against instantaneous high-current grid disturbances at Tj = 150 °C. |
| Surge Current Energy (I²t) | I²t | 7800 A²s | High capability to withstand inrush currents during initial dc-link capacitor charging. |
| Thermal Resistance (IGBT-to-sink) | Rth(j-s) | 0.38 K/W | Direct Copper Bonded (DCB) ceramic ensures rapid heat transfer away from the chip. |
Download the SKD146/16-L140T4 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Optimizing Power Stage Efficiency in Industrial Drives
Engineers designing modern automation systems often face layout constraints when building drive stages for industrial conveyors. During startup, motor starting inrush currents can severely stress rectifier diodes. The Semikron Danfoss SKD146/16-L140T4 solves this with its high surge current rating of 1250 A and an I²t capacity of 7800 A²s. This robustness allows the module to easily absorb input current surges during dc-link capacitor charging without requiring overdesigned protection circuitry.
For engineers looking to optimize thermal design, referencing a comprehensive engineer's guide to IGBT modules can provide system-level insights. While this module is ideal for 400V/480V utility grids, for lower power or space-critical designs, the related SKD75GAL123D offers a smaller current handling footprint. Alternatively, for systems requiring higher rectifier capacity in standard 3-phase systems, modules like the SKD160/16 provide enhanced current headroom.
Technical & Design Deep Dive
A Closer Look at the Thermal Management and Silicon Integration

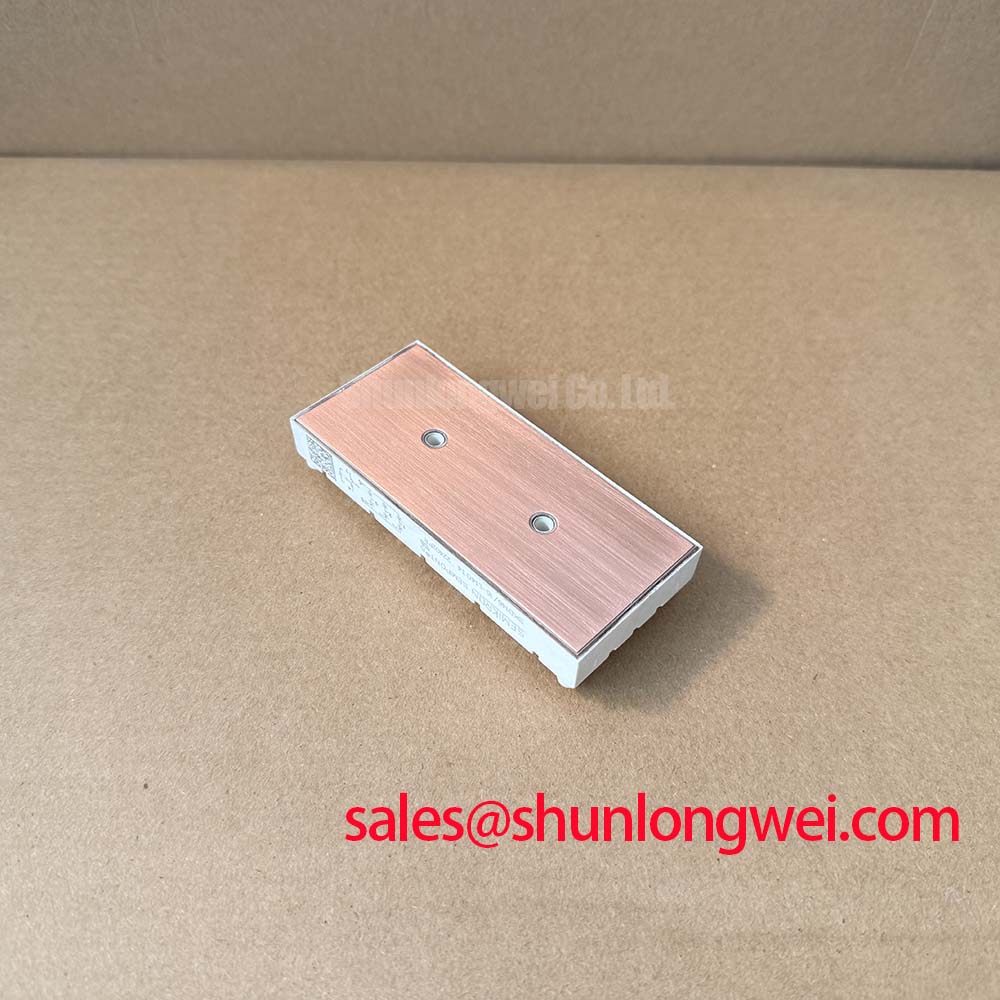

The integration of Trench4 IGBT technology within the chopper stage plays a vital role in reducing conduction losses. At a typical VCE(sat) of 1.85 V under a 100 A load, the switch operates with high energy efficiency. To dissipate the heat generated by fast switching frequencies, Semikron Danfoss utilizes Direct Copper Bonded (DCB) aluminum oxide ceramic (Al2O3) isolation. This design provides high electrical isolation while ensuring a thermal resistance path (Rth(j-s)) of only 0.38 K/W for the IGBT chopper.
To put this thermal path in perspective, think of thermal resistance like a traffic bottleneck on a narrow bridge. A high thermal resistance is like a single-lane bridge where thermal energy gets congested, causing a rapid temperature buildup on the silicon chip. The 0.38 K/W rating acts like a wide, multi-lane highway, allowing thermal energy to race away from the silicon junctions directly to the heatsink, keeping the junction temperature well below its max limit of 175 °C.
Similarly, the rectifier stage relies on robust 1600 V diodes with an I²t rating of 7800 A²s. Think of this surge rating like an off-road shock absorber. A weak shock absorber bottoms out instantly when hitting a major bump, causing mechanical damage. The 7800 A²s capacity acts like a long-travel shock absorber, safely dispersing the transient energy of input surges without compromising the silicon junction.
What is the primary benefit of its DCB ceramic substrate? Extremely low thermal resistance for faster heat dissipation.
What protection does the 1600V rating provide? High voltage headroom against grid transient overvoltages.
To prevent catastrophic events during chopper operation, engineers should follow key IGBT gate drive design tips to avoid stray turn-on. Additionally, the integrated NTC thermistor acts as a built-in safety sentinel. By monitoring the substrate temperature in real time, the control circuit can trigger a safe shutdown before any thermal runaway threshold is breached. The module's construction leverages the advanced packaging standards of Semikron Danfoss, integrating all components onto a thermally optimized isolated baseplate.
Frequently Asked Questions
Practical Engineering Guidance for Circuit Designers
How does the Direct Copper Bonded (DCB) ceramic substrate improve the thermal reliability of the SKD146/16-L140T4 compared to traditional metal-plate packaging?
The DCB ceramic substrate uses aluminum oxide (Al2O3) directly bonded to copper sheets. This eliminates thick thermal interface layers found in older packages, reducing thermal resistance to just 0.38 K/W for the IGBT chopper. This allows faster heat transfer to the heatsink and protects the module from thermal fatigue under load-cycling conditions.
What is the significance of the 1600V VRRM rating in applications operating on standard 400V or 480V AC utility grids?
A 480V AC line typically has nominal DC link voltages around 650V to 750V. By offering a 1600V repetitive peak reverse voltage rating, the rectifier diodes provide a safety margin of over 200% against grid overvoltages, line surges, and inductive switching spikes, ensuring long-term system survivability without relying on heavy external snubber circuits.
How does the integration of a 1200V Trench4 IGBT and CAL4F diode affect energy loss during dynamic braking cycles?
Trench4 technology minimizes the collector-emitter saturation voltage (VCE(sat)) to typically 1.85 V, lowering conduction losses. The fast-recovery CAL4F freewheeling diode features low reverse recovery currents, which significantly reduces switching losses during the chopper's high-frequency turn-on phases, ensuring the module runs cooler during heavy regenerative braking cycles.
Why is the I²t surge rating of 7800 A²s critical for protecting the rectifier stage?
When power is first applied to a motor drive, the empty DC-link capacitors act as a short circuit, drawing a massive initial charging current. The 7800 A²s rating indicates that the internal diodes can withstand these high-energy inrush currents without thermal breakdown, simplifying pre-charge circuit design and reducing component count.
Can the integrated NTC temperature sensor be used for real-time overtemperature protection?
Yes. The embedded NTC thermistor is physically mounted on the same ceramic substrate as the power chips, providing highly accurate, low-latency temperature tracking. This allows the system controller to continuously monitor thermal health and shut down gate drives if safe operating limits are exceeded, preventing catastrophic failures.
From an integration standpoint, the SEMIPONT 6 layout of the SKD146/16-L140T4 provides layout engineers with a reliable, rugged building block. It simplifies design by packaging the 3-phase rectifier, braking chopper, freewheeling diode, and thermal monitoring into a single, two-screw mounting module. This reduces assembly complexity and minimizes parasitic loop inductance, making it an excellent choice for modern industrial power converter designs.
