SKKT 162/16 E Thyristor Module: Datasheet & Tech Overview
Engineered for robust thermal management and long-term reliability in high-current AC power control applications.

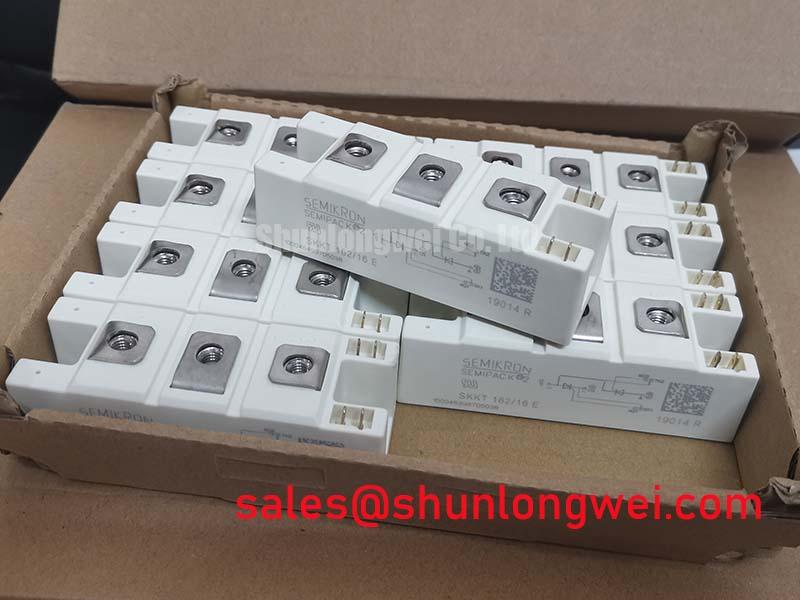

The SEMIKRON SKKT 162/16 E is a Thyristor/Diode Module designed for superior thermal stability and fault tolerance. With core specifications of 1600V | 162A | Rth(j-c) 0.1 K/W, this component delivers two key engineering benefits: enhanced operational lifespan and simplified thermal design. Its construction directly addresses the need for dependable power control in industrial environments by utilizing a hard-soldered, isolated baseplate to mitigate thermal fatigue, a common failure point in cyclically loaded systems.
Industry Insights & Strategic Advantage
Strategic Implications of Thermally Robust Power Control
In sectors like industrial automation and energy management, component reliability is directly tied to operational uptime and profitability. The design philosophy behind the SKKT 162/16 E Thyristor Module reflects a critical industry trend: the move towards power components that not only meet electrical specifications but also offer predictable, long-term performance under thermal stress. The use of glass-passivated chips ensures stable blocking voltage characteristics over years of service, reducing the risk of premature failure. This focus on durability makes it a strategic asset for systems where maintenance access is difficult or downtime is exceptionally costly, aligning with the principles of Industry 4.0 which demand resilient and dependable hardware backbones.
Intra-Series Comparison & Positioning
Component Positioning and Design Philosophy
The SKKT 162/16 E is positioned as a high-reliability solution for AC phase control and rectification. Its defining feature is the integration of two series-connected thyristors in a compact, isolated package. This design provides a fundamental building block for AC controllers and soft starters. Compared to discrete component solutions, this module approach simplifies assembly, reduces component count, and standardizes thermal interfacing. The choice of an industry-standard A 30 housing ensures mechanical compatibility and straightforward integration into existing and new system designs, providing a clear path for engineers seeking to upgrade or standardize their power stages with a proven, robust component.
Deployment Snippets
Deployment Considerations for System Longevity
Successful implementation of the SKKT 162/16 E hinges on leveraging its thermal design. The module's isolated metal baseplate allows for direct mounting to a heatsink without the need for additional insulating layers, which can degrade over time and increase thermal resistance. Engineers should ensure a flat mounting surface and the correct application of thermal compound to maximize heat transfer. Furthermore, its substantial surge current rating (ITSM) provides a significant safety margin, allowing the device to weather unforeseen grid faults, a crucial consideration for equipment deployed in heavy industrial settings or remote renewable energy installations. These features collectively contribute to a more resilient and easily maintainable final product.
Frequently Asked Questions
Engineering & Procurement FAQ for SKKT 162/16 E
- What is the primary benefit of the isolated baseplate on the SKKT 162/16 E?
The primary benefit is simplified and more effective thermal management. It provides 3600V electrical isolation, allowing the module to be mounted directly onto a grounded heatsink. This eliminates the need for separate insulating foils, which in turn reduces the overall thermal resistance and simplifies the mechanical assembly process, contributing to higher system reliability. - How does the SKKT 162/16 E's surge current rating impact system design for motor control?
With a high non-repetitive surge current rating (ITSM) of 3300 A and an I²t value of 450,000 A²s, the module is exceptionally robust. For applications like AC motor soft starters, this means the device can safely handle the large inrush currents typical during motor startup and withstand fault conditions without failure, allowing for a more resilient and dependable drive design. - Is this module suitable for applications with frequent temperature cycling?
Yes. The module's construction, featuring a hard-soldered connection to the baseplate, is inherently more resistant to the mechanical stress caused by repeated expansion and contraction during temperature cycles. This design choice directly combats solder fatigue, a common failure mechanism in power modules, making it a reliable choice for applications with fluctuating loads.
Application Scenarios & Value
Core Applications Where Thermal Resilience is Paramount
The SKKT 162/16 E is engineered for AC power control applications where consistent performance and long-term reliability are crucial. Its robust thermal and electrical characteristics make it an excellent component choice for a range of industrial systems.
- AC Motor Soft Starters: The module's ability to handle high inrush currents makes it ideal for gradually ramping up the voltage to large AC motors, reducing mechanical stress on the drivetrain and electrical stress on the power grid.
- Industrial Temperature Control: In high-power heating systems, such as industrial furnaces or plastic molding equipment, the SKKT 162/16 E provides precise and reliable phase-angle control to regulate power delivery.
- Lighting Control Systems: For large-scale professional lighting rigs, such as those used in theaters or stadiums, this module enables dependable dimming control for high-power lamps.
- Controlled Rectifiers: The dual-thyristor configuration is a fundamental component for building controlled DC power supplies and battery chargers where the output voltage needs to be actively regulated.
For AC controllers up to 1600V requiring robust fault tolerance, the SKKT 162/16 E's I²t rating of 450 kA²s makes it a superior choice over less rugged alternatives.
Technical Deep Dive
A Closer Look at the Module's Construction and Technology
The performance of the SKKT 162/16 E is rooted in its specific material and construction choices. The core of the device utilizes glass-passivated thyristor chips. This process involves applying a layer of glass to the silicon junction's edge, which hermetically seals and protects it from ambient contaminants. What is the effect of glass passivation? It ensures stable high-voltage blocking characteristics and low leakage currents throughout the module's operational life. The internal components are mounted onto an isolated metal baseplate using a hard solder process. This contrasts with softer solders that can be more susceptible to fatigue and creep over time, especially in applications with frequent thermal cycling. This robust construction is key to achieving a low thermal resistance from junction to case (Rth(j-c)), enabling efficient heat removal. For more information on power semiconductor principles, see this in-depth analysis of IGBT modules.
Key Parameter Overview
Critical Performance Specifications at a Glance
The following parameters are critical for system design and integration. For a comprehensive list of specifications, please refer to the official datasheet. For systems requiring a diode-only solution, the related SKKD 162/16 offers a similar power handling capability in a rectifier configuration.
| Parameter | Value | Notes |
|---|---|---|
| Repetitive Peak Off-State Voltage (VDRM/VRRM) | 1600 V | Defines the maximum blocking voltage capability. |
| On-State Current (ITAV) | 162 A | Max average current at a case temperature of 85°C. |
| Thermal Resistance, Junction to Case (Rth(j-c)) | 0.10 K/W | Per thyristor; a lower value indicates more efficient heat transfer. |
| Surge Current (ITSM) | 3300 A | Maximum non-repetitive surge capability for 10 ms. |
| I²t-Value | 450,000 A²s | Critical for fuse selection and fault-current survivability. |
| Isolation Test Voltage (Visol) | 3600 V | Ensures safety and simplifies mounting on grounded heatsinks. |
As power systems evolve, the demand for components that offer not just performance but predictable longevity will intensify. The SKKT 162/16 E, with its focus on thermal integrity and robust construction, is well-aligned with this future. It represents a strategic design choice for engineers building next-generation industrial equipment where reliability is the primary currency, ensuring that power control systems are not a point of failure but a source of strength and operational continuity. Explore further insights on how thermal resistance matters in unlocking component performance.
