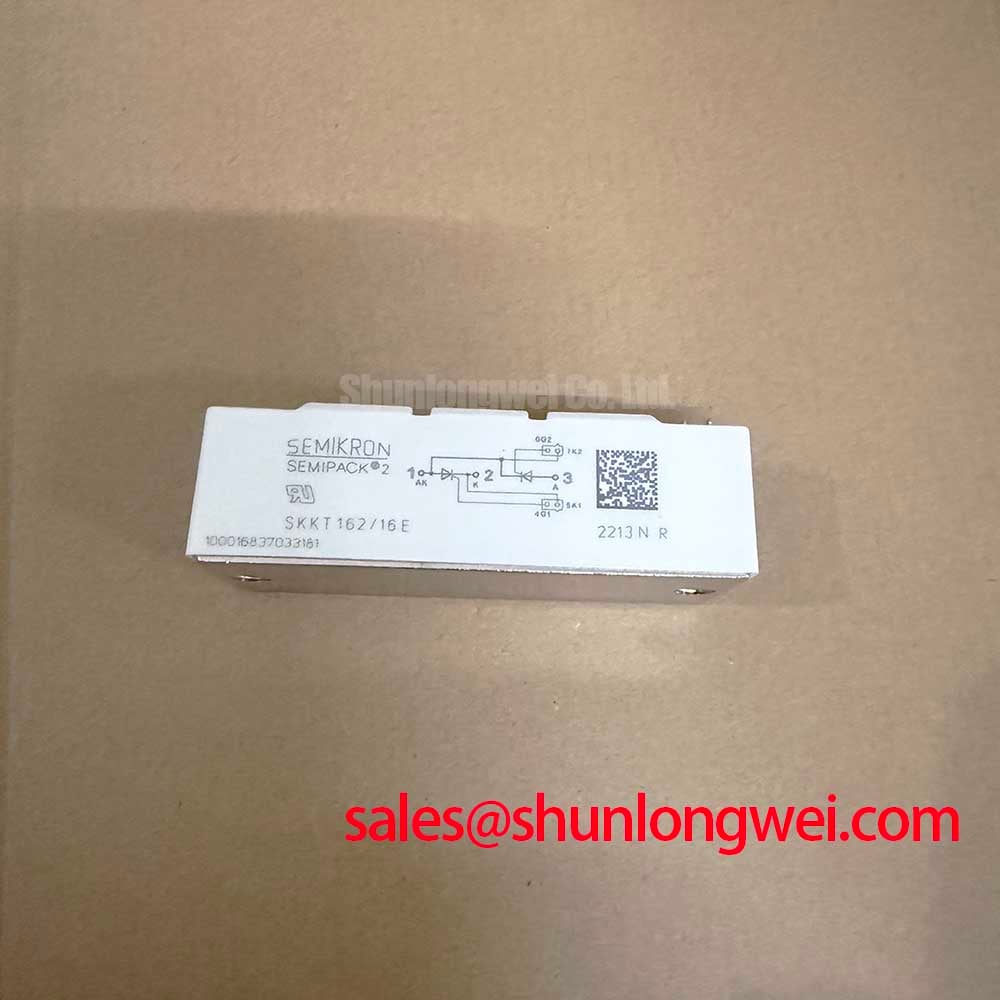

SKKT 162/16E Operational Boundaries: Evaluating High-di/dt Gate Firing: Pulse-Train Timing Limits
Before energizing a replacement, isolate the power circuit, inspect the housing and terminals, and verify the nameplate against the required 1600 V repetitive peak off-state and reverse voltage rating. A cold resistance check between the main terminals can identify an obvious abnormal condition, but it is not a substitute for controlled semiconductor testing or the manufacturer’s terminal identification.
The Semikron SKKT 162/16E is specified with an average on-state current of 160 A at a case temperature of 85 °C and an RMS on-state current of 250 A. These ratings describe defined test conditions, not a universal operating current for every induction heating converter. When evaluating the module in a medium-frequency induction melting or hardening furnace, the system engineer should compare the actual conduction waveform, case temperature, commutation behavior, and cooling arrangement with the applicable operating limits.
Gate firing should be assessed as a complete circuit rather than as a single trigger pulse. The gate driver, return path, connector, isolation device, and power wiring should be inspected for unnecessary loop inductance and shared-current interference. A short, symmetrical gate-current path can help reduce ringing and false triggering, while the final pulse amplitude, pulse width, repetition pattern, and gate holding behavior must be verified against the original Semikron documentation for the installed revision.
For pulse-train firing, confirm that the trigger circuit maintains reliable gate drive during the intended firing window and does not create repeated uncontrolled pulses during commutation. The required IGT, VGT, latching current, and holding current are not included in the supplied product data here, so the integrator should obtain those values from the applicable device datasheet before setting the driver. Oscilloscope measurements should be made at the module terminals or at a validated equivalent point, rather than inferred from the controller output alone.
Fuse coordination also requires the correct Semikron application table. The published 3300 A surge on-state current for a 10 ms, 50 Hz condition is an official specification, but it does not by itself define an acceptable fuse combination or fault-clearing time. Check the selected semiconductor fuse I²t, prospective short-circuit current, clearing characteristics, and wiring impedance against the relevant coordination data. If a different module family is being considered for a mechanical comparison, SKKD162/12 should be evaluated independently because its electrical ratings and internal configuration must not be assumed to match this device.
SKKT 162/16E Thermal-Electrical Optimization: Evaluating Post-Surge Reverse Voltage Block: Practical Tuning
The module’s official ITSM rating is 3300 A for a 10 ms, 50 Hz surge condition. This value is useful when reviewing short-duration fault and inrush events, but it should not be treated as a repetitive operating target. After a surge, engineers should confirm that the protection device has cleared or limited the fault as intended, inspect the gate and power connections, and assess the thermal path before applying reverse voltage again.
The specified threshold voltage is VT0 = 0.85 V, with an on-state slope resistance of rT = 0.9 mΩ. These official parameters support conduction-loss assessment under the stated test model. Actual loss in an induction power supply depends on current waveform, duty cycle, commutation overlap, junction temperature, and the number of conducting devices. A thermal review should therefore use measured current and case temperature rather than relying on the nominal average current alone.
The specified thermal resistance is Rth(j-c) = 0.14 °C/W per thyristor. The heatsink, thermal interface material, clamping arrangement, airflow or liquid cooling, and enclosure temperature all influence the resulting junction temperature. The official operating junction temperature range is −40 °C to +125 °C. Designers should verify the junction-temperature estimate under startup, continuous heating, overload, and post-fault conditions, with the final margin established by system testing.

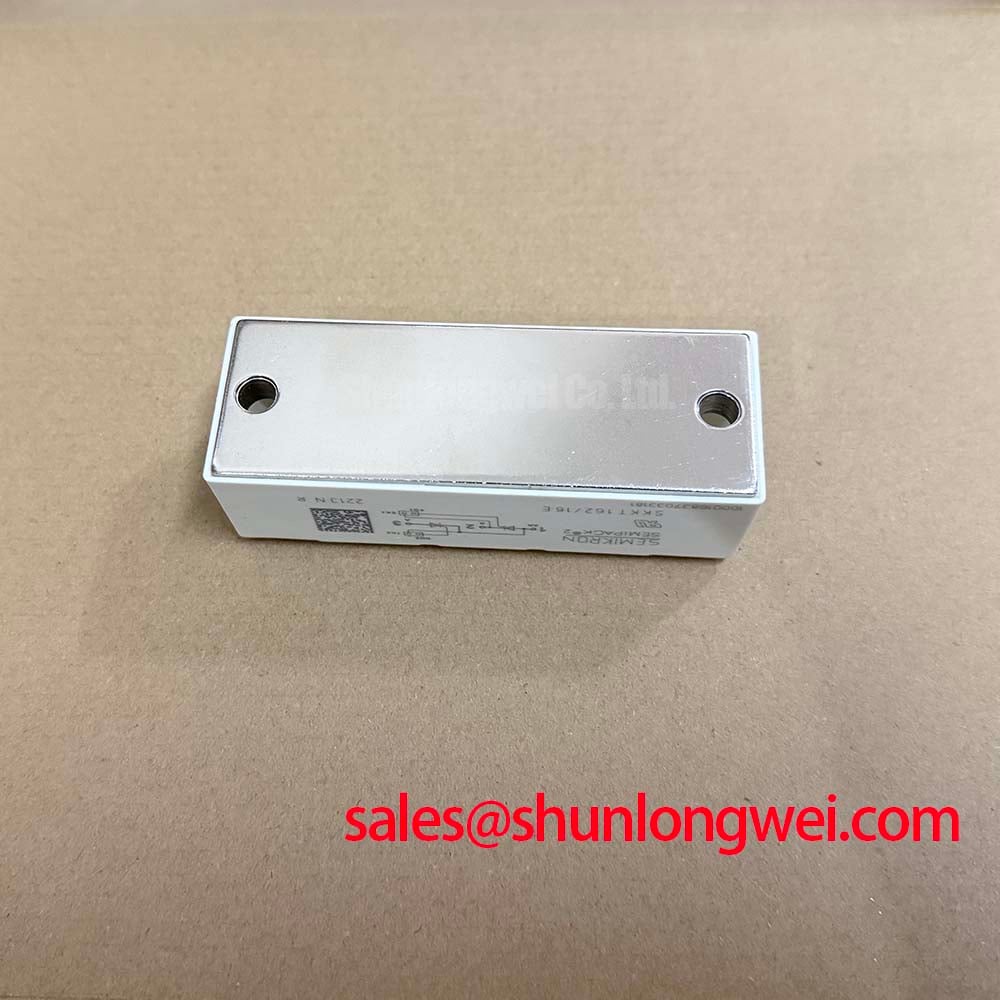

Mounting preparation is part of the electrical evaluation because uneven pressure or a contaminated thermal interface can create local heating that is later misdiagnosed as an electrical rating problem. The base surface should be clean and flat, the interface layer should be applied consistently, and the manufacturer’s specified clamping method and torque should be followed. The supplied information does not include a verified torque value for this exact module, so it should be taken from the Semikron mechanical documentation rather than copied from another package.
For a furnace converter or auxiliary rectifier stage, the engineer may also compare the topology with the separately listed SKKT 250/14E. That reference is not a substitute recommendation. Its voltage, current, thermal, mechanical, and firing requirements must be checked independently before any system change is approved.
SKKT 162/16E Thermal-Electrical Optimization: AC Input Transient Overvoltage Clamping: Practical Tuning
AC input protection should be reviewed from the source terminals through the transformer, contactor, fuse, busbar, and thyristor module. A metal oxide varistor or an RC snubber may reduce transient stress, but the correct network depends on the line voltage, source impedance, surge environment, switching frequency, transformer leakage, and fault-clearing strategy. The module’s 1600 V VDRM and VRRM rating is an electrical boundary, not a complete surge-protection design target.
When applying an MOV, the system designer should verify its continuous AC rating, temporary overvoltage capability, energy absorption capacity, repetitive surge duty, and failure-disconnection method. The MOV should be coordinated with upstream fusing and enclosure spacing so that a failed protector does not introduce a secondary hazard. IEC 61000-4-5 test conditions may be relevant to the complete equipment evaluation, but compliance of a discrete thyristor module cannot be inferred from the component rating and should be demonstrated at equipment level.
RC snubbers should be positioned according to the actual commutation loop and validated for capacitor pulse current, resistor energy, insulation, and temperature rise. Excessive capacitance can increase switching current and losses, while insufficient damping may leave the thyristor exposed to ringing and unwanted dv/dt triggering. Select the network through measured waveform testing and the original application information; do not transfer values from another power stack without checking its topology.
The external Semikron SEMIPACK® Thyristor / Diode Modules information provides useful manufacturer context for module families, while the Semikron CAL Diode Technology page concerns a different technology area and should not be used to infer the internal construction or switching behavior of this specific unit.
High-voltage layout should preserve the required clearance and creepage distances for the equipment insulation system, contamination level, working voltage, and applicable safety standard. Terminal lugs, barrier positions, cable bend radius, and the physical location of MOV and snubber components should be reviewed after assembly, not only on the schematic. Insulation verification must be performed with the complete mechanical arrangement and with suitable protection for connected control electronics.
SKKT 162/16E Operational Boundaries: Evaluating RC Snubber Network Optimization to Prevent Limits
Spurious turn-on and localized heating should be investigated through the complete commutation path. Begin with the gate return, main-current loop, snubber wiring, fuse connection, and busbar geometry. A long or asymmetric connection can increase parasitic inductance and ringing, while a shared gate return can allow power-current transients to disturb the trigger reference. The remedy should be selected from measured voltage and current waveforms rather than from a fixed resistor or capacitor value.
For a medium-frequency induction melting or hardening furnace, the commutation waveform should be captured during startup, steady operation, load transitions, and controlled shutdown. Compare the voltage across the thyristor with the gate signal and observe whether ringing coincides with unintended triggering, elevated current overlap, or abnormal case-temperature rise. The final RC values, any series reactor arrangement, and the trigger timing remain system-determined and must be validated against the converter’s operating frequency and fault response.

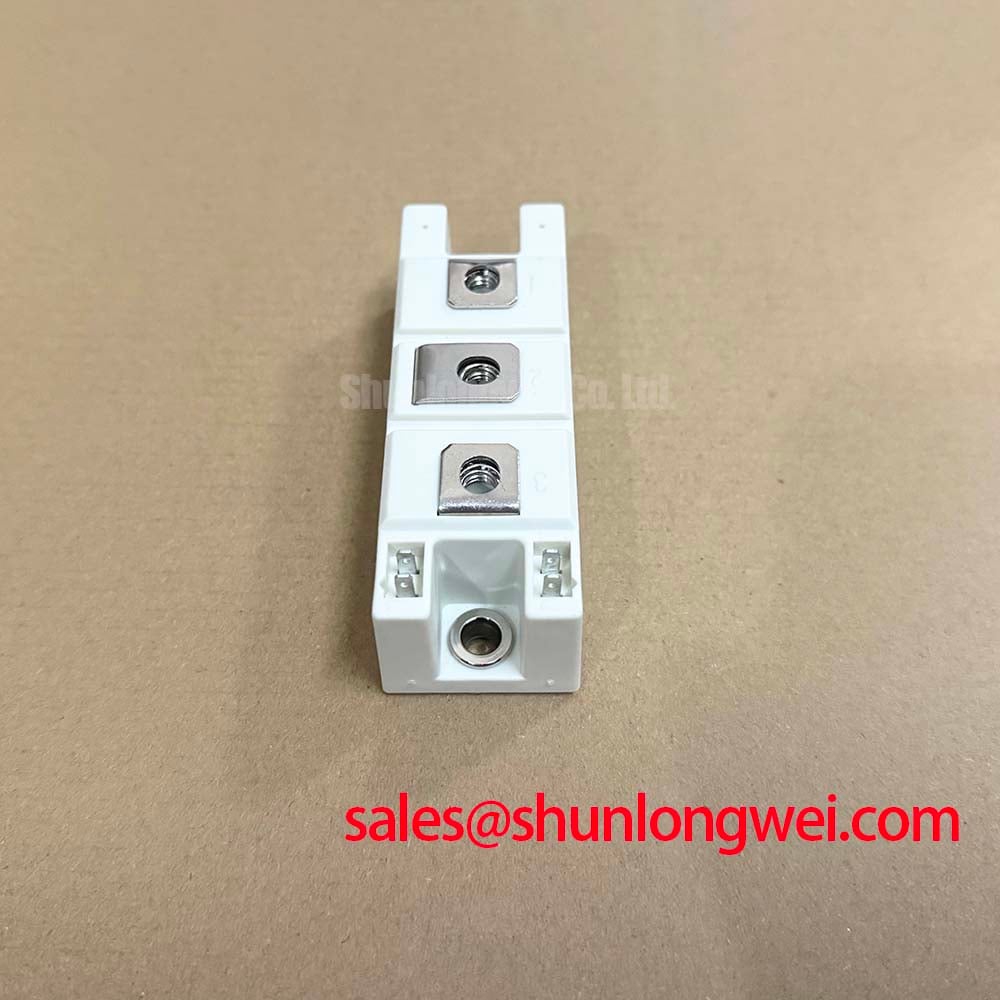

Gate wiring should remain physically separated from high-current conductors wherever the mechanical design permits. Use the intended gate and cathode terminals shown in the applicable connection drawing, maintain a low-impedance return, and avoid routing the trigger pair alongside rapidly changing power-current paths. The supplied product data does not confirm a Kelvin emitter or auxiliary emitter terminal for this part, so that feature must not be assumed during PCB or harness design.
Safety Interlock Note: Disconnect and verify the absence of hazardous voltage before removing gate, power, or measurement connections, because an apparently inactive furnace converter can retain energy in its input and DC-link circuits.
After installation, record the module identification, terminal condition, heatsink contact, cooling status, fuse type, and measured operating temperature. A useful engineering record also includes the gate waveform at the module, the peak off-state voltage during commutation, and the behavior of the protection network during the defined surge test. For additional practical guidance on trigger-loop layout and validation, consult Precision Gate Drive Design. Any replacement approval should remain conditional on electrical, thermal, insulation, and protection tests performed in the actual equipment.
