SKM151F Ratings and Pre-Test Checks
- Isolate the power stage, discharge the DC link, and verify absence of voltage before measuring SKM151F terminal impedance.
- Disconnect the gate drive connection and compare main-terminal diode-check readings with the circuit diagram and an equivalent serviceable assembly.
- Inspect the mounting surface, terminal interfaces, and thermal contact for damage or contamination that could affect installation.
- Check gate driver isolation, supply integrity, and complementary output interlocking before enabling switching.

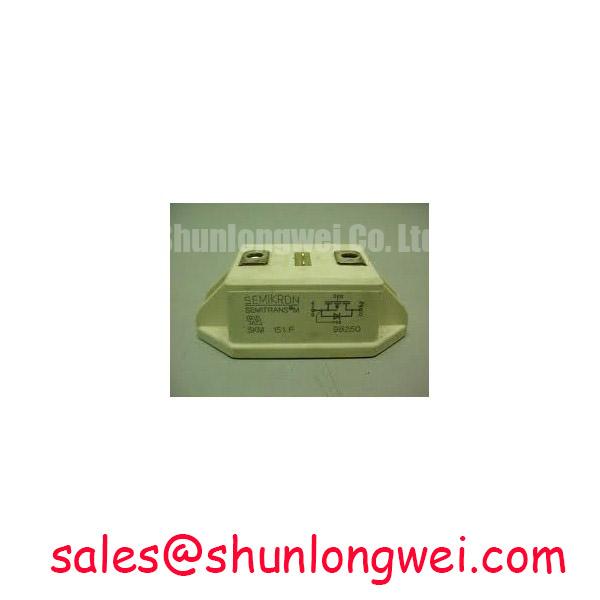

The Semikron SKM151F is an IGBT module with a specified collector-emitter voltage of 1200 V and collector current of 150 A at a case temperature of 25°C. Its temperature-dependent current ratings, switching energy, and junction-to-case thermal resistance provide the electrical baseline for assessing an existing power stage. Replacement decisions also depend on terminal arrangement, mechanical fit, driver behavior, and the cooling assembly.
| Parameter | Symbol | Specified value | Integration significance |
|---|---|---|---|
| Collector-emitter voltage | Vces | 1200 V | Voltage boundary against which measured switching peaks must be assessed. |
| Collector current at Tc = 25°C | Ic | 150 A | Current rating tied to the stated case temperature. |
| Collector current at Tc = 80°C | Ic(nom) | 105 A | Shows the importance of case temperature in current capability. |
| Collector-emitter saturation voltage | Vce(sat) | 3.2 V typical | Conduction-loss reference under the associated characterization conditions. |
| Turn-off energy per pulse | Eoff | 18 mJ typical | Switching-loss reference under the associated characterization conditions. |
| Junction-to-case thermal resistance | Rth(j-c) | 0.13 K/W | Steady-state thermal path between junction and case. |
Consult the manufacturer datasheet for characterization conditions, terminal drawings, mounting requirements, gate limits, and transient thermal curves; typical values are characterization references rather than guaranteed operating limits.
SKM151F Circuit Protection & Reliability: Gate-Emitter Diagnostics
Measure the main terminals in diode-check mode with the module electrically separated from parallel current paths. As a Design Consideration, relate each reading to the documented internal circuit before interpreting forward conduction or blocking behavior. Snubbers, discharge resistors, driver components, and adjacent switches can otherwise produce readings that belong to the assembly rather than the semiconductor under inspection.
Where the internal circuit identifies an antiparallel diode, compare its conduction direction and repeatability with an equivalent serviceable device under the same meter conditions. A persistent low-impedance path in both directions warrants further investigation, but a particular forward reading cannot establish junction health by itself. Meter test current, temperature, and residual gate charge all affect the result. Keep the gate in a defined off state using an appropriate controlled connection during main-terminal screening.
Screen the gate-emitter path separately from the drive board. A multimeter can reveal gross conduction or a short, while low-level leakage and latent dielectric weakness require a controlled test method within the manufacturer's gate limits. Record the instrument mode, polarity, and connection state so subsequent measurements remain comparable. Avoid interpreting a stable resistance display as proof of insulation reliability or switching readiness.
Practical caution: Never connect or disconnect the gate driver while the DC link remains energized.
As a Design Consideration, inspect external creepage paths for contamination and maintain the equipment's specified separation between power conductors, control wiring, and accessible metalwork. Clearance requirements depend on the complete insulation system, working voltage, and installation environment. The Field Engineer’s Handbook provides supplementary repair and test context when organizing measurements; product acceptance should follow the equipment service procedure and applicable manufacturer limits.
Benchtop Waveform Tuning: Turn-On/Turn-Off Stress and SKM151F Retrofit Assessment
Compare gate-emitter voltage, collector-emitter voltage, and switching current before changing external turn-on or turn-off resistance. As a Design Consideration, separate resistance paths can help balance switching loss, overshoot, and ringing when the driver supports independent adjustment. The correct resistance depends on driver output impedance, gate charge, power-loop inductance, and operating conditions; the module's current rating alone does not establish it.
During turn-on, inspect the complementary device's gate waveform for unintended excursions associated with collector voltage movement. Miller coupling involves the voltage-dependent gate-collector capacitance; Cres is a capacitance parameter, whereas Miller plateau charge is part of the gate-charge characteristic. Keep the gate loop compact and its return path closely coupled to the outgoing drive connection. Negative off-state bias or an active Miller clamp should be evaluated against the device's gate limits and the driver's implementation, with measurements referenced at the module terminals.
During turn-off, assess collector overshoot alongside ringing and energy dissipation. Increasing turn-off resistance can alter the transient, but may also increase switching loss. An active collector-voltage clamp requires its own threshold, delay, and energy assessment and serves a different function from a Miller clamp. The 18 mJ typical turn-off figure is a characterization point; applying it unchanged across different currents, temperatures, and gate conditions would distort the loss estimate.
Engineering Recommendation: Keep corresponding commutation paths geometrically balanced where the topology permits, then use a double-pulse measurement to assess overshoot and switching behavior at representative operating conditions.
Set complementary gate interlocking from measured propagation delays, turn-off behavior, and driver tolerances. As a Design Consideration, insufficient dead time can permit cross-conduction, while excessive dead time increases diode conduction and can alter commutation losses. Inspect the freewheel diode's reverse-recovery current together with voltage ringing. Recovery softness describes aspects of that waveform, but does not independently establish the equipment's electromagnetic emissions performance.
For a driver that uses a bootstrap supply, examine supply droop and recharge during the actual switching sequence. Bootstrap capacitance, charging resistance, diode recovery, and permitted duty cycle interact with driver consumption. These are properties of the surrounding drive circuit, rather than inherent features of SKM151F. Distinguish supply collapse from common-mode measurement disturbance before modifying components.
When assessing a proposed retrofit, compare the SEMIX604GB12E4S against the same electrical, mechanical, and driver requirements. Its inclusion in a comparison does not establish direct interchangeability. For potential use in an industrial inverter welder or medium-frequency induction-heating supply, engineers should evaluate switching frequency, commutation behavior, terminal compatibility, and cooling under the equipment's actual load cycle.
Field Diagnostics & Commissioning: Semiconductor Fuse I²t Coordination in SKM151F Topologies
Evaluate fuse total-clearing I²t at the prospective fault current and DC operating voltage of the protected branch. As a Design Consideration, pre-arcing I²t describes the melting interval, while total-clearing I²t includes the subsequent arcing interval. Compare the appropriate manufacturer curves with the fault path, available current, and protection objective. An AC fuse rating does not automatically establish suitability for interrupting the equipment's DC link.
IGBT fault protection also depends on rapid detection and controlled gate shutdown. A semiconductor fuse can interrupt energy from the source, but its presence alone does not establish that an IGBT survives a short circuit or that the module enclosure remains intact. The stated SKM151F ratings provide neither a semiconductor fuse withstand integral nor a short-circuit duration. Coordinate the fuse with any documented device fault capability and the equipment's verified protection sequence rather than treating current rating as a fault-energy limit.
As a Design Consideration, trace the discharge path from each DC-link capacitor to the suspected fault. A fuse upstream of stored energy may leave a substantial local discharge path uninterrupted. Review branch placement, interrupting capacity, connection inductance, and the response of the gate driver protection. Case-rupture prevention is an equipment validation objective requiring suitable fault testing and containment assessment, not an outcome guaranteed by matching two catalogue numbers.
After a protective trip, inspect the rectifier, precharge circuit, capacitor bank, and affected switching branch before replacing the fuse. Compare driver fault records with measured device condition and bus connections. A blown fuse can accompany several different failures, so its appearance alone should not determine which component is replaced.
When reviewing the wider power-conversion architecture, the SKM100GB176D can be considered separately for a topology-compatible switching stage. Establish its circuit role from its own specifications; it should not be assigned a front-end rectifier role simply because it is associated with the same equipment family.
For equipment that includes regenerative braking, assess the chopper and braking resistor as a separate energy-handling path. As a Design Consideration, resistor pulse capability, chopper control, and DC-link voltage supervision determine how returned energy is absorbed. Fuse coordination should account for that branch without assuming a braking resistor replaces overcurrent protection.
Thermal Stress Assessment: Transient Thermal Impedance on SKM151F
Reconstruct the module's loss waveform over the actual pulse train before estimating peak junction temperature. As a Design Consideration, the 0.13 K/W junction-to-case thermal resistance describes a steady-state relationship; transient heating requires the manufacturer's transient thermal impedance curve or a fitted thermal network. Pulse duration, repetition, and initial temperature determine how strongly successive heating events overlap.
For a constant-loss rectangular pulse starting from thermal equilibrium with a fixed case temperature, an Engineering Calculation expresses junction temperature rise as ΔTj = P × Zth(j-c)(t), where P is the pulse loss and Zth(j-c)(t) is the transient junction-to-case thermal impedance at that duration. A multi-RC model extends the response across successive heating and cooling intervals. Use coefficients fitted to the applicable manufacturer curve and preserve the model type; Foster and Cauer networks cannot be connected interchangeably without considering their physical interpretation.
Build the loss input from conduction intervals and switching events at representative conditions. The 3.2 V typical saturation voltage and 18 mJ typical turn-off energy are useful reference points, but their dependence on current, junction temperature, and switching conditions must remain visible in the calculation. Include diode conduction and recovery losses where they load the same thermal assembly.
As a Design Consideration, measure case temperature at the specified reference location and inspect thermal-interface contact, heatsink condition, and coolant or airflow performance. The difference between 150 A at 25°C and 105 A at 80°C makes case-temperature control directly relevant to the current assessment. Avoid extrapolating these two points into an unrestricted overload curve.
External PCB materials deserve a separate assessment: polytetrafluoroethylene (PTFE) is used in some high-frequency dielectric substrates, but that material property does not identify the SKM151F's internal construction or establish its thermal performance. Keep substrate selection, module thermal characterization, and heatsink validation as distinct engineering inputs.
Check the case-temperature portion of the resulting thermal model against measured case-temperature behavior over representative load cycles, accounting for sensor placement and response time; this alone does not validate predicted junction-temperature peaks. Adjust the permitted pulse sequence or cooling arrangement when calculated junction peaks approach the applicable manufacturer limit, then repeat the same load profile to assess the revised operating margin.
