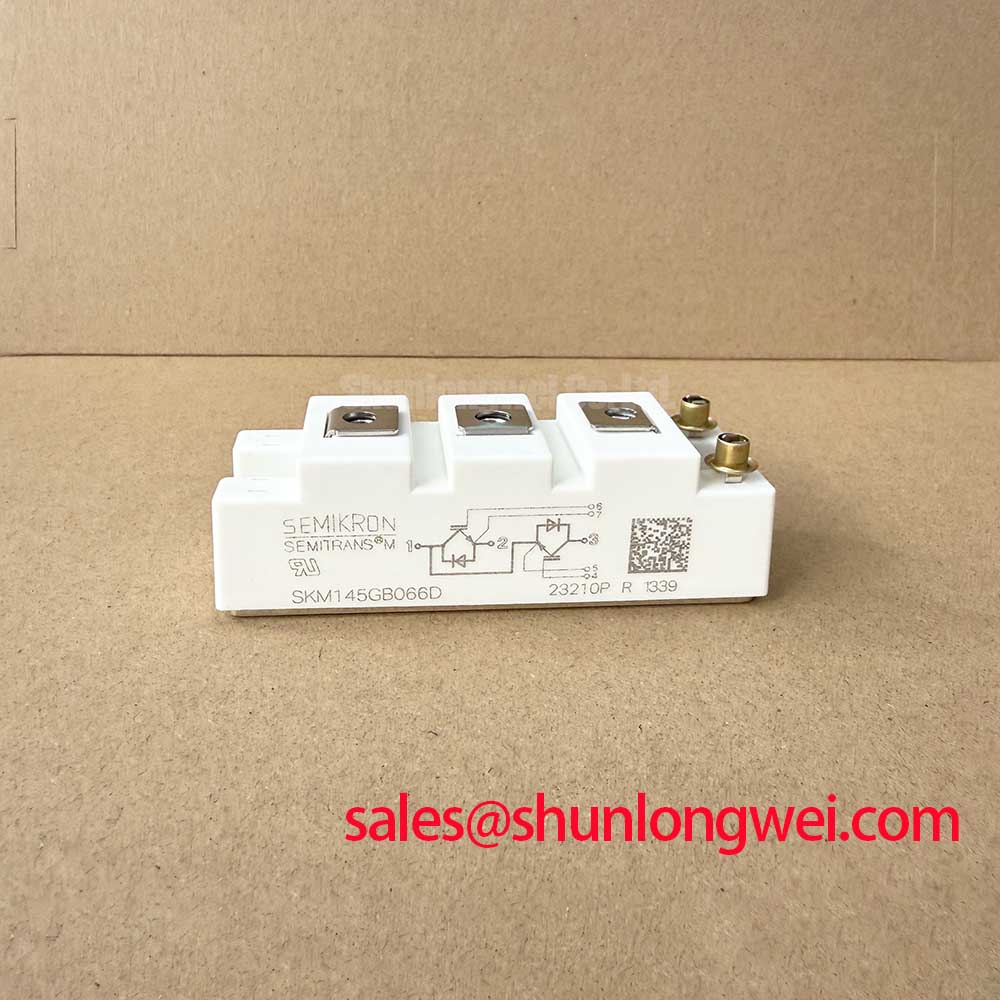

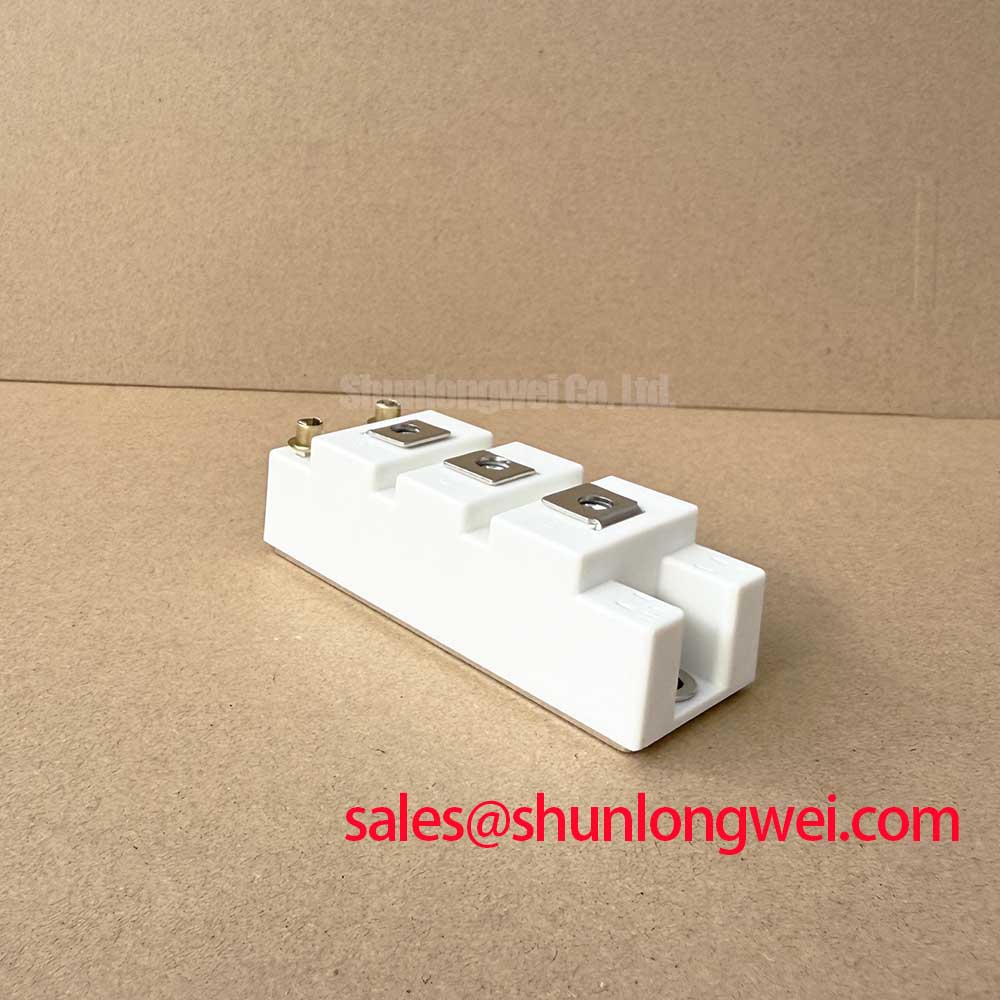

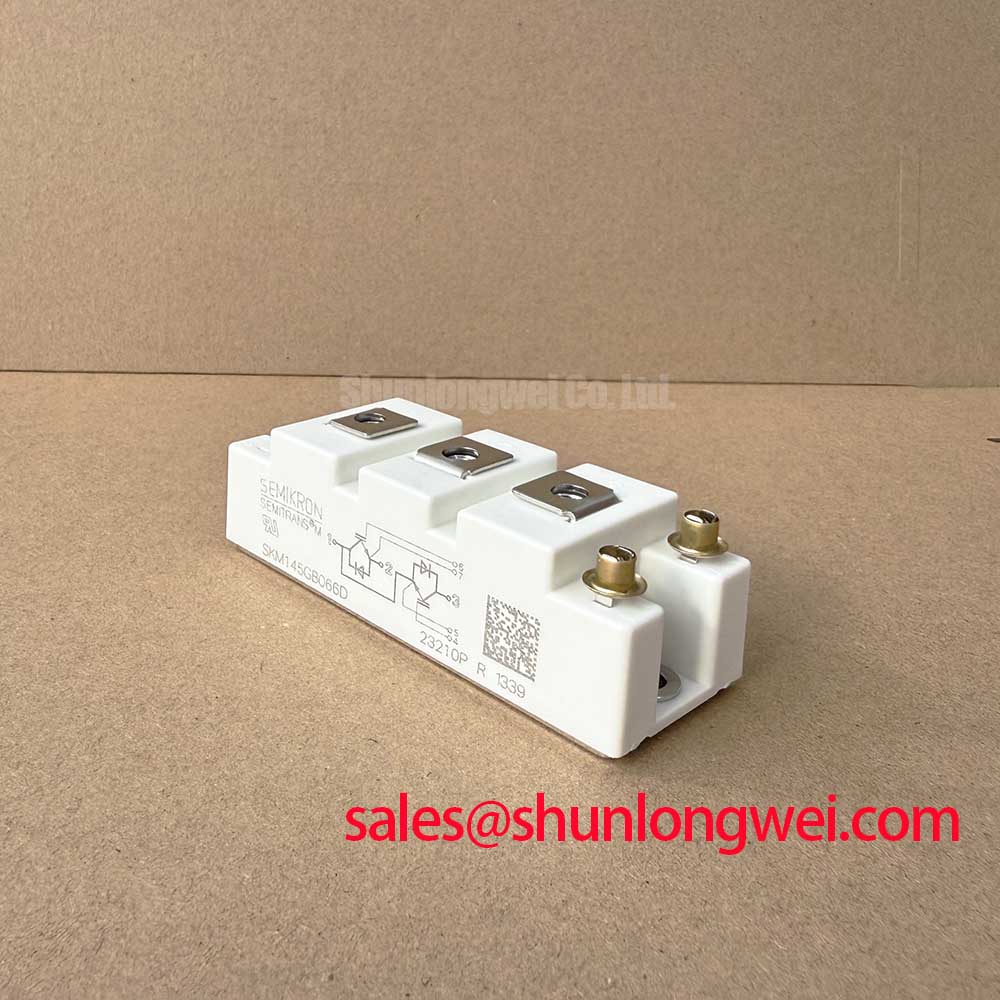

SKM145GB066D Semikron 600V 145A Half-Bridge IGBT Module
The SKM145GB066D, a cornerstone of the SEMITRANS 2 family from Semikron, is engineered to provide high-efficiency power switching for low-voltage industrial applications. By utilizing Trench IGBT3 technology, this module achieves an optimal balance between low conduction losses and fast switching performance, making it a reliable choice for Variable Frequency Drives (VFDs) and Solar Inverters operating on 600V platforms. For engineers prioritizing thermal stability and long-term durability, the SKM145GB066D offers a robust isolated copper baseplate design that ensures efficient heat dissipation under heavy inductive loads.
Top Specs: 600V | 145A | Vcesat 1.45V
- Key Benefit: Reduced cooling requirements due to exceptionally low Vcesat and thermal resistance.
- Key Benefit: High short-circuit capability (10µs) enhances system-level protection and fault tolerance.
What is the primary benefit of its Trench IGBT3 technology? It significantly lowers the collector-emitter saturation voltage, resulting in reduced power dissipation and higher system efficiency. For systems requiring a higher voltage margin for 480V or 600V AC lines, the related SKM150GB12V offers a Vces of 1200V.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
Understanding the electrical boundaries of the SKM145GB066D is essential for ensuring reliable operation within the Safe Operating Area (SOA). The following data highlights the critical performance metrics extracted from the official Semikron technical documentation.
| Critical Metric | Typical Value | Engineering Significance |
|---|---|---|
| Vces (Voltage) | 600V | Ideal for 230V-400V DC-link systems. |
| Ic (Continuous Current) | 145A (@ Tc=25°C) | High power density in a SEMITRANS 2 package. |
| Vce(sat) (Saturation) | 1.45V | Minimizes conduction losses during steady-state. |
| Eoff (Switching Loss) | 3.5mJ (@ 125°C) | Supports high-frequency PWM switching. |
| Rth(j-c) (Thermal) | 0.28 K/W (per IGBT) | Critical for calculating heat sink efficiency. |
Download the SKM145GB066D datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Frequency Power Conversion
The SKM145GB066D is particularly effective in environments where thermal management is a constraint. For engineers designing Uninterruptible Power Supplies (UPS) or Battery Charging Systems, the 145A current rating provides a significant safety margin. A common challenge in Variable Frequency Drive (VFD) design is managing the heat generated by fast-switching transients. The SKM145GB066D addresses this through its Trench IGBT3 structure, which functions like a "low-friction valve" in a hydraulic system—requiring less energy to maintain a flow of current, thereby reducing the heat that must be extracted by the cooling system.
In Renewable Energy sectors, specifically Solar Inverters, the low inductance case of the SEMITRANS 2 package minimizes voltage overshoots during high di/dt events. This characteristic simplifies the design of Snubber Circuits and improves the overall electromagnetic compatibility (EMC) of the power stage. When integrating these modules into complex automation systems, engineers should also consider the reliability of the human-machine interface; for example, the engineering behind industrial LCDs is equally vital for ensuring that system status is accurately monitored in harsh conditions.
For 600V drives prioritizing thermal margin, this 145A module is the optimal choice for high-reliability low-voltage inverters.
Technical & Design Deep Dive
A Closer Look at Trench IGBT3 and Soft-Switching Performance
The core of the SKM145GB066D is its Trench IGBT3 chip architecture. Unlike older planar technologies, the trench gate structure allows for a much higher cell density. This density effectively reduces the "on-resistance" of the device, represented by the 1.45V Vce(sat). To put this into perspective, think of the Vce(sat) as a narrow bridge on a highway; the lower the voltage drop, the wider the bridge, allowing more "current traffic" to pass through with less resistance-induced heating.
Furthermore, the Soft-Switching characteristics of the integrated CAL (Controlled Axial Lifetime) freewheeling diode are essential for inductive load commutation. In Servo Drive applications, the diode must handle rapid current reversals without generating excessive voltage spikes. The SKM145GB066D's diode is tuned to provide a "soft" recovery, which protects the IGBT from overvoltage stress during the turn-off phase. Designers can find more practical insights on verifying these components in the field through our practical guide to testing IGBT modules.
Strategic integration of this module within an Industrial 4.0 framework allows for more compact power stages. The SEMITRANS 2 footprint is globally recognized, facilitating easier maintenance and standardized cooling plate designs across UPS and SMPS architectures.
FAQ
How does the Rth(j-c) of 0.28 K/W directly impact heatsink selection?
The Thermal Resistance (junction-to-case) determines how efficiently heat moves from the silicon chip to the module base. A lower Rth(j-c) allows you to use a more compact or passively cooled heatsink while maintaining the junction temperature below the 150°C maximum limit, effectively increasing the overall Power Density of your design.
Is the SKM145GB066D suitable for 480V AC three-phase applications?
No. For a 480V AC grid, the DC-link voltage typically reaches 650V-700V. Since this module is rated for 600V Vces, it does not provide the necessary voltage headroom. It is best suited for 230V AC input systems where the DC-link remains safely below 450V.
What is the primary benefit of the isolated copper baseplate?

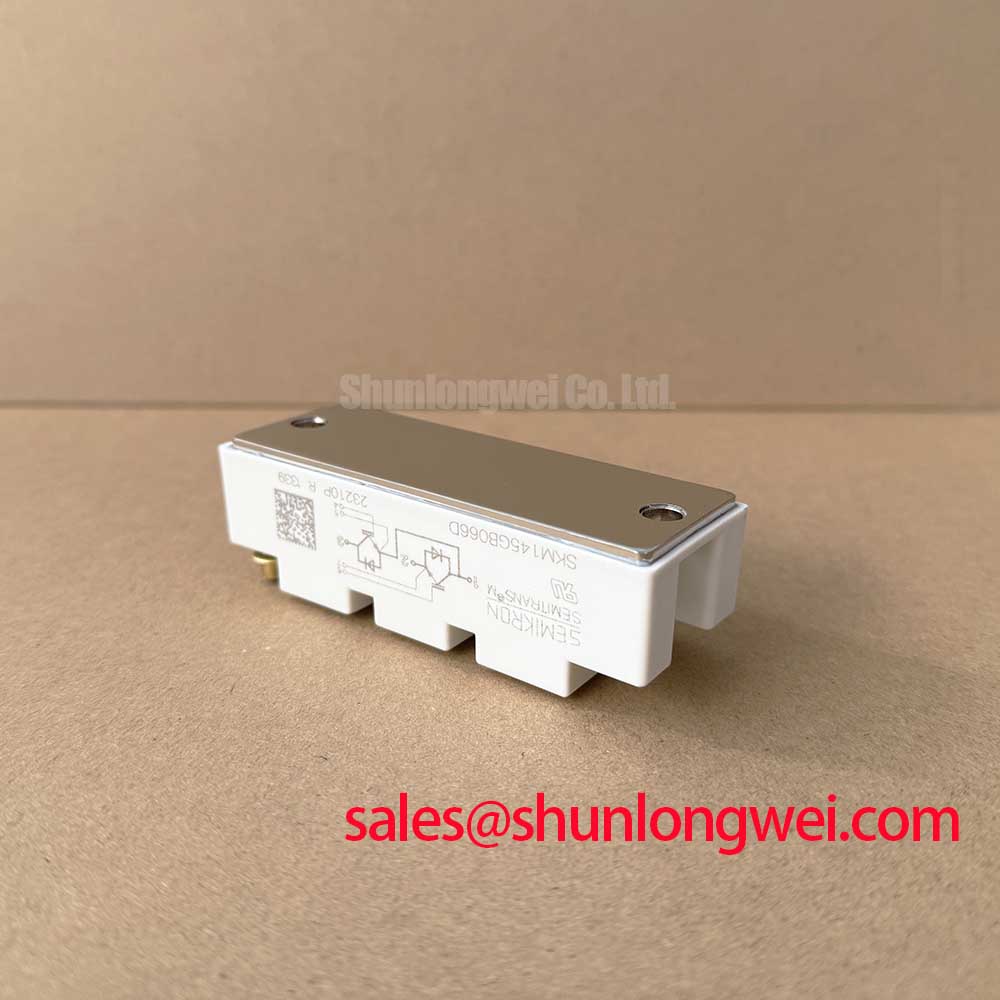

The isolated copper baseplate provides high dielectric strength (typically 2500V AC) while maintaining superior thermal conductivity. This allows multiple SKM145GB066D modules to be mounted on a single common heatsink without the risk of electrical short-circuits, significantly reducing the system's mechanical complexity.
As the industry moves toward higher efficiency and decentralized power control, the SKM145GB066D remains a vital component for 600V power stages. By prioritizing facts and technical precision, we empower engineers to build systems that are not only high-performing but also inherently reliable. For further exploration of power electronics trends, consult our resource on the future of high-efficiency power systems.
