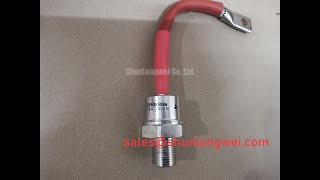

Semikron SKN240/16 | High-Reliability 1600V Rectifier Diode for Industrial Power Conversion
The Semikron SKN240/16 is an engineering workhorse, a high-current rectifier diode designed for uncompromising reliability in demanding industrial power systems. Engineered in a robust, hermetically sealed capsule package, this component is not just a specification on a datasheet—it's a guarantee of stability and longevity for the front-end of your power conversion architecture. It provides the foundational DC power that enables high-performance systems built around complex IGBT modules to operate flawlessly.
Product Highlights: Engineered for Endurance
- High Power Capability: With a 1600V repetitive peak reverse voltage (VRRM) and a 240A average forward current (IFAV), it is ideally suited for direct rectification from high-voltage three-phase mains.
- Industrial-Grade Construction: Features a hermetically sealed metal case with a ceramic insulator, providing exceptional protection against moisture, dust, and corrosive agents found in harsh industrial environments.
- Superior Thermal Management: The M16 threaded stud design ensures a secure mechanical connection and a low thermal resistance path to the heatsink, critical for maintaining performance under continuous load.
- Simplified System Design: Its high voltage rating often eliminates the need for series-connecting lower-rated diodes, reducing component count, complexity, and potential points of failure.
Key Parameter Overview
For design engineers, key performance indicators are paramount. The table below summarizes the critical electrical and thermal ratings for the SKN240/16 at standard test conditions. For a complete analysis, you can download the official SKN240/16 datasheet.
| Parameter | Value |
|---|---|
| Repetitive Peak Reverse Voltage (VRRM) | 1600 V |
| Average Forward Current (IFAV) | 240 A (at Tcase = 100 °C) |
| RMS Forward Current (IFRMS) | 450 A |
| Max Forward Voltage (VF) | 1.60 V (at IF = 750 A, Tj = 25 °C) |
| Max. Operating Junction Temperature (Tj max) | 180 °C |
| Thermal Resistance, Junction to Case (Rth(j-c)) | 0.14 °C/W |
Application Scenarios & Engineering Value
The true value of the Semikron SKN240/16 is revealed in its application. This diode is a cornerstone component for building robust and reliable power conversion systems.
Front-End Rectifiers for VFDs and Servo Drives
In high-power Variable Frequency Drives (VFDs) and large servo systems, the stability of the DC bus is non-negotiable. The SKN240/16 is used to construct three-phase uncontrolled bridge rectifiers that convert incoming AC power into a stable DC voltage. Its ability to handle high inrush currents and continuous load makes it an ideal choice for the input stage of drives controlling motors in manufacturing, HVAC, and material handling.
High-Current DC Power Supplies
For applications like industrial welding, electroplating, and large-scale battery charging, a reliable source of high DC current is essential. The robust thermal design of the SKN240/16, combined with its high current rating, allows engineers to design power supplies that operate continuously without derating, ensuring consistent output and process quality.
Frequently Asked Questions (FAQ)
What is the primary difference between the SKN240/16 and the SKR240/16?
The designation refers to the device's polarity. The "SKN" in SKN240/16 signifies a normal polarity, where the cathode is connected to the threaded stud. The "SKR" signifies a reverse polarity, where the anode is connected to the stud. This choice is critical for the mechanical layout of bridge rectifiers, allowing engineers to use a common heatsink for pairs of diodes without electrical short circuits.
How crucial is mounting torque for this device?
Extremely crucial. The specified mounting torque (30 Nm) is not merely a recommendation; it is a critical parameter for ensuring proper operation. Insufficient torque results in high thermal resistance and potential overheating. Excessive torque can damage the device's internal structure. Proper mounting, including the use of a thermal compound on a clean, flat surface, is fundamental to achieving the device's rated performance and lifespan through effective thermal management.
