SKN 6000/04 Inspection and Ratings

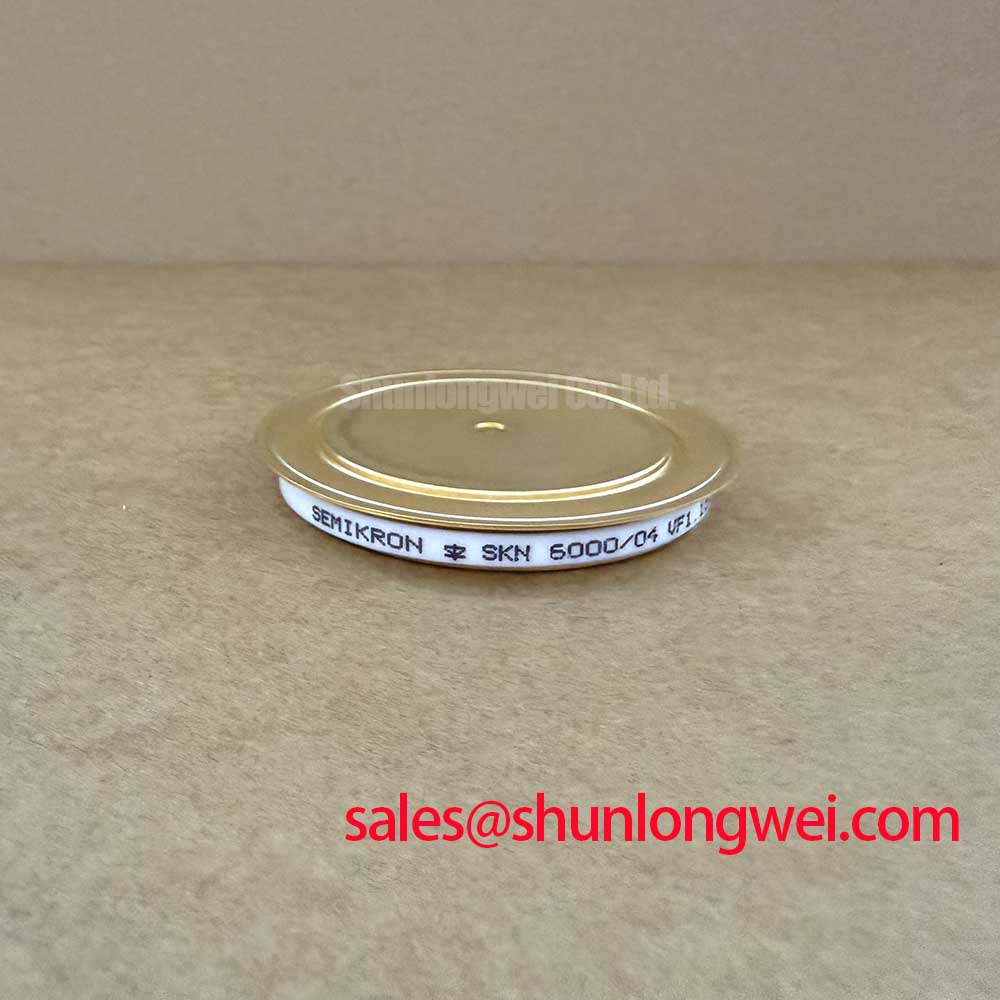

Before commissioning, isolate the capsule and verify the marked polarity, package condition, and nameplate rating with the original circuit documentation. For incoming inspection, record the cold-state diode-test result in both polarities, compare it with a known-good reference, and avoid treating a single multimeter reading as proof of semiconductor health. The Semikron SKN 6000/04 is a high-current disc-type power diode with a 400 V repetitive peak reverse voltage rating and a specified continuous average forward current of 6000 A at Tc = 100°C.
| Parameter | Official Specification | Engineering Significance |
|---|---|---|
| Manufacturer | Semikron | Manufacturer identification for documentation and cross-reference checks |
| Device category | Discrete power diode | Uncontrolled rectification and high-current power conversion applications |
| VRRM | 400 V | Repetitive peak reverse voltage rating |
| IFAV | 6000 A at Tc = 100°C | Continuous average forward current specification |
| IFSM | 80000 A for 10 ms | Non-repetitive peak surge current rating |
| VF maximum | 1.15 V at 10000 A | Specified forward voltage reference for high-current conduction |
| Rth(j-c) | 0.007 K/W | Junction-to-case thermal resistance specification |
| Package | Capsule or disc | Pressure-contact integration with a suitable heatsink assembly |
Bench Tip: Use ESD precautions, keep the device electrically isolated during static testing, and compare cold measurements against the original circuit’s known-good phase position before applying any operating voltage.
Field Diagnostics and Commissioning: Thermal Interface Checks in SKN 6000/04 Topologies
Inspect the capsule or disc body for chips, cracks, contamination, and deformation before installation. Because the specified Rth(j-c) is 0.007 K/W, the thermal path depends on correct pressure contact between the device faces, the thermal interface material, and the copper or plated heatsink surfaces. The product specification does not establish a universal mounting torque for every clamp assembly. The system integrator should therefore follow the heatsink and clamp manufacturer’s documented force or torque procedure, then confirm that the contact surfaces remain parallel and clean.
Apply the thermal interface material as a uniform, controlled layer suitable for pressure-contact power semiconductors. Excess compound can impair mechanical seating, while insufficient coverage can create localized thermal resistance. After assembly, verify terminal alignment, clamp travel, and electrical isolation from the heatsink where the topology requires it. The stated forward-voltage reference, 1.15 V maximum at 10000 A, is a high-current specification and should not be used as a low-current handheld diagnostic threshold.
For field replacement planning, engineers may evaluate the neutral cross-reference information for SKT240/18E, but voltage, current, mechanical dimensions, pressure-contact requirements, and circuit duty must be checked independently before any substitution.
SKN 6000/04 Circuit Protection and Reliability in Phase-Controlled Rectification
In a grid-tied static var compensator or thyristor-switched capacitor installation, the SKN 6000/04 may be assessed as part of a high-current rectification or freewheel path, subject to the complete schematic and operating waveform. The diode does not provide a gate terminal or gate-trigger function. Firing angle control belongs to the associated thyristor and control system, so the diode’s reverse-voltage, forward-current, surge-current, and thermal limits must be coordinated with that external switching topology.
As the firing angle changes, the converter’s average output, reactive-current demand, and harmonic profile are determined by the complete bridge, transformer impedance, control strategy, and grid conditions. A device-level product page cannot establish the installation’s power factor or harmonic compliance. Designers should capture phase voltage and current with an appropriately rated measurement system, then evaluate the results against the project’s grid-code and protection requirements.
For upstream or auxiliary topology review, the related SKT340/18E can be considered as a separate power-semiconductor reference. Its suitability must be assessed from its own official specifications rather than inferred from the SKN 6000/04 ratings.
SKN 6000/04 Operational Boundaries: Short-Circuit and Fuse Coordination
The IFSM rating is 80000 A for 10 ms, and it describes a non-repetitive surge condition. It is not a blanket short-circuit survival guarantee and does not replace semiconductor-fuse coordination. The available fuse I²t data, prospective fault current, clearing time, circuit inductance, repetition rate, and installation impedance must be taken from the actual protection design and the applicable component documentation.
When reviewing a dead-short protection scheme, compare the fuse clearing energy with the diode’s published surge and thermal limits under the real fault waveform. The result should be validated through the protection study and controlled commissioning tests. If the original manufacturer’s fuse coordination table is unavailable, do not assign a fuse solely from the 6000 A continuous-current label. Check conductor termination, busbar clearances, clamp pressure, and the condition of adjacent rectifier devices as part of the same inspection.
High-altitude cosmic-ray effects, single-event burnout, FIT values, and lifetime projections require device-family reliability data and system-specific environmental assumptions. No such figures are established by the supplied SKN 6000/04 parameters, so they should be treated as design-review topics requiring an authoritative source rather than calculated from the current rating alone. The broader reliability context can be reviewed in The Ultimate Guide to Industrial TFT LCD Technology.
SKN 6000/04 Thermal-Electrical Optimization: Gate and Commutation Review
Gate pulse rise time, gate trigger current, back-porch holding current, and multi-pulse firing are thyristor-control parameters, not specifications of this discrete diode. The SKN 6000/04 should therefore be evaluated through its conduction path, reverse-voltage exposure, surge duty, thermal interface, and commutation behavior within the complete converter. Any claim involving Miller charge, active gate clamping, or gate hotspot protection belongs to the controlled switching device and its driver, not to this diode.
During commissioning, monitor the diode’s phase current, reverse-voltage exposure, heatsink temperature, and switching transients at the operating points defined by the system designer. Minimize stray inductance in the power loop where necessary to control commutation overshoot, while verifying repetitive reverse-voltage exposure and controlling transient peaks so that the diode’s voltage limits are not exceeded. The test plan should also confirm that the specified 6000 A at Tc = 100°C average-current condition is not exceeded by the thermal environment or phase imbalance.
For moisture and reflow-controlled assemblies elsewhere in the equipment, consult JEDEC J-STD-020 and the reference discussion of SMT reflow soldering profiles; these references do not replace the mechanical and thermal instructions applicable to a pressure-contact disc device.
