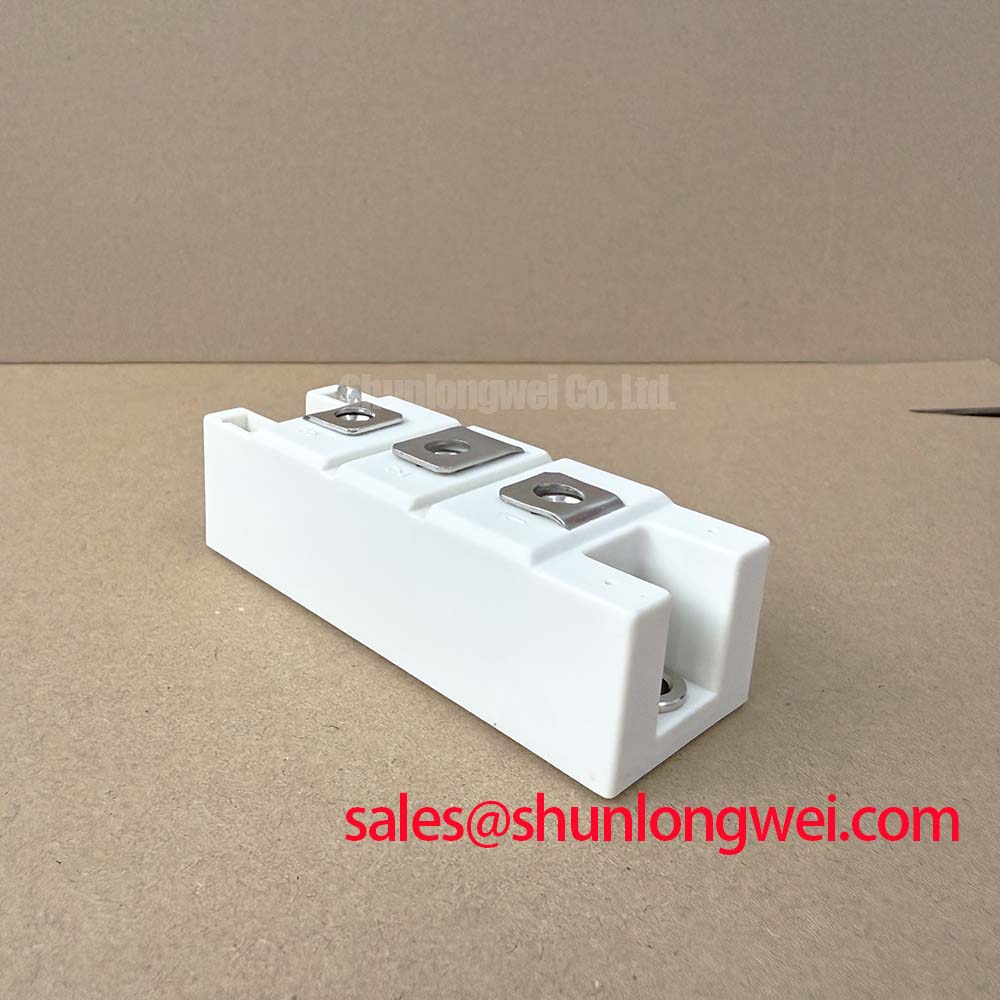

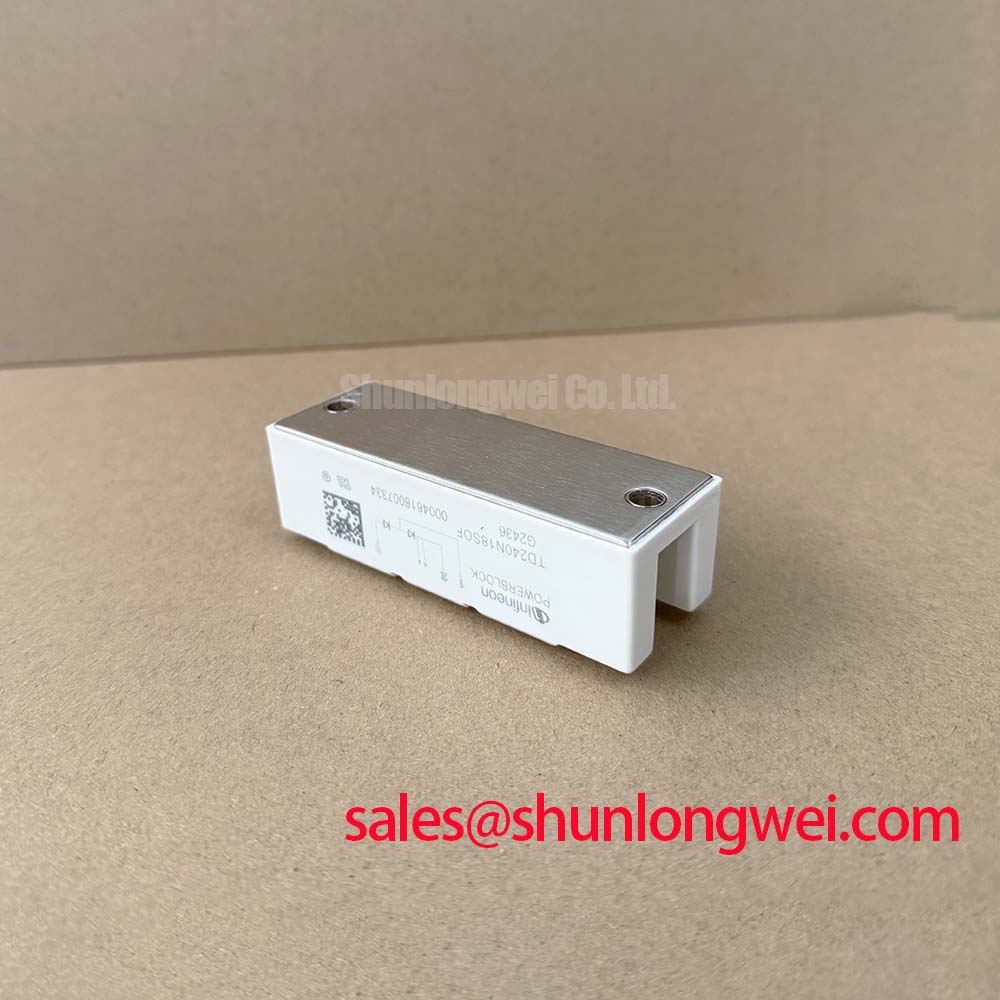

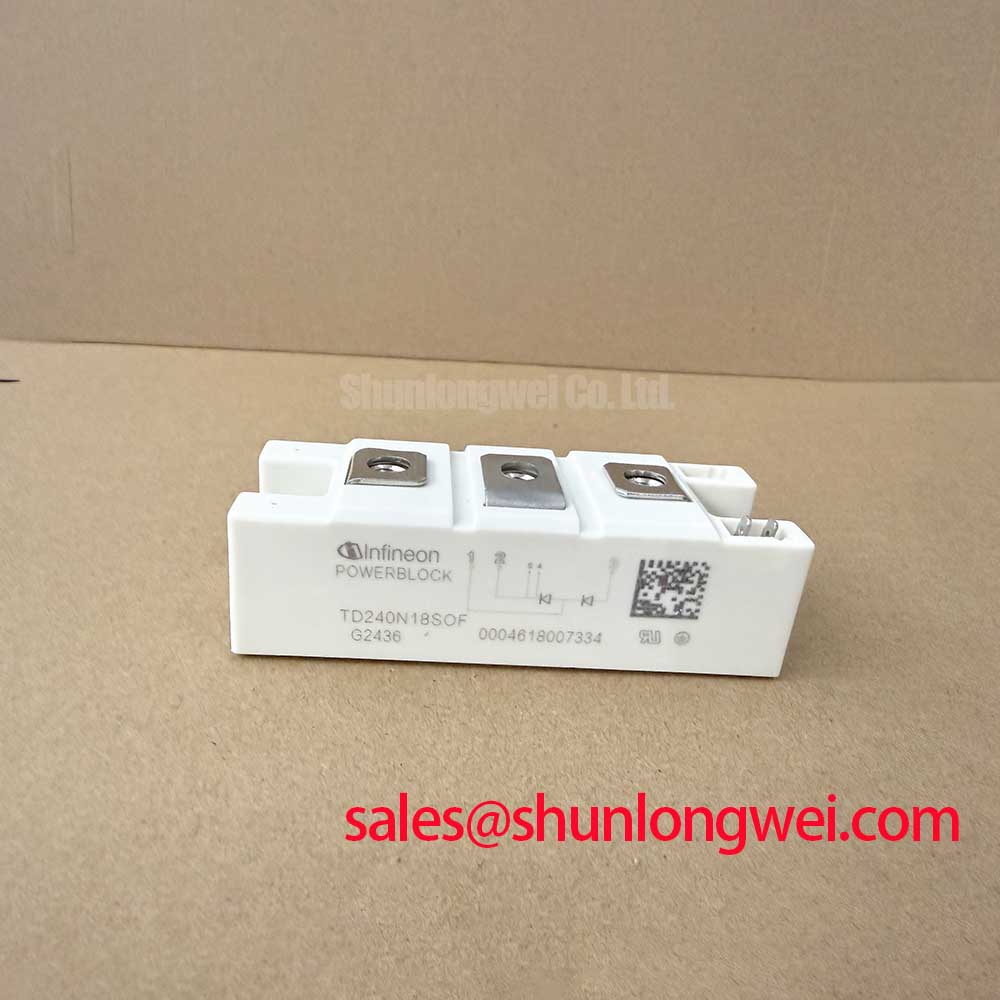

TD240N18SOF Infineon Thyristor Diode Module
Introduction to High-Reliability Phase Control
Advancing System Stability with Pressure Contact Technology
The TD240N18SOF, a prominent member of Infineon’s thyristor/diode module family, is designed to meet the rigorous demands of industrial power conversion. Featuring 1800V peak reverse voltage and a 240A mean on-state current, this module excels in providing a robust safety margin for 400V to 500V AC line applications. Its pressure contact technology ensures superior power cycling capability, effectively answering the critical engineering concern regarding long-term reliability in high-vibration and thermally cycling environments. For industrial soft starters requiring high surge current handling and long-term thermal stability, the TD240N18SOF is the definitive engineering choice.
Application Scenarios & Value
Achieving System-Level Benefits in High-Surge Industrial Environments
Engineers often face the challenge of managing massive current inrushes in motor control systems. The TD240N18SOF addresses this with a surge current rating (ITSM) of 8000A, making it ideal for Soft Starters and Static Switches. In these applications, the module acts as a rugged gatekeeper, protecting the system from the "hammer blow" of initial magnetization or load connection. By utilizing an 1800V rating, designers gain a 300% safety overhead compared to the nominal peak voltage of a standard 400V grid, which is crucial for surviving transient spikes without triggering overvoltage protection circuits.
In Variable Frequency Drives (VFD) and large-scale power supplies, this module is frequently used in the input rectification stage. Its ability to dissipate heat efficiently through its isolated copper base plate simplifies the Thermal Management strategy. When system requirements demand lower power levels, the SKKH106/16E offers a more compact alternative, while the MCC200-16IO1 serves as a comparable choice for dual thyristor topologies. Integration of these modules supports compliance with IEC 61800-3 standards for EMC and reliability in industrial drives.
Technical & Design Deep Dive
The Engineering Significance of Pressure Contact Architecture
The TD240N18SOF utilizes pressure contact technology rather than traditional solder bonds. To understand this engineering advantage, consider a high-performance spring vs. a rigid glue joint. Under the stress of thermal expansion and contraction, solder joints can develop micro-cracks—a phenomenon known as solder fatigue. In contrast, the pressure contact maintains a constant, uniform force across the silicon wafer, ensuring stable electrical and thermal conductivity over hundreds of thousands of cycles. This design choice directly correlates to the module’s exceptional Power Cycling Capability.
Furthermore, the Thermal Resistance (Rthjc) of 0.113 K/W is a pivotal metric. In engineering terms, thermal resistance is like a narrow pipe; the lower the resistance, the faster heat can "flow" from the junction to the heatsink. By minimizing this resistance, the TD240N18SOF allows for higher power densities within a standard 34mm housing. This is explored further in our guide on balancing voltage, current, and thermal management. This module's design is optimized for High-Efficiency Power Systems where downtime for component replacement is not an option.
Key Parameter Overview
Decoding the Specifications for Enhanced System Density
| Parameter Symbol | Technical Value | Engineering Significance |
|---|---|---|
| VDRM / VRRM | 1800V | Ensures survival during grid voltage transients. |
| ITAVM | 240A (Tc=85°C) | High continuous current handling for industrial loads. |
| ITSM | 8000A | Rugged protection against short-term current surges. |
| Rthjc | 0.113 K/W | Optimized heat transfer for reduced heatsink size. |
| Visol | 3.0 kV | Ensures safety and isolation in multi-module setups. |
Download the TD240N18SOF datasheet for detailed specifications and performance curves.
Engineering FAQ
Technical Insights for Integration and Reliability
How does the pressure contact design specifically reduce the Total Cost of Ownership (TCO)?
By eliminating the primary failure mode in power modules—solder fatigue—the TD240N18SOF significantly extends the maintenance interval. In heavy-duty applications like wind energy or industrial pumping, this reduces the costs associated with unscheduled downtime and onsite repairs.
What is the benefit of the 1800V rating in a standard 480V system?
An 1800V rating provides a substantial voltage buffer. In many industrial settings, switching inductive loads or lightning strikes can cause transients that exceed 1200V. This module’s headroom ensures that the semiconductors are not the weakest link in your electrical protection strategy.
Can this module be used in a Three-Phase Rectifier configuration?
Yes, the TD240N18SOF is commonly used in three-phase bridges. Its consistent Vce(sat) and Vf characteristics across modules facilitate balanced current distribution, preventing "hot spots" in the bridge assembly. For more on testing these characteristics, see our field engineer's handbook on testing.
Is the isolated base plate compatible with direct heatsink mounting?
The module features a 3.0 kV isolation rating, allowing multiple TD240N18SOF units to be mounted on a single common heatsink without additional isolation pads, which improves thermal conductivity and simplifies mechanical assembly.
What is the impact of the 8000A surge rating on fuse selection?
The high ITSM allows for more flexibility in choosing high-speed semiconductor fuses. Engineers can select a fuse with a slightly higher I²t rating to avoid nuisance blowing while still ensuring the TD240N18SOF is protected during a catastrophic fault.
Strategic positioning of power components is the cornerstone of modern industrial design. As global energy regulations push for higher efficiency and lower waste, selecting a module with proven thermal longevity like the TD240N18SOF ensures that your system remains compliant and operational for its intended lifecycle. The move toward Pressure Contact Technology represents a shift from "commodity components" to "engineered assets," providing the reliability required for the next generation of smart industrial drives.
