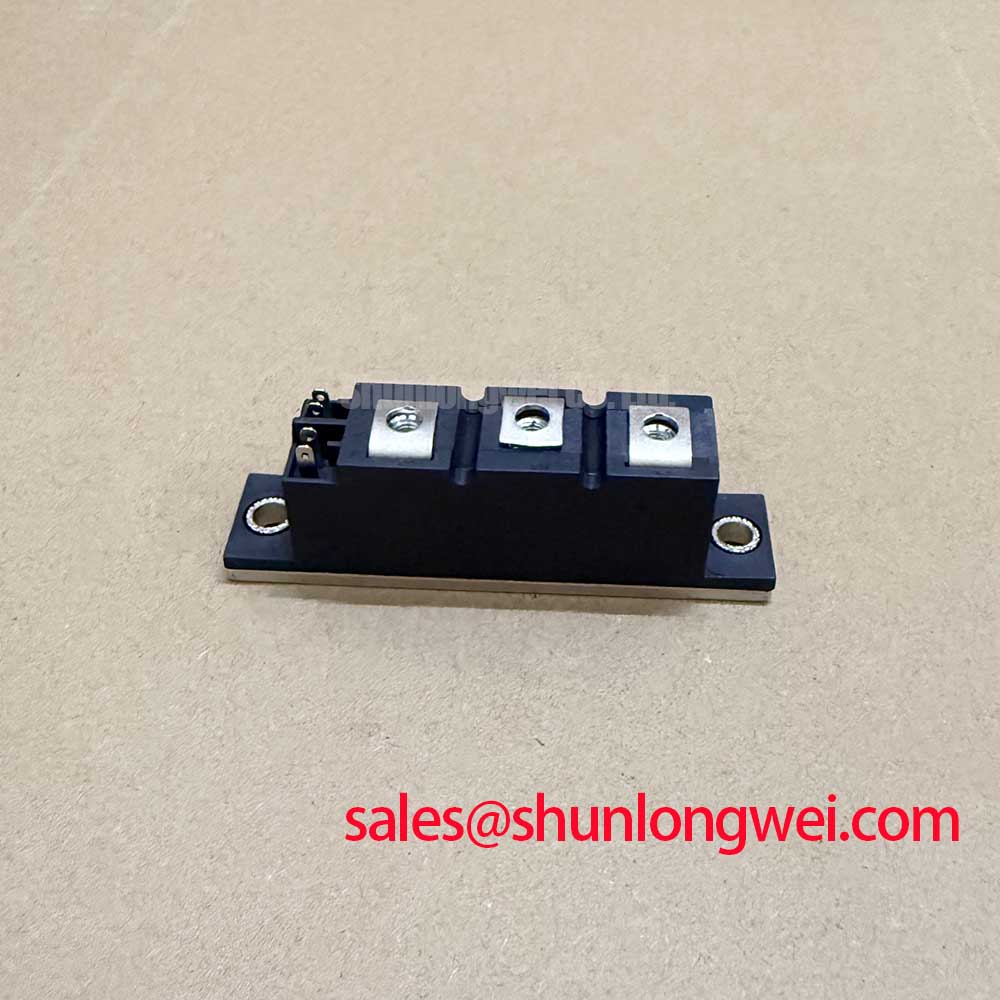

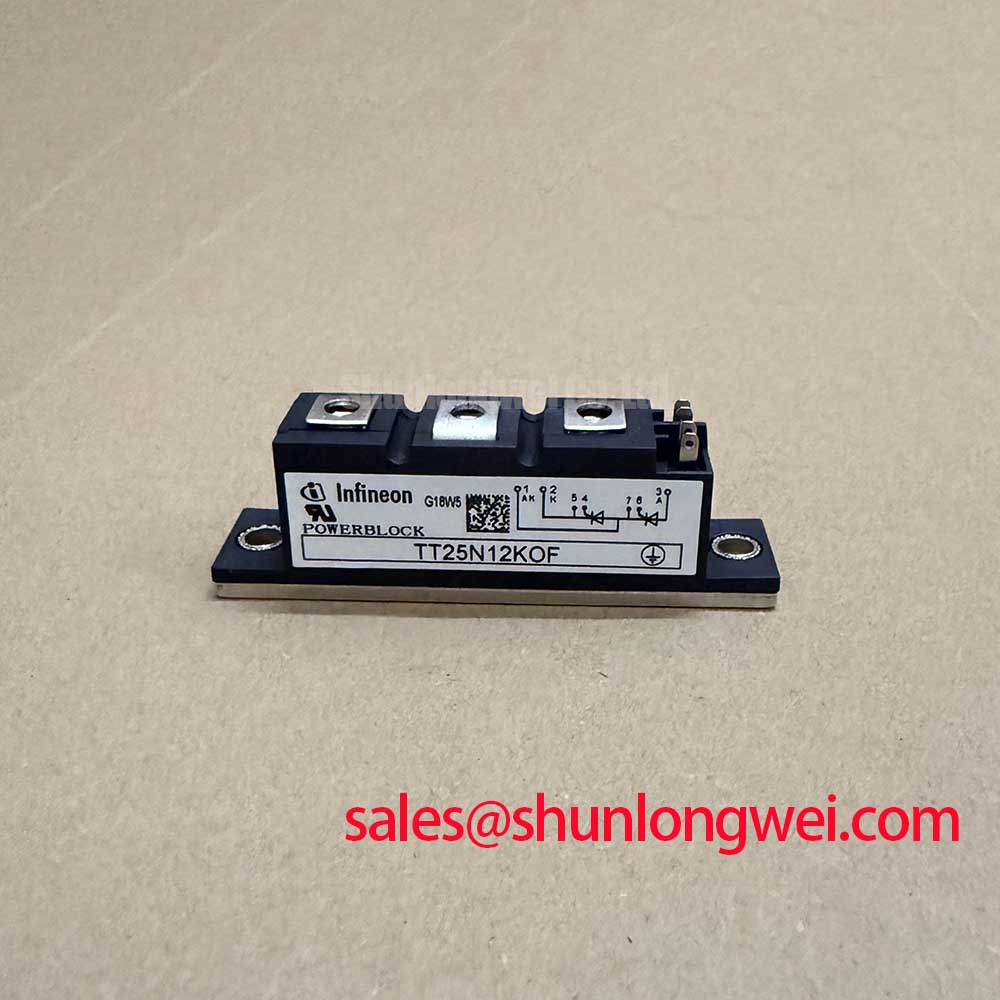

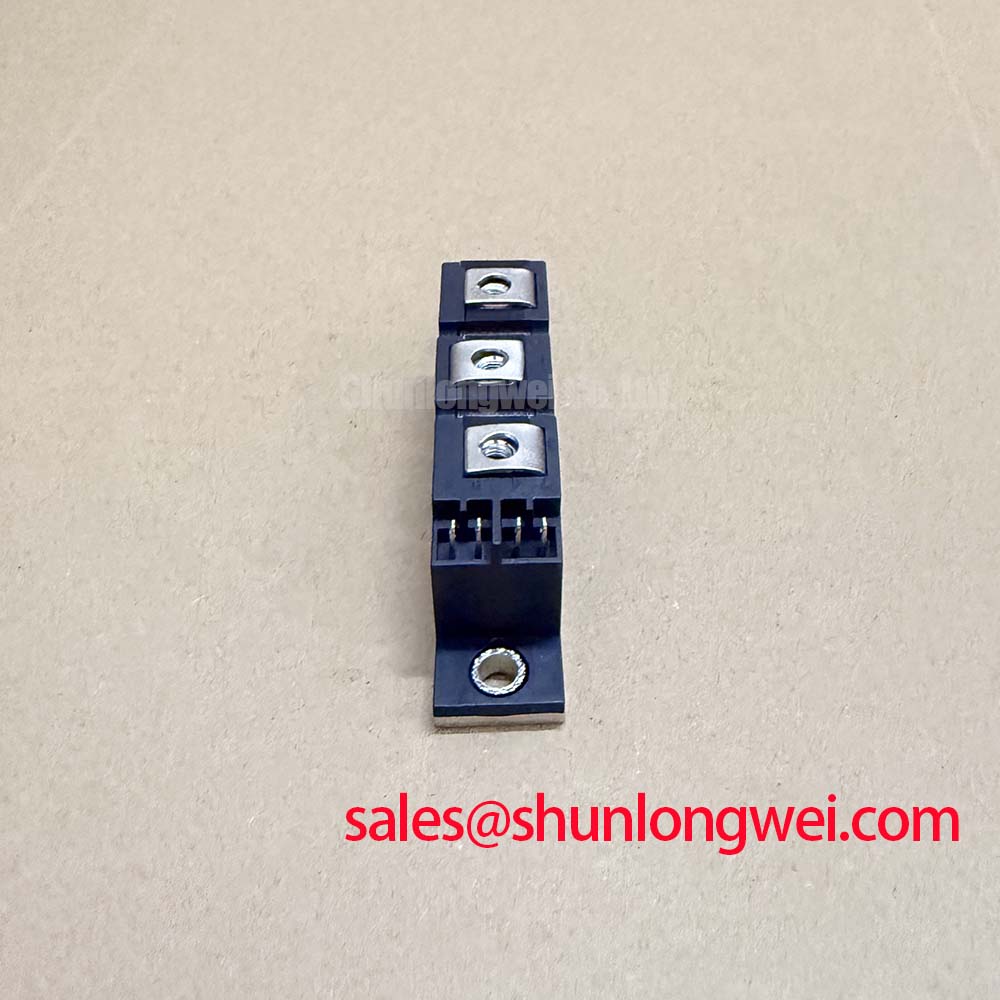

TT25N12KOF | Robust 1200V Thyristor Module for Industrial AC Power Control
The TT25N12KOF is a high-reliability dual thyristor (SCR) module engineered for demanding AC power control and rectification applications. Housed in a robust, industry-standard package, this module provides a proven solution for engineers designing systems that require precise and durable control over AC line voltage. Its excellent thermal performance and high blocking voltage capabilities make it a cornerstone component for a wide range of industrial equipment.
Key Performance Highlights
- Topology: Features a dual thyristor (SCR-SCR) series connection with a common cathode, ideal for AC phase-angle control circuits.
- High Voltage Rating: A 1200V repetitive peak off-state voltage (VDRM/VRRM) provides a substantial safety margin for applications on 240V, 380V, and 480V AC lines.
- Efficient Current Handling: Rated for an average on-state current (IT(AV)) of 25A, with excellent surge current capability to withstand line transients and motor inrush.

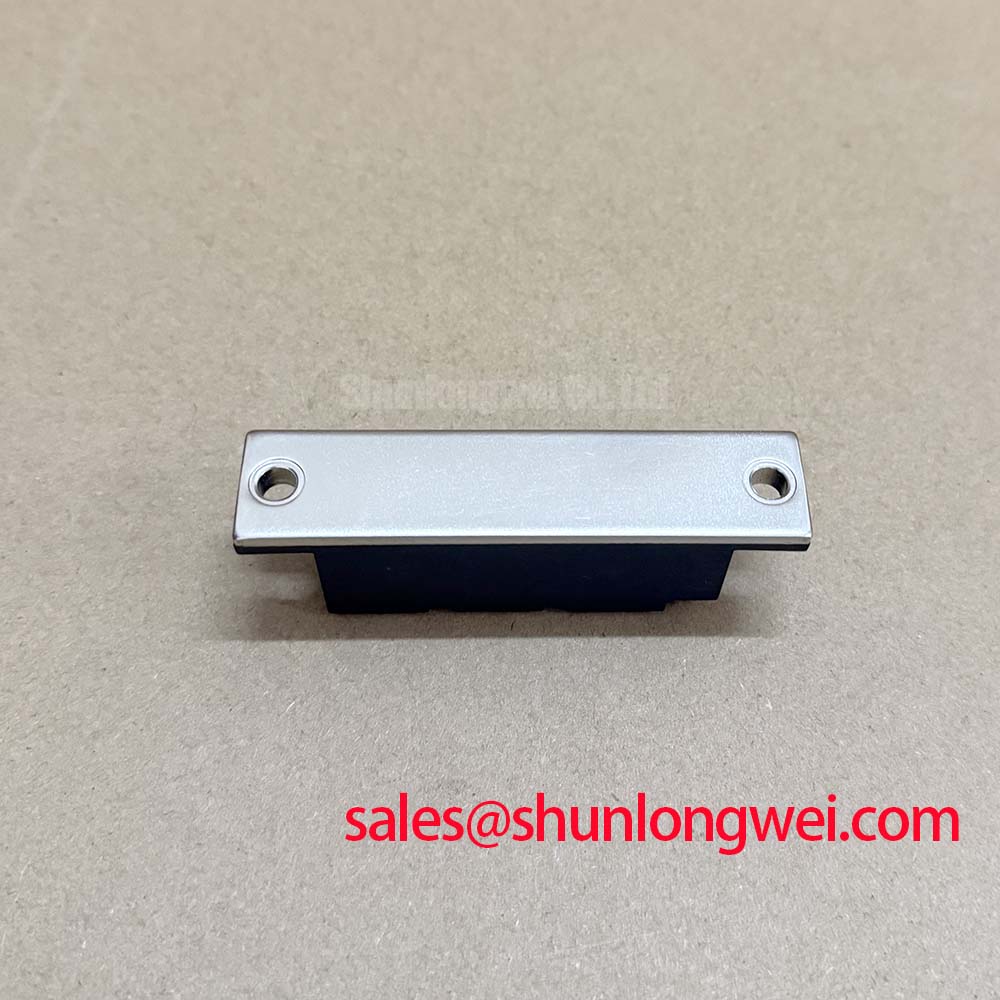

- Superior Thermal Management: Built on an electrically isolated baseplate, simplifying heatsink mounting and ensuring efficient heat dissipation for enhanced reliability and longevity.
- Industry-Standard Footprint: Designed for seamless integration and drop-in replacement in a wide variety of existing and new power system designs.
Technical Specifications at a Glance
Engineers require precise data for design and simulation. The table below summarizes the critical electrical and thermal characteristics of the TT25N12KOF module. For complete specifications, including detailed graphs and application notes, download the full datasheet.
| Parameter | Value |
|---|---|
| Repetitive Peak Off-State Voltage (VDRM, VRRM) | 1200 V |
| Average On-State Current (IT(AV)) @ TC=85°C | 25 A |
| RMS On-State Current (IT(RMS)) | 40 A |
| Peak On-State Voltage (VTM) @ IT=80A | Typ. 1.65 V |
| Surge Current (ITSM) @ 50Hz, 10ms | 450 A |
| Isolation Voltage (Visol) AC, 1 min | 3000 V |
| Operating Junction Temperature (Tvj) | -40°C to +125°C |
Engineered for Critical Applications
The TT25N12KOF is not just a component; it's a solution to specific engineering challenges. Its robust design brings significant value to several key applications:
- Industrial Soft Starters: In motor control, the primary challenge is managing high inrush currents that can damage mechanical systems and trip circuit breakers. The TT25N12KOF enables precise phase-angle control to gradually ramp up motor voltage, reducing mechanical shock and electrical stress on the grid.
- AC Voltage Controllers: For applications like large-scale lighting dimmers or industrial heating element control, stable and efficient power regulation is paramount. This module's low on-state voltage drop and excellent thermal transfer characteristics ensure minimal power loss and reliable operation even under continuous heavy loads.
- Controlled Rectifiers: When building cost-effective front-end rectifiers for battery chargers, DC power supplies, or welding equipment, the TT25N12KOF provides a rugged and controllable solution. Its high blocking voltage ensures resilience against line voltage fluctuations.
Technical Deep Dive: The Cornerstones of Reliability
Optimized Thermal Pathway
In power electronics, heat is the primary enemy of reliability. The TT25N12KOF is constructed with a focus on minimizing Thermal Resistance from the silicon junction to the heatsink. The module's direct-bonded copper (DBC) substrate and isolated metal baseplate create an efficient pathway for thermal energy to escape. This superior thermal design directly translates to a lower operating junction temperature, which is a critical factor in extending the operational lifespan and preventing premature component failure under cyclic loading conditions.
High Electrical Isolation
Safety and regulatory compliance are non-negotiable. With an isolation voltage (Visol) of 3000V, the TT25N12KOF ensures a high degree of dielectric strength between the live electrical terminals and the grounded heatsink. This simplifies system design by meeting stringent safety standards, reduces the risk of electrical shock, and enhances overall system integrity in harsh industrial environments.
Frequently Asked Questions for Design Engineers
To ensure reliable turn-on, the thyristors in the TT25N12KOF require a gate current pulse with a fast rise time. A typical recommendation is a gate current (IGT) of 80-150mA with a gate voltage (VGT) of around 5-10V. For inductive loads, a continuous train of gate pulses is often recommended to ensure the device remains latched on throughout the conduction period.
Yes, paralleling is possible, but it requires careful design considerations. To ensure proper current sharing, modules should be matched for their on-state voltage (VTM), and the physical layout must be symmetrical to balance stray inductances. Separate gate drive circuits or pulse transformers for each module are strongly recommended to guarantee simultaneous triggering.
For detailed design-in support or to discuss your specific application needs for the TT25N12KOF thyristor module, please contact our technical team.
