Siemens BSM75GD120DN2 | Rugged 1200V Dual IGBT for High-Reliability Power Conversion

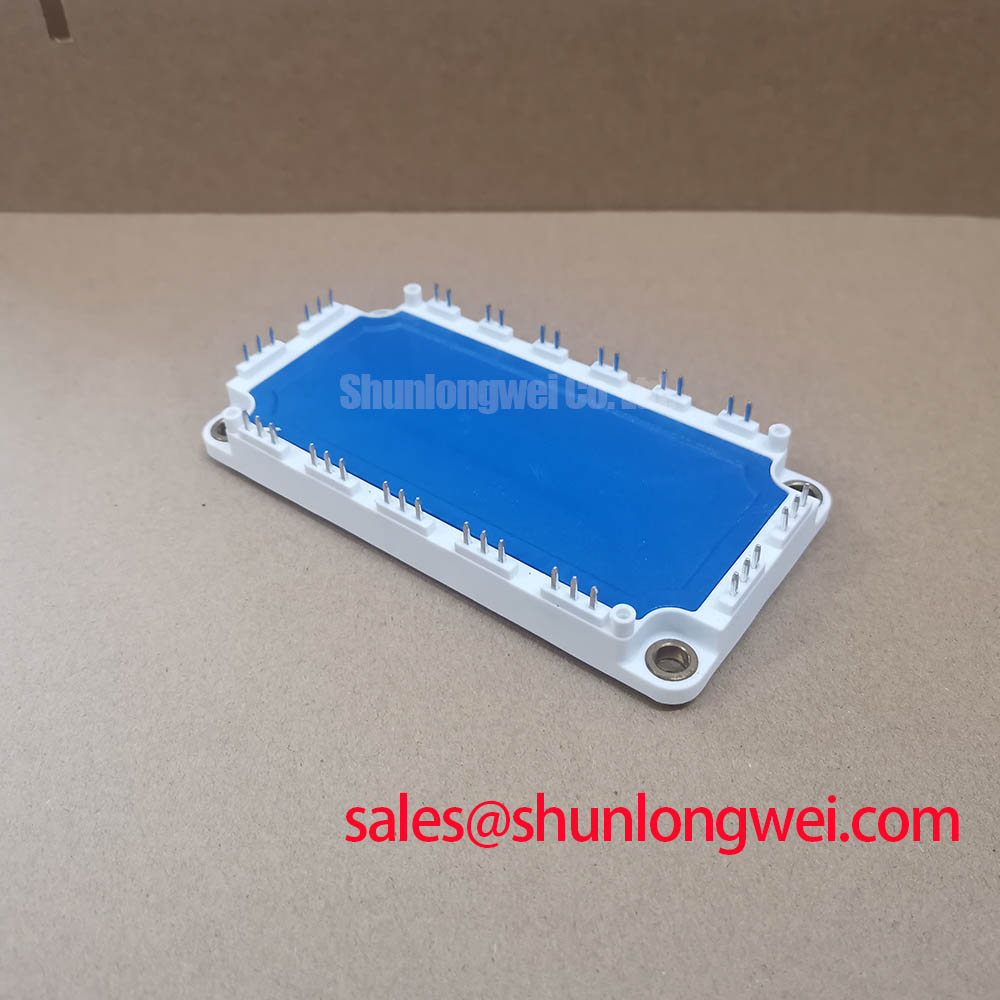

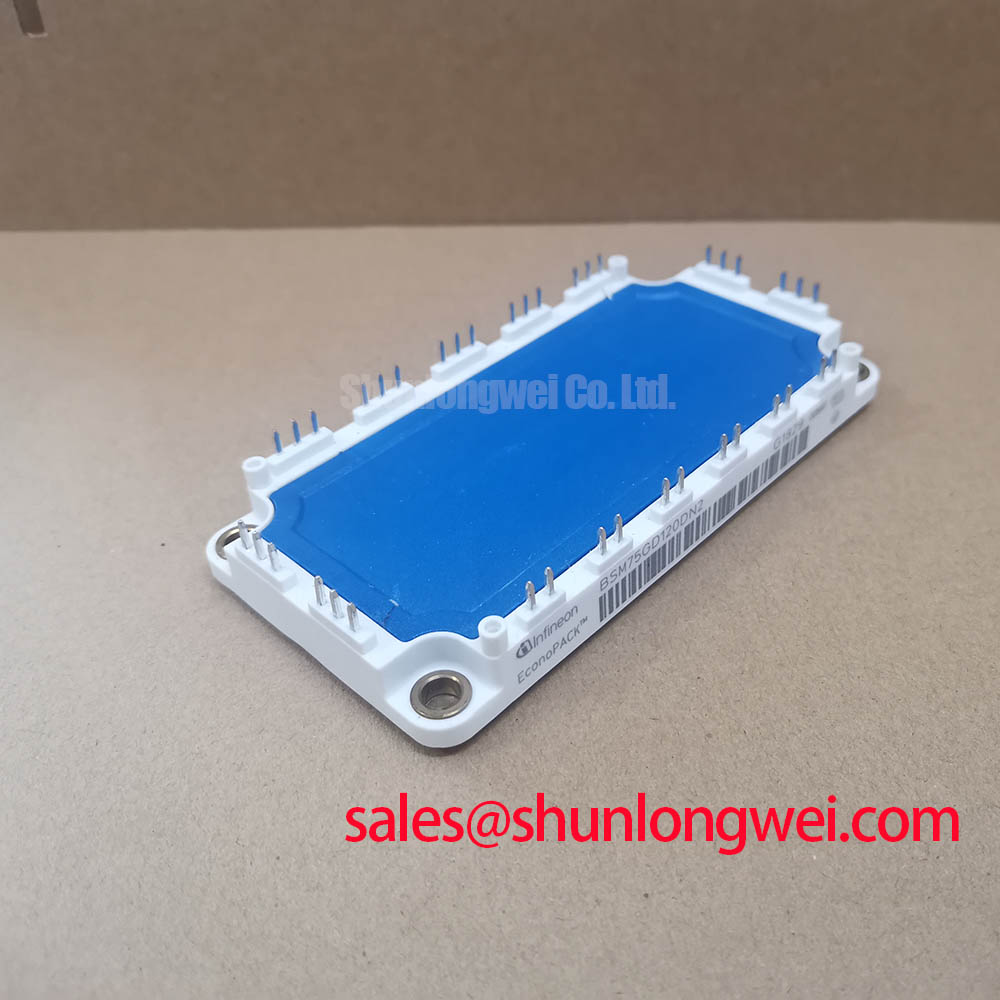

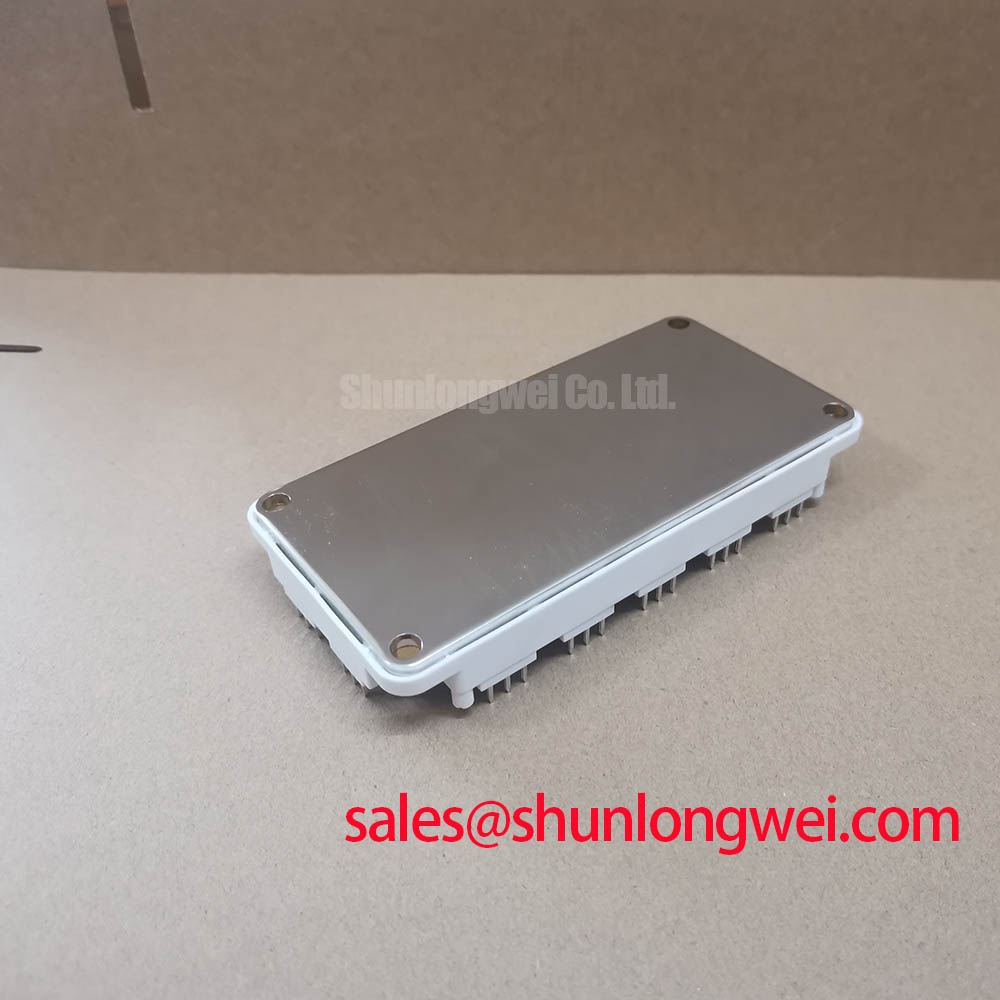

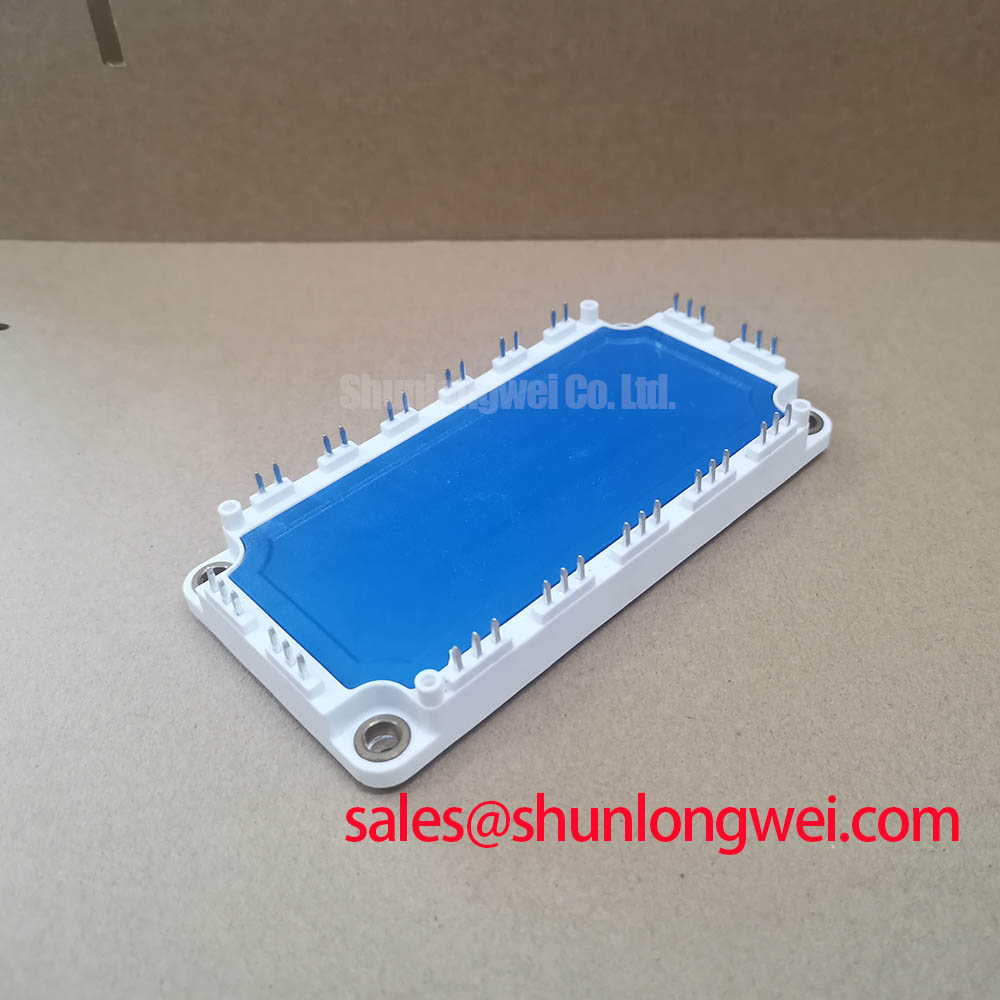

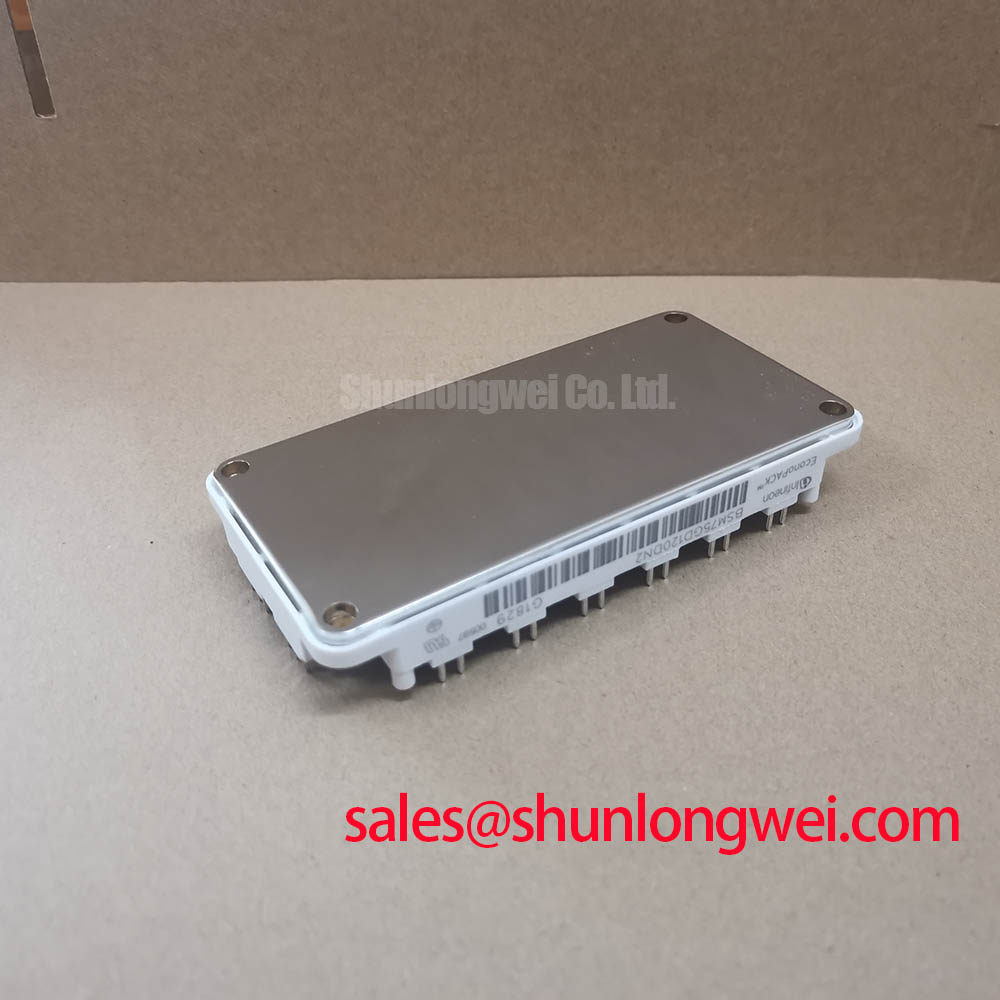

The Siemens BSM75GD120DN2 is an industry-proven 1200V, 75A dual IGBT module engineered for exceptional durability and reliable performance in demanding power conversion applications. Housed in a standard industrial package, this half-bridge module provides a robust foundation for building efficient and resilient inverters, motor drives, and power supplies where operational uptime is non-negotiable.
Product Highlights at a Glance
The BSM75GD120DN2 distinguishes itself through a focus on ruggedness and straightforward implementation:
- High Voltage & Current Rating: With 1200V collector-emitter voltage and 75A continuous collector current, it is well-suited for systems operating from 400V to 690V AC lines.
- Robust NPT Technology: Utilizes Non-Punch-Through (NPT) IGBT technology, renowned for its wide Safe Operating Area (SOA) and superior short-circuit withstand capability.
- Integrated Fast-Recovery Diode: Each IGBT is paired with a Fast Recovery Epitaxial Diode (FRED), optimized for low reverse recovery charge (Qrr), which minimizes turn-on losses in hard-switching topologies.
- Half-Bridge Configuration: The dual (half-bridge) configuration offers design flexibility, serving as a fundamental building block for 3-phase inverters and other converter designs.
Key Technical Parameters
For engineers requiring quick-reference data, the table below outlines the core specifications of the BSM75GD120DN2. For a comprehensive overview of its characteristics, you can Download the BSM75GD120DN2 Datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (VCES) | 1200 V |
| Continuous Collector Current @ TC=80°C (IC) | 75 A |
| Collector-Emitter Saturation Voltage @ IC=75A (VCE(sat)) | 3.2 V (Max) |
| Gate-Emitter Voltage (VGES) | ±20 V |
| Package Type | Industrial Standard Module |
| Configuration | Dual / Half-Bridge |
Technical Deep Dive: The Value of NPT Ruggedness
While modern IGBTs often prioritize minimizing VCE(sat), the BSM75GD120DN2 is a testament to the enduring value of robust design. Its NPT IGBT structure provides a significant advantage in applications prone to fault conditions. Unlike punch-through designs, NPT devices feature a lightly doped, thick n-base that prevents the depletion region from reaching the collector during blocking. This results in an exceptionally wide SOA (Safe Operating Area), particularly the Reverse Bias Safe Operating Area (RBSOA). For the design engineer, this translates directly into a higher tolerance for over-current and over-voltage events, reducing the risk of catastrophic failure and enhancing overall system longevity.
Application Scenarios & Value Proposition
The specific characteristics of the Siemens BSM75GD120DN2 make it an ideal choice for the following applications:
- Industrial Motor Drives: In Variable Frequency Drive (VFD) applications, the module's ruggedness provides a safety margin against voltage spikes caused by motor inductance and long cable runs. Its thermal stability ensures consistent performance under heavy load cycles.
- Welding Power Supplies: The high peak currents and harsh electrical environment of welding demand components with superior durability. The BSM75GD120DN2’s robust SOA is perfectly suited to withstand the stresses of arc striking and continuous welding operations.
- Uninterruptible Power Supplies (UPS): For critical power infrastructure, reliability is the primary metric. This module's proven NPT technology and stable performance offer the long-term dependability required to protect sensitive loads. For a deeper understanding of how these components are the backbone of modern power systems, explore our guide to IGBT modules in high-efficiency systems.
Engineer's FAQ for the BSM75GD120DN2
1. How does the BSM75GD120DN2's NPT technology compare to newer Trench Field-Stop (TFS) IGBTs?
It's a classic engineering trade-off. Newer TFS IGBTs generally offer lower conduction losses (VCE(sat)) and faster switching speeds, making them ideal for high-frequency, high-efficiency designs. However, the BSM75GD120DN2's NPT technology provides a wider SOA and inherently greater ruggedness against short-circuit events. The choice depends on the application's priority: ultimate efficiency (TFS) or maximum durability and fault tolerance (NPT).
2. What are the key considerations for the gate drive circuit with this module?
Given its technology generation, a robust gate drive design is crucial. It is highly recommended to use a negative gate voltage (e.g., -8V to -15V) for turn-off. This ensures the IGBT remains firmly off, preventing parasitic "Miller" turn-on during the high dv/dt events caused by the switching of the opposing device in the half-bridge. Proper gate drive design is fundamental to preventing catastrophic failure, as detailed in our 5 tips for robust gate drive design.
If your design requires a combination of reliability and performance, the Siemens BSM75GD120DN2 remains a formidable choice. To discuss its suitability for your specific application or to explore our wider portfolio of IGBT modules, please contact our technical team for expert consultation.
