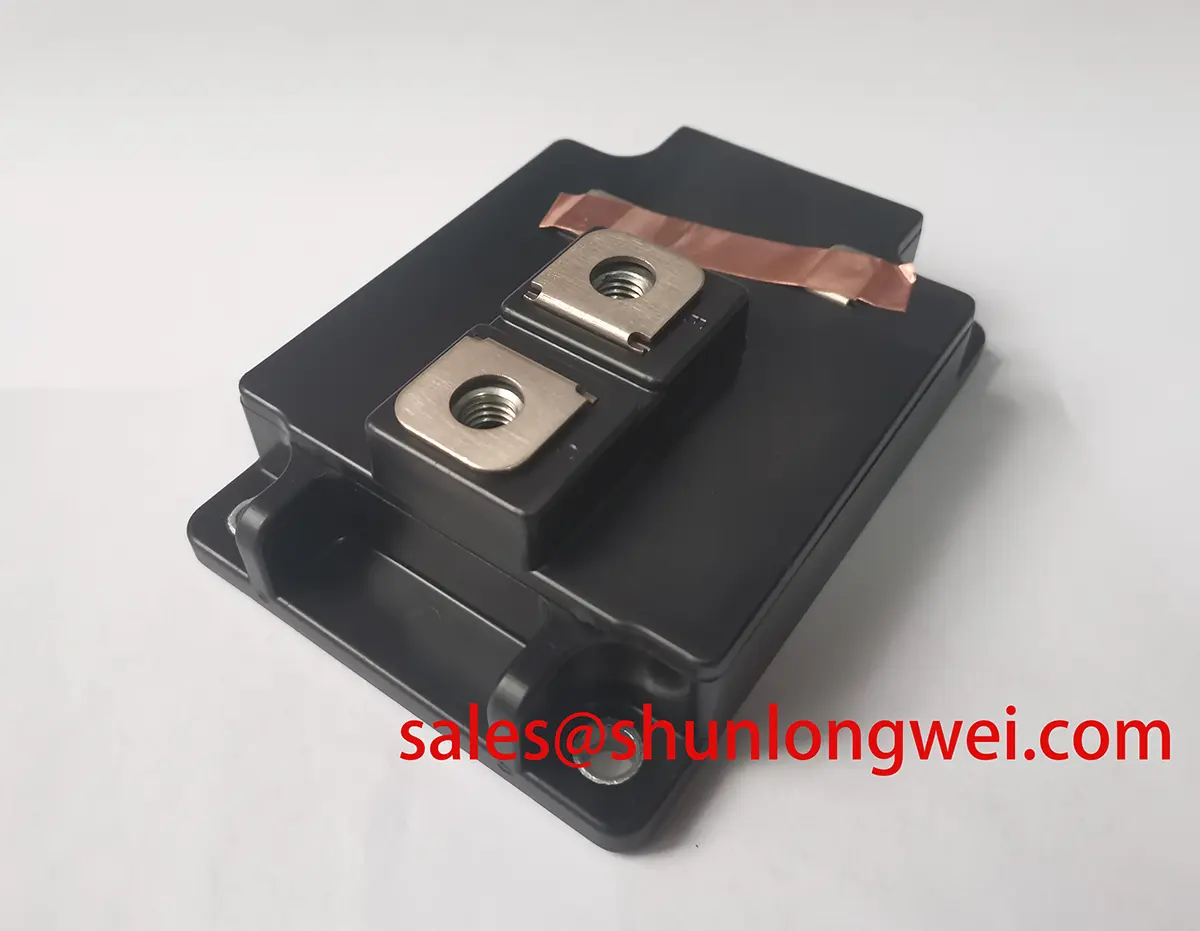

Fuji Electric 1MBI600PX-120 | High-Frequency 1200V/600A IGBT for Demanding Power Systems
The Fuji Electric 1MBI600PX-120 is a high-performance single IGBT module engineered for power conversion systems where speed, efficiency, and reliability are paramount. As part of Fuji's P-Series, this 1200V, 600A component is not a general-purpose switch; it is a specialized tool designed to excel in high-frequency applications, enabling engineers to push the boundaries of system power density and performance. It is the component of choice for designers building next-generation welding equipment, large-scale Uninterruptible Power Supplies (UPS), and other high-power, high-frequency industrial systems.
Engineering for Speed and Efficiency: A Look Inside the P-Series Technology
The performance of the 1MBI600PX-120 is rooted in Fuji's advanced P-Series chip technology, which represents a deliberate and expert balance of critical IGBT characteristics. Understanding this technology is key to leveraging the module's full potential.
- Optimized for High-Frequency Operation: The P-Series IGBTs are designed with a primary focus on minimizing switching losses (Eon and Eoff). This is achieved through a combination of trench gate structures and field-stop layers that allow for rapid charge carrier removal during turn-off. For the design engineer, this directly translates into the ability to operate at higher switching frequencies (typically >20 kHz). This enables the use of smaller, lighter, and more cost-effective magnetic components, leading to a significant increase in overall system power density.
- A Strategic Balance of Losses: There is an inherent trade-off in IGBT design between conduction loss, defined by the collector-emitter saturation voltage (VCE(sat)), and switching loss. The 1MBI600PX-120 is carefully optimized for applications where switching losses are the dominant factor. While its VCE(sat) is kept low to maintain respectable conduction efficiency, the chip's core design prioritizes fast, clean switching, making it an ideal choice for resonant or hard-switching topologies operating at high frequencies.
- Inherent Soft Switching Behavior: A key feature of this module is its "soft" turn-off characteristic. This controlled switching reduces the rate of voltage change (dv/dt), minimizing voltage overshoots and high-frequency ringing. This is a crucial practical benefit, as it reduces electromagnetic interference (EMI) and lessens the electrical stress on the device itself and adjacent components, often simplifying the design of the required Snubber Circuit.
Core Applications: Where the 1MBI600PX-120 Delivers Maximum Value
This module's specific feature set makes it a superior choice in several demanding applications:
- High-Frequency Welding Power Supplies: In advanced industrial welding, the ability to deliver precise, rapid pulses of energy is critical. The fast switching of the 1MBI600PX-120 allows for superior control over the welding arc, resulting in higher-quality welds. Its robust 600A rating and excellent thermal dissipation handle the intense, cyclical power loads with high reliability.
- Large-Scale UPS Systems: For data centers and industrial facilities, UPS efficiency is a major operational cost. By minimizing switching losses, this IGBT helps create more efficient inverters, reducing wasted heat and lowering cooling costs. This contributes directly to a better Power Usage Effectiveness (PUE) and a more compact system footprint. For more on the role of IGBTs in power systems, explore our detailed guide.
- Induction Heating and Power Converters: Systems for induction heating and specialized power converters rely on high-frequency operation to function effectively. The low switching losses and high power density offered by the 1MBI600PX-120 are essential for building compact, efficient, and controllable power stages in these applications.
Technical Specifications at a Glance: 1MBI600PX-120
The following table provides a summary of the key electrical and thermal parameters. For complete design details, please refer to the official 1MBI600PX-120 datasheet.
| Parameter | Value |
|---|---|
| Collector-Emitter Voltage (V_CES) | 1200V |
| Continuous Collector Current (I_C) at Tc=80°C | 600A |
| Collector-Emitter Saturation Voltage (V_CE(sat)) at I_C=600A, Tj=125°C | 2.7V (Max) |
| Total Power Dissipation (P_C) at Tc=25°C | 3120W |
| Operating Junction Temperature (T_j(op)) | -40 to +150°C |
| Package Type | M230 |
Engineer's FAQ for the 1MBI600PX-120
- What are the critical considerations for the gate drive design?Given its high-speed nature, a robust gate drive is essential. Focus on a low-inductance PCB layout, using a gate driver IC with high peak current capability (e.g., >10A) to charge and discharge the gate capacitance quickly. A clean, stable ±15V supply is recommended. To ensure optimal switching performance, utilize the auxiliary Kelvin emitter pin for the gate driver return path. This bypasses stray inductance in the main emitter connection, preventing negative feedback that can slow down switching and increase losses. For further reading, see our guide on robust IGBT gate drive design.
- Can the 1MBI600PX-120 be paralleled for higher current?Yes, paralleling these modules is a common practice for creating very high-power converters. Success requires careful engineering. Key considerations include ensuring a perfectly symmetrical PCB layout for both power and gate drive paths to guarantee equal current sharing. The positive temperature coefficient of V_CE(sat) provides a degree of self-balancing against thermal runaway. However, for systems requiring several paralleled modules, we strongly recommend a detailed thermal and electrical simulation. For application-specific advice, please contact our technical team.
