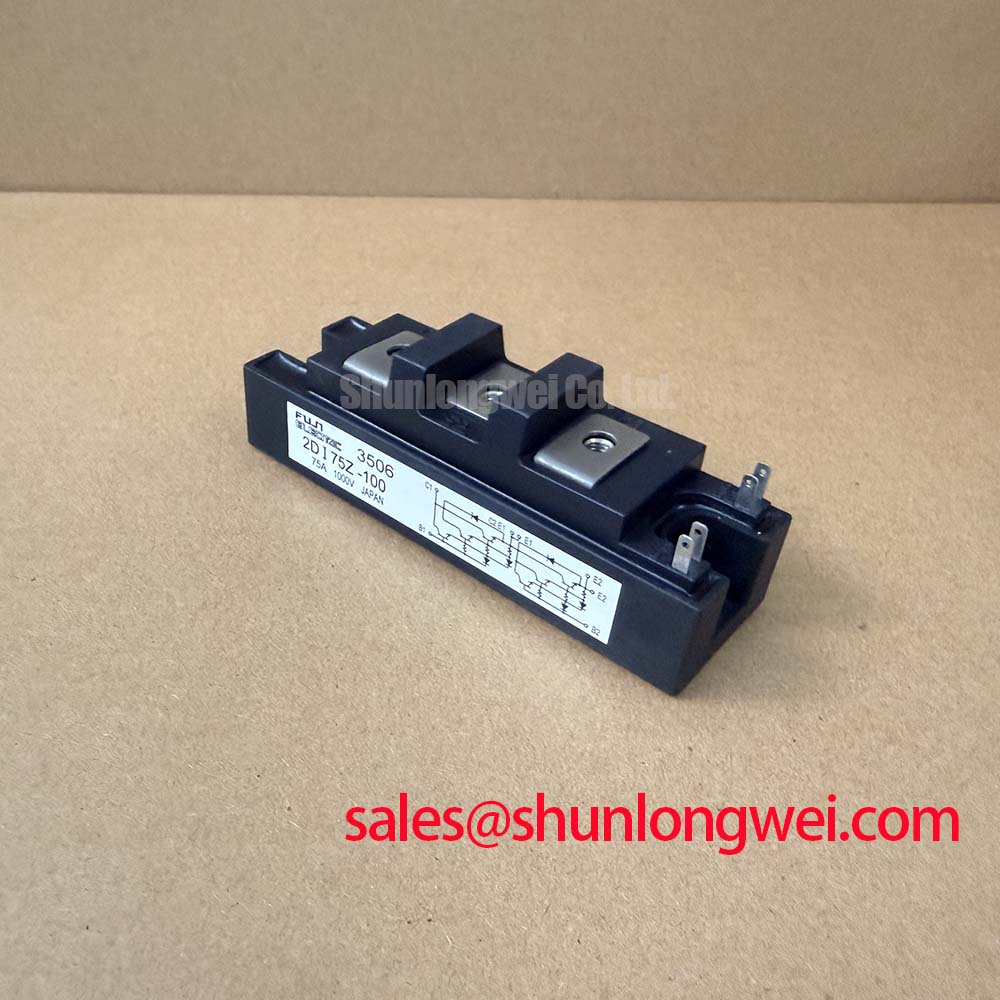

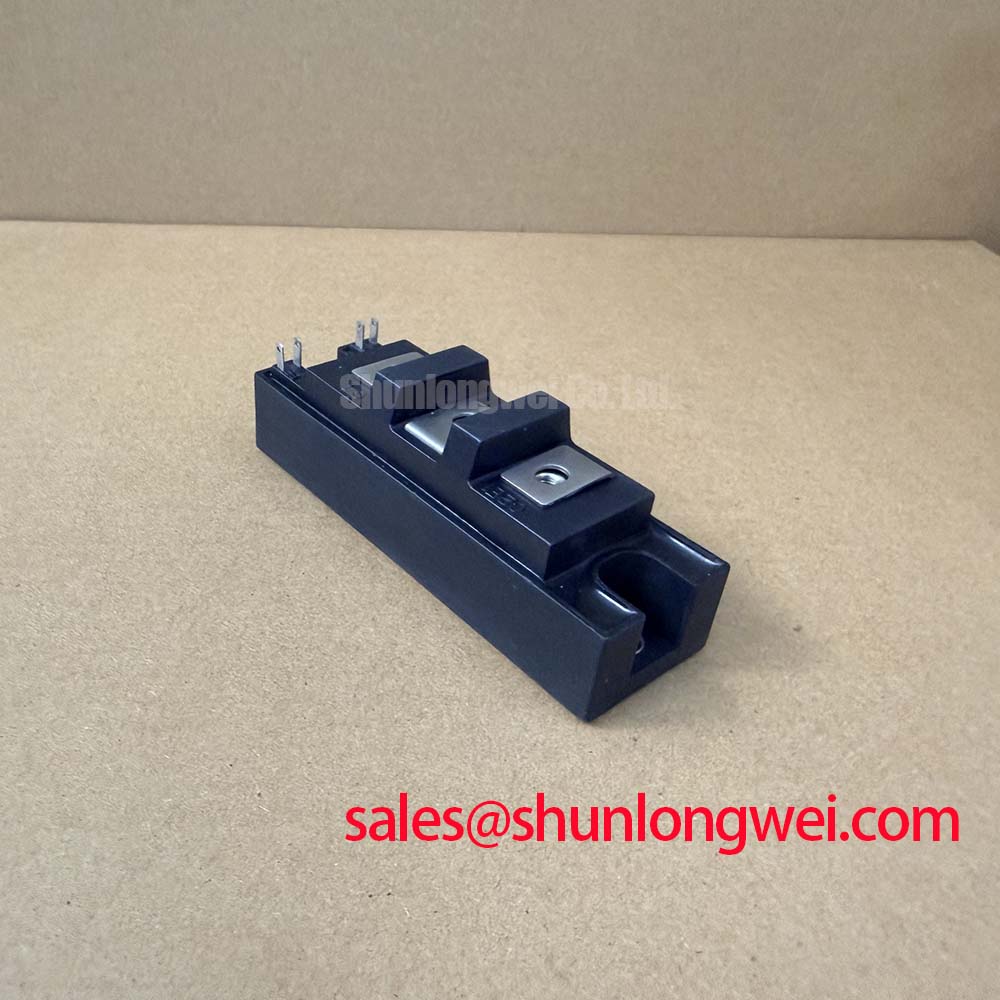

Fuji Electric 2DI75Z-100 Power Transistor Module
How do design engineers maintain switching reliability in legacy industrial drives without a complete gate drive redesign? The 2DI75Z-100, manufactured by Fuji Electric, provides a drop-in bipolar power sourcing solution to sustain legacy industrial reliability.
- Core Specifications: 1000V | 75A | Rth(j-c) 0.25°C/W
- Key Benefits: Smooth drop-in retrofit integration; robust thermal cycling resilience.
By using Darlington configurations with built-in antiparallel diodes, this module directly solves the challenge of sourcing replacement silicon for older spindle drives. What is the primary benefit of the isolated base plate? It prevents electrical short circuits to the heatsink. How does the integrated fast recovery diode help? It clamps voltage spikes during inductive turn-off. For legacy 1000V systems prioritizing thermal margins, this 75A dual Darlington module is the optimal choice.
Frequently Asked Questions
Factual Answers to Crucial Engineering Questions
- Can the 2DI75Z-100 be used in 1000V motor drives without snubber circuits?No. The 1000V rating requires external protection against transient voltage spikes that exceed the collector-emitter sustaining voltage VCEX(sus) during switching.
- How does the thermal resistance Rth(j-c) of 0.25°C/W affect thermal management?The 0.25°C/W rating ensures efficient heat transfer from the silicon junctions to the case, preventing thermal runaway when handling up to 75A of continuous collector current.
- What is the typical DC current gain (hFE) for the 2DI75Z-100 module?The dual Darlington structure yields a typical hFE of 100 at 75A, reducing base drive requirements compared to single-stage power transistors.
- How can a field engineer verify the integrity of the 2DI75Z-100 module using a multimeter?Engineers can verify junction and diode integrity by measuring forward voltage drops, as detailed in our guide on testing power modules.
Key Parameter Overview
Decoding the Specs for Enhanced Thermal Reliability
The electrical and thermal characteristics of the 2DI75Z-100 define its capability limits in industrial environments.
| Parameter | Symbol | Value | Description |
|---|---|---|---|
| Collector-Emitter Voltage | VCES / VCEX(sus) | 1000V | Maximum sustaining collector-emitter voltage under reverse bias condition. |
| Continuous Collector Current | IC | 75A | Maximum continuous current handling capacity at Tc = 25°C. |
| Peak Collector Current | ICP | 150A | Max pulsed current for short-duration switching (1 ms). |
| Collector Power Dissipation | PC | 500W | Maximum power dissipation per element at Tc = 25°C. |
| Collector-Emitter Saturation Voltage | VCE(sat) | 2.8V | Maximum voltage drop at IC = 75A and IB = 1A. |
| Thermal Resistance (Junction-to-Case) | Rth(j-c) | 0.25°C/W | Junction-to-case thermal resistance for optimal heat transfer. |
Download the 2DI75Z-100 datasheet for detailed specifications and performance curves.
Technical Deep Dive
A Closer Look at the Darlington Configuration and Thermal Path
The internal architecture of the 2DI75Z-100 consists of a dual Darlington pair, which serves to drastically improve current gain. In a typical bipolar power transistor, driving a 75A collector current would require a substantial base current. The Darlington structure acts like a two-stage mechanical gear reducer, where a tiny input current controls a medium stage, which in turn switches the primary 75A current path. This high-gain configuration minimizes control circuit overhead, rendering it compatible with older logic cards.
Furthermore, the module integrates an antiparallel fast recovery diode across each Darlington transistor. When switching inductive loads, the sudden interruption of current creates a massive reverse voltage spike. The integrated diode acts like a pressure release valve in a hydraulic pipe, redirecting this inductive energy safely away from the transistor to prevent avalanche breakdown. For engineers evaluating legacy retrofits, understanding these topologies is critical when contrasting technology options in our guide to power semiconductor selection.

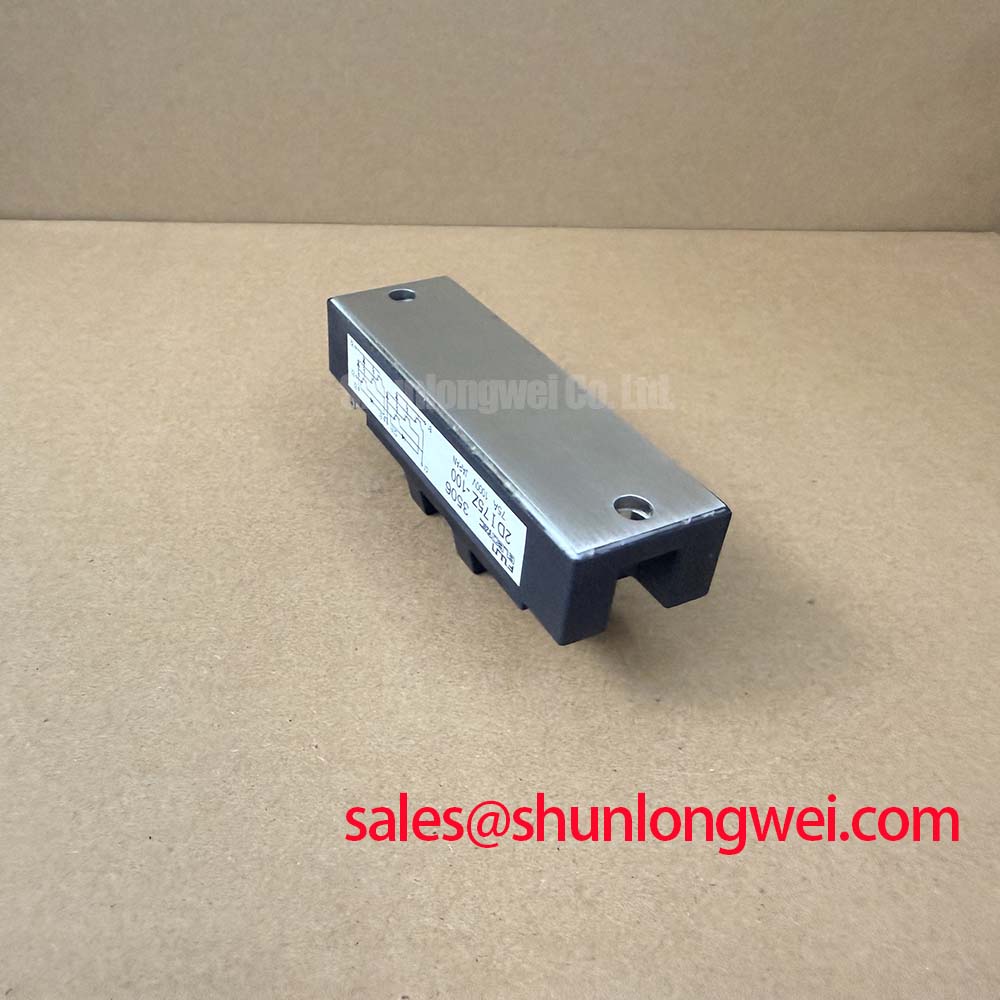

From a thermal perspective, the copper base plate is electrically isolated from the semiconductor dies. This construction provides a direct heat dissipation path with a junction-to-case thermal resistance (Rth(j-c)) of 0.25°C/W. This low resistance ensures that thermal energy is quickly evacuated to the external heatsink, maintaining the junction temperature (Tj) within its Safe Operating Area during switching cycles.
Application Scenarios & Value
Ensuring Efficiency in Industrial Motor Drives and UPS Systems
Industrial machinery often operates under harsh electrical conditions. In spindle motor drives and industrial UPS systems, starting heavy inductive loads generates severe inrush currents. The 2DI75Z-100 handles these demands through its robust peak pulse current limit of 150A, which allows it to absorb motor start-up surges without degradation. The isolated module packaging makes it easy to mount multiple units on a single heatsink, facilitating compact phase-leg configurations.
Furthermore, field engineers replacing components in legacy systems find value in the module's stable switching characteristics. While modern silicon devices offer faster switching times, their high dV/dt rates can induce electromagnetic interference (EMI) and winding insulation stress. The controlled switching speed of the Darlington transistor prevents these insulation failures. For systems requiring updated technologies, engineers can refer to the engineers' guide to IGBT modules to evaluate performance differences.
In terms of component sourcing and system design, aligning voltage margins is crucial. While this 1000V module is ideal for medium-voltage industrial controls, systems requiring higher current handling can utilize the QM100DY-H which offers a rating of 100A at 600V. Conversely, for projects transitioning toward high-efficiency trench-gate designs, the 2MBI75U4A-120-50 provides a modern alternative with a 1200V rating.
As global industrial modernization emphasizes energy efficiency and carbon footprint reduction, prolonging the operational lifespan of existing capital equipment through targeted retrofits represents a highly sustainable strategy. The 2DI75Z-100 enables power electronics engineers to maintain older, high-power installations, avoiding premature equipment obsolescence. By ensuring high thermal performance and stable bipolar execution, this power transistor module remains a critical asset in the maintenance of legacy manufacturing assets.
