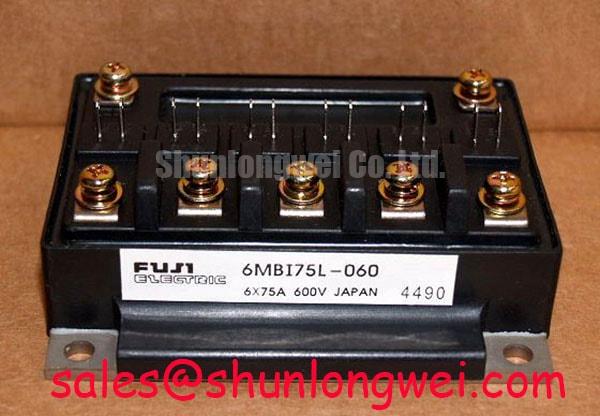

6MBI75L-060 Fuji Electric 600V 75A IGBT Module
The 6MBI75L-060 is a high-performance 6-pack IGBT module designed for efficient power switching in industrial automation and motor control systems. Featuring a 600V collector-emitter voltage and a 75A continuous collector current rating, this module is optimized for reliability in medium-power applications. By integrating six insulated-gate bipolar transistors into a single package, it simplifies inverter bridge design while maintaining a low Vce(sat) to minimize thermal dissipation during high-frequency operation.
For engineers maintaining legacy systems or designing new power conversion stages, the 6MBI75L-060 offers a stable platform for AC/DC motor drives, Uninterruptible Power Supplies (UPS), and industrial inverters. Its low-inductance package design enhances switching performance and reduces electromagnetic interference (EMI), which is critical for meeting stringent industrial compliance standards. For 230V-460V AC motor drives prioritizing thermal margin, this 75A module remains a proven industry choice.
Key Parameter Overview
Decoding the Specifications for Enhanced Thermal Reliability
Understanding the electrical boundaries of the 6MBI75L-060 is essential for ensuring system longevity and preventing IGBT failure due to overcurrent or thermal stress. The following table highlights the critical technical specifications derived from the official Fuji Electric technical documentation.
| Parameter | Symbol | Rated Value |
|---|---|---|
| Collector-Emitter Voltage | Vces | 600V |
| Collector Current (DC) | Ic | 75A (at Tc=25°C) |
| Collector Current (1ms) | Icp | 150A |
| Collector Power Dissipation | Pc | 310W (per element) |
| Saturation Voltage (Typical) | Vce(sat) | 2.1V |
| Isolation Voltage | Viso | 2000V AC (1 minute) |
| Operating Junction Temp | Tj | Up to +150°C |
Download the 6MBI75L-060 datasheet for detailed specifications and performance curves.
Application Scenarios & Value
Achieving System-Level Benefits in High-Efficiency Power Conversion
The 6MBI75L-060 is predominantly utilized in Variable Frequency Drives (VFD) and Servo Drive architectures where space and thermal management are paramount. The integrated 6-pack topology allows for a more compact PCB layout compared to using discrete components, reducing the overall system footprint. In high-duty cycle environments, the module's 2.1V Vce(sat) reduces conduction losses, effectively acting like a low-resistance "pipe" for electrical current, which allows the system to run cooler and last longer.
In Solar Inverter applications, the 6MBI75L-060 serves as a reliable switching stage for DC-to-AC conversion. Its robust Short-Circuit Withstand Time provides a safety buffer during unforeseen grid faults, preventing catastrophic failures. While this 75A model is ideal for compact drives, systems requiring higher current handling may utilize the 2MBI200VA-060, which offers a higher power density for heavy-duty industrial loads. Engineers can further explore IGBT selection strategies by consulting The Core Trio of IGBT Module Selection.
Technical Deep Dive
Thermal Package Design and Long-Term Reliability under Stress
The 6MBI75L-060 utilizes a specialized copper baseplate and ceramic insulation layer to optimize Thermal Resistance. Think of the Rth(j-c) (junction-to-case resistance) as the efficiency of a heat highway; a lower resistance ensures that heat generated during the Switching Loss phase is rapidly moved away from the silicon die to the heatsink. This prevents localized "hot spots" that lead to thermal runaway.
The module’s Safe Operating Area (SOA) is particularly robust, allowing it to handle inductive load turn-off spikes common in motor control. This "ruggedness" is a result of Fuji Electric's advanced chip technology, which minimizes the Miller Effect during high-speed switching. For maintenance technicians, understanding how to test an IGBT module with a multimeter is essential for diagnosing performance drift before it leads to full system downtime. Furthermore, addressing IGBT failure analysis helps in designing better cooling and protection circuits.
FAQ
How does the Vce(sat) of 2.1V impact the selection of my cooling system for the 6MBI75L-060?
The Vce(sat) determines the conduction loss. A 2.1V rating at 75A results in approximately 157.5W of heat per element during peak DC conduction. Engineers must ensure the total power dissipation does not exceed the heatsink's ability to maintain the Tj below 150°C to avoid thermal degradation.
What are the primary benefits of the integrated 6-pack configuration in the 6MBI75L-060?
The primary benefit is the reduction of parasitic inductance between the inverter arms and the simplification of the Gate Drive layout. By housing all six IGBTs in one 6MBI75L-060 module, you achieve tighter current sharing and a more uniform thermal profile across the entire bridge.
As a leading distributor of high-power semiconductors, we provide the technical data and inventory transparency needed to support your 6MBI75L-060 integration. For more information on Thermal Management or to discuss high-reliability power design, visit our IGBT Knowledge Base. Contact our sales team to verify current stock status and technical compatibility for your specific application.
